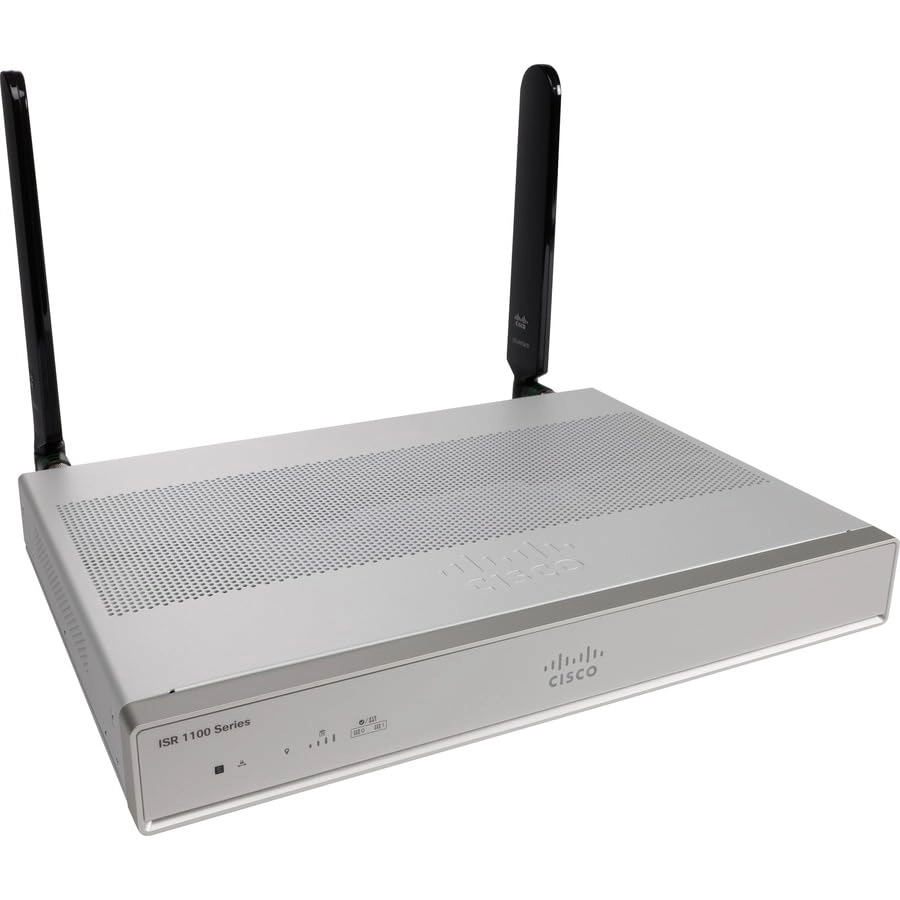

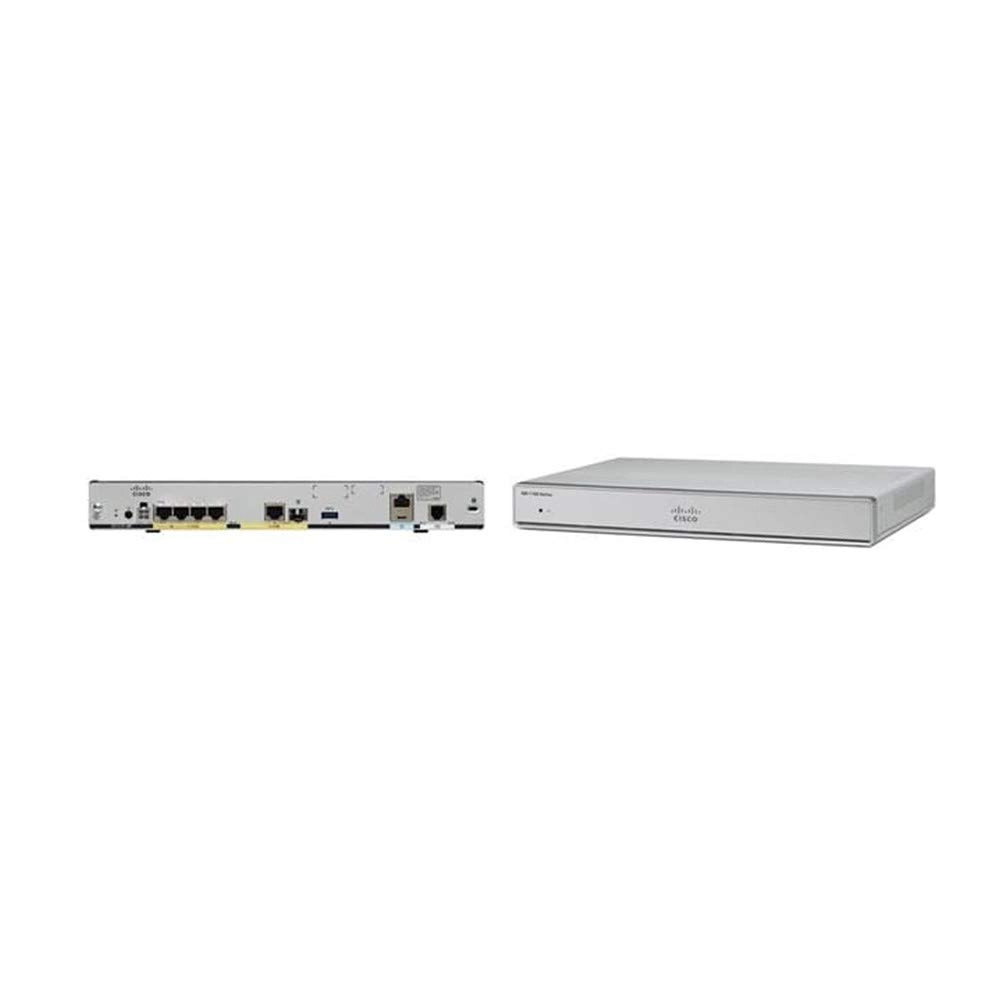

Cisco C1111-4P - 802.11ax

Name: Cisco C1111-4P - 802.11ax
Brand: Cisco
SKU: 325584
Availability: InStock

Best offer

AED

7 653⁷⁶

Key Features

DSL WAN: No
3G/4G USB modem compatibility: Yes
3G: No
4G: Yes
WLAN data transfer rate (max): 867Mbit/s
ADSL: Yes
ADSL2: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Antenna design: External
Ethernet LAN interface type: Gigabit Ethernet
Access Control List (ACL): Yes
Product type: Tabletop router
Indication light: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Cabling technology: 10/100/1000Base-T(X)

Specifications

Features

Country of origin

China

Antennas quantity

Internal memory

4000 MB

Quality of Service (QoS) support

✓

Security algorithms

3DES, 802.1x RADIUS, AES, DES, WPA2

Product colour

Grey

Access Control List (ACL)

✓

Product type

Tabletop router

Packaging data

Package weight

3080 g

Package height

177.80 mm

Package depth

333.50 mm

Package width

254 mm

Weight & dimensions

Weight

2590 g

Height

44 mm

Depth

244 mm

Width

323 mm

Management features

Web-based management

✓

Power

Output voltage

12 V

AC input voltage

100 - 240 V

Power consumption (typical)

30 W

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✓

Power source type

Performance

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wireless LAN features

WLAN data transfer rate (max)

867 Mbit/s

Design

Indication light

✓

Network

Networking standards

IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Cabling technology

10/100/1000Base-T(X)

Mobile network generation

SIM card slot

✗

Ethernet LAN data rates

10, 100

4G standard

LTE

Ethernet LAN

✓

Ethernet LAN interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

USB port

✓

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

Ethernet WAN

✓

DSL features

VDSL2

✓

ADSL2

✓

ADSL

✓

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 85 %

Non-operating altitude

0 - 4570 m

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

0 - 65 °C

Antenna

Antenna design

External

Mobile network

✗

✓

Logistics data

Harmonized System (HS) code

85176990

WAN connection

3G/4G USB modem compatibility

✓

DSL WAN

✗

Product Details

Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities. The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices and in service provider managed environments.

Files

Cisco 1000 Series Integrated Services Routers

mmo_39300710_1615309035_3722_23613.pdf

PDF• 1.4 MB

Cisco ISR1100 and ISR1100X Series Routers

mmo_39300710_1615309148_4034_24625.pdf

PDF• 775.2 KB

User manual

mmo_39300710_1615309096_3304_25161.pdf

PDF• 8.7 MB
