1. [ACCURATE BATTERY TESTING] Perform precise tests on various battery types including regular flooded, AGM flat plate, AGM spiral, and gel batteries. Analyze battery health and cold cranking capability with ease.
2. [MU fit for LTIPLE RATING SYSTEMS] Test CCA, JIS, DIN, IEC, EN, SAE, GB ratings for comprehensive battery assessment.
3. [REVERSE POLARITY PROTECTION] Designed with a reverse polarity connection guard to prevent damage to the tester or the vehicle. Test batteries even with a loss of electricity.
4. [BUILT-IN PRINTER] Conveniently print diagnostic test data directly from the tester for easy record-keeping.
5. [MU fit for LTI-LANGUAGE SUPPORT] Choose from various language packages including Chinese, English, Russian, Spanish, French, German, and more for user convenience.
Spec:
Description:
Battery Conductance Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
Features:
The battery tester will perform an accurate test for regular flooded, AGM flat plate, AGM spiral and gel batteries. It lets you analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging status.
Tests multiple rating systems - CCA, JIS, DIN, IEC, EN, SAE, GB.
Designed reverse polarity connection guard, which will not damage the tester or affect the vehicle and battery. Directly test the battery with loss of electricity, no need to full charge before testing.
Built-in printer, convenient for print diagnostic test data.
Support for multiple languages, customers can choose different language packages, including Chinese, English, Russian, Spanish, French, German and so on.
Widely applied to 12V automotive cranking lead acid battery and 12v/24v car system test.
Specifications:
Housing Material: ABS Plastic
Color: Yellow + Black
Working Environment Temperature: -10℃ - +50℃
Special Test Clamp/Holder: Double Conductance Clamp
Measure Range: 30AH-200AH
Voltage Measure Range: 7-30V DC
Measure Range:
CCA: 100-3000
BCI: 100-3000
CA: 100-3000
MCA: 100-3000
JIS: 26A17--245H52
DIN: 100-2500
IEC: 100-2500
EN: 100-2500
SAE: 100-3000
GB: 30AH-220AH

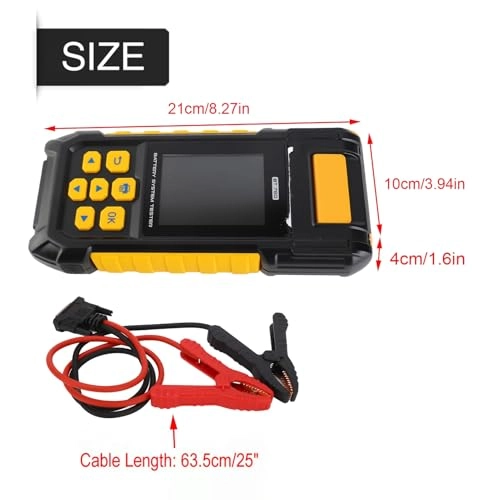

Size: 21 * 10 * 4cm/8.3 * 3.9 * 1.6in
Cable Length: 63.5cm/25in
Package Weight: approx.652g

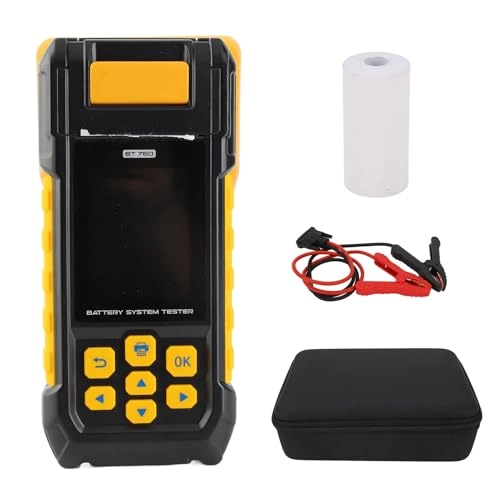

Package List:
1 x Analyzer
1 x Line
1 x Storage Bag
1 x Manual
1 Roll x Printer Paper
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
