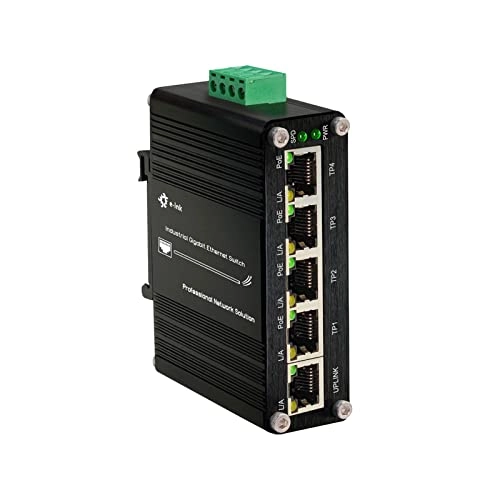

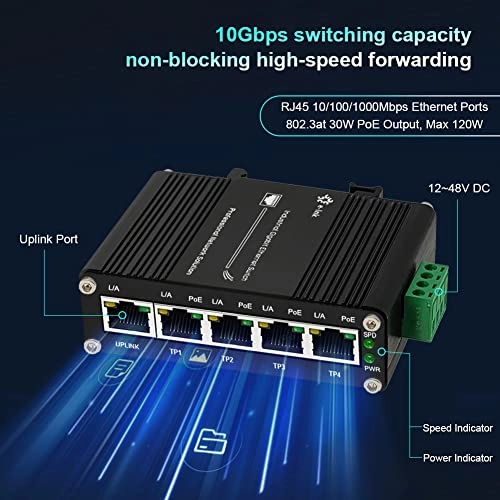

Centopto Cent-SP-005 - 5-ports

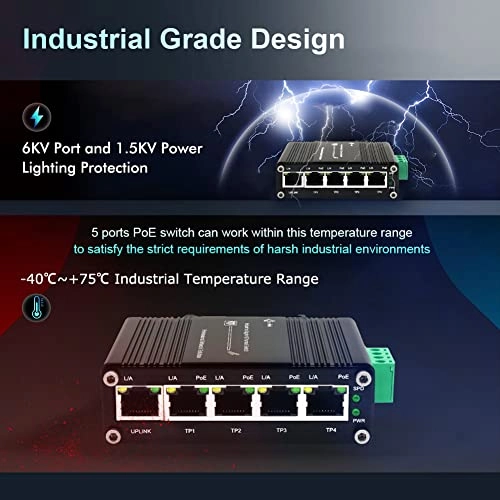

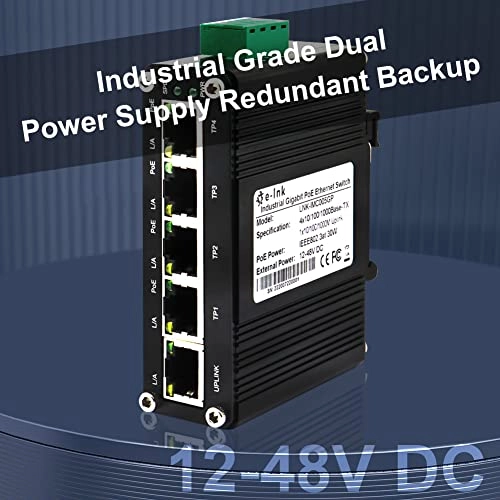

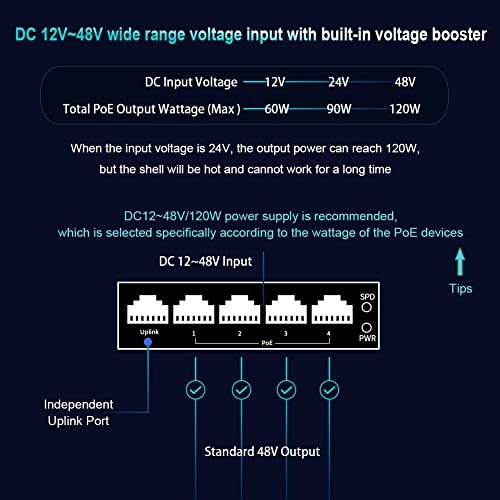

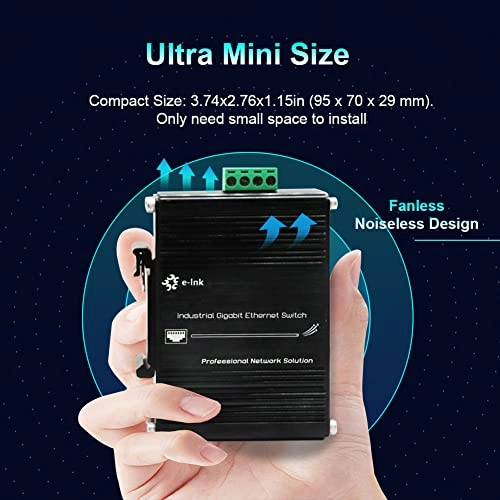

Features: 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports 802.3x Flow control Supports DIN-Rail and Wall-mount installation 1248V DC wide range power input Industry standard design, dustproof and close design IP40, rugged high-strength metal case -40C to 75C (-40F to 167F) operating temperature Specifications： Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control, IEEE802. 3af (PoE), IEEE802. 3at (PoE+) Packet Buffer Memory: 1Mbit Max Packet Length: 9K Bytes. Address Table Size: 4K MAC Address Switch Capacity: 10Gbps/non-blocking Ethernet Port: RJ45 10/100/1000Mbps Ethernet Transmission distance: 100m (328ft) Input Power: 1248VDC(Power Supply not Included) Casing Material: Aluminum Case Mounting Options: DIN-Rail / Wall-mount Operating Temperature: -40C to 75C (-40F to 167F) Power consumption: <6W Mini Size (WxDxH): 3.74x2.76x1.15in (95 x 70 x 29 mm) Note: If you have any questions or find the Ethernet switch don’t work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it. Package: 5-Port Mini Industrial PoE Switch x1 Wall Mounting Kit x1 Gigabit Ethernet Switch User Manual
