CAVP9LYUS Rooftop Air Conditioner - 1800W 2300W

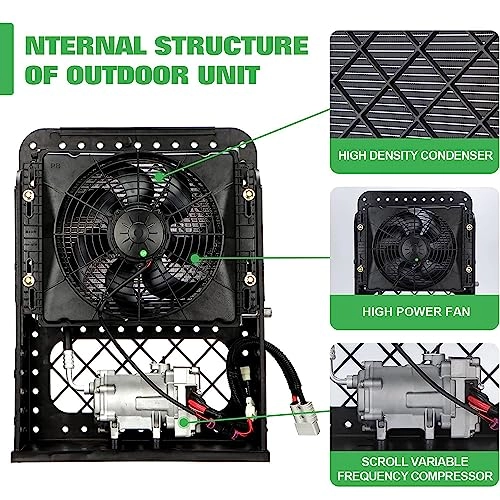

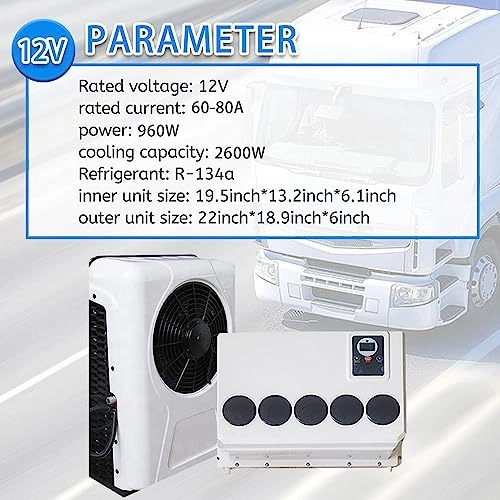

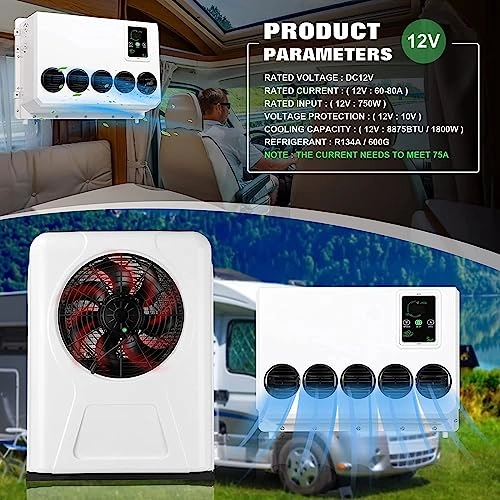

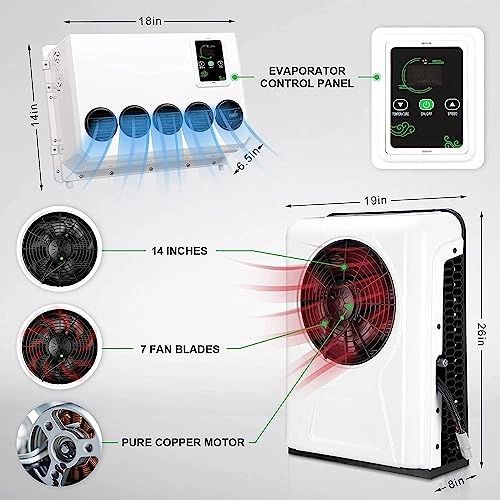

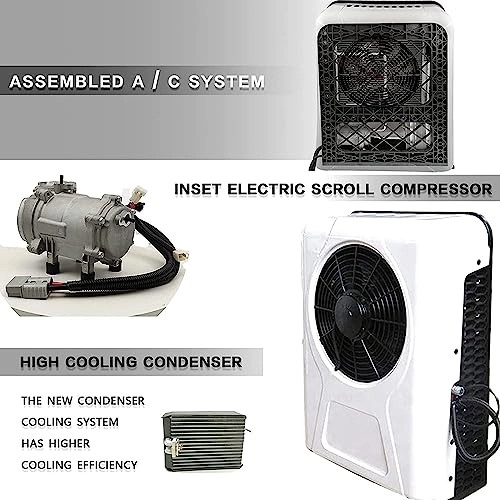

The outdoor unit It adopts integrated frequency conversion compressor, high-density condenser and super large fan. High efficiency and stability, strong cooling, large air volume, low noise, and easy installation. indoor unit Smart digital panel, five-hole air outlet can be adjusted arbitrarily, quiet, fast heat dissipation. If a fault occurs, the fault problem can be confirmed through the code displayed on the panel. remote start The remote control has several modes to choose from. The cooling method can be adjusted as needed. The fan speed of the outdoor unit can also be controlled by the remote control. 12V air conditioner parameters Voltage: DC 12V Starting current: 75A Power: 750W Cooling capacity: 8875BTU/1800W 24V air conditioner parameters Voltage: DC 24V Starting current: 45-60A Power: 750W Cooling capacity: 13500BTU/2300W Compressor: integrated frequency conversion compressor (including refrigeration oil) Refrigerant type: R134a/600g Outdoor unit size: 660*490*210mm (20kg) Indoor unit size: 455*355*165mm (6.5kg) Installation method of outdoor unit: (1) Horizontal installation. (2) Vertical installation. Indoor unit installation method: wall-mounted.
