CAR INTEGRATIONS Backup Camera - Hardwired 580p

This Mazda backup camera kit includes a high definition Rear View Camera plus the connection Harness your vehicle needs to connect you new camera to the OEM factory screen you currently have in your vehicle. The OEM style Rear View Camera is mounted above the license plate area and and is hard wired to the provided harness which connects directly into the back of your OEM Screen. Once connected, the vehicle will automatically show the reverse camera image on your factory screen whenever the vehicle is in reverse. Mazda Factory Connect Harness Features

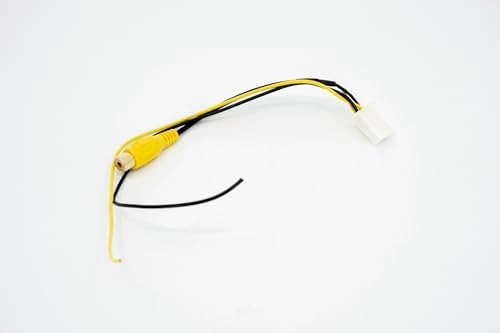

• Factory Mazda Connect Harness
• Plug & Play configuration
• Quick Connect to Video Cable and Rear Camera
• Automatic Reverse trigger activation
• Rear Camera Input (RCA)
• Parking Guide Line Option (ON/OFF)

Mazda Backup Camera Features

• OEM Style Backup Camera fitment
• Vivid Color High Resolution
• 170° Wide Angle View
• Parking Guide Lines (can be turned on/off)
• Waterproof Ip68
• Shockproof
• Simple Installation

Specifications

• 150° Off Axis View Cone

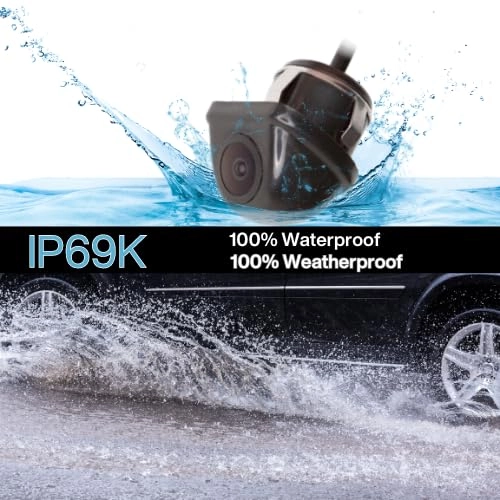

• IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
• UV Protected and Waterproof Cabling
• 0.1 LUX Rating for Optimal Low-light Performance
• 32° to 160° Temp Performance Rating
• Optional Parking Lines
• Optional Mirror Image
• Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

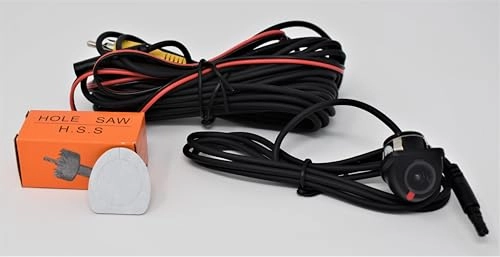

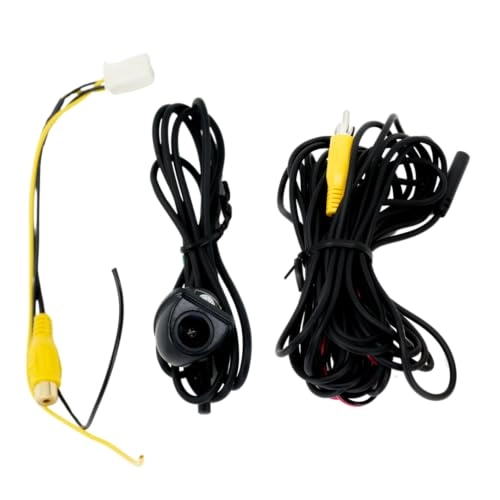

Mazda Integrated Backup Camera System Package Content

• Mazda OEM Style Universal Mount Backup Camera
• 30FT Video Cable
• Camera Power/Ground Harness
• Male to Male RCA Adapter
• Camera sealer pad
• Installation Instructions
• Owners Manual/Warranty Card
