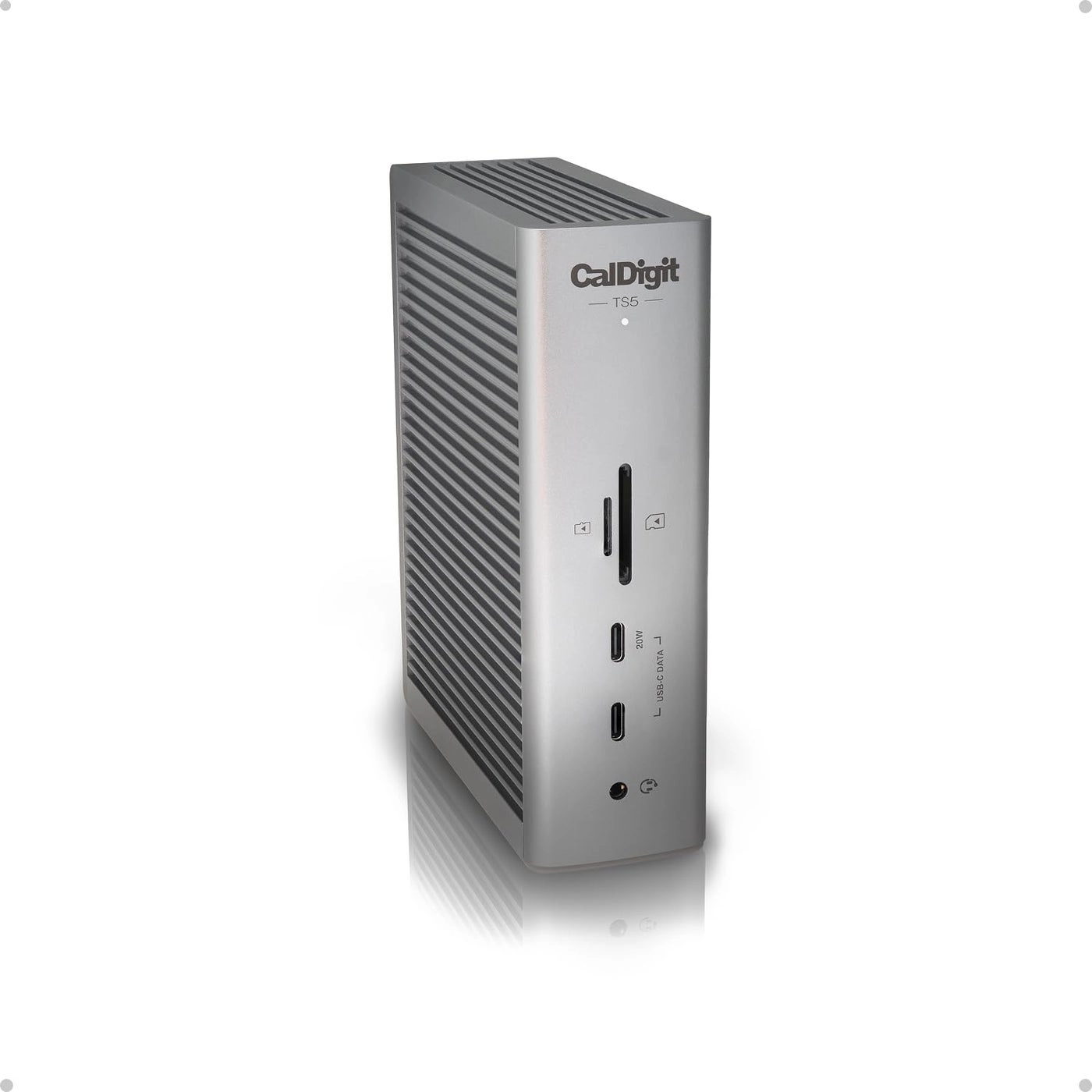

CalDigit TS5 - Thunderbolt 5 USB4 macOS Windows

15 Ports of Connectivity The TS5 includes 1x Host and 3x downstream 80Gbs Thunderbolt 5 USB4 V2 ports 1x USBA Gen 2 10Gbs port 1x USBA 480Mbs port 3x USBC 32 Gen 2 10Gbs ports DisplayPort 21 SD 40 microSD 40 UHSII card readers 25GbE and 3x audio ports Thunderbolt 5 supports 64Gbs PCIe which is ideal for connecting ultrafast Thunderbolt peripherals to the TS5 More Power than Ever The TS5 host charging port provides up to 140W power delivery This makes it ideal for power hungry laptops such as the 16 M3M4M5 Pro and Max series MacBook Pro which charges at 140W The TS5 includes a 240W power supply that allows the dock to provide sustained power delivery at all times not only for the host charging port but for all of the remaining ports In addition to all of this power the downstream Thunderbolt 5 ports offer 15W and one of the front USBC ports provides up to 20W of power delivery for charging accessories Flexible Display Configurations The TS5 on macOS devices can connect up to Dual 6K 60Hz displays or even Dual 8K 60Hz displays on Macs that support those resolutions The TS5 supports highrefresh rates at up to Dual 4K 240Hz On Windows the TS5 supports up to dual 6K 60Hz on Thunderbolt 4 hosts and up to Dual 8K 60Hz on Thunderbolt 5 hosts Thunderbolt 5 Windows users can also connect up to Triple 4K 144Hz displays on supported Windows Thunderbolt 5 hosts macOS does not support Triple displaysCheck with your manufacturer to see how many displays your computer supports PCIe Based 25 Gigabit Ethernet The TS5 can integrate into 25GbE workflows with ease since it is 25x faster than traditional 1GbE found on the majority of docking stations Users can connect to fast networks in order to transfer files quicker than ever and the 25GbE port is backwards compatible with 1GbE Ethernet is only supported on Thunderbolt based hosts as well as USB4 hosts that support PCIe Compatibility To get the maximum performance out of the TS5 a Thunderbolt 5 80Gbs or USB4 v2 80Gbs host connection is required Users on Thunderbolt 3 Thunderbolt 4 USB4 or USBC hosts will see reduced functionality The TS5 also supports Thunderbolt and USBC based tabletphone devices Bandwidth Boost A new feature of Thunderbolt 5 is the inclusion of Bandwidth Boost This powerful function allows up to 120Gbs performance to be allocated to the connected displays when bandwidth intensive monitors are connected This is specifically ideal for users that intend on connecting displays with highrefresh rates at high resolutions Aluminum Heat Sink Chassis The TS5s beautifully crafted aluminum chassis is designed as an external heat sink to dissipate heat generated by the large amount of power it provides This function has been meticulously tested to ensure the safety of the device and the user We recommend providing ample clearance around the TS5 to increase the surface area for efficient heat dissipation ensuring optimal performance
