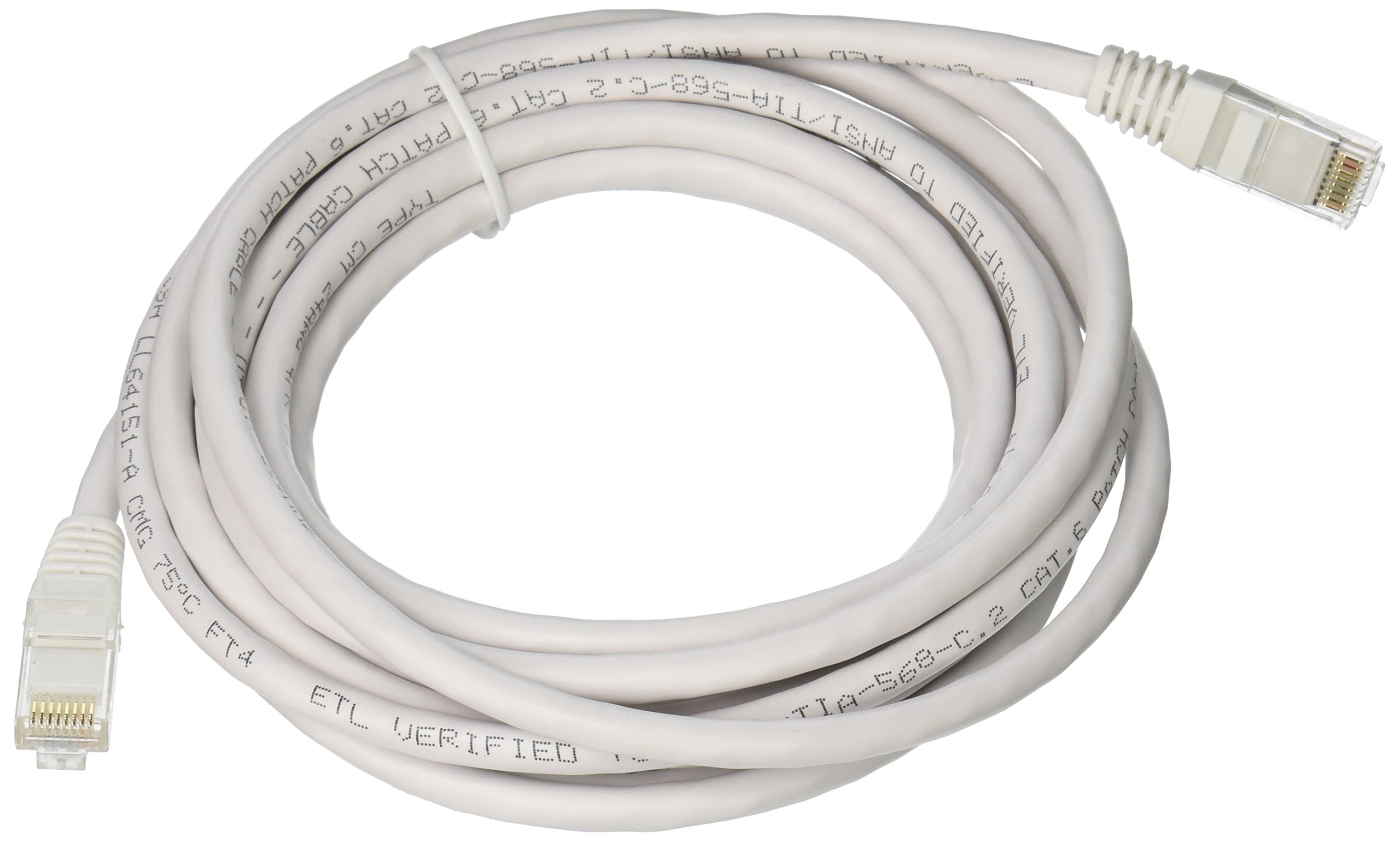

C2G Snagless Shielded (STP) Network Patch Cable - 2.4m

Protect a high speed network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use. Cable type: Stranded SSTP ,Wiring scheme: 568B, Temperature rating: 75DegreeC,Testing: ANSI/TIA 568 C.2 Cat6 component tested. Conductor (4 pair): Conductor type: 26AWG (7/0.16) (bare copper),Insulation: FM-PE. Overall cable: Foil shield: Aluminum foil (100% coverage),Braided shield: Copper braid (40% coverage),Jacket: PVC. Connector: Connector Type: RJ-45 Male, Shell: Nickel plated for shielding, Housing: Polycarbonate, UL94V-0,Contacts: 50m gold plated. Hood: Molded Snagless PVC UL94V-0
