Manufacturer Specifications
General
Chipset: NTK 96655
Sensor: 1/4 Inch 12M CMOS Sensor
Video Resolution: 1080P (1920x1080) 30fps, 720P (1280x720) 30fps, WVGA (848x480), VGA (640X480)
Rear View Video Resolution: 720x480 30fps (Extension cable 6m)
Video Encoding: H.264
Video Format: MOV
Video Output Format: PAL, NTSC
Image Size: 12M (4032X3024), 10M (3648X2736), 8M (3264X2448), 5M (2592X1944), 3M (2048X1536), 2MHD (1920X1080), VGA (640X480), 1.2M (1280X960)
Image Format: JPEG
Quality: Fine, Normal, Economy
Dual Record
Exposure: -2.0, -5/3, -4/3. -1.0, -2/3, -1/3, 0.0, +1/3, +2/3, +1.0, +4/3, +5/3, +2.0
Sharpness: Strong, Standard, Soft
White Balance: Auto, Daylight, Cloudy, Tungsten, Fluorescent
ISO: Auto, 100, 200, 400
Color: Standard, Black and White, Brown
Audio: Built in MIC, Speaker (AAC)
Capture Mode: Single, 2s timer, 5s timer, 10s timer
Loop-Cycle Recording: Off, 3min, 5min, 10min
Time Stamp / Water Mark
Motion Detection
Ignition Auto Start Recording
G-Sensor: Off, Low, Medium, High
Car No.
Auto Power Off: Off, 1 Min, 3 Min, 5 Min, 10 Min
Parking Monitor
Backlight: Off, 1min, 3min, 5min
Recording Mode: Loop Recording, Motion Detection Recording

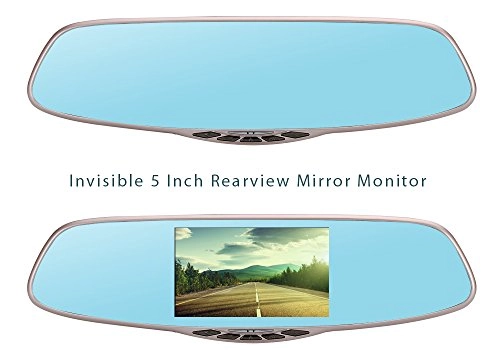

Display
Display Size: 5 Inch IPS
Resolution: 800X480 RGB

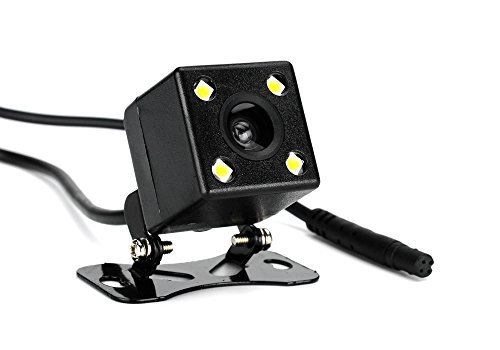

Rear Camera
Resolution: 360X240
Viewing Angle: 140 Degrees

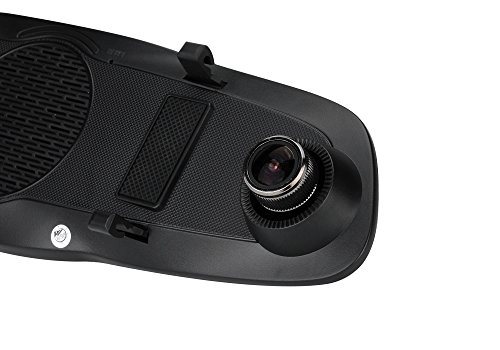

Lens
Image Sensor: OV0330 12MP CMOS image sensor
Viewing Angle: 170 Degrees
Memory
Micro SD Card up to 32GB

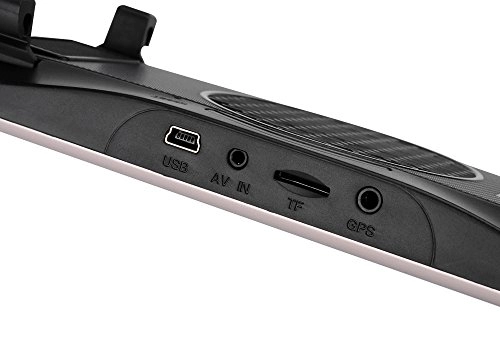

Ports
Mini USB
Micro SD Card
AV In
GPS
Languages
English, French, Spanish, Portuguese, Deutsch, Italian,
Dimensions
Main Product Dimensions: 310 x 90 x 37mm (L x W x D)
Main Product Weight: 263g
Package Contents
Car DVR
Back Camera
Car Charger
USB Cable
Back Camera Cable
User Manual
Adhesive Pad
Cleaning Cloth
2x Rubber Straps
2x Screw
