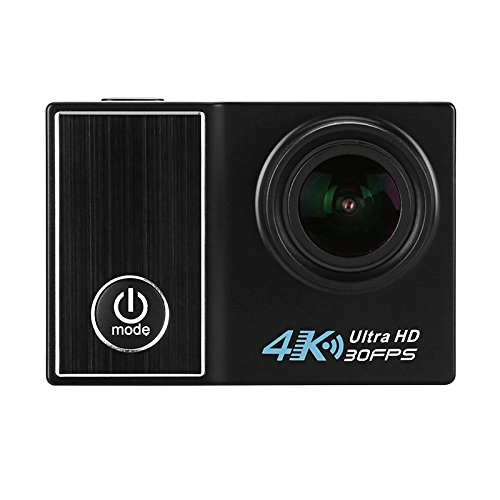

Manufacturer Specifications
General
Sensor: 1/2 12.4MP CMOS sensor (Sony imx117)
Lens: F2.5F = 3mm
Lens Angle: 170 degree
DSP: Ambarella a12s75
Display: 2 inch LCD screen
Screen resolution: 240 x 320
Image Format: JPEG
Audio: PCM 48KHZ 16bit
Video Format: H.264 BP/MP/HP Level 5.1 and MJPEG codecs
Image rate: 60 fps
Video Resolution: 4K: 16:9, 30fps, 4K 3840x2160: 3840x2160 16:9 25fps SuperView,
HDMI: Output Support 1920 X 1080P60 With CCA
Cycle Recording
Frequency: 50Hz/60Hz
Zoom: X4
Video output format: PAL/NTSC
Time-lapse: close, 1S, 2S, 5S, 10S, 30S, 60S
Programmed: close, 3S, 5S, 10S, 30S, 60S
Continuous shooting (Burst rate) xFF1 A; near, 3P/S, 5P/S, 10P/S
Motion Detection xFF1A; Off/Low/Medium/High
Dual files & # xFF1 A; on/off
Loop recording: close, 2 min, 3 min, 5 min
Sharpness & # xFF1 A; strong, noraml, smooth
WiFi distance: 20 m
WiFi: IEEE 802.11 b/g/n
WiFi: Scan and dowload App for iOS or Android
App for iOS 7 and Android 4.1 (App Name: uhdv)

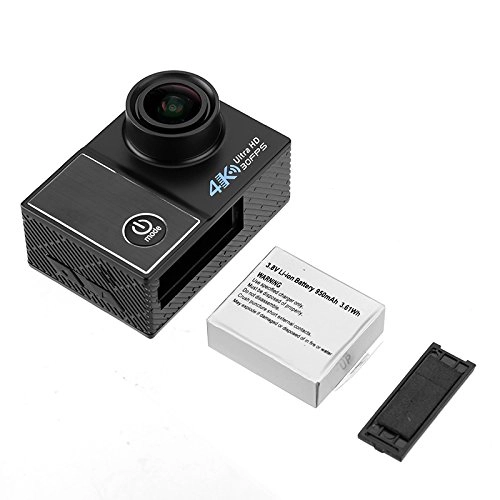

Battery: 900mAh removable lithium polymer battery
Rechargeable xFF1A; 3.85V, 900mA
Battery Working time: up to 50 minutes with WiFi off (at 1080p 60fps)
Charging time: about 2 hours
Supports timeand date stamp

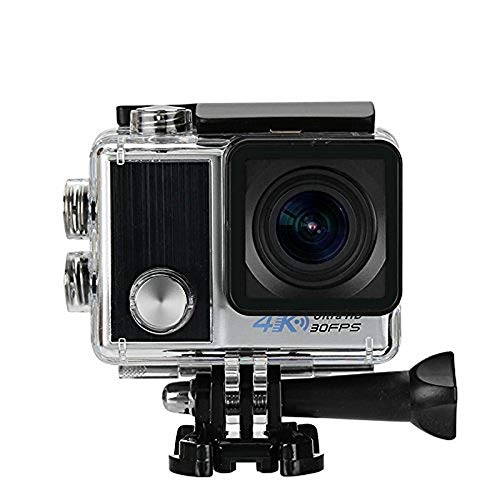

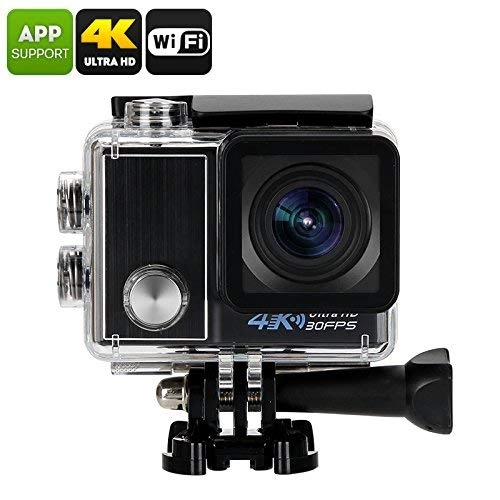

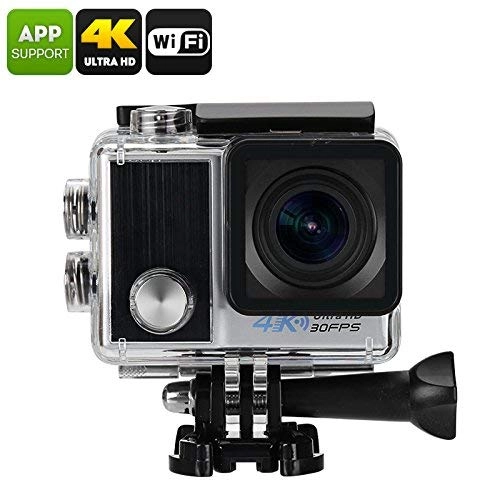

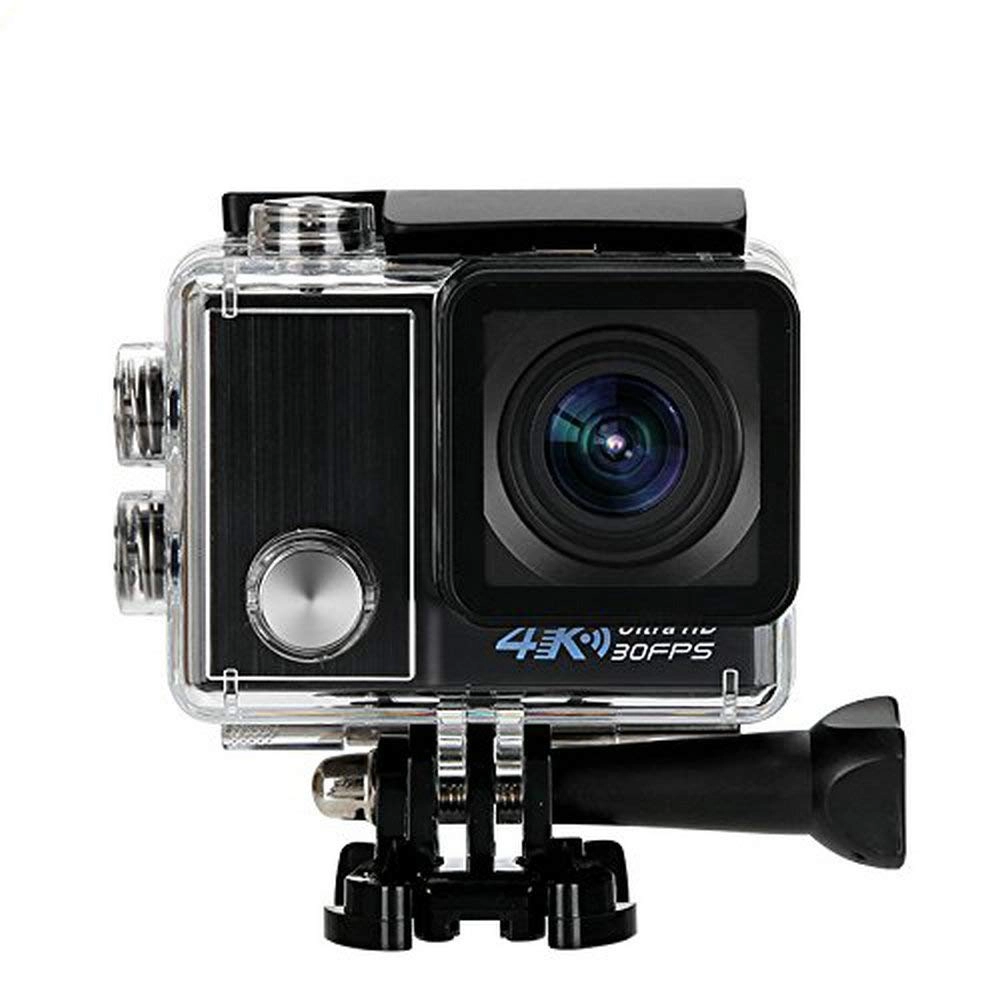

Waterproof rating: IP68 with waterproof case, 30 meters underwater
Memory
Storage support: Micro SD card, up to 64GB
Requirements Class Classification: Class 6 and above

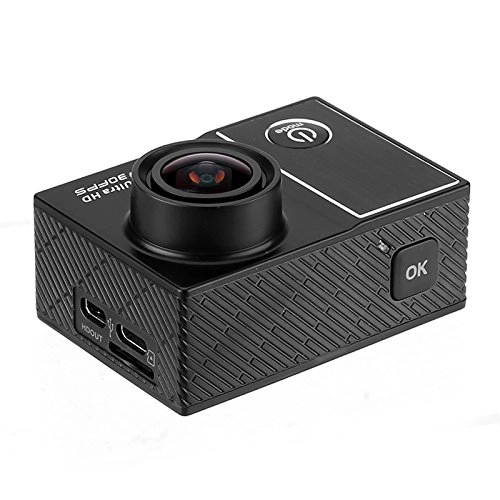

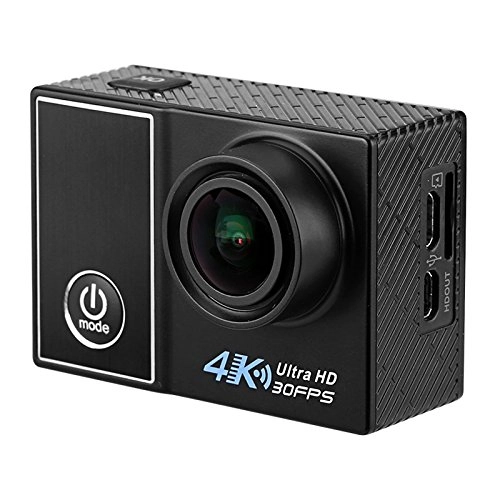

Ports
Mini USB
Micro SD Card
Mini HDMI
Languages
English, French, Deutsch, Spain, Italian
Size:
Main Product Dimensions: 40 x 60 x 32 mm (L x W x D)
Main Product Weight: 70g
Package Contents
sport camera
refillable
Water Resistant Case
Handel Bar Mount
Quick Release Base
Backdoor Protection
J-Hook Buckle
Fixed base
Quick Release Clip
4 x Mounting Adapter
2 x Helmet Base
straps
4 x Zip closure.
2 x 3 m adhesive pads
Cable Strap
Power Adapter
cleaning cloth
User Manual
USB Cable
