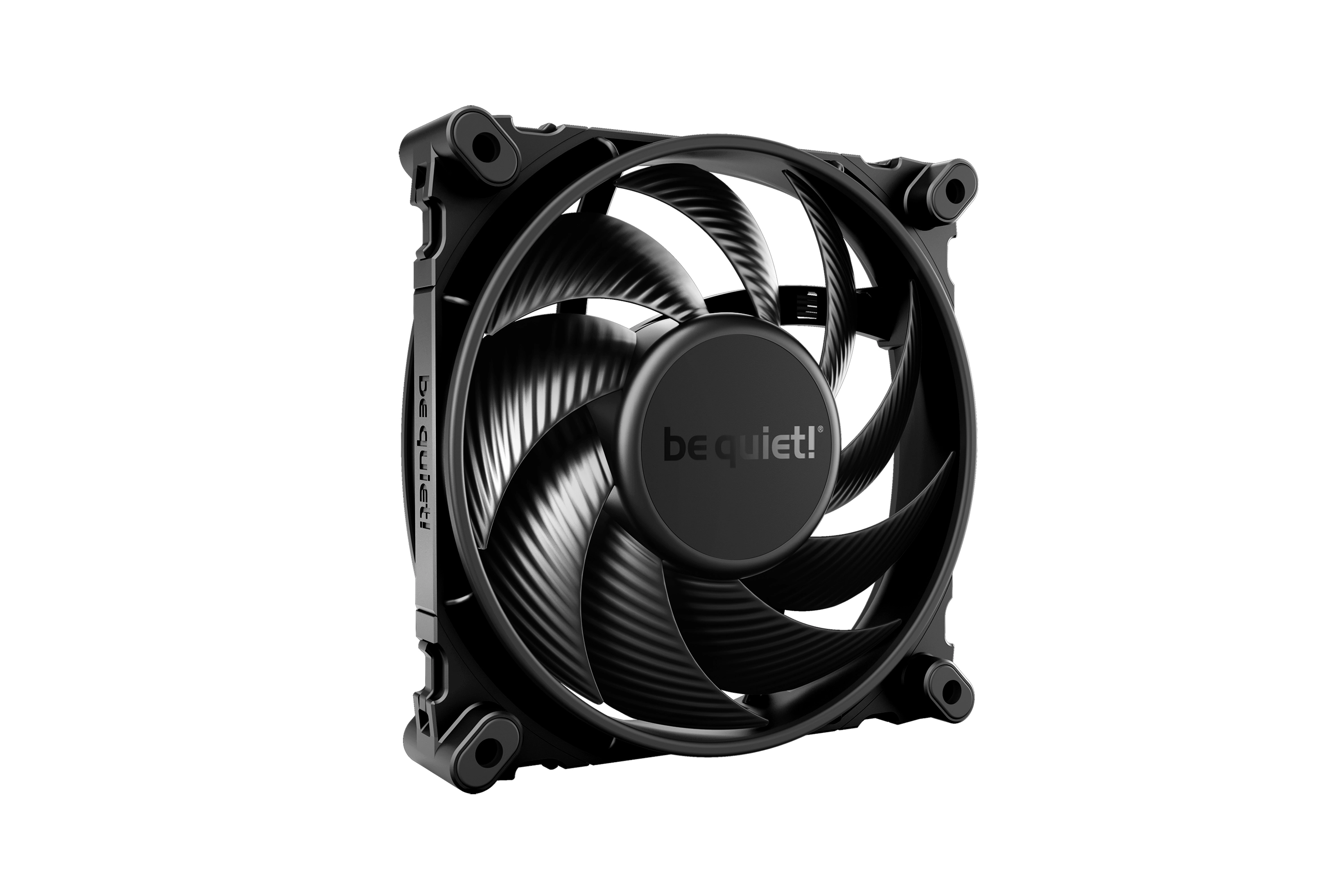

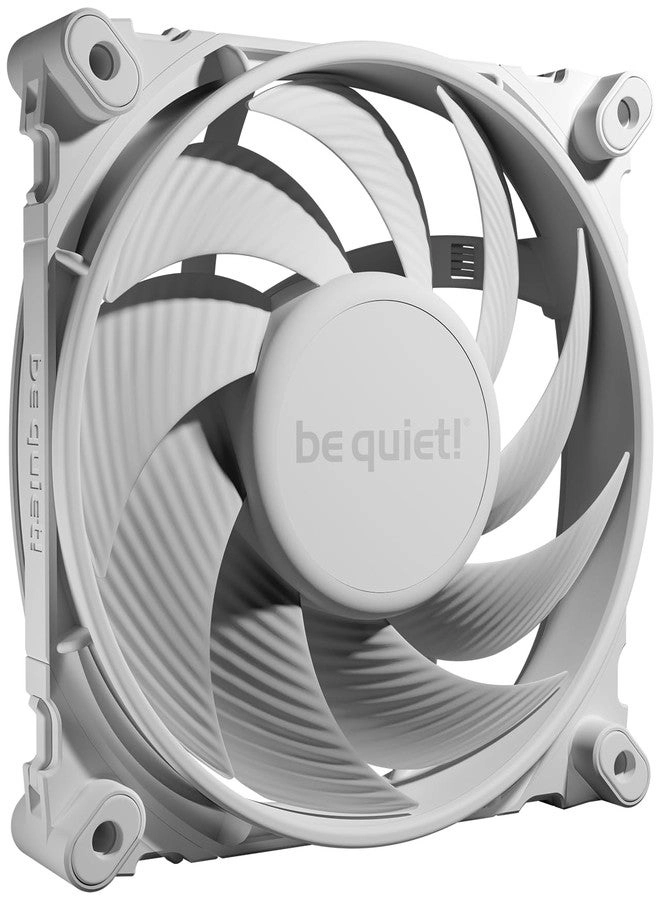

be quiet! Silent Wings 4 - 120mm

Name: be quiet! Silent Wings 4 - 120mm
Brand: be quiet!
SKU: 755889
Availability: InStock

Best offer

AED

178¹⁹

Key Features

Fan dimensions (W x D x H): 25 x 120 x 120mm
Number of clips: 4
Rotational speed (max): 1600RPM
Maximum air pressure: 1.79mmH2O
Type: Fan
Bearing type: Fluid Dynamic Bearing (FDB)
Noise level (high speed): 18.9dB
Airflow: 82.74m³/h
Maximum airflow: 48.7cfm
Rated voltage: 12V
Fan power consumption: 2.4W
Compliance certificates: CE, RoHS, UKCA, WEEE
Product colour: Black
Rated current: 0.12A
Suitable location: Computer case

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

300000 h

Fan's mean time to failure (MTTF)

300000 h

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

120 mm

Suitable location

Computer case

Product colour

Black

Rotational speed (max)

1600 RPM

Maximum air pressure

1.79 mmH2O

Type

Fan

Bearing type

Fluid Dynamic Bearing (FDB)

Noise level (high speed)

18.90 dB

Airflow

82.74 m³/h

Maximum airflow

48.70 cfm

Packaging data

Package weight

400 g

Package height

31 mm

Package depth

192 mm

Package width

141 mm

Weight & dimensions

Weight

190 g

Height

25 mm

Depth

120 mm

Width

120 mm

Cable length

0.50 m

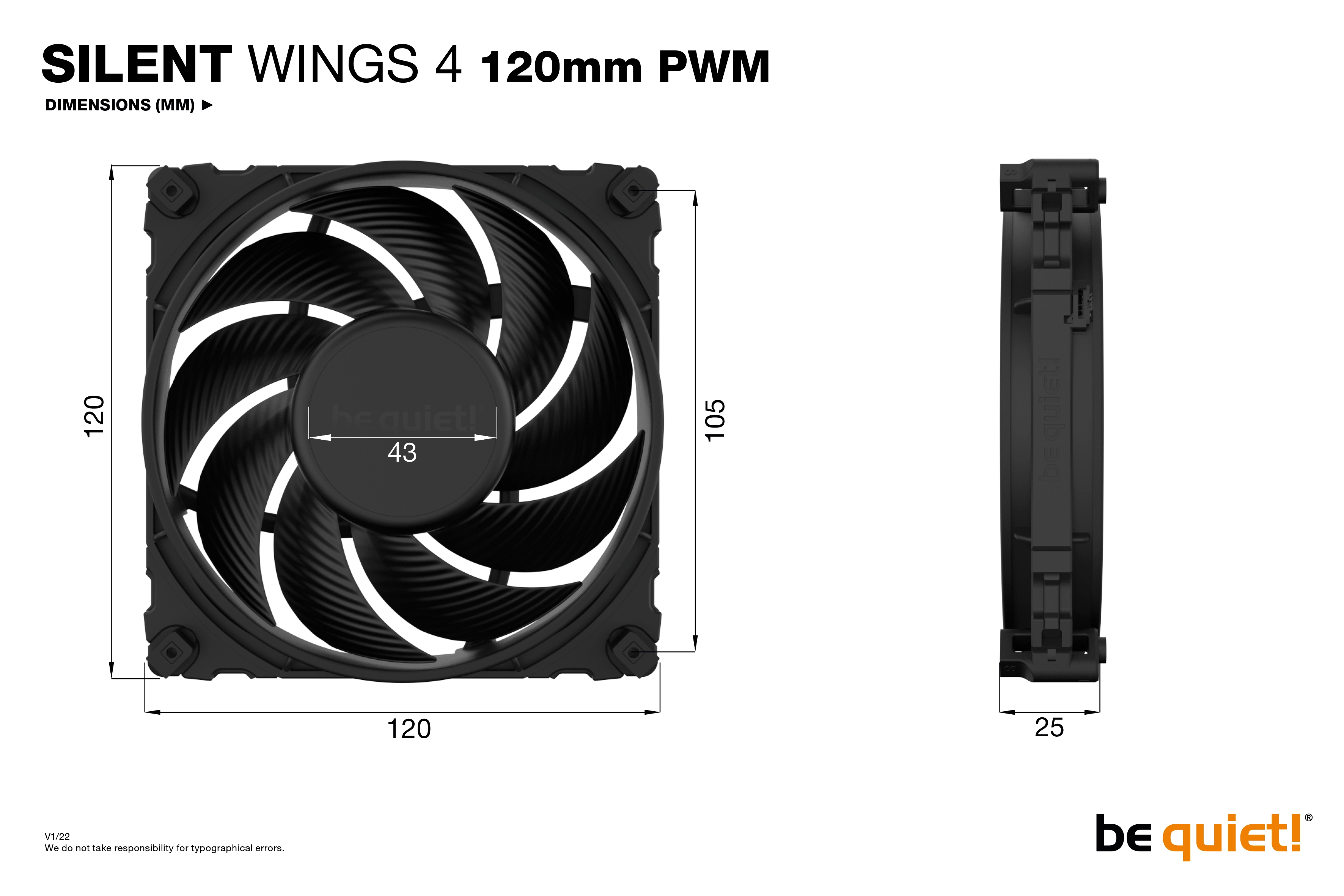

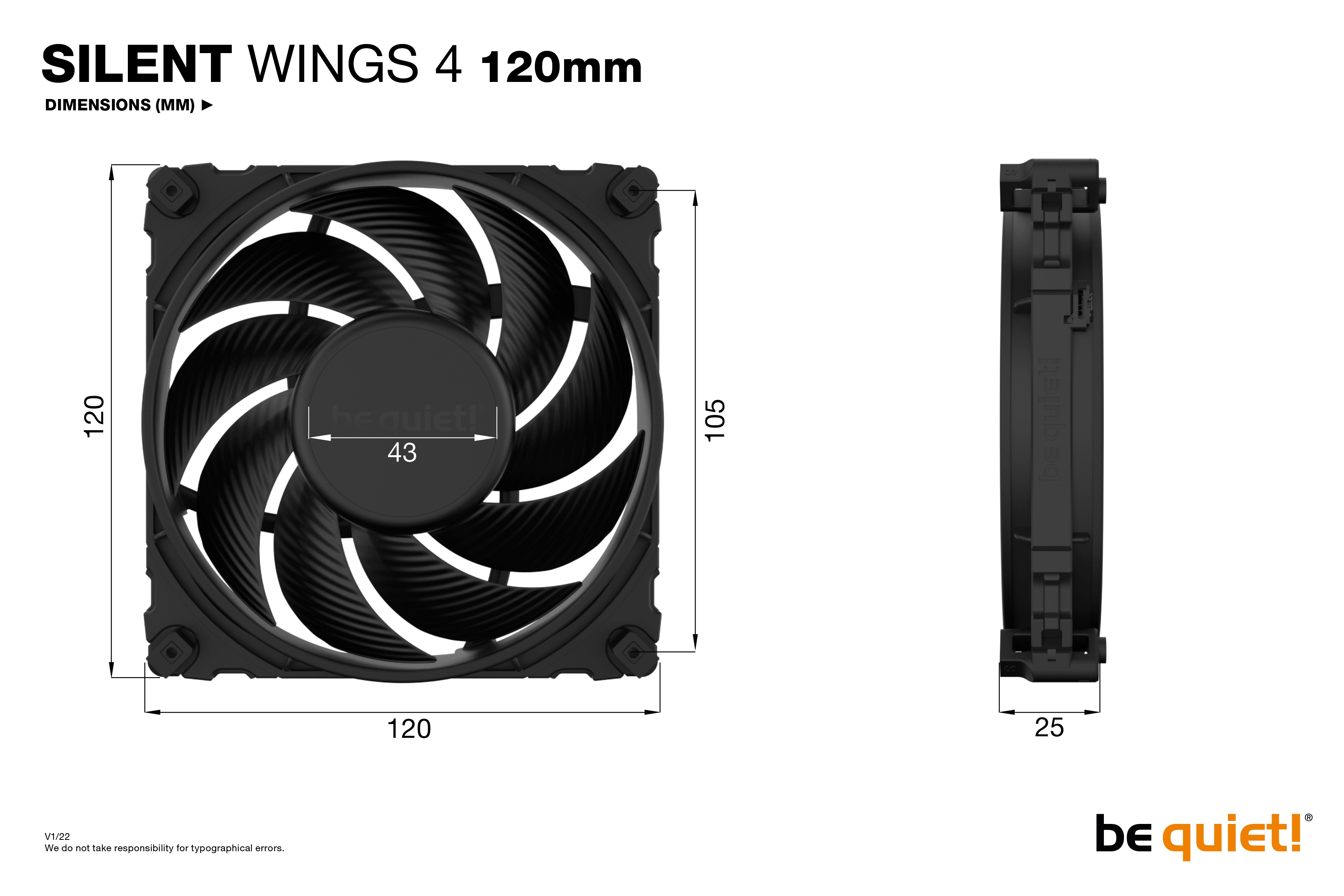

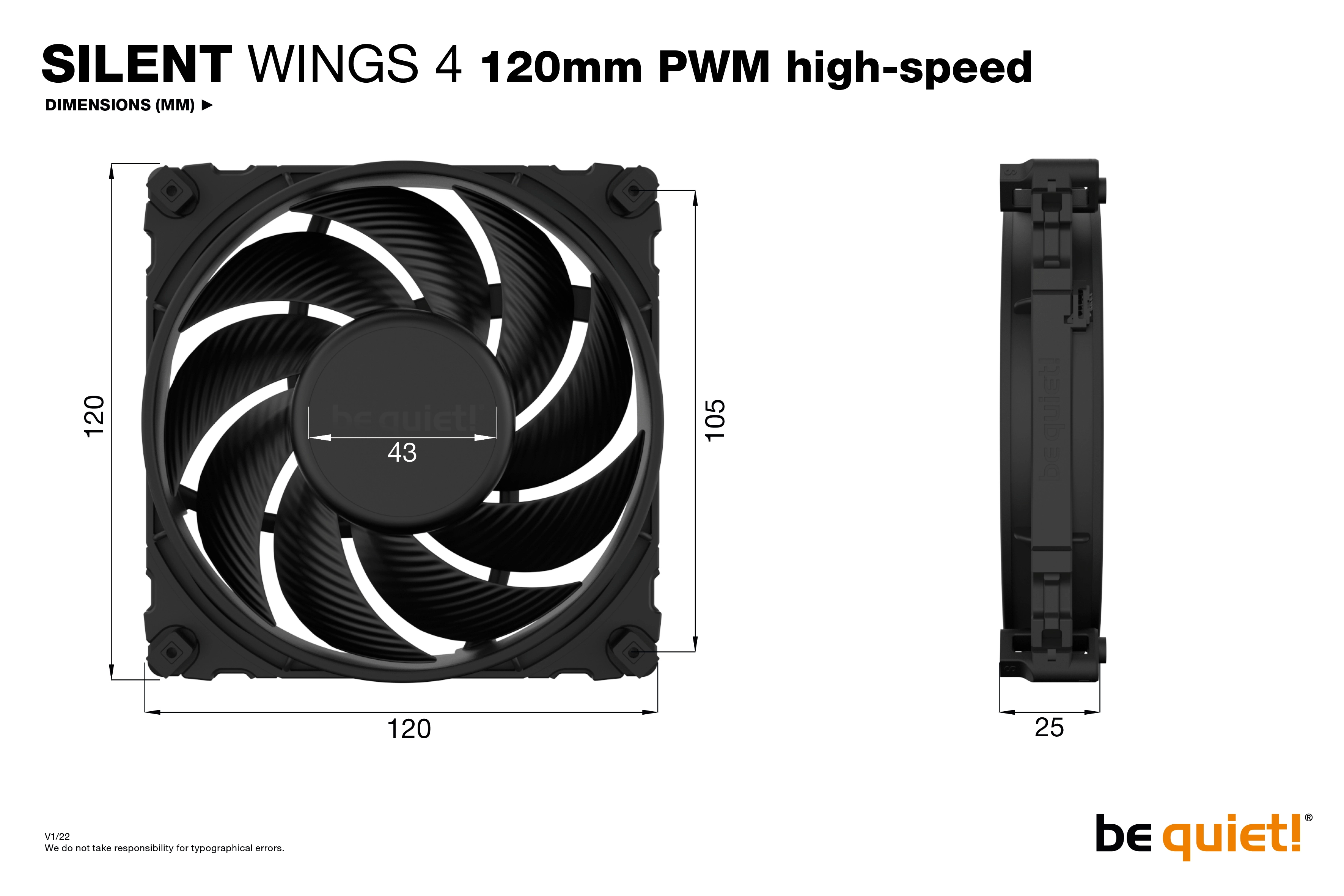

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Power

Power consumption (typical)

1.44 W

Voltage

5 - 13.2 V

Maximum current

0.13 A

Rated current

0.12 A

Rated voltage

12 V

Fan power consumption

2.40 W

Other features

Airflow

130.3 m³/h, 130.31 m³/h, 142.5 m³/h, 82.7 m³/h, 82.74 m³/h

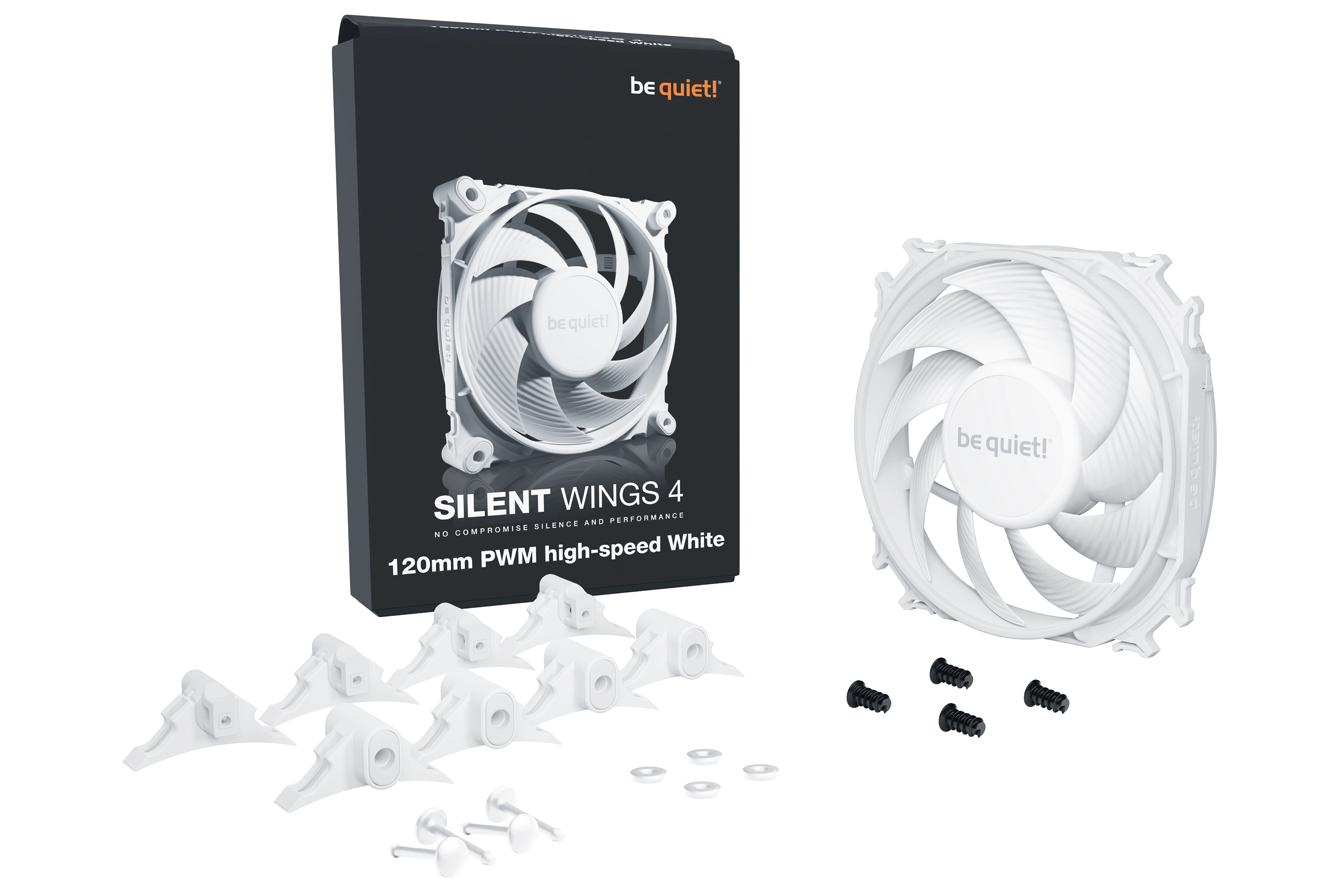

Packaging content

Number of screws

Number of clips

Ports & interfaces

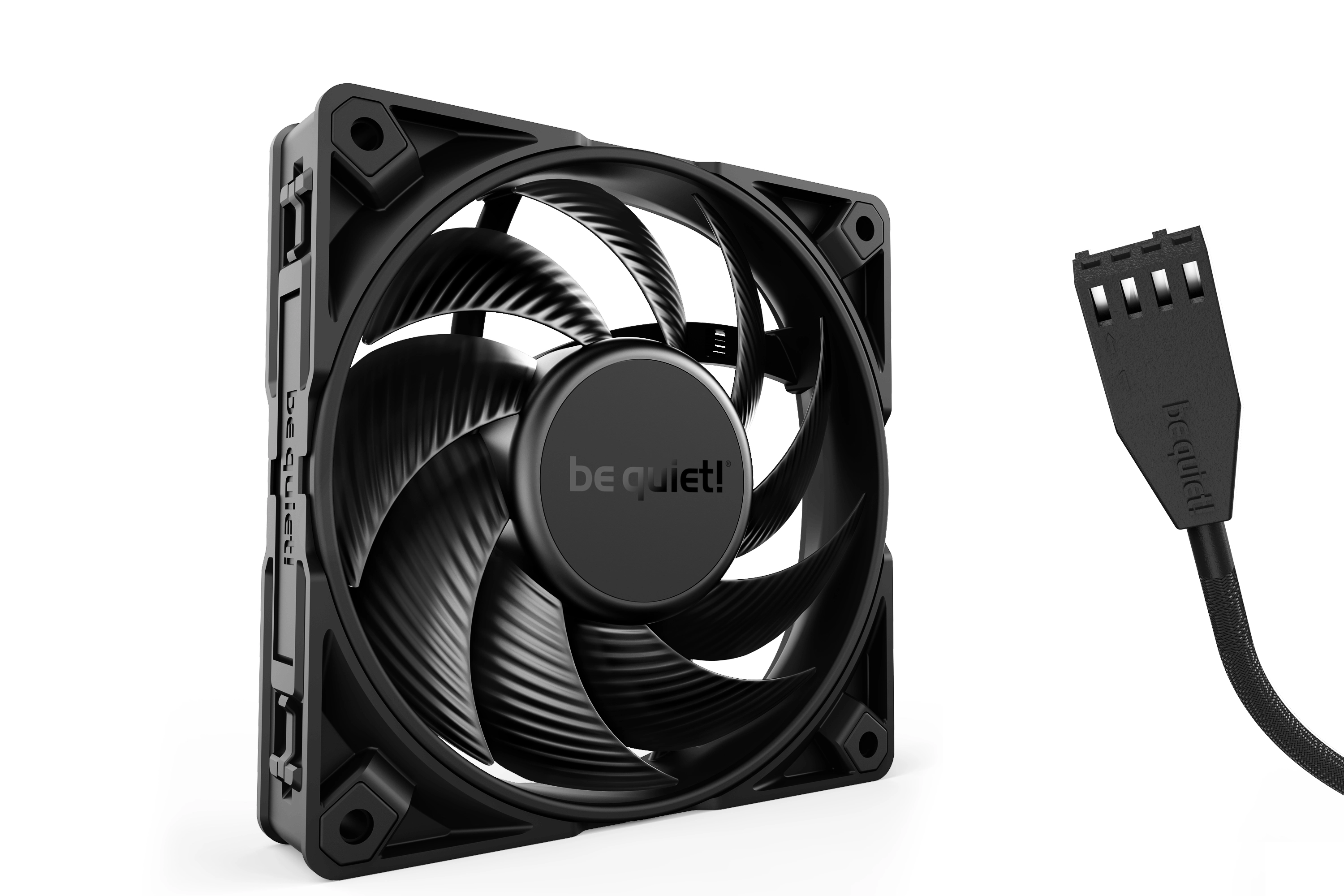

Fan connector

4-pin

Technical details

Sustainability compliance

✓

Certification

CE / ROHS / RU / UKCA / TÜV / WEEE

Sustainability certificates

Triman

Compliance certificates

CE, RoHS, UKCA, WEEE

Logistics data

Harmonized System (HS) code

84733080

Shipping (inner) case gross weight

15000 g

Shipping (inner) case height

375 mm

Shipping (inner) case length

432 mm

Shipping (inner) case width

387 mm

Product Details

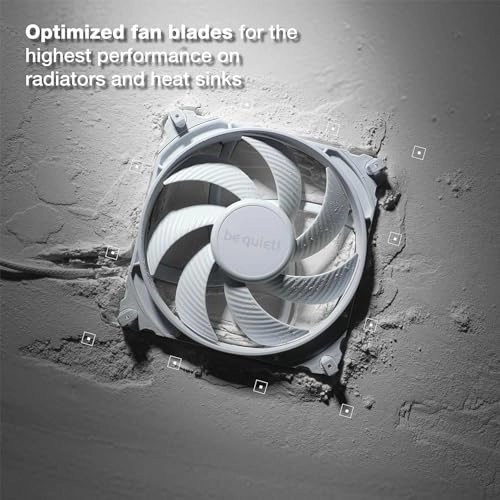

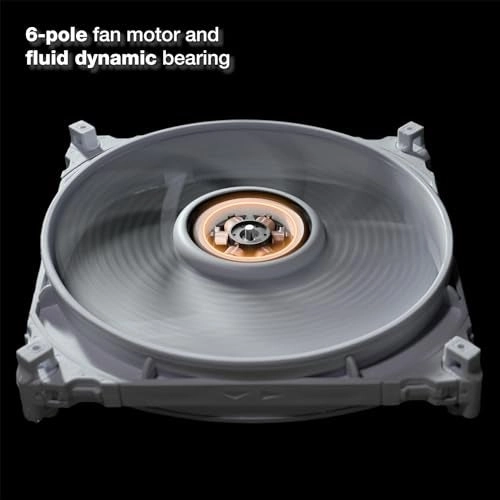

No compromise silence and performance Silent Wings 4 120mm PWM high-speed White combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed White the perfect choice for the most demanding applications in high-end systems.

Files

User manual

mmo_100726711_1657031488_2777_13091.pdf

PDF• 876.4 KB

Product Brochure

mmo_100726711_1657031472_1889_13351.pdf

PDF• 2.8 MB

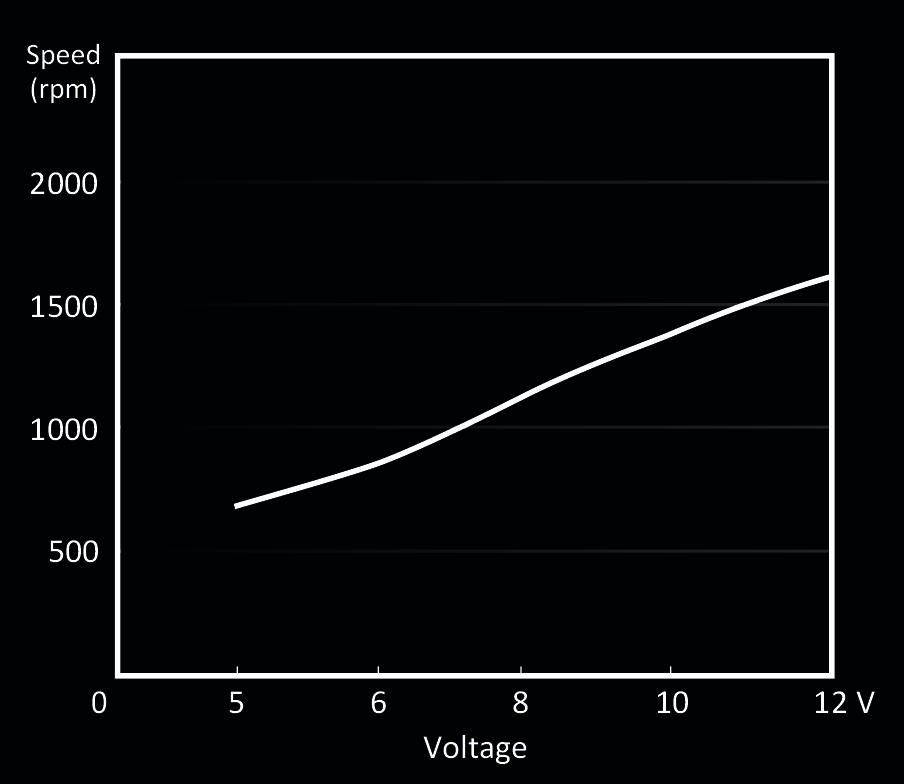

Performance curve


JPEG• 843.4 KB

YouTube
