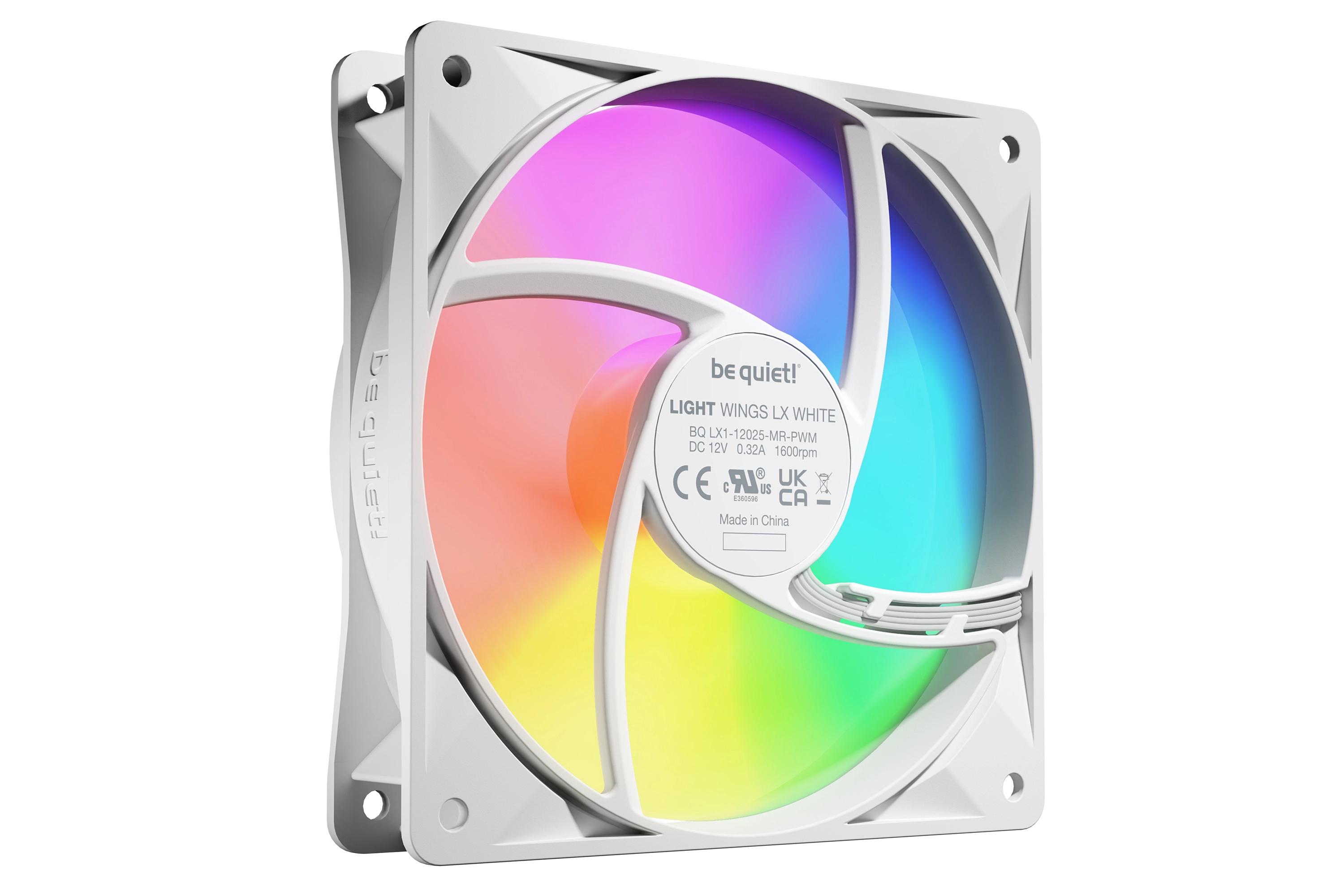

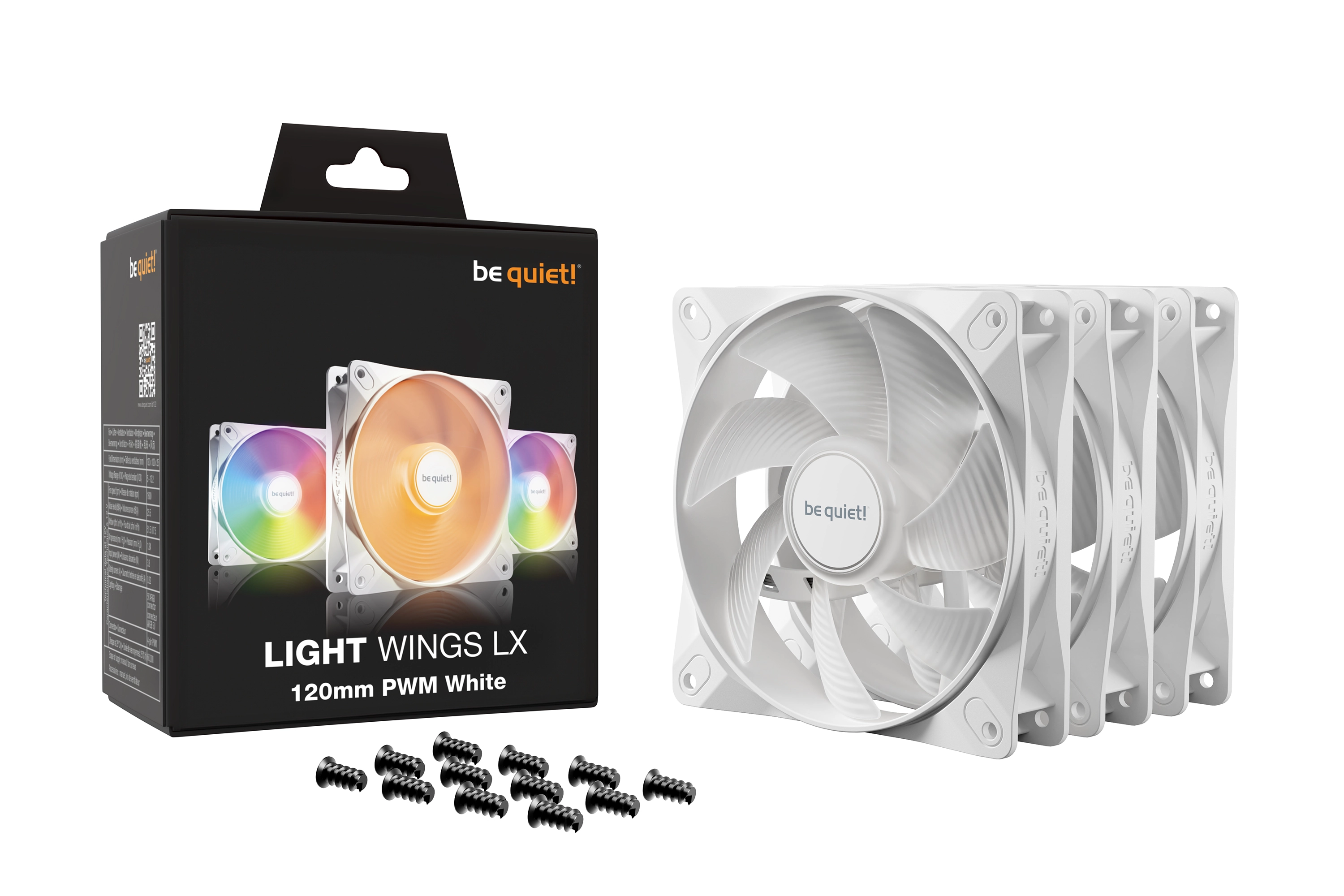

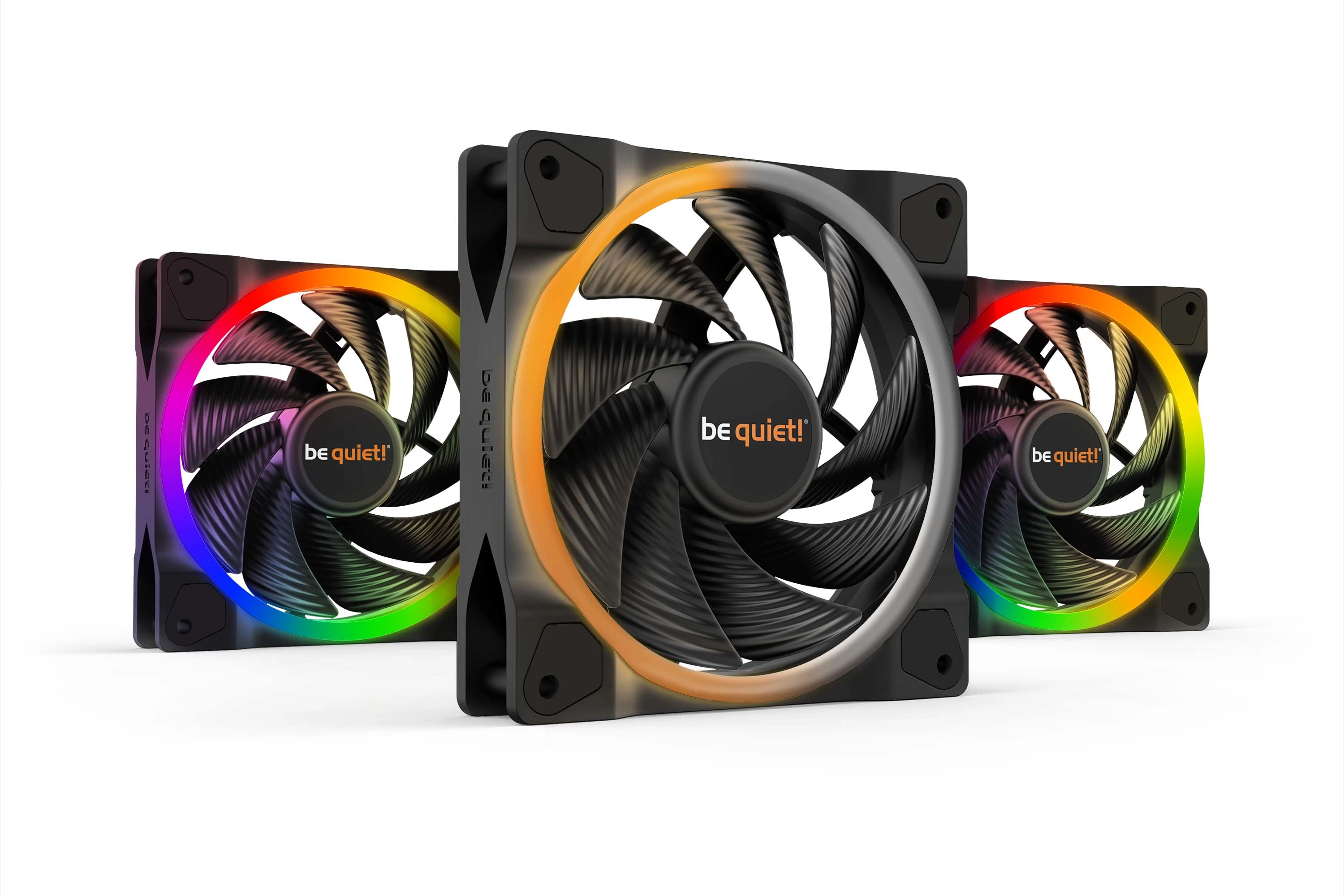

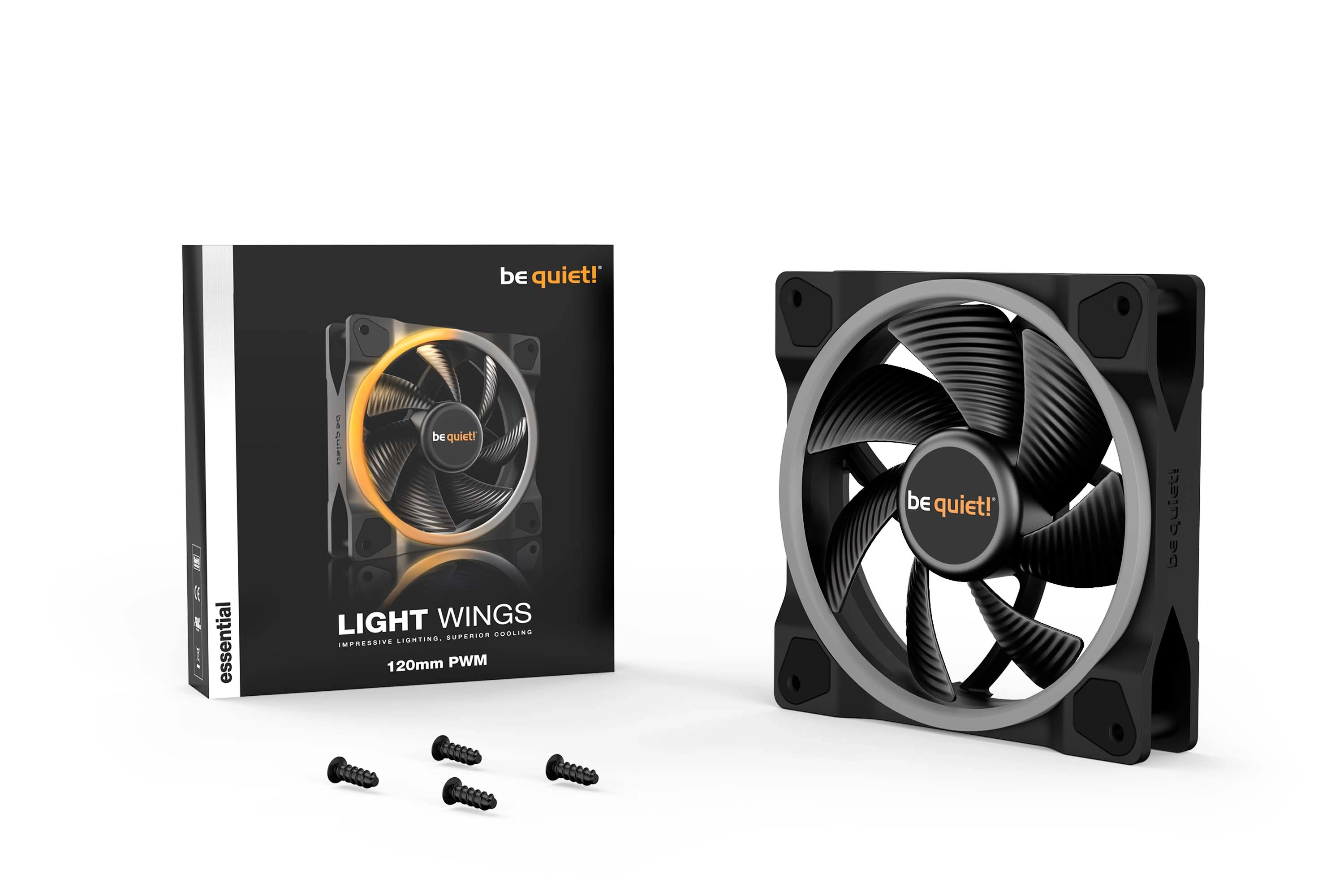

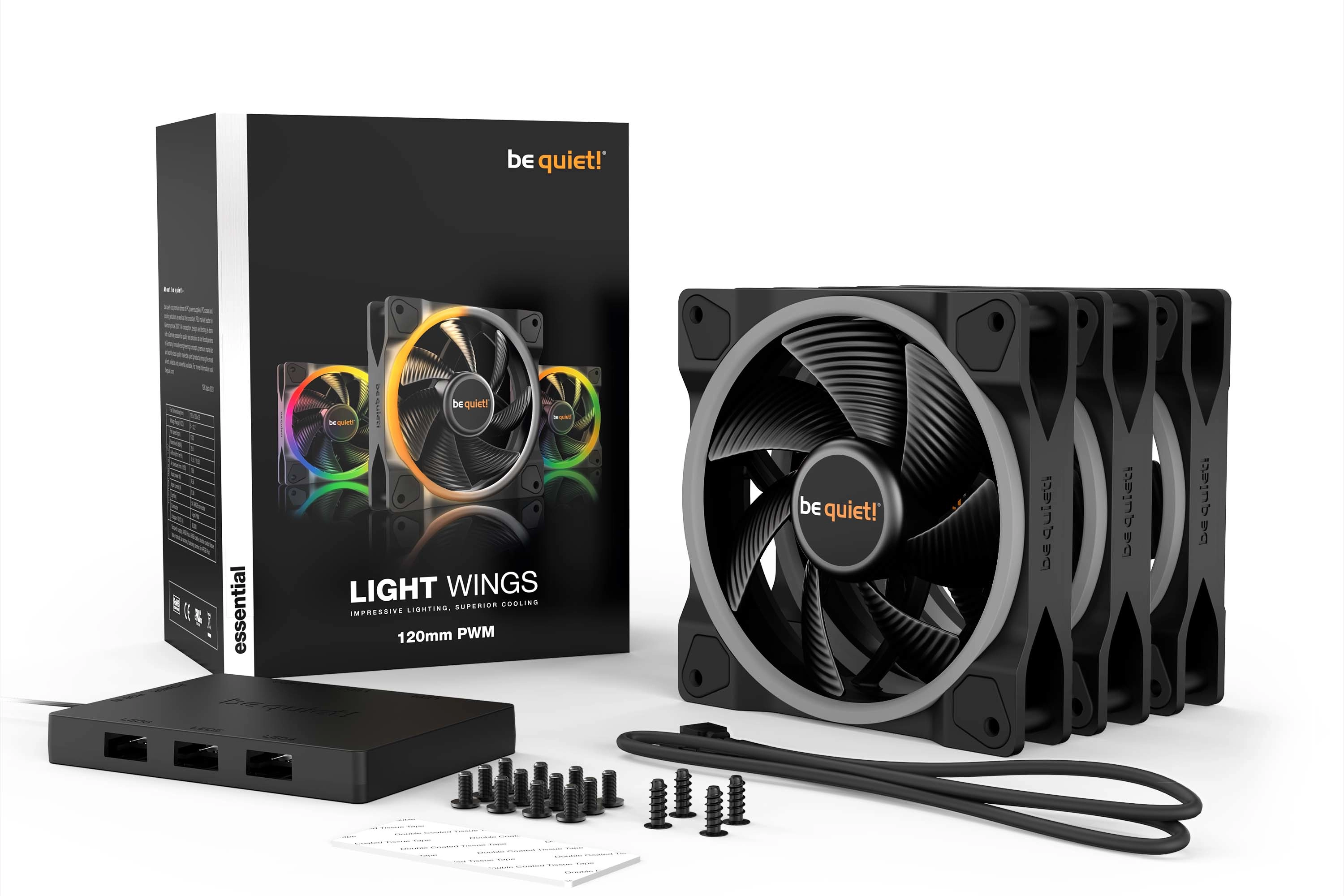

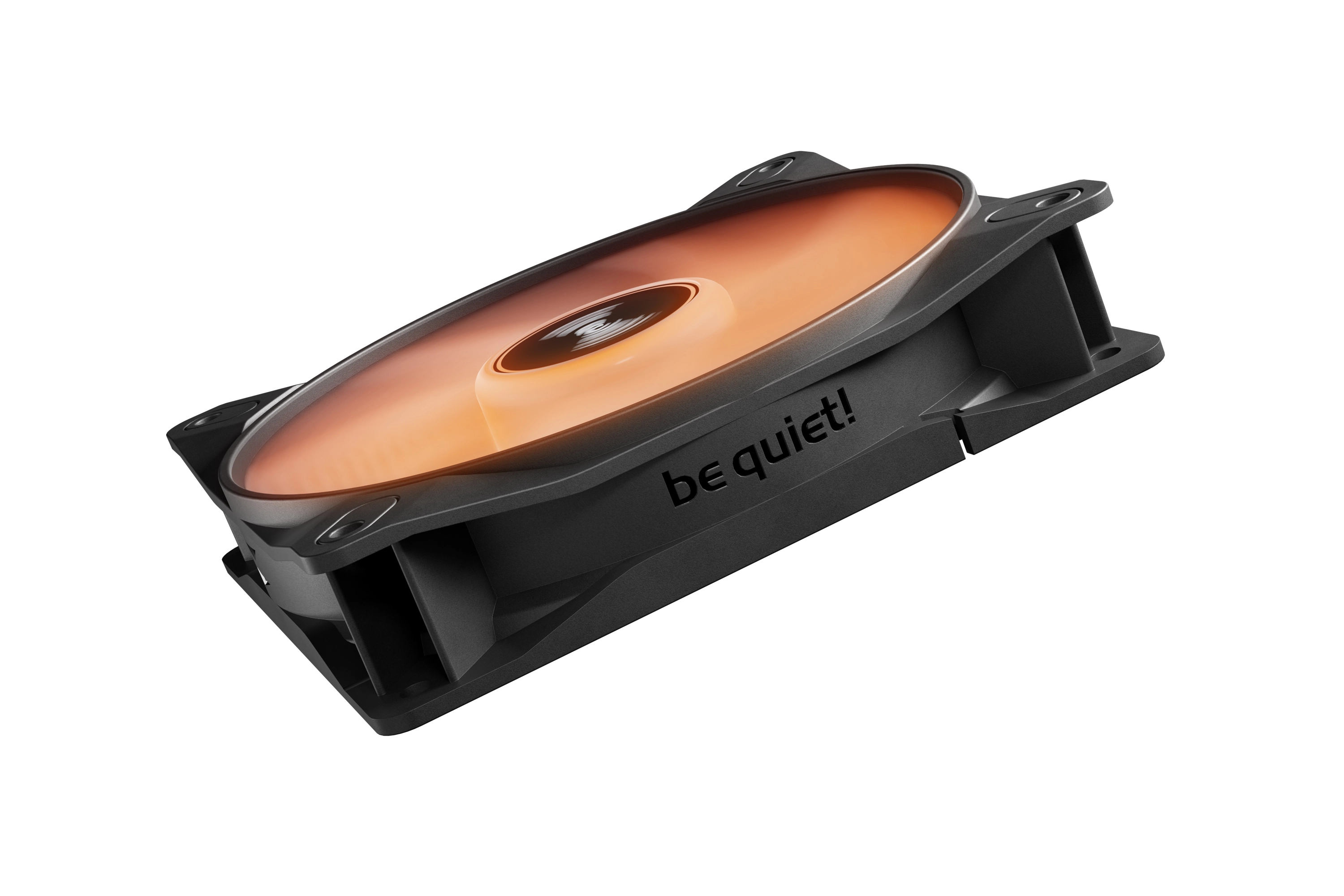

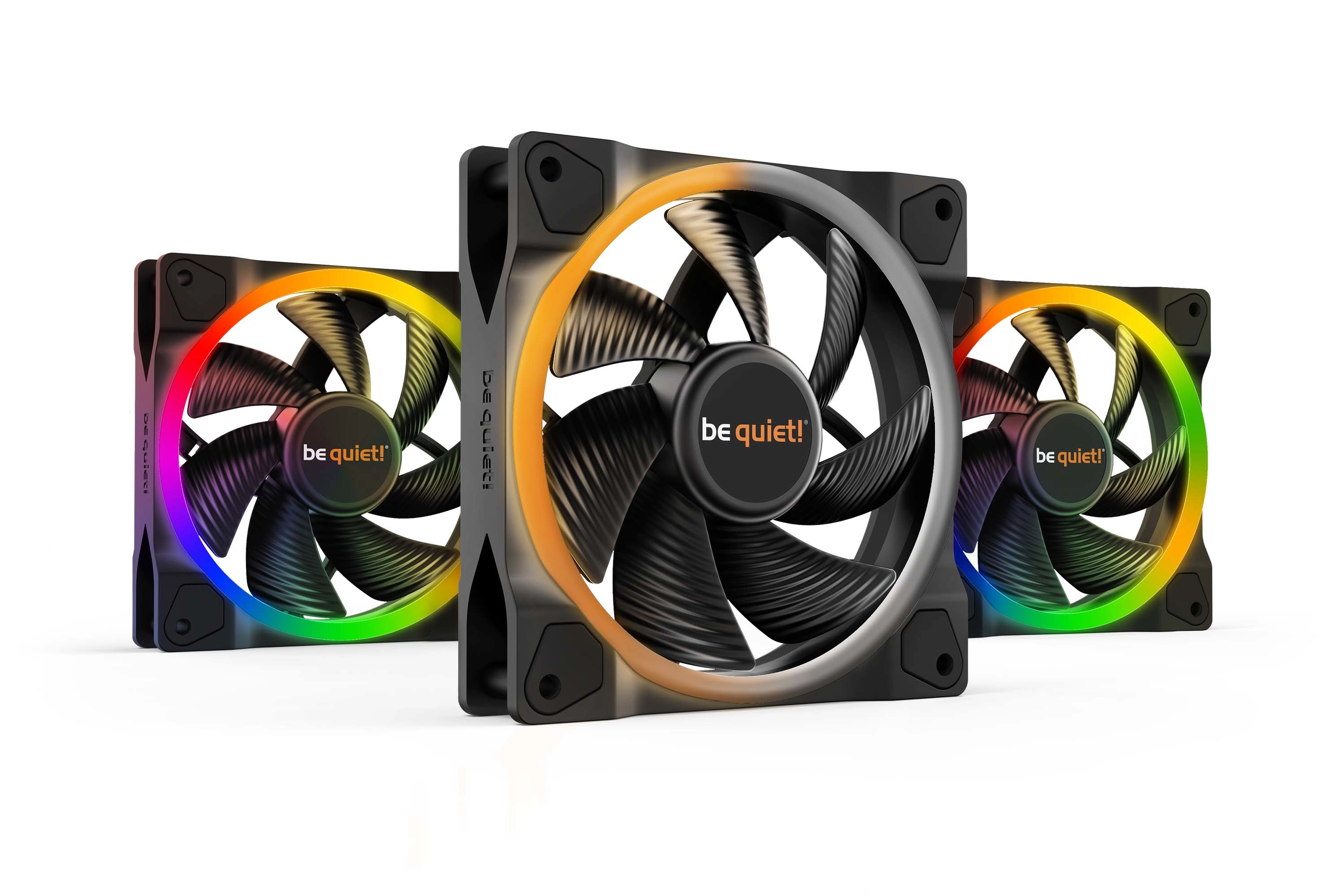

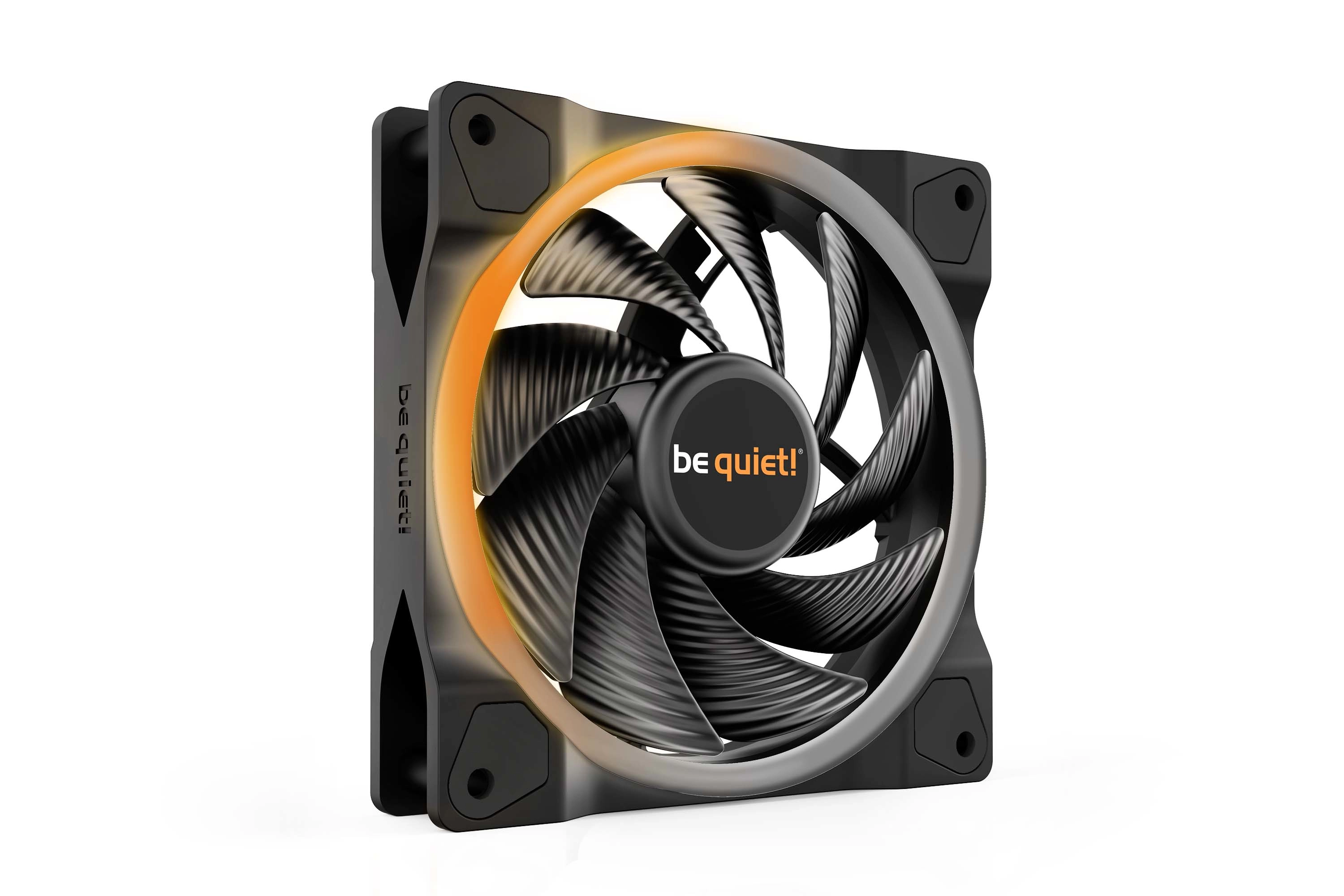

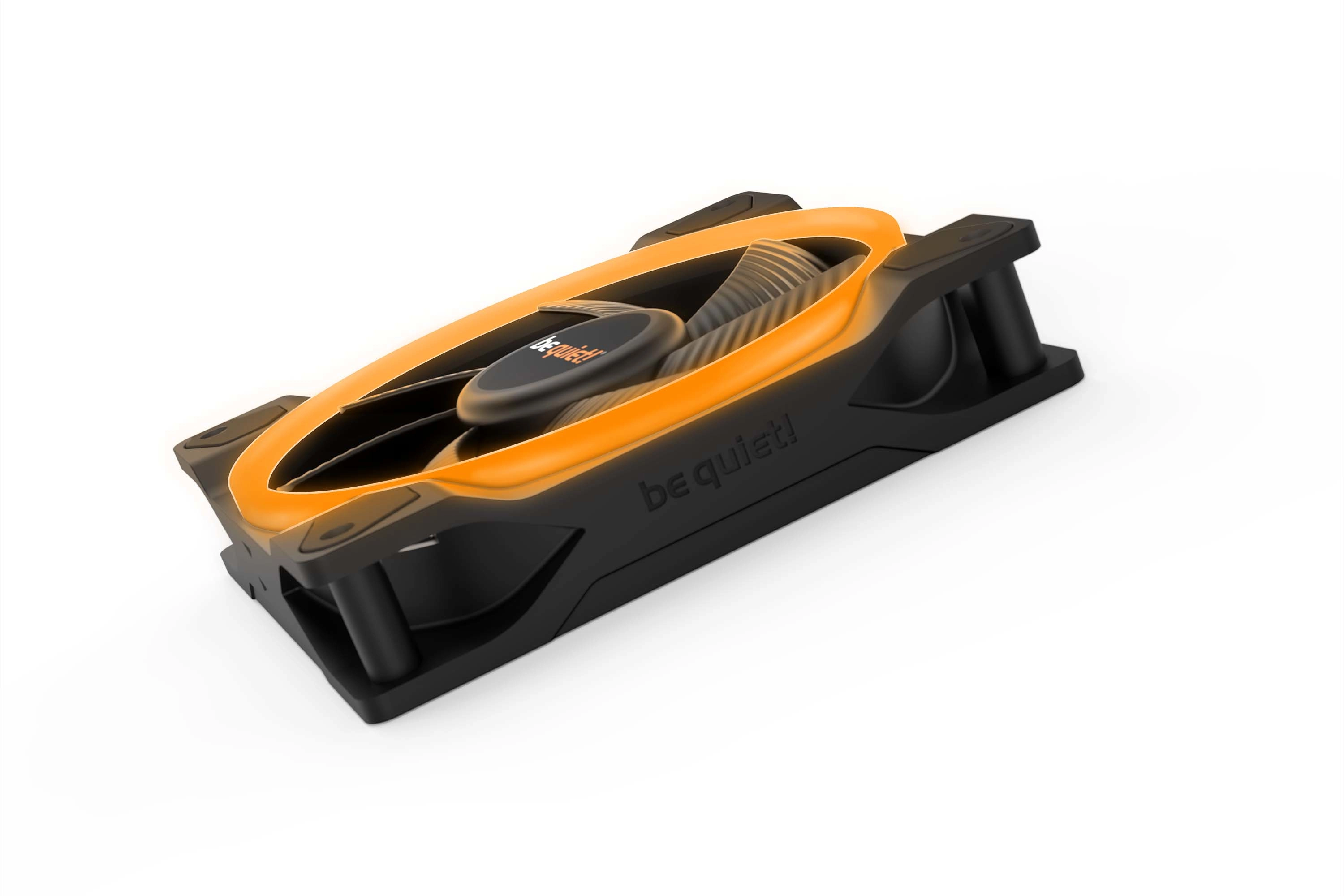

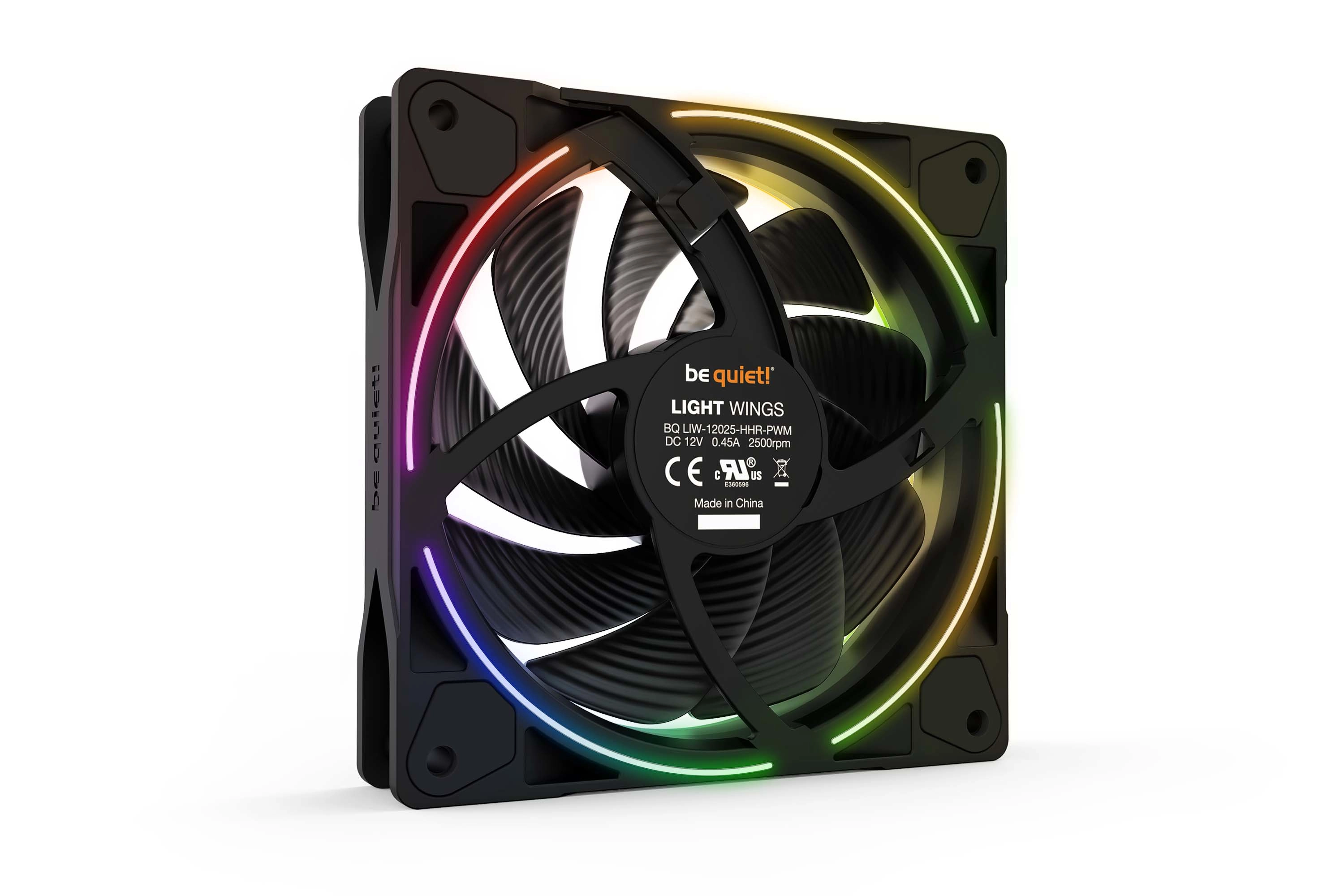

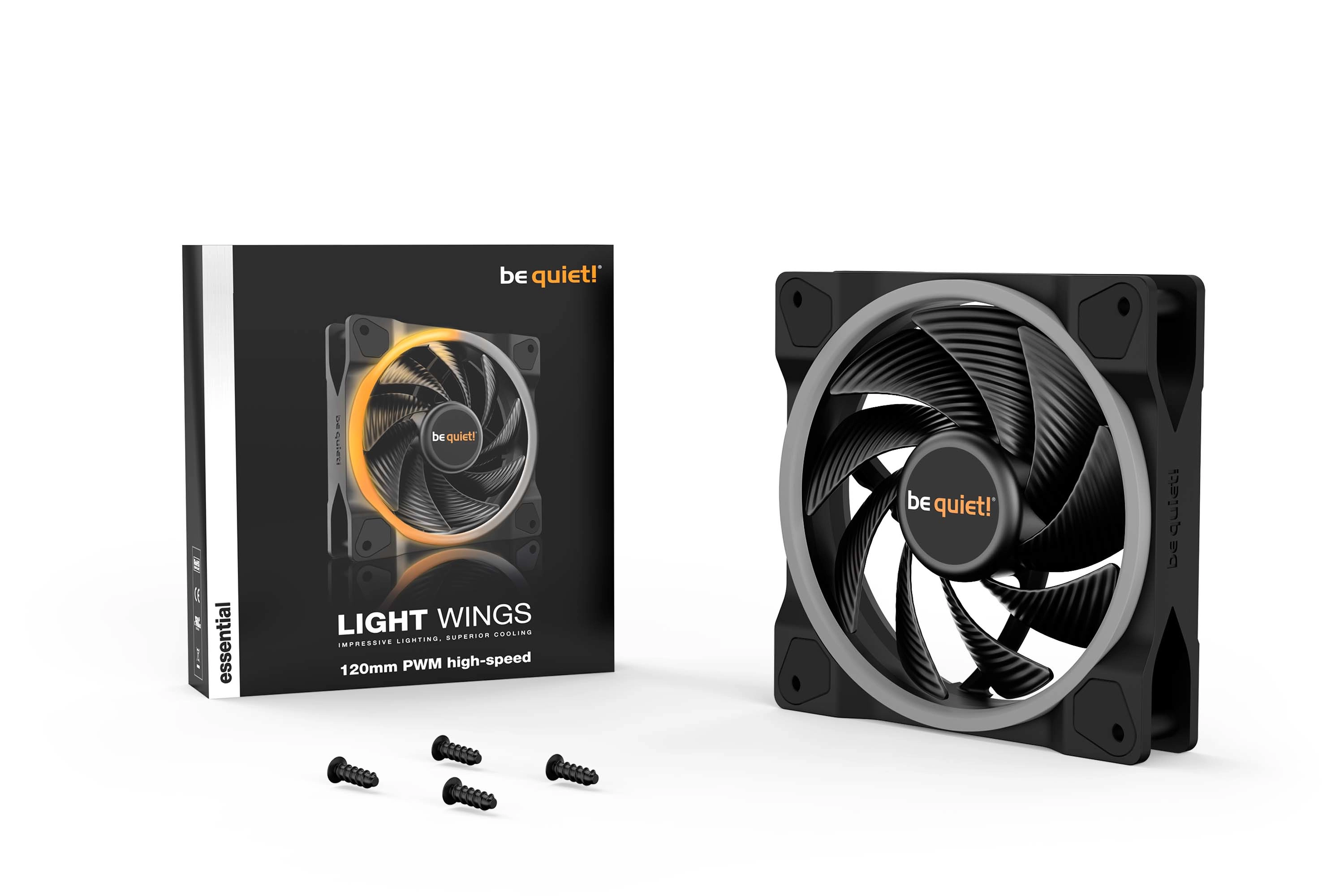

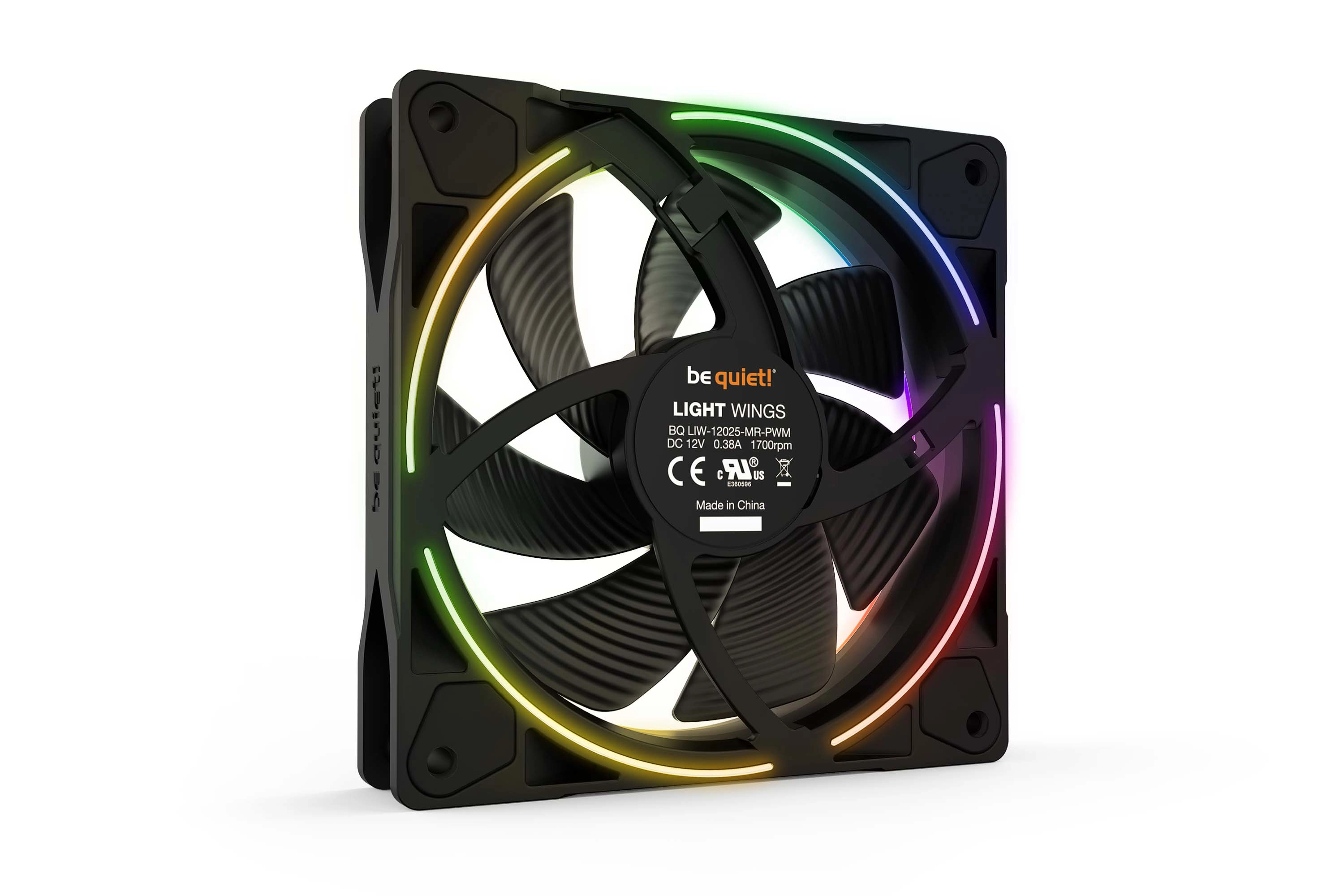

be quiet! Light Wings - 120mm

Name: be quiet! Light Wings - 120mm
Brand: be quiet!
SKU: 869249
Availability: InStock

Best offer

AED

306¹²

AED

306¹³

<1%

Key Features

LED connector type: 3-pin
Starting voltage: 5V
Number of fan blades: 9
RGB controller included: Yes
Fan dimensions (W x D x H): 25 x 120 x 120mm
Fan weight: 133g
Hub included: Yes
Maximum air pressure: 1.66mmH2O
Type: Fan
Illumination LED: Yes
Noise level (high speed): 31dB
Airflow: 70.53m³/h
Maximum airflow: 41.51cfm

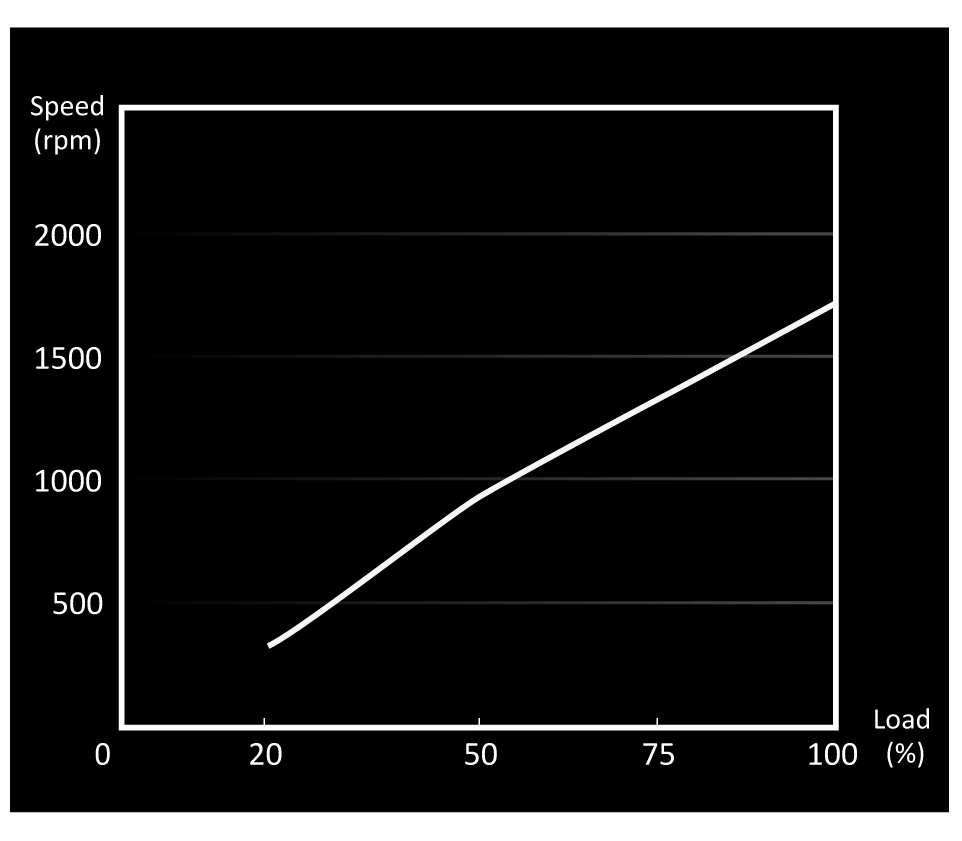

Rotational speed (max): 1700RPM
Bearing type: Rifle bearing

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

60000 h

Fan's mean time to failure (MTTF)

60000 h

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

120 mm

Suitable location

Computer case

Supported processor sockets

Not supported

Product colour

Black

Maximum air pressure

1.66 mmH2O

Type

Fan

Illumination LED

✓

Noise level (high speed)

31 dB

Airflow

70.53 m³/h

Maximum airflow

41.51 cfm

Rotational speed (max)

1700 RPM

Bearing type

Rifle bearing

Illumination colour

Multi

Number of fan blades

Starting voltage

5 V

Packaging data

Package type

Box

Package weight

833 g

Package height

29.50 mm

Package depth

172 mm

Package width

133 mm

Weight & dimensions

Weight

210 g

Height

25 mm

Depth

120 mm

Width

120 mm

Cable length

0.50 m

Fan weight

133 g

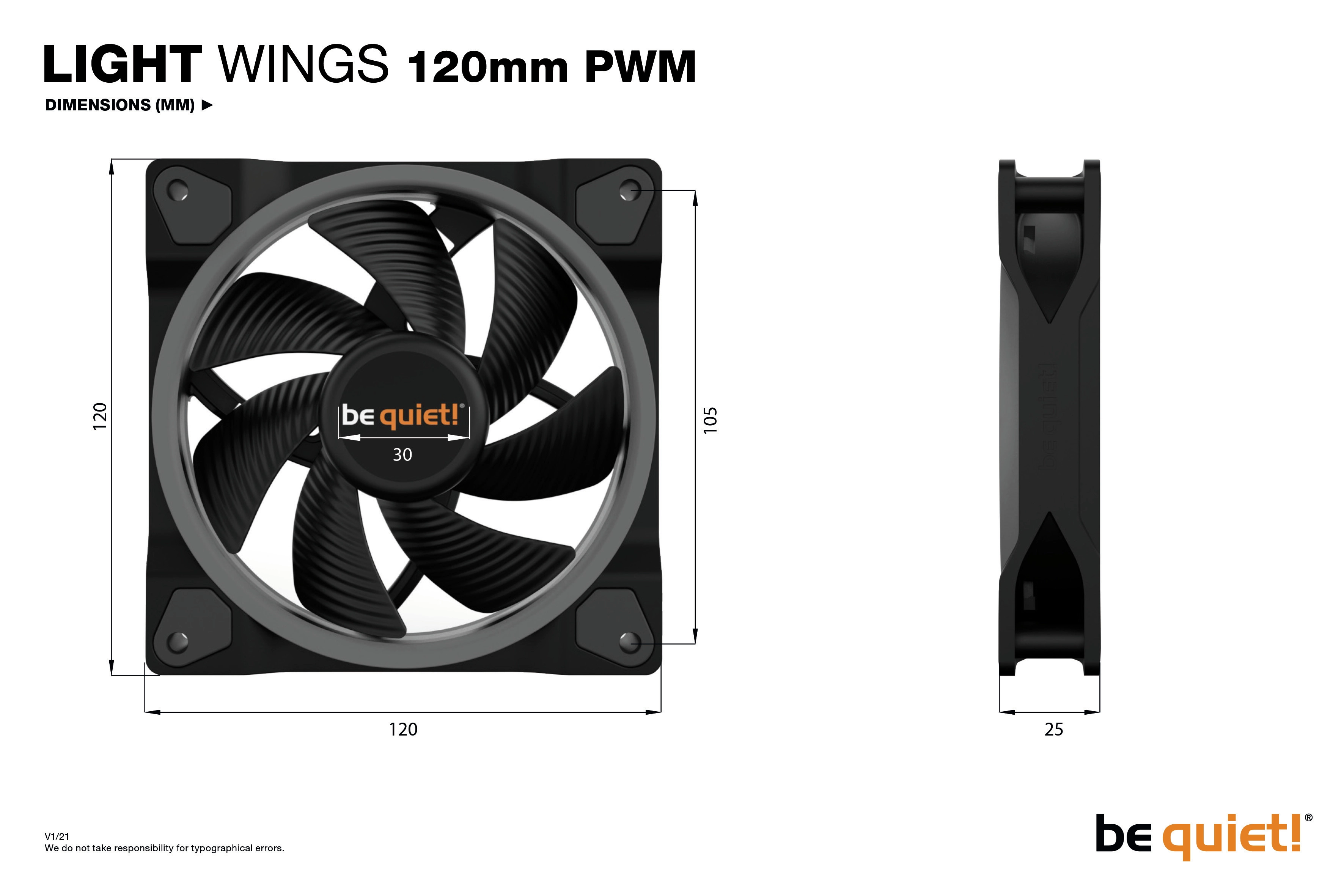

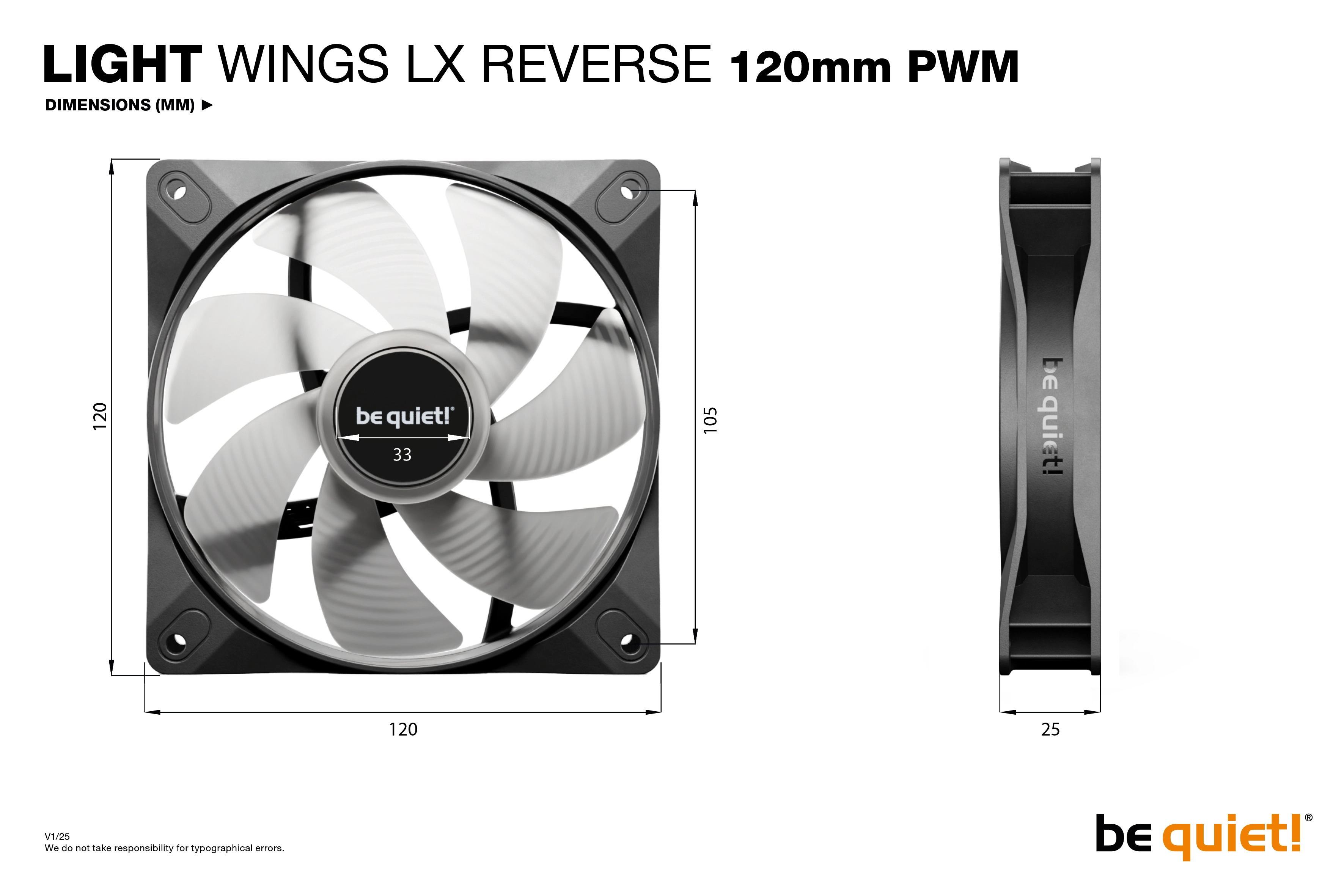

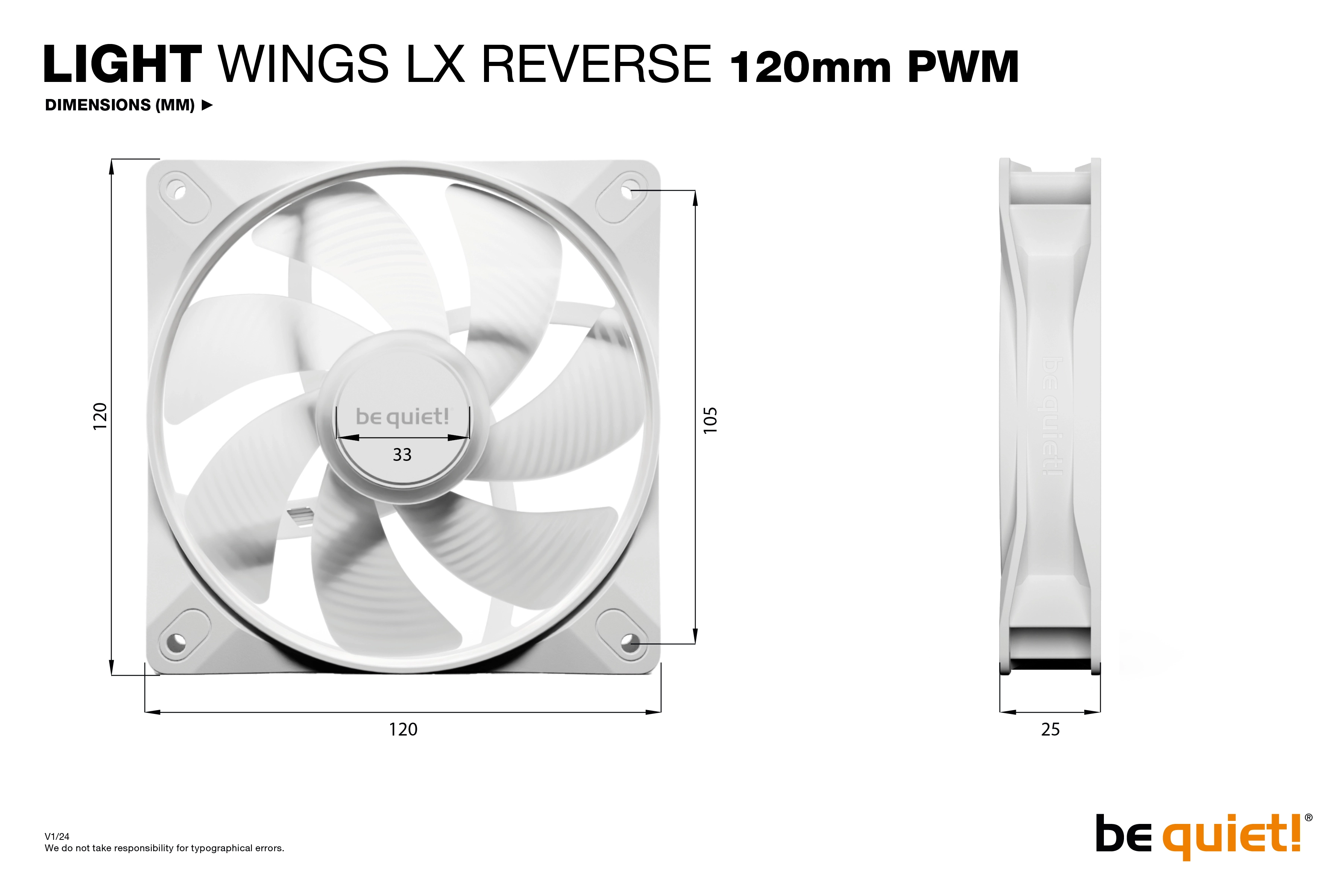

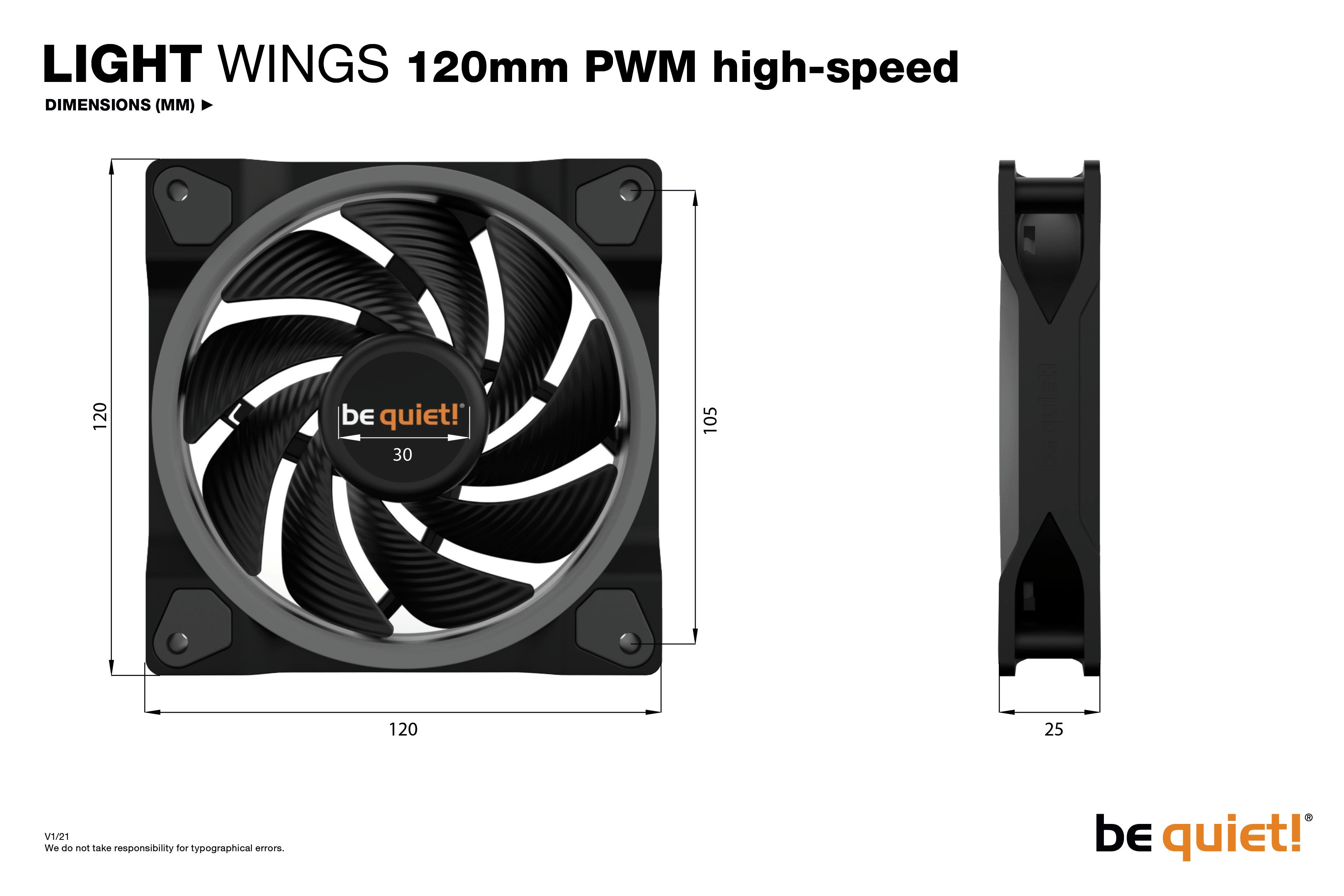

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Power

Power consumption (typical)

4.56 W

Voltage

5 - 13.2 V

Maximum current

0.45 A

Rated current

0.60 A

Safety current

0.45 Ah

Rated voltage

12 V

Fan voltage

12 V

Fan current

0.10 A

Fan power consumption

3.80 W

Other features

Airflow

105.1 m³/h, 70.53 m³/h, 83 m³/h, 87.5 m³/h, 88.86 m³/h

Design

LED connector type

3-pin

Packaging content

Number of screws

Mounting kit

✓

Cables included

Fan

Hub included

✓

RGB controller included

✓

Ports & interfaces

Fan connector

4-pin

Technical details

Sustainability compliance

✓

Sustainability certificates

Triman, UL ECOLOGO

Compliance certificates

CE, RoHS, UKCA, WEEE

Processor

Compatible processor series

Not supported

Lighting

Number of LEDs

Logistics data

Harmonized System (HS) code

84733080

Shipping (inner) case gross weight

8910 g

Shipping (inner) case height

200 mm

Shipping (inner) case length

454 mm

Shipping (inner) case width

283 mm

Product Details

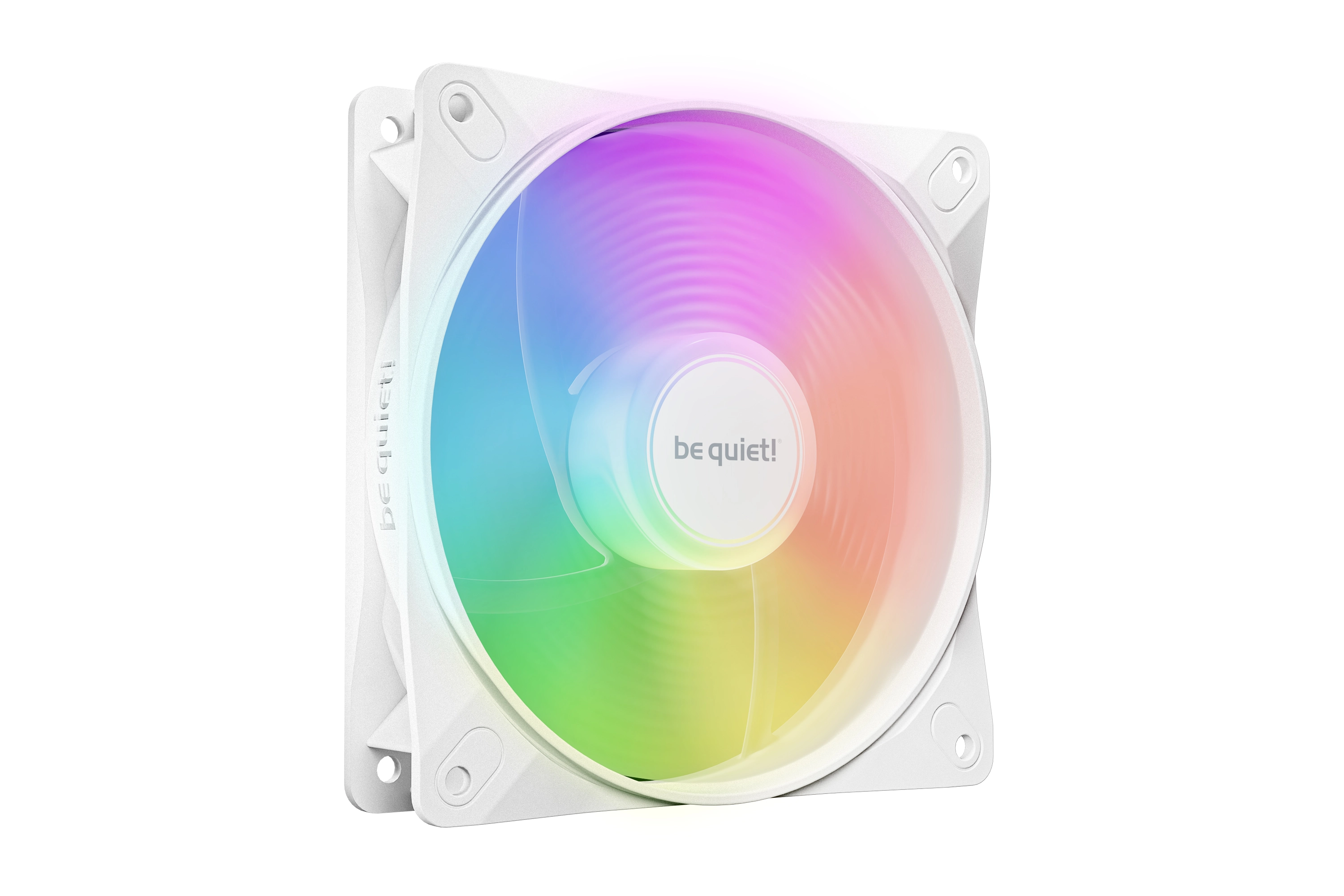

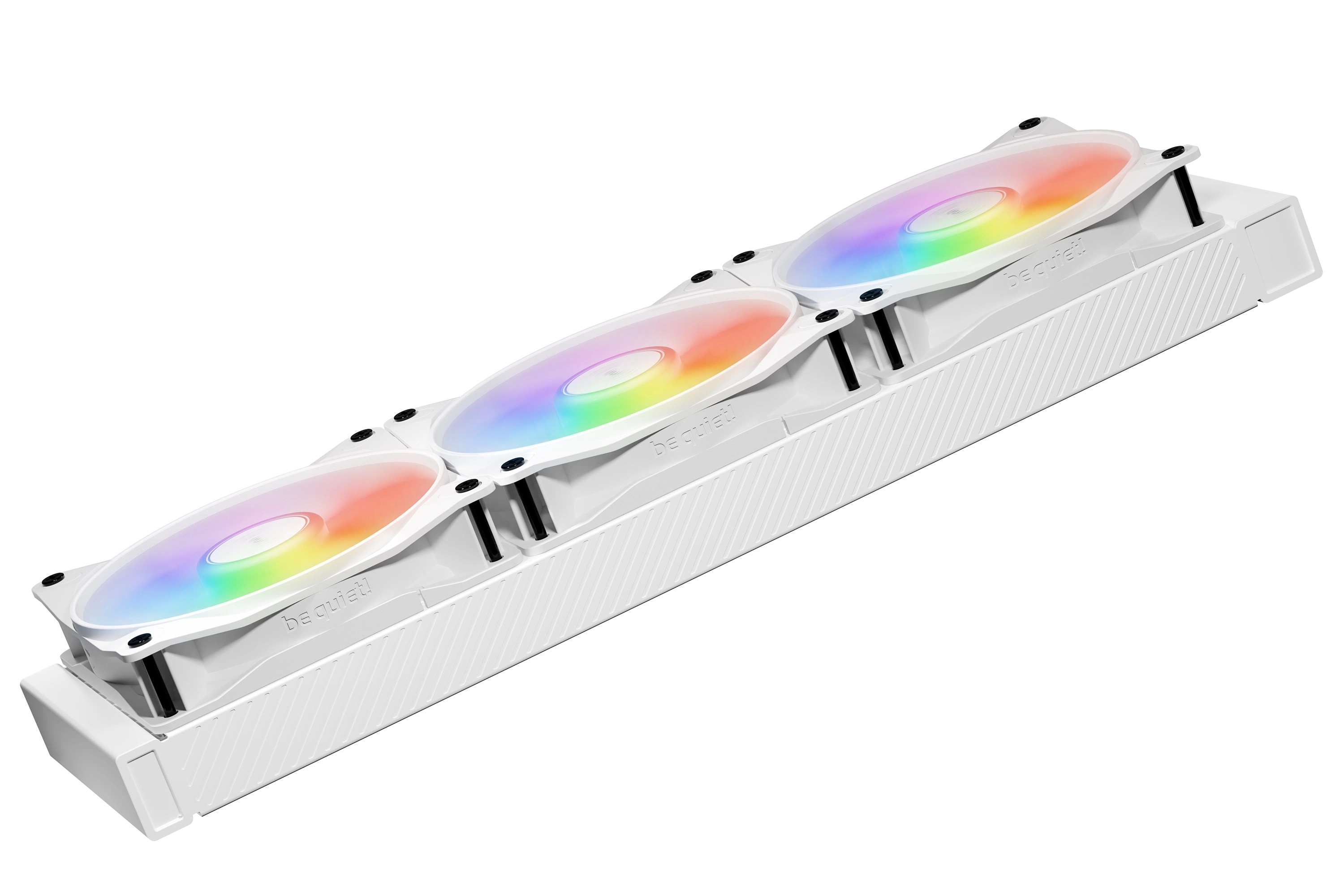

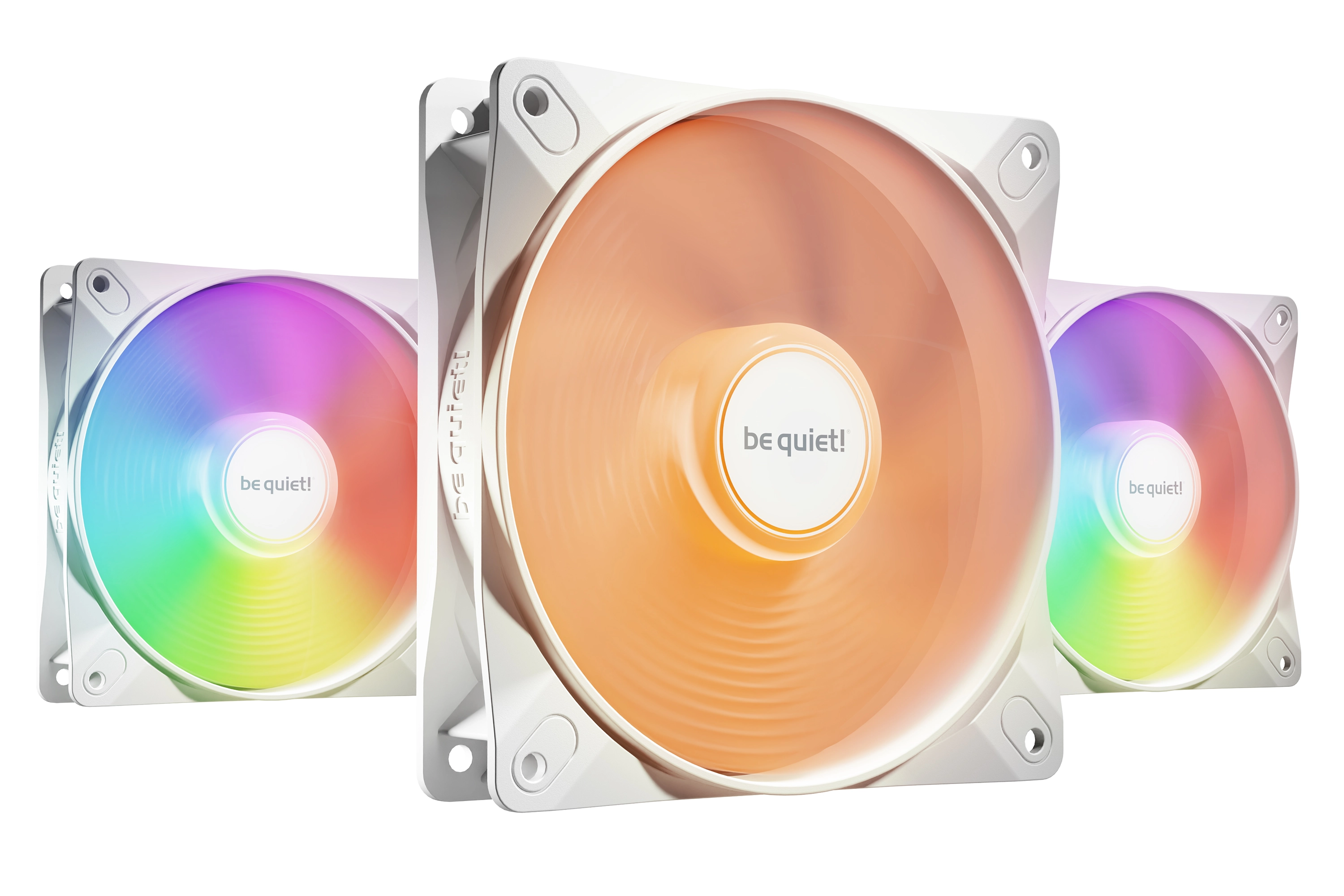

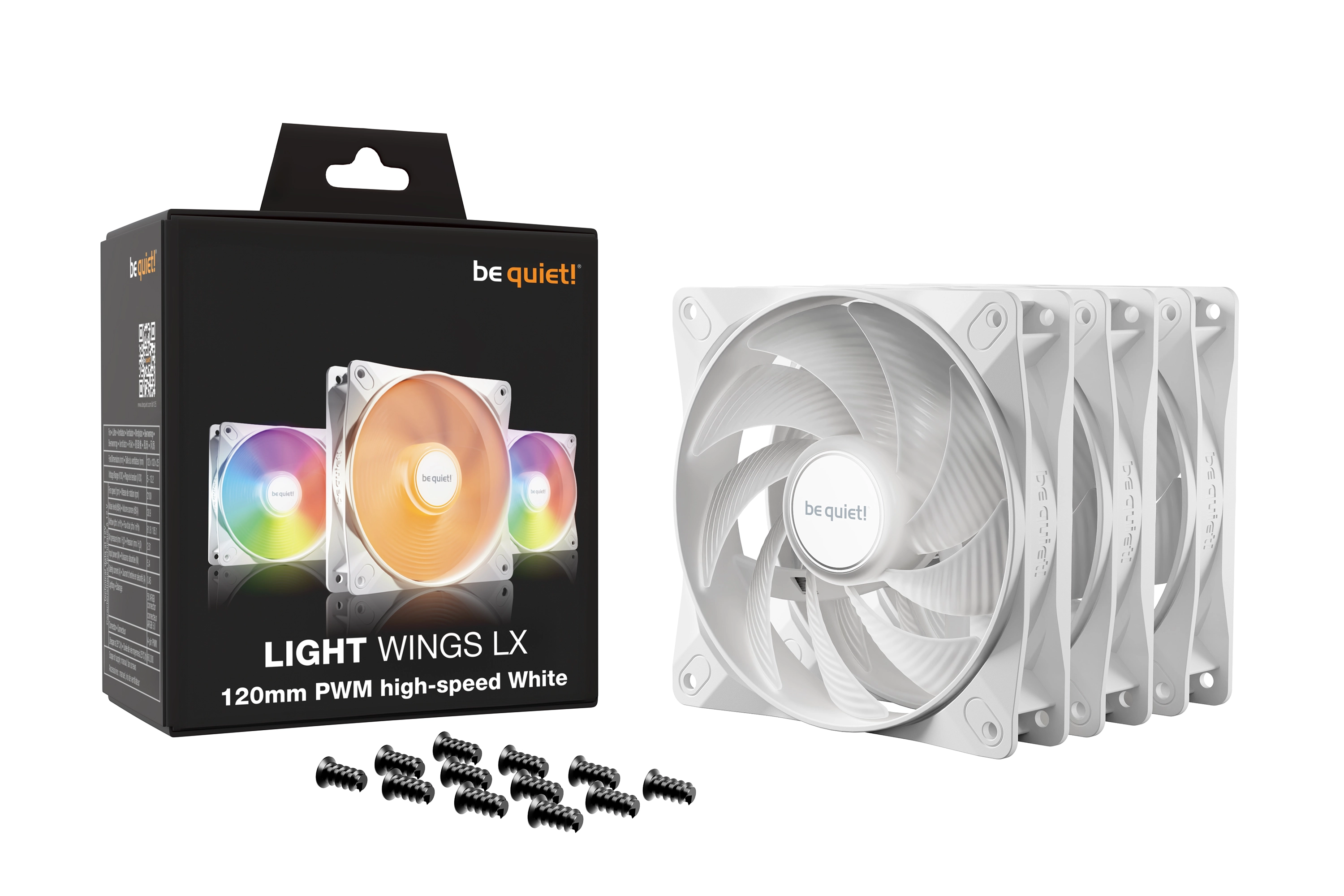

IMPRESSIVE LIGHTING, SUPERIOR COOLING The Light Wings White 120mm PWM high-speed Triple Pack offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling. If you are looking for high performance fans with an impressive look from every angle, the Light Wings White 120mm PWM high-speed are your fans of choice. They are not only a visual highlight, but also reliable and performant. These fans hit the sweet spot between performance, noise and ARGB lighting.

Files

User manual

mmo_109758340_1687112572_2135_14658.pdf

PDF• 1.1 MB

Product Brochure

mmo_109758340_1687112597_5835_10770.pdf

PDF• 1.1 MB

Videos

Light Wings White

MP4• 27.8 MB

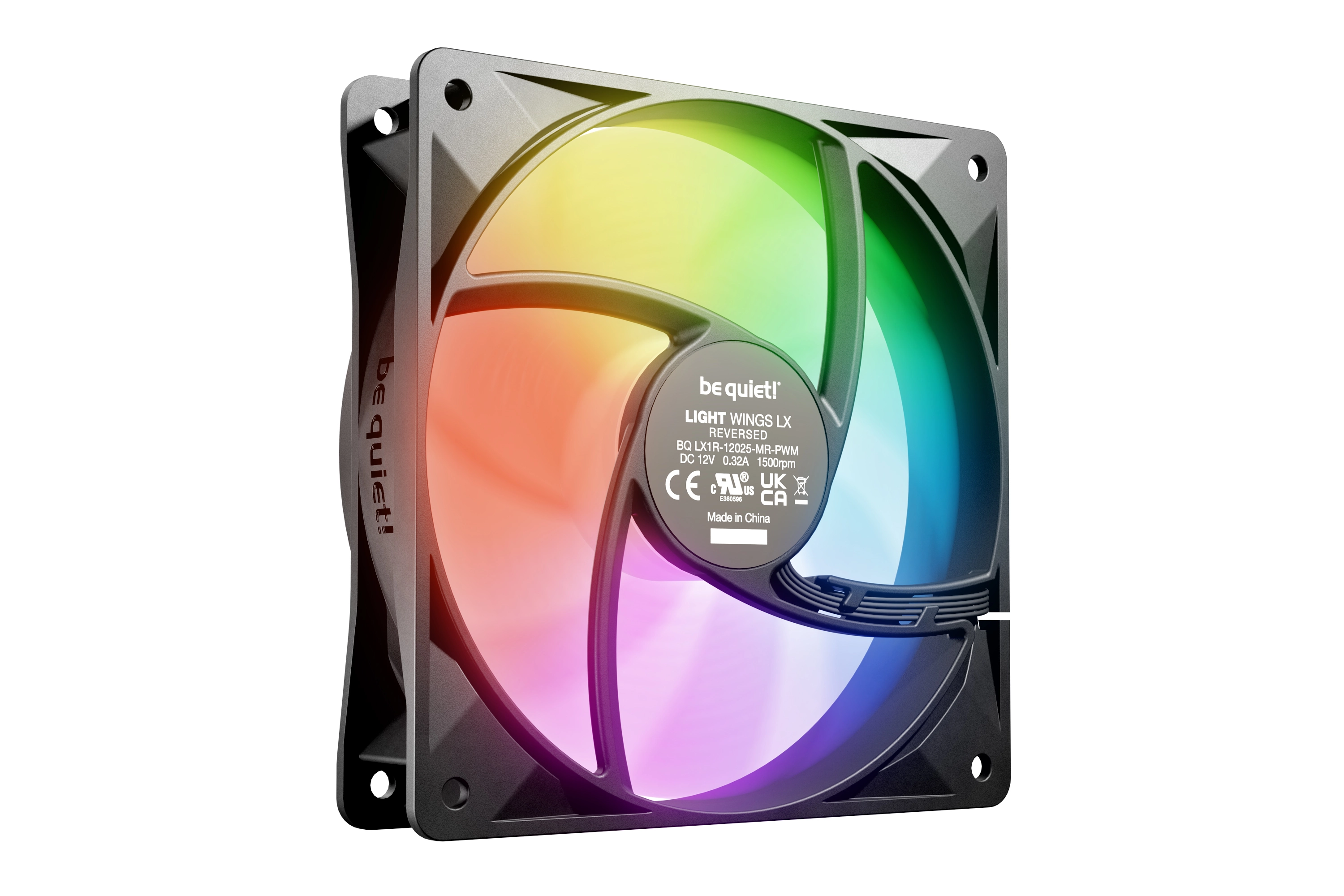

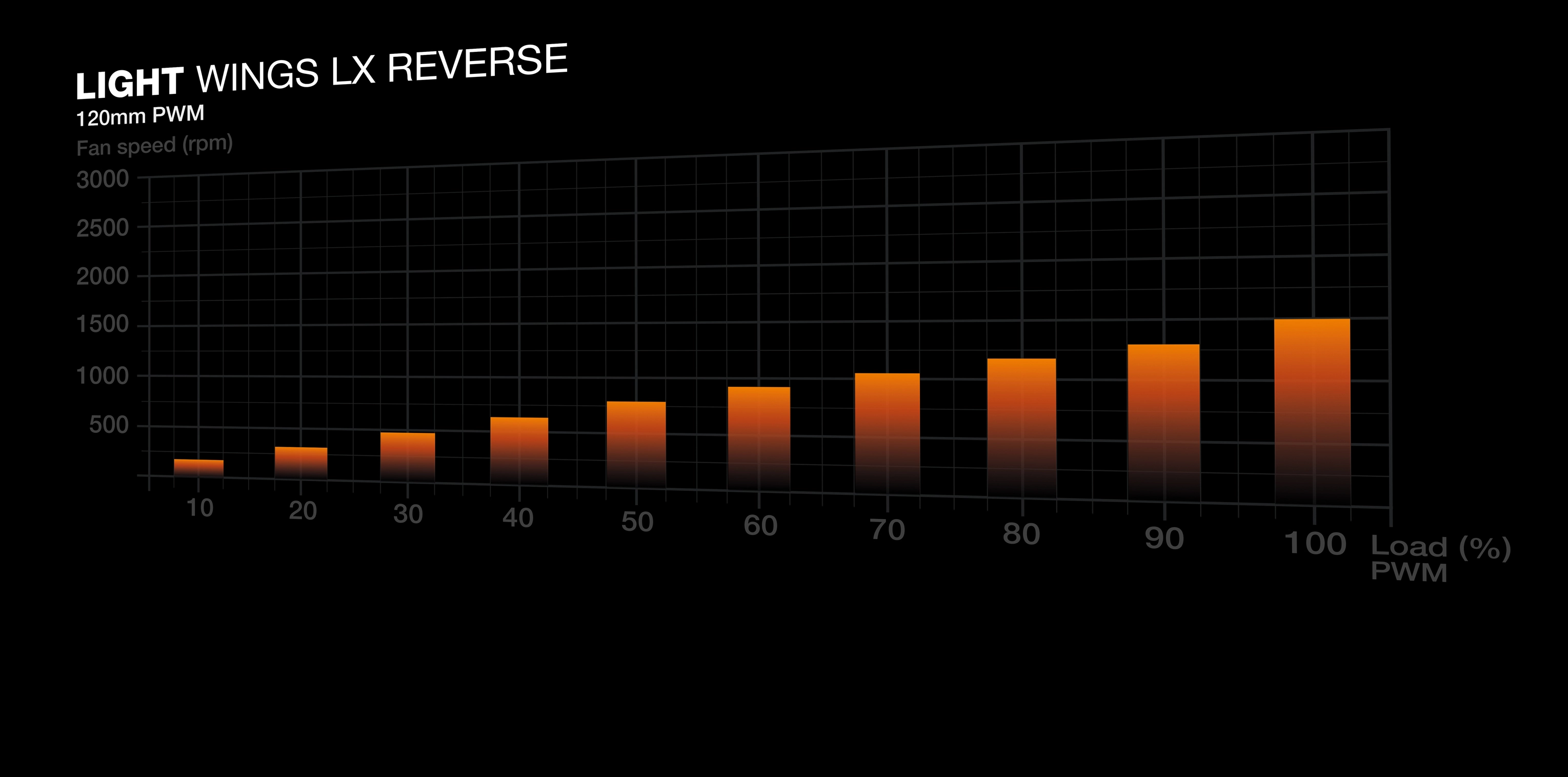

LIGHT WINGS LX REVERSE
