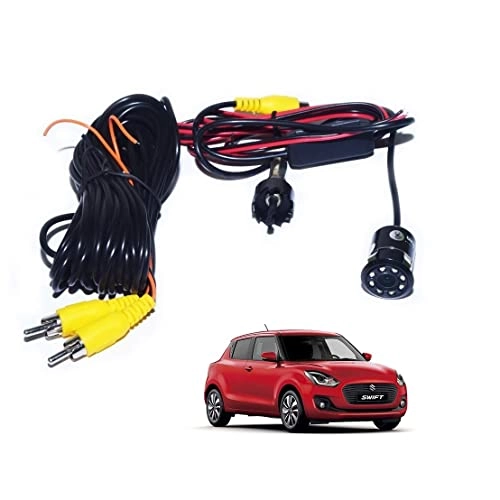

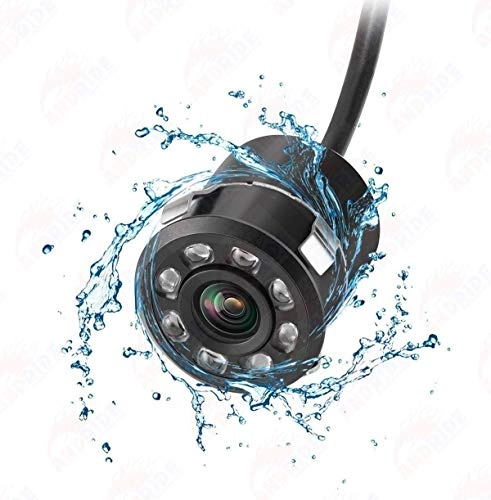

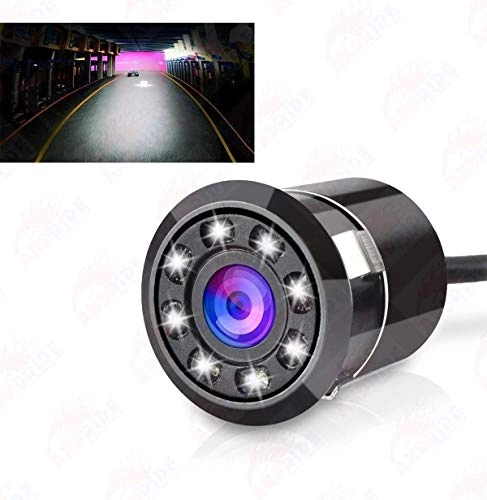

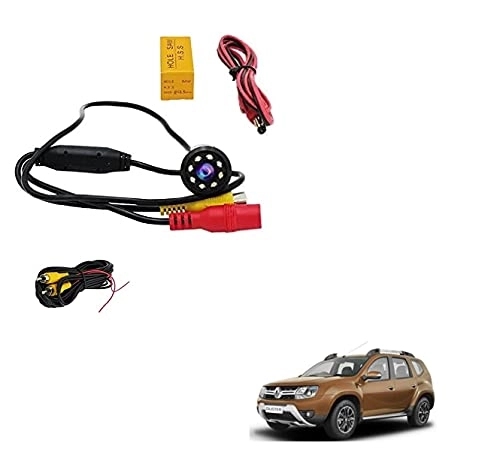

Auto Addict,I176 Ground Floor,Sector 3,DSIIDC Bawana,Delhi-110039,8368017133 SAFETY CAMERA - Night vision

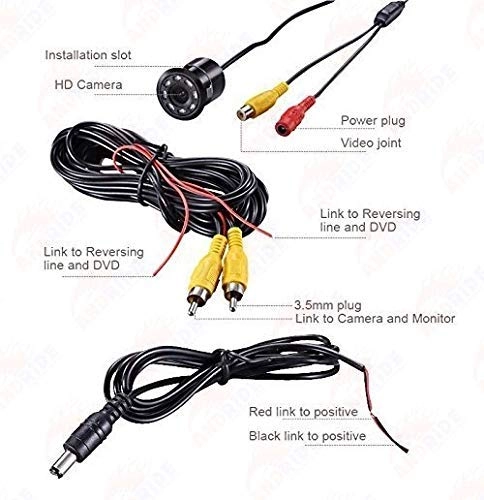

Without Guide Line Image sensor: Color CCD Image sensor: PC7070 Effective pixels: 720*480 pixels Resolution: 420 TV lines Lens Angle: 170° TV System: NTSC/PAL (We will send NTSC or PAL according to your country) White balance: Auto Waterproof: IP67 Power supply: DC 12V Minimum illumination 0.1lux Video output: RCA connector, 1.0Vp-p, 75ohm Current Consumption:60mA Operating Temperature: -20°C~ 90°C, RH95% Max. Storage temperature: -40°C ~ 80°C, RH90% Max. Video cable length: 6 meter (19.7 feet) Power supply cable length: 1.5m (4.9 feet) Drill Hole Diameter: 18.5mm Installation: 1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place) 2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative. 3.Connect the video cable of the camera to the extension cord. 4.Connect the extension cable to the car monitor. 5.You will see the images when your car is in reverse shift. Package Included: 1 x Drill Hole Style Car Rear View Camera (hold saw including) 1 x Video Cable 1 x Power Cable please read the dimensions before ordering this product please note that this is only camera,sensor .Screen is not included in this package ..needs to be ordered separately
