ANTOBLE Refrigerator Garage Heater Kit

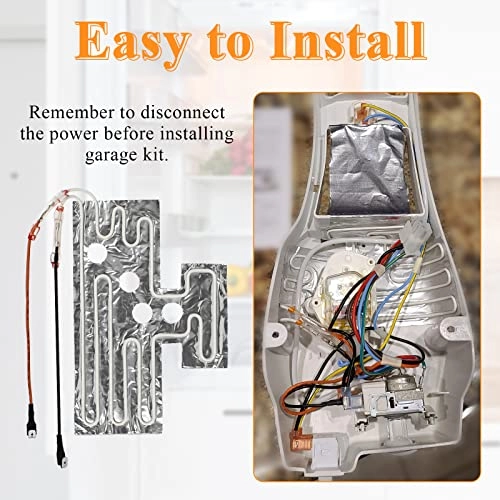

ANTOBLE 5303918301Refrigerator Garage Heater Kit Please note: This heater kit will NOT work on Frigidaire refrigerators manufactured prior to 2001, on side-by-side or counter-depth models, or on models with electronic controls. Replacement Part For Frigidaire Kenmore 5303918301 AP3722172 PS900213 AH900213 and more. Replaces part numbers 5303918301 1037646, AH900213, EA900213, PS900213, LP15815 forFrigidaire FFH1767GW, FRS3HR5HW, FRS3R5EMB, FRS6HR5HW, FRS6R5EMB, FRT17B3AW, FRT18IS6CBand more. Before working on your appliance, make sure that it is unplugged. Watch following stepswith online videos to make installation easier. 1.Unplug the refrigerator from electrical oulet. 2.Remove 4 screws holding control box to cabinet. 3.Unplug the Molex connector. 4.Remove 2 screws holding defrost timer to control box. 5.Pull back defrost timer. 6.Bend the heater into a U shape. 7.Peel off the paper backing of heater. 8.Align heater holes with defrost timer mounting pegs. Place heater against control box and press down over full surface of heater. 9.Set defrost timer back into position and screw in place. 10.Unplug 2 leads from cold control(Orange and Black wires). 11. Plug orange lead to orange heater lead, then back onto cold control. 12.Plug black lead to blace heater lead, then back to cold control. 13.Reinstall cold control box by first plugging in Molex connector. 14.Screw control box back into refrigerator cabinet using 4 screws you removed ealier. 15.Plug refrigerator into electrical outlet.
