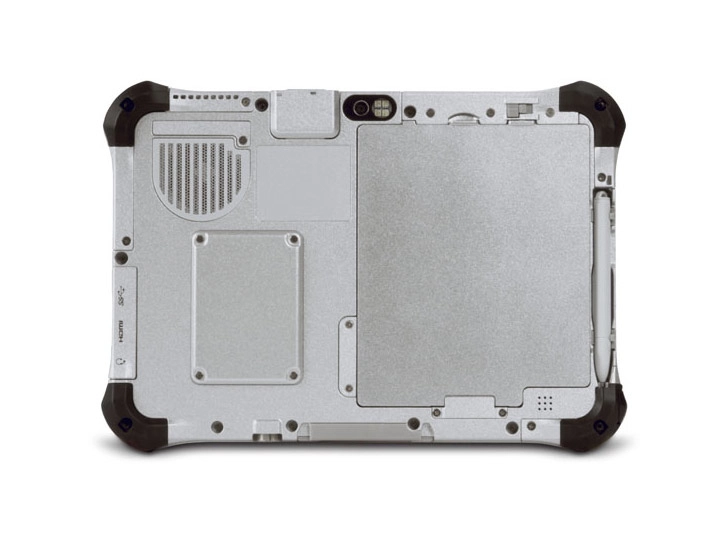

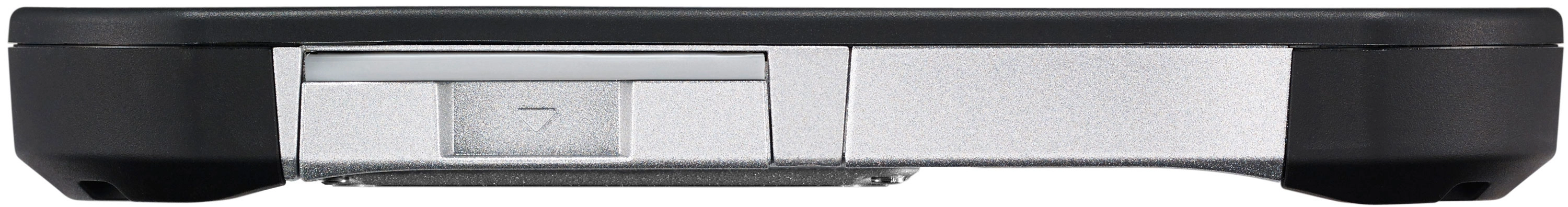

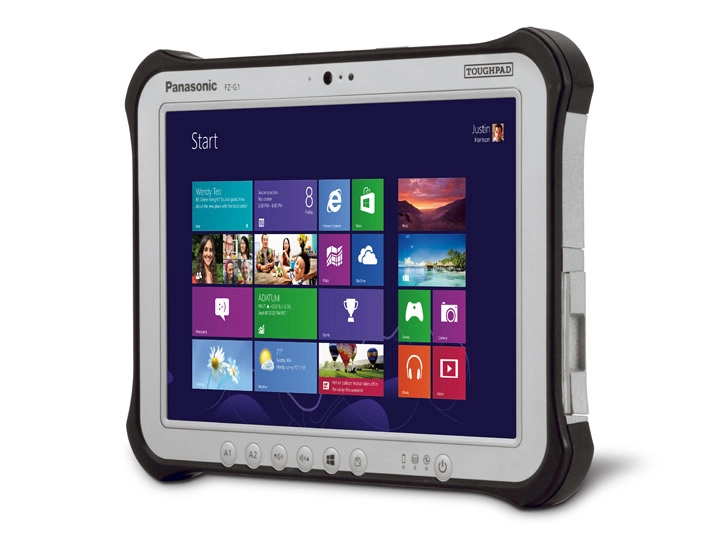

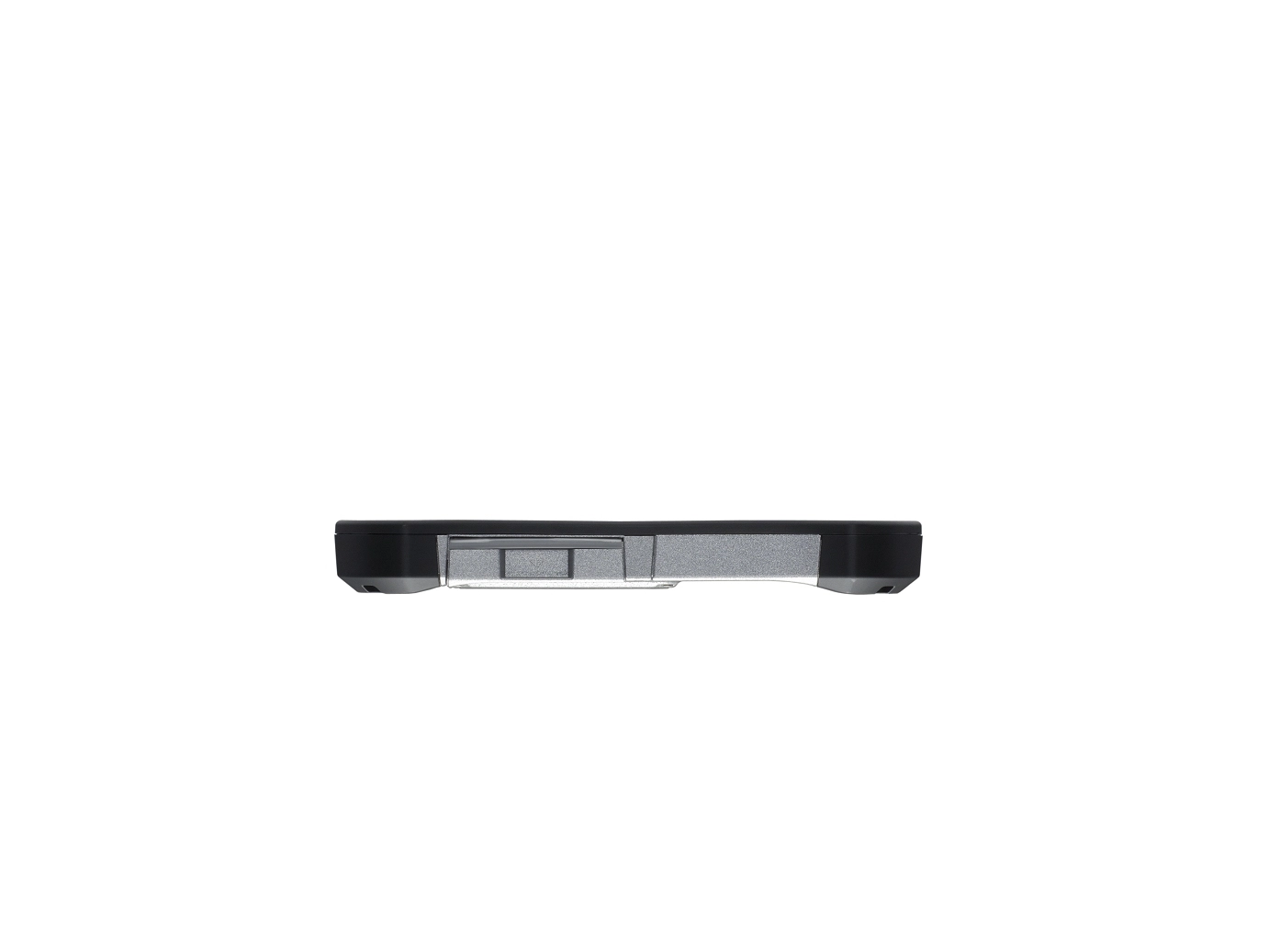

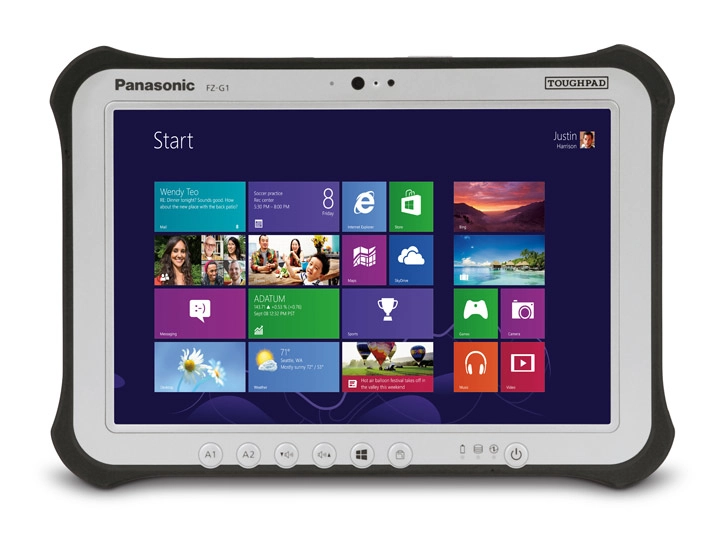

Panasonic Toughpad FZ-G1 MK5 - 128GB 10.1"
Best offer
AED
7 47625
Key Features
- Rear camera type: Single camera
- Position location: No, Yes
- Rear camera flash: Yes
- Processor threads: 2, 4
- Front camera: Yes
- Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Touch technology: Multi-touch
- Assisted GPS (A-GPS): Yes
- Resolution: 1920 x 1200, 1920 x 1080pixels
- System bus rate: 4, 5GT/s
- Device type: Mobile tablet, Tablet PC
- Thermal Design Power (TDP): 15, 17W
- Display brightness: 800cd/m²
- LED backlight: Yes
- Motherboard chipset: Intel® QM77 Express
Specifications
Features
Front camera resolution
1.30MP, 2MP, 8MP
GPS (satellite)
✓
Touchscreen type
Capacitive
Protection features
Cold resistant, Dust resistant, Freeze resistant, Heat resistant, Scratch resistant, Shock resistant, Vibration proof, Water resistant
Internal memory
4000MB, 8000MB
Built-in microphone
✓
Operating system installed
Windows 10 Pro, Windows 7
Card reader integrated
✓
Maximum memory card size
64 GB
Accelerometer
✓
Password protection type
HDD, SSD, Supervisor, User
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
4.0, 4.2
Dustproof
✓
Product colour
Black, Grey, Silver
Touch technology
Multi-touch
Assisted GPS (A-GPS)
✓
Resolution
1920 x 1200, 1920 x 1080
System bus rate
4GT/s, 5GT/s
Device type
Mobile tablet, Tablet PC
Thermal Design Power (TDP)
15W, 17W
Front camera
✓
Weight & dimensions
Width (imperial)
7.40", 10.60", 10.63"
Weight
1090g, 1100g, 1130g
Height
19mm, 20.30mm, 188mm
Depth
19mm, 20.30mm, 187.90mm, 188mm, 270mm
Width
188mm, 269.20mm, 270mm
Display
Display resolution
1920 x 1200, 1920 x 1080
Panel type
IPS
Native aspect ratio
16:10
Anti-reflective coating
✓
Display brightness
800 cd/m²
LED backlight
✓
Power
Battery technology
Lithium-Ion (Li-Ion)
Battery life (max)
8h, 10h, 11h, 14h
AC adapter input voltage
100 - 240 V
AC adapter output current
4.06 A
AC adapter output voltage
16 V
AC adapter frequency
50 - 60 Hz
Performance
Processor ARK ID
71259, 80343, 97472
Processor operating modes
64-bit
Motherboard chipset
Intel® QM77 Express
Electronic compass
✓
Orientation sensor
✓
Top Wi-Fi standard
Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
System requirements
64-bit computing
✓
Other features
Cable lock slot type
Kensington
Platform
Windows
Gyroscope
✓
Maximum internal memory
8000 MB
Maximum graphics card memory
1792 MB
Video capture resolution (max)
3840 x 2160 pixels
Processor special features
Embedded options available
✓
Enhanced Intel SpeedStep Technology
✓
Execute Disable Bit
✓
Graphics & IMC lithography
22 nm
Idle States
✓
Intel 64
✓
Intel Enhanced Halt State
✓
Intel Secure Key Technology version
1.00
Intel Trusted Execution Technology
✓
Intel TSX-NI
✓
Intel TSX-NI version
0.00, 1.00
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel Clear Video Technology
✓
Intel Demand Based Switching
✗
Intel Dual Display Capable Technology
✓
Intel Fast Memory Access
✓
Intel FDI Technology
✓
Intel Flex Memory Access
✓
Intel Identity Protection Technology version
1.00
Intel ME Firmware Version
9.5
Intel Rapid Storage Technology
✓
Intel Small Business Advantage (SBA) version
1.00
Intel Smart Connect Technology
✓
Intel Smart Connect Technology version
1
Intel Smart Response Technology version
1.00
Intel Stable Image Platform Program (SIPP)
✓
Intel Stable Image Platform Program (SIPP) version
1
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Anti-Theft Technology (Intel® AT)
✓
Intel® Clear Video HD Technology (Intel® CVT HD)
✓
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
✓
Intel® High Definition Audio (Intel® HD Audio)
✓
Intel® Hyper Threading Technology (Intel® HT Technology)
✓
Intel® Identity Protection Technology (Intel® IPT)
✓
Intel® Insider™
✓
Intel® InTru™ 3D Technology
✓
Intel® Matrix Storage Technology (Intel® MST)
✗
Intel® My WiFi Technology (Intel® MWT)
✓
Intel® OS Guard
✓
Intel® Quick Sync Video Technology
✓
Intel® Secure Key
✓
Intel® Small Business Advantage (Intel® SBA)
✓
Intel® Smart Cache
✓
Intel® Smart Response Technology
✓
Intel® Turbo Boost Technology
2.0
Intel® Wireless Display (Intel® WiDi)
✓
Thermal Monitoring Technologies
✓
UART
✓
Processor package size
31.0 x 24.0 (BGA1023), 40 x 24 x 1.5 mm, 42 X 24 mm
Processor code
SR0XE, SR1EE, SR340
Intel Software Guard Extensions (Intel SGX)
✓
Supported instruction sets
AVX, AVX 2.0, SSE4.1, SSE4.2
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDXC, Not supported
Storage media
SSD
Software
Operating system version
Professional
Design
International Protection (IP) code
IP65
Ambient light sensor
✓
Cable lock slot
✓
Form factor
Slate
Computer system
Operating system architecture
64-bit
Processor cores
2
Processor model
i5-3437U, i5-4310U, i5-7300U
Processor manufacturer
Intel
Processor frequency
1.90GHz, 2GHz, 2.60GHz
Processor family
Intel Core i5-4300 Mobile series, Intel Core i5-7300 Mobile Series, Intel® Core™ i5
Internal memory
4GB, 8GB
Graphics card family
Intel
Internal storage capacity
128 GB
Graphics card
HD Graphics 4000, HD Graphics 4400, HD Graphics 620
Packaging content
Warranty card
✓
Quick start guide
✓
Manual
✓
AC adapter included
✓
Bag included
✓
Keyboard included
✗
Network
Wi-Fi
✓
Bluetooth
✓
4G standard
LTE
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WWAN
Installed
Ethernet LAN
✓
Mobile network generation
4G
Mobile network connection
✓
Multimedia
Main camera resolution
1.30 MP
Ports & interfaces
DC-in jack
✓
Headphone out
✓
Ethernet LAN (RJ-45) ports
1
Docking connector type
Panasonic 24-pin
Serial ports quantity
1
Microphone in
✓
Headphone connectivity
3.5 mm
PCI Express configurations
1x16, 1x2+2x1, 1x4, 1x8+2x4, 2x2, 2x4, 2x8, 4x1
Micro-USB 2.0 ports quantity
1
Docking connector
✓
Mobile High-Definition Link (MHL)
✗
Combo headphone/mic port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
USB 2.0 ports quantity
1
Technical details
Certification
IP65, MIL-STD-810
Processor
Conflict-Free processor
✓
Processor codename
Haswell, Ivy Bridge, Kaby Lake
Processor series
Intel Core i5 Series, Intel Core i5-4300 Mobile series, Intel Core i5-7300 Mobile Series
Processor generation
5th Gen, 7th Gen
CPU multiplier (bus/core ratio)
19
Bus type
DMI, DMI2, OPI
Stepping
D0, H0, L1
Processor lithography
14nm, 22nm
Processor cache type
Smart Cache
Configurable TDP-down frequency
0.80 GHz
Integrated 4G WiMAX
✓
Tjunction
100°C, 105°C
Processor socket
BGA 1023, BGA 1168, BGA 1356
Processor cache
3 MB
Processor boost frequency
2.90GHz, 3GHz, 3.50GHz
Processor threads
2, 4
Memory
Maximum internal memory
8 GB
Internal memory type
DDR3-SDRAM, DDR3L-SDRAM, LPDDR3-SDRAM
Audio
Audio system
High Definition (HD)
Built-in speaker(s)
✓
Number of built-in speakers
1
Video
Maximum video resolution
3840 x 2160 pixels
HD type
WUXGA
Video recording
✓
Navigation
GLONASS
✓
Position location
✓
Camera
Rear camera resolution
3MP, 5MP, 8MP
Built-in camera
✓
Rear camera
✓
Flash type
LED
Auto focus
✓
Rear camera flash
✓
Rear camera type
Single camera
Battery
Battery capacity
4200mAh, 4400mAh
Battery recharge time
2.50h, 3h
Battery voltage
10.80V, 11.10V
Product Details
LIGHTWEIGHT, FULLY RUGGED WINDOWS 8 TABLET WITH 10.1" NEXT GENERATION OUTDOOR FULL-HD DISPLAY
The fully rugged Toughpad FZ-G1 tablet sets the new benchmark for outdoor viewable tablets making it ideal for field workforces in outdoor scenarios. With its capacitive, 10-finger multi-touch display and digitiser pen and flexible configurable ports this Windows 8 device can be used to view high definition
documentation and images in the field whilst benefitting from connectivity options to ensure data is always available when needed. The flexible configuration port gives business users the legacy port options they require in a compact, fully rugged and lightweight form factor.
- Intel® CoreTM i5-3437U vPro Processor
- Windows 8 Pro
- Intel HD 4000 graphics
- Next generation IPSa outdoor display technology
- 10.1" high brightness WUXGA (1920x1200) display (up to 800cd/m2)
- Capacitive 10 finger multi-touchscreen + digitiser
- 120cm shock resistant
- Water and dust resistant (IP65)
- Up to 8 hours battery life
- User exchangeable battery
- Flexible configuration port (serial, LAN, micro SD or USB 2.0)
- Lightweight design - weights approx. 1,1kg
FOR FIELD PROFESSIONALS WHO FACE THE TOUGHEST CHALLENGES
The Toughpad FZ-G1 shares its DNA with the Toughbook family of products from Panasonic, combining ergonomic and durable design that has made Toughbook the best choice for field workforces. Panasonic has created the fully rugged, highly mobile and lightweight Toughpad
FZ-G1 Windows 8 tablet to answer the needs of organisations that require Windows 8 functionality in a dependable tablet for their outdoor field working challenges. Never before has so much capability, flexibility and performance been packed into such a small form factor with premium outdoor viewing quality and lightweight, mobile tablet design.
