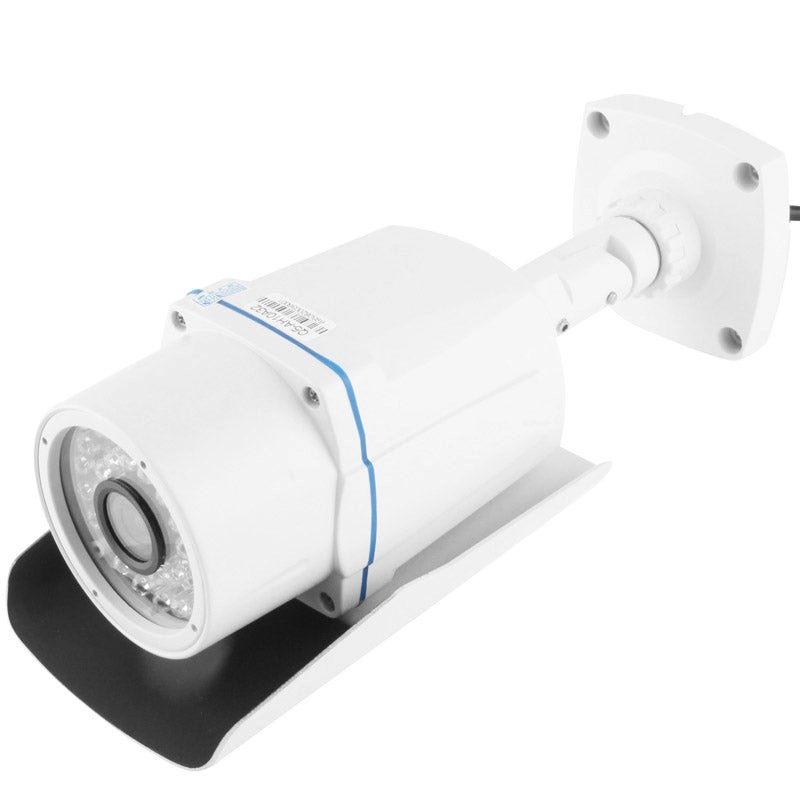

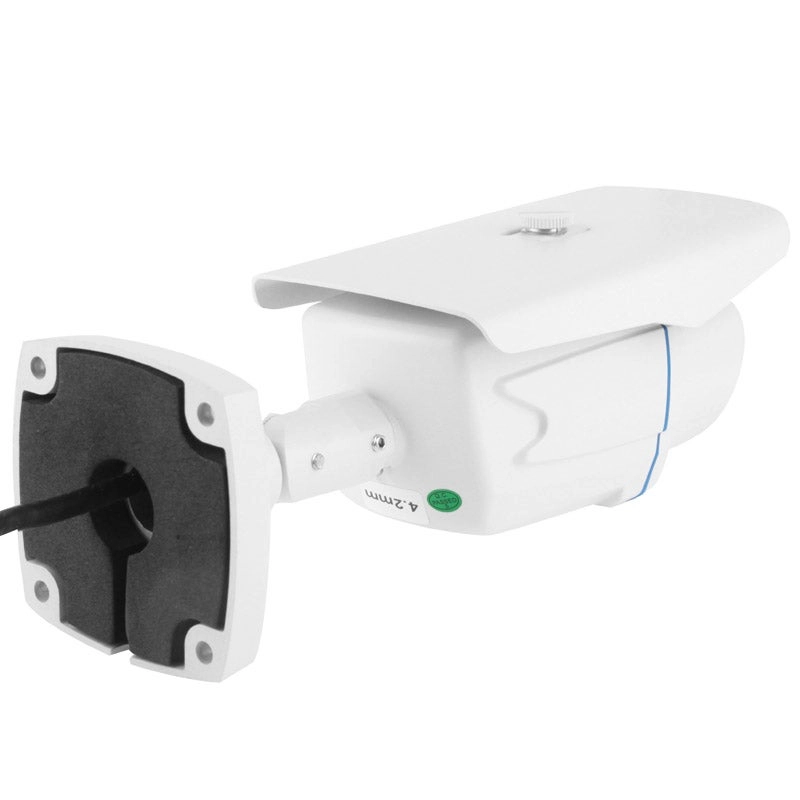

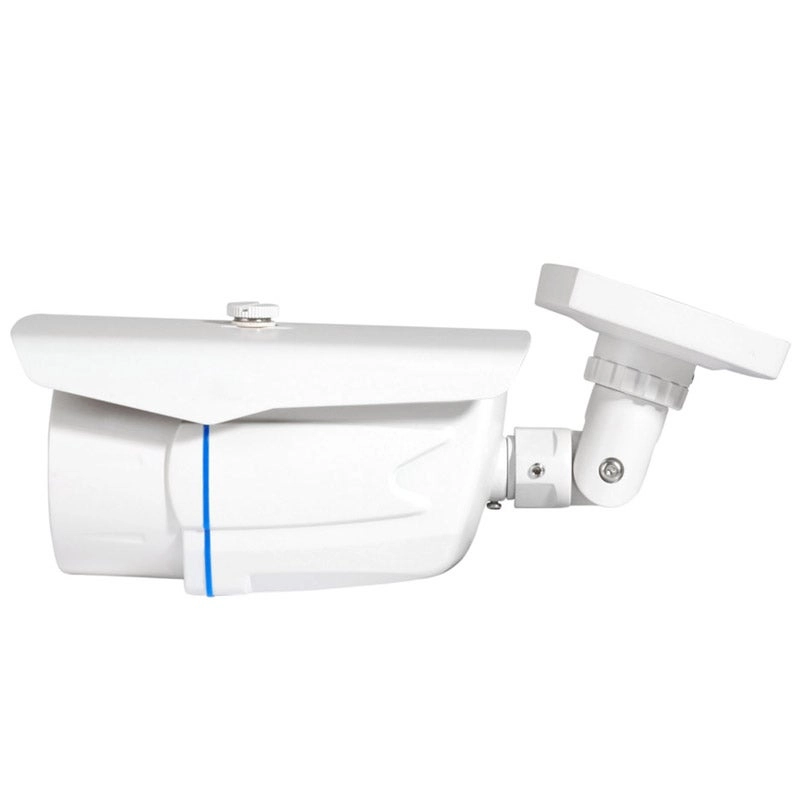

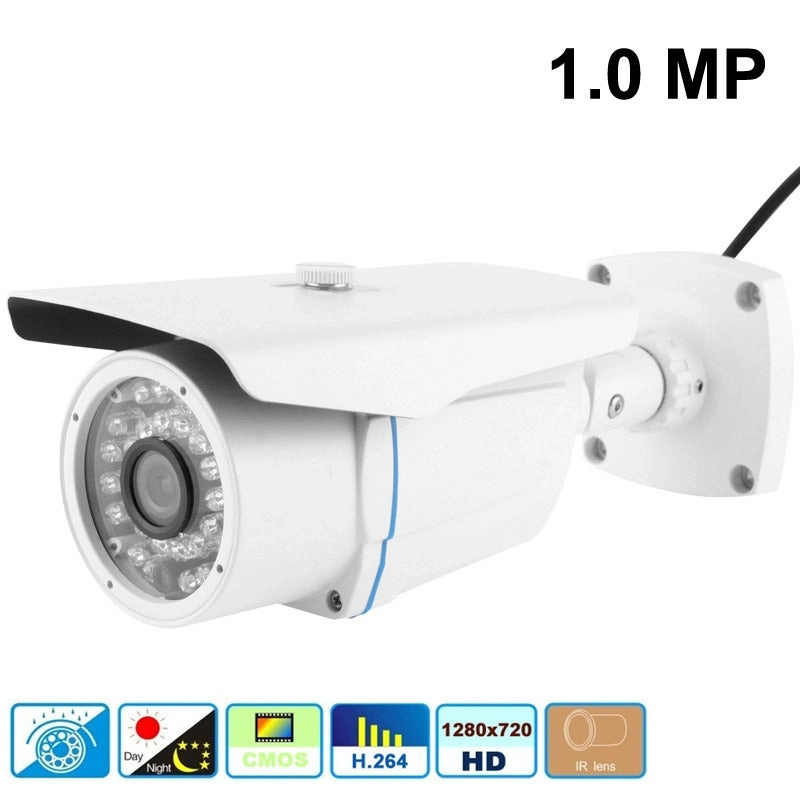

1) Varifocal HD Megapixel Lens:
4.2mm Fixed Lens Optional
2) High Definition:
The newly developed DSP&CMOS enables HD resolution image (1280 x 720 / 1280 x 960 pixels) output with 25fps video. The camera is based on standalone Linux operation system and built with advanced H.264 encoding compression, which is leading the technology in the industrial field domestically. Triple streams, 2-way audio communication, and various alarm modes are supported. It is good at delivering superior quality image with low code stream.
3) Support Mobile Viewer:
Free apps of camera viewer for smart phone of iOS and Android OS
4) Easy Connection with SCC NVR:
Working perfectly with SCC standalone NVR (Plug & Play)
5) Outdoor-Ready Water Resistant Design
6) Multi-function, More intelligent monitoring:
Motion Detection
Alarm Event
Manual and automatic tracking White Balance
2-way audio (Optional)
Privacy Mask
Compliant to ONVIF
DDNS, RTSP, SMTP
12VDC / P.o.E (Optional) Dual Power input.
7) Realtime Full Frames：
The powerful processor delivering max. 25fps realtime for all primary, secondary and mobile stream so as to catch every valuable picture frames with high quality.
8) Progressive Scan Sensor:
The progressive scan CMOS sensor makes the images of moving objects to be seen much more clearly without image tail.
9) Support Standard ONVIF V2.1
10) Integrated Cable:
Integrated cable consisting of power input (DC12V), RJ45 (Network & P.o.E.) and 1CH Audio In & Out.
10) Free IPC Management Software (for PC)
The IPC Platform Software is self-contained network management software. It can be run independently to manage all IPC connected, view monitoring images. Control PTZ etc. It is a perfect choice for small or medium sized (64CH HD IPC Max.) standalone IPC management system.
Specifications
1) Signal System: Progressive image scan
2) Scanning System: 16: 9 / 4: 3 Progressive
3) Image Sensor: 1/3", 1.0-Megapixels CMOS
4) Sync. System: Internal
5) Effective Pixels No. : 1280 (H) x 720 (W); 1280 (H) x 960 (W)
6) Video Output Level: 1.0Vp-p (BNC 75Ω composite)
7) Lens: Fixed Megapixel Lens (f=4.2mm, F1.4)
8) IR LED & Visible Range: IR LED 30pcs Φ5mm (850nm/60°), Max. 30m
9) Day & Night System: Mechanical ICR
10) Min. Illumination: 0.5Lux (Color) / 0 Lux IR On
11) Brightness: Auto/Manual
12) Contrast: Auto/Manual
13) Mirror: Yes
14) Heatbeat Message: Yes
15) Compression: H.264/MJPEG
16) Frame Rate: 1280 x 720 25fps, 1280 x 960 25fps, 640 x 480 25fps
17) Resolution: 1280 x 960, 1280 x 720, 640 x 360, 320 x 240
18) Code Stream: 128Kbps~8Mbps, VBR/CBR
19) Audio : Two ways, G.711a/u
20) Protocol: HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF
21) DDNS: Yes
22) LAN Interface: Ethernet 10/100 base-T, RJ45 x1
23) Support P.o.E.: Yes (Optional)
24) WIFI (802.11b/g/n): No
25) User Access Setup: Yes
26) After Event Process: Upload JPEG via FTP, Email or specified alarm center
27) ONVIF Standard Access: ONVIF V2.1
28) Motion Detection: Yes, Support Multiple Setting Areas
29) Browser: Internet Explorer 6.0 or Above
30) System Upgrade: Yes, Firmware upgrades
31) PTZ Control: Not Applicable for Fixed Cameras
32) WEB Configuration: Yes
33) IP Rating: IP66
34) Operation Temperature: -10℃-45℃(14℉-113℉);
35) Operation Humidity: 10–90% (No condensation)
36) Power: DC12V, P.o.E. (Optional)

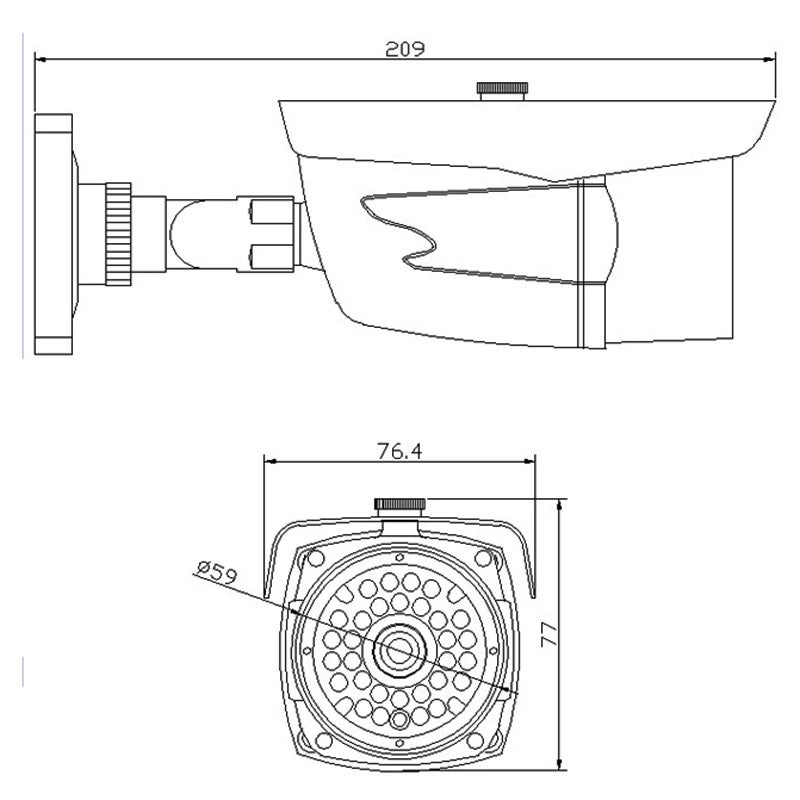

37) Dimensions: 209 (L) x 76 (W) x 77 (H) mm
38) Net weight : 0.35kg
