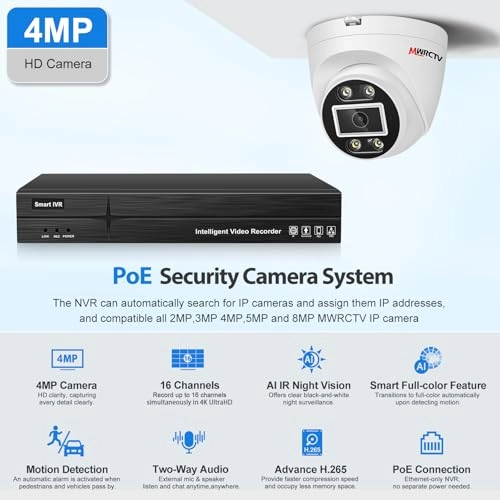

MWRCTV 4MP PoE Camera + 8 Port PoE 16CH 4K NVR

-- NVR Specification:

• 8 Port PoE 16CH 4K NVR.
• Video Output:1 HDMI output,Resolution:3840×2160,1920×1080,1440×900,1280×1024,1280×800,1024×768.
• Support IMS client preview;Support mobile APP fast preview.
• Support multi-screen split;1/2/4/6/8/9 screen real-time preview.
• Recording Resolution:Support 720P/960P/1080P/3MP/4MP/5MP/4K.
• Support Smart265/H.265/H.264 decoding.
• NVR synchronous playback 4CH(1*4K);IMS client support maximum 4CH remote video playback
• Standard G.711;Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface, and IMS client audio and video preview and playback.
• Support IPC smart analysis:Line-crossing detection,Vehicle retrograde, Staff absence,Loitering,Area intrusion,Vehicle illegal parking.
• Support voice alarm function in various mode.
• Support modify the light mode of private protocol IPC.
• support maximum 1pcs 16TB hard disk(not include).
• Support timing recording,alarm recording,timing and alarm recording;Alarm recording includes(Motion detection,Human detection,Line-crossing detection,Vehicle retrograde,Staff absence,Loitering,Area intrusion,Vehicle illegal parking).
• Support external USB storage device (such as ordinary U disk, mobile hard disk) backup.
• 1 HDMI and 1 VGA output interface,2 USB port.
• User Management:Maximum support 32 local user.
• Network Port:1 RJ45 Ethernet port,10/100M adaptive;Support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 ect.network protocol.
• External Port:2 USB2.0 (rear);Support mouse,USB upgrade,import and export.
• Support preview,recording,forwarding,and remote service,alarm linkage,and IMS client remote monitoring software.Support P2P cloud service.
• Working Temperature:-10℃～＋55℃.
• Working Humidity:10%～90%.
• Power:DC 52V 2.3A.
• Size (mm)210*255*42mm(W×L×H),(in)8.27*10.04*1.65in(W×L×H).
• APP:LinkEasy

--Camera Specification:

• 4MP IP Network PoE Camera
• Efficient H.265 compression technology
• Human/Vehicle detection
• Built-in Microphone and Speaker, just real-time intercom via mobile phone
• IP66 Dust and Waterproof Rating
• Support PoE 48V Input
• Image Sensor: 1/3" Progressive Scan CMOS
• Max resolution:2560*1440
• Video Compression: H.265/H.264
• Audio Input: Built-in Microphone, record with audio
• Lens: 2.8 mm, monitoring angle 110 degrees
• Number of Infrared LEDs: 4 pcs
• Night Vision Distance: Up to 100 ft/30 m

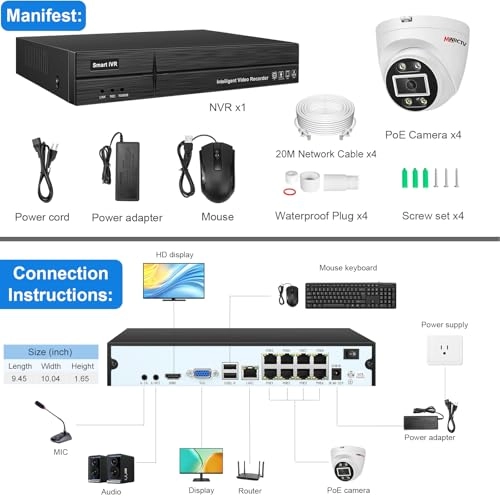

-- Package List:

• 4 x 4MP Security Dome PoE Cameras
• 1 x 8 Port PoE16CH 4K POE NVR
• 4 x 20m Ethernet Cable
• 1 x Mouse
• 1 x NVR User Manual
