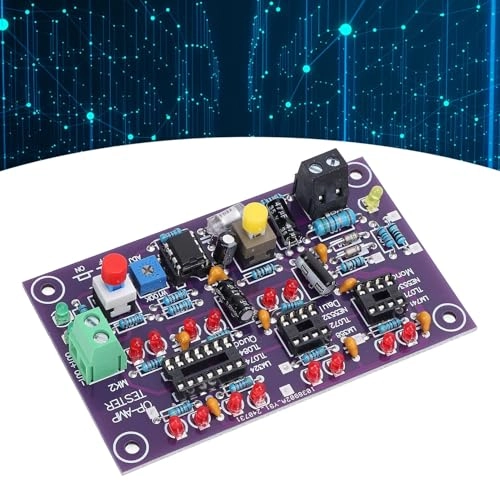

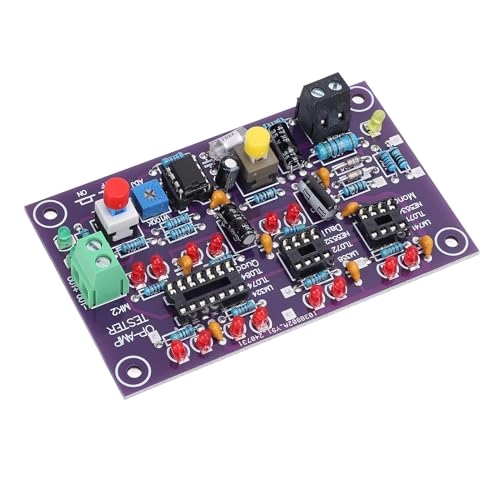

EMUKOEP Operational Amplifier Test Module - 100mA DC12V

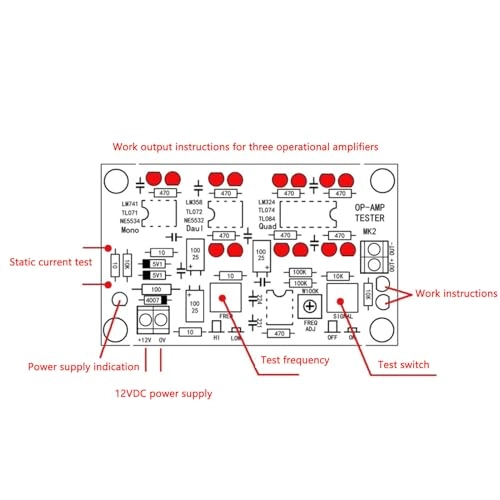

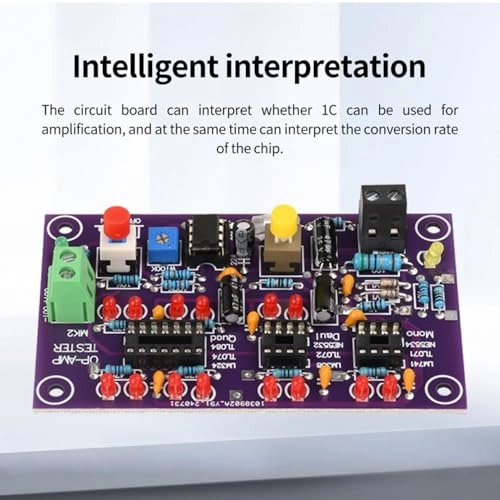

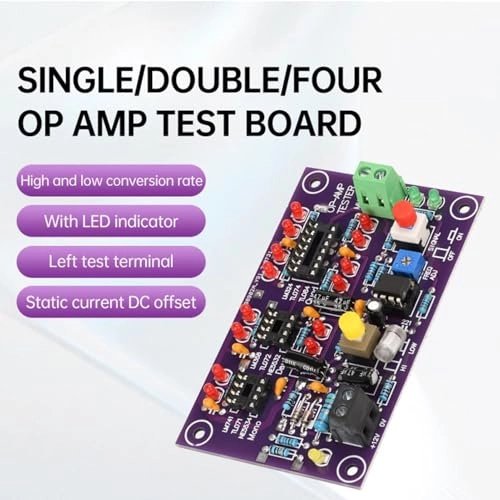

1. TESTING PURPOSE: This is an op amp tester that can be used to test common chips for single op amp (Mono), dual op amp and four op amps. The circuit board can determine if IC can be used for amplification and the conversion rate of the chip can be roughly evaluated. You can detect low speed chips that look like high speed chips 2. OUTLET MODE: For high-speed op amp, when high and low frequency signal input, corresponding red LED and green LED synchronization, stable on (200KHZ or bright (10HZ)) can output normally. EXIT SCREEN: For low-speed op amp, when there is signal input, the output end cannot complete the output waveform, it will not light normally as the corresponding red LED shows, only one or two. Only when there is a low frequency signal input, it can output normally and the corresponding red LED at the output end can flash simultaneously with green LED. TEST Current: There is a test terminal on the board to test the static of op amp under plus or minus 5V power supply. Due to the static size, you can also understand some features of the working amplifier and distinguish the model 5. STURDY PCB: Operational amplifier test board has stable PCB material, excellent maintenance ease and interchangeability, you can be sure it is used Specifications: Item Type: Operational Amplifier Test Card Size: Approx. 9.5x5.8cm/3.74x2.28inch Power Requirement: Voltage: DC12V, : 100mA Application: Models for Single OP AMP: LM741, LF356, NE5534, TL071, TL081, 0P07 and other standard single OP AMP packages Models for Dual OP AMP: LM358, NE5532, TL072, TL082, MC1458, RC4558, 0P275, AD827 and other standard dual OP AMP packages For Quad OP AMP Models: LM324, TL074, TL084, LF347, AD713 How to Use: Direct installation and Packing List: 1 x Test
