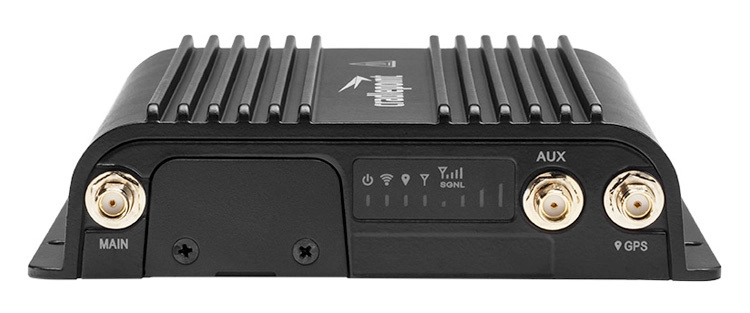

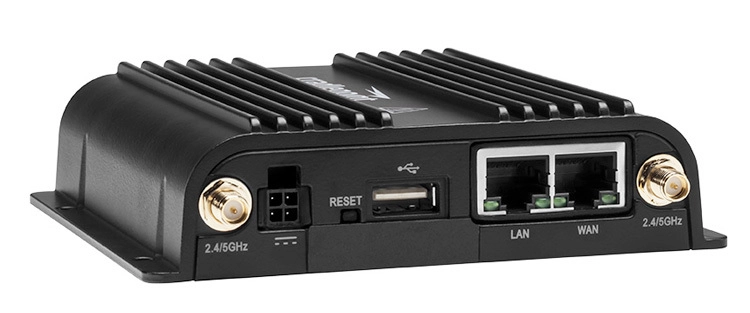

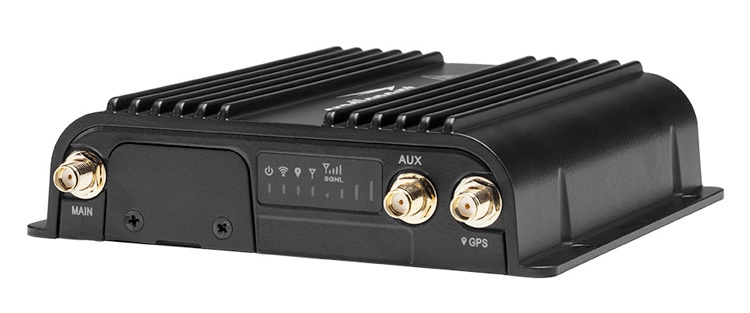

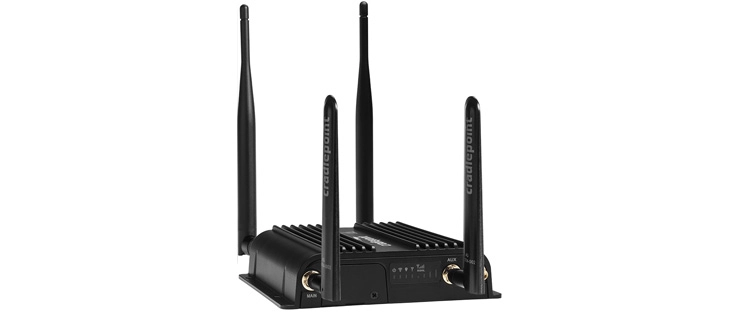

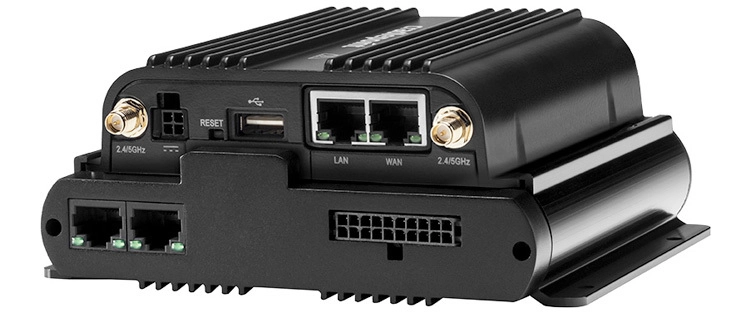

Cradlepoint IBR900

Best offer

AED

4 172⁶⁴

Key Features

DSL WAN: No
3G/4G USB modem compatibility: Yes
3G: Yes
4G: Yes
HDSL: No
SHDSL: No
WLAN data transfer rate (max): 300Mbit/s
ADSL: No
ADSL2: No
ADSL2+: No
SSID-based VLAN assignment: Yes
Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
GPS compatibility: Yes
Policy-based routing: Yes
Antenna design: External

Specifications

Features

Safety

CB Scheme

Authentication method

802.1x RADIUS

Universal Plug and Play (UPnP)

✓

Management platform

Cradlepoint NetCloud Manager

Screws included

✓

Quality of Service (QoS) support

✓

Number of WLAN connections (max)

128

Short Message Service (SMS)

✓

Security algorithms

802.1x RADIUS, WPA2

Product colour

Black

Antenna gain level (max)

5 dBi

DHCP client

✓

DHCP server

✓

Antenna connector type

SMA dipole

Product type

Tabletop router

Multicast support

✓

Weight & dimensions

Weight

400 g

Height

29.30 mm

Depth

113.50 mm

Width

118 mm

Management features

Web-based management

✓

System event log

✓

Power

Power source type

DC

Performance

Load balancing system

✓

Top Wi-Fi standard

Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Wireless LAN features

Dynamic DNS (DDNS)

✓

WLAN data transfer rate (max)

300 Mbit/s

Other features

Expansion slots

nsf

Filtering

✓

Design

LED indicators

Activity, Power

Indication light

✓

Packaging content

Warranty card

✓

Quick start guide

✓

AC adapter included

✓

Network

Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Management protocols

SNMP

3G standards

HSPA

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Cabling technology

10/100/1000Base-T(X)

Mobile network generation

4G

SIM card slot

✗

Ethernet LAN data rates

10, 100

4G standard

LTE

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Ethernet LAN

✓

URL filtering

✓

Ethernet LAN interface type

Gigabit Ethernet

Policy-based routing

✓

SSID-based VLAN assignment

✓

Ports & interfaces

Memory card slot(s)

✗

Ethernet LAN (RJ-45) ports

2

USB port

✓

Ethernet WAN

✓

USB 2.0 ports quantity

1

GPS compatibility

✓

SHDSL

✗

DSL features

Internal modem

✗

VDSL

✗

VDSL2

✗

ADSL2+

✗

ADSL2

✗

ADSL

✗

HDSL

✗

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Certification

CE, California Prop 65, FCC, IC, RoHS, RoHS-2, WEEE

Protocols

Routing protocols

BGP, OSPF, RIP, VRRP

Security

IP address filtering

✓

MAC address filtering

✓

Network address translation (NAT)

✓

DMZ support

✓

Antenna

Antenna design

External

Mobile network

Dual SIM support

✓

3G

✓

4G

✓

Logistics data

Harmonized System (HS) code

85176990

WAN connection

WAN connection type

RJ-45

3G/4G USB modem compatibility

✓

DSL WAN

✗

Product Details

The Cradlepoint COR IBR900 Series is a ruggedized 3G/4G LTE networking platform that is purpose-built to meet the needs of in-vehicle use and can provide connectivity across a broad range of M2M and IoT applications. This cloud-managed routing platform supports Cradlepoint NetCloud Engine and the Extensibility Platform to meet an array of customer connectivity needs and applications. With an embedded LP6 modem for LTE Advanced with HSPA+ (or LPE modem for EVDO or HSPA+ fallback), Gigabit WiFi, Gigabit Ethernet and a quad-core processor, the IBR900 Series delivers high performance for the most demanding M2M and mobile applications. With Cradlepoint NetCloud OS, remote management, and cloud networking, the IBR900 Series delivers enterprise-grade networking functionality in a compact, ruggedized router.

Files

Product Brochure

mmo_56686458_1530259689_6313_25293.pdf

PDF• 424.8 KB

User manual

mmo_56686458_1530259706_2253_25300.pdf
