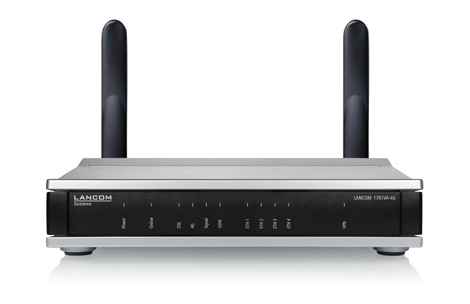

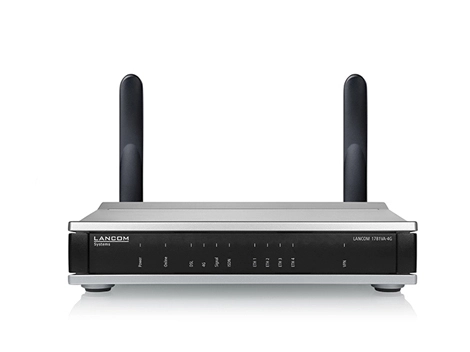

LANCOM Systems 1781VAW - 802.11n

Best offer
AED
3 73400

Key Features

  • DSL WAN: Yes
  • 3G/4G USB modem compatibility: Yes
  • 3G: Yes
  • 4G: Yes
  • Firewall: Yes
  • WLAN data transfer rate (max): 300Mbit/s
  • Supports ISDN connection: Yes
  • ADSL: Yes
  • ADSL2: Yes
  • ADSL2+: Yes
  • Top Wi-Fi standard: Wi-Fi 4 (802.11n)
  • Antenna design: External
  • Ethernet LAN interface type: Gigabit Ethernet
  • DHCP client: Yes
  • DHCP server: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
2
Authentication method
MS-CHAPv2
Supported protocols
ARP, BOOTP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, IPoA, L2TPv2 (LAC or LNS) and IPoE (with or without DHCP), LANCAPI, ML-PPP, Multi-PPPoE, NTP/SNTP, NetBIOS, PPPoA, PPPoE, PPPoE (server), PPTP (PAC or PNS), RADIUS, RIP-1, RIP-2, RTP, SIP, SNMP, TCP, TFTP, UDP, VLAN, VRRP, proxy ARP
Universal Plug and Play (UPnP)
✓
Plug and Play
✓
NAT functionality
HW-NAT TCP
VoIP protocols
SIP ALG
Quality of Service (QoS) support
✓
Frequency range
2.40 - 2.48 GHz
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, CAST, EAP, EAP-SIM, EAP-TLS, EAP-TTLS, FIPS 140-2, HTTPS, MD5, MSCHAPv2, PEAP, RSA, SHA-1, SSH, SSL/TLS, WEP, WPA, WPA2
Short Message Service (SMS)
✓
Maximum indoor range
30 m
Maximum outdoor range
250 m
Supported WAN type
VDSL2 Ethernet 3G
Product colour
Black
DHCP client
✓
DHCP server
✓
Antenna connector type
RP-SMA
Frequency band
2.4 & 5
Antenna gain level (max)
2 dBi
Product type
Tabletop router
Channels quantity
2 channels
Port forwarding
✓

Weight & dimensions

Weight
600 g
Height
45 mm
Depth
140 mm
Width
210 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓

Power

Power consumption (typical)
14 W
AC input voltage
230 V
Power over Ethernet (PoE)
✗
Power source type
AC

Performance

Top Wi-Fi standard
Wi-Fi 4 (802.11n)

Wireless LAN features

VPN support
IPSec over HTTPS PPTP
WLAN data transfer rate (max)
300 Mbit/s

Other features

Bandwidth (second)
5 GHz
Bandwidth (first)
2.40 GHz
WLAN data transfer rates supported
1, 11, 12, 150, 18, 2, 24, 36, 48, 5.5, 54, 6, 9
Filtering
✓
Frequency range
2.4 - 2.484 GHz
xDSL connection
✓

Software

Firewall security
Stateful Inspection Firewall (SIF)
Firewall
✓

Design

Reset button
✓
LED indicators
Yes
Detachable antenna(s)
✓

Packaging content

Manual
✓
Cables included
LAN (RJ-45)
AC adapter included
✓

Network

4G bands supported
1800, 2100, 800, 900
Data link protocols
ARP, BOOTP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, LANCAPI, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RIP-1, RIP-2, RTP, SIP, SNMP, TCP, TFTP, UDP, VRRP, proxy ARP
Networking standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Supported network protocols
IPoA, IPoE (w/wo DHCP), ML-PPP, Multi-PPPoE, PPPoA, PPPoE, PPTP (PAC/PNS), RIP-1, RIP-2, VLAN
Management protocols
HTTP, HTTPS, HTTPS/HTTP, SNMP, SSH, TACACS+, TFTP, Telnet/SSL
3G standards
HSPA, UMTS
2G standards
EDGE, GPRS
VPN tunnels quantity
5
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10, 100
4G standard
LTE
Wi-Fi standards
802.11a, 802.11b, 802.11g
Ethernet LAN
✓
URL filtering
✓
Mobile network generation
4G
Mobile network connection
✓
SIM card slot
✓
GSM bands supported
1800, 850, 900
UMTS bands supported
900
Ethernet LAN interface type
Gigabit Ethernet

Ports & interfaces

DC-in jack
✓
Memory card slot(s)
✗
Ethernet LAN (RJ-45) ports
4
USB port
✓
USB ports quantity
1
Ethernet WAN
✓
USB 2.0 ports quantity
1
USB version
2.0
Supports ISDN connection
✓

DSL features

DSL specification
ADSL2+
Internal modem
✓
VDSL
✓
VDSL2
✓
ADSL2+
✓
ADSL2
✓
ADSL
✓

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 95 %

Technical details

Certification
CE EN 301 489-1, EN 301 489-17, EN 55022, EN 55024, EN 55024 IPv6 Ready Gold Wi-Fi Certified, EN 60950, EN 60950-1

Protocols

Routing protocols
RIP-2

Security

IP address filtering
✓
MAC address filtering
✓
Network address translation (NAT)
✓
DMZ support
✓

Antenna

Antenna design
External

Mobile network

3G
✓
4G
✓

WAN connection

3G/4G USB modem compatibility
✓
DSL WAN
✓

Radar

Modulation
OFDM

Product Details

The LANCOM 1781VA-4G is a professional, high-performance VPN router for high-speed Internet access with its integrated VDSL2/ADSL2+ modem and dual-SIM 4G LTE. These versatile connection options make it a high-performance basis for no-compromise backup scenarios and maximum operational reliability. The extensive range of IPSec VPN functions offered by the LANCOM 1781VA-4G additionally guarantees that the connection to the company network is secure. The right choice for secure, reliable and sustainable networking solutions "Made in Germany". Professional VPN router with VDSL2 and ADSL2+ modem Thanks to the integrated VDSL2/ADSL2+ modem and VDSL2-Vectoring, the LANCOM 1781VA-4G supports high-speed VDSL with up to 100 Mbps and offers maximum versatility for your transition from ADSL to VDSL. The smart choice for the future viability of your network. Dual-SIM 4G LTE with up to 100 Mbps Thanks to its twin integrated SIM-card slots, the LANCOM 1781VA-4G enables intelligent mobile backup scenarios, for example if a provider network goes down or the mobile data volume is exhausted. All-in-all it is a high-performance basis for no-compromise backup scenarios and highly available networks in any industry. Secure site connectivity via VPN The LANCOM 1780VA-4G offers high levels of security. The standard equipment of 5 IPSec VPN channels guarantees strong encryption, secure connections for mobile employees, and protection of corporate data. The LANCOM VPN option upgrades the router to support 25 VPN channels. This ensures that your network is perfectly scalable and can grow on demand - without additional hardware components. Stateful inspection firewall Equipped with a stateful inspection firewall, the LANCOM 1780VA-4G protects the entire network. With features such as intrusion prevention and Denial-of-Service protection, this business VPN router provides optimal protection and secures all of the data on the network. Advanced Routing & Forwarding The LANCOM 1780VA-4G provides up to 16 securely isolated IP contexts, each of which has its own separate routing. This is an elegant way of operating IP applications with one central router and keeping the different communication channels securely separated from one another. Gigabit Routing Performance Thanks to the support of hardware NAT, the LANCOM 1781VA-4G achieves a routing performance of up to 930 Mbps. Hence the transmission of IP packages is accelerated to its maximum. The high-performance hardware platform also enables a VPN encryption performance of 250 Mbps and offers powerful performance reserves even if extended by further software options. More reliability for the future. With the LANCOM 1781VA-4G corporate networks can be upgraded for the use of the Internet protocol IPv6 using their current infrastructure. Due to the implementation of dual-stack, the router can be operated in pure IPv4, pure IPv6, or mixed networks. On top of that, several times a year free-of-charge updates for the LANCOM Operating System (LCOS) are available. Hence, LANCOM offers maximum safeguarding of your investment. Security Made in Germany In a market with a strong presence of American and Asian products, LANCOM offers maximum security "Made in Germany". The entire LANCOM core product range is developed and manufactured in Germany, and tested according to the highest standards of security, data protection and quality. The company's own "closed-source" operating system LCOS is developed at the company headquarters in Germany. Our in-house team of developers works in a highly secure environment as certified by the BSI (German Federal Office for Information Security) - all of which is subject to the highest standards of security, encryption, and quality. Maximum future-proofing LANCOM products are based on professional expertise, years of experience in IT, and high-quality materials. All of our devices are equipped with hardware that is dimensioned for the future and, even reaching back to older product generations, updates to the LANCOM Operating System - LCOS - are available several times a year, free of charge. This guarantees a long service life while staying technically up to date, which represents a true protection of your investment. Systematic networking solutions LANCOM VPN routers are the basis for secure encrypted site connectivity and high-speed Internet access. As professional system components, they are fully compatible to all LANCOM network components and enable flexible scaling and expansion when using further LANCOM components. The result is a secure and flexible all-round solution that you can rely on. The overall network down to each individual device can be managed and monitored from a central instance - for a solution that is systematic.

Files

Product Brochure

mmo_26070769_1487596842_609_20088.pdf

PDF• 293.4 KB
