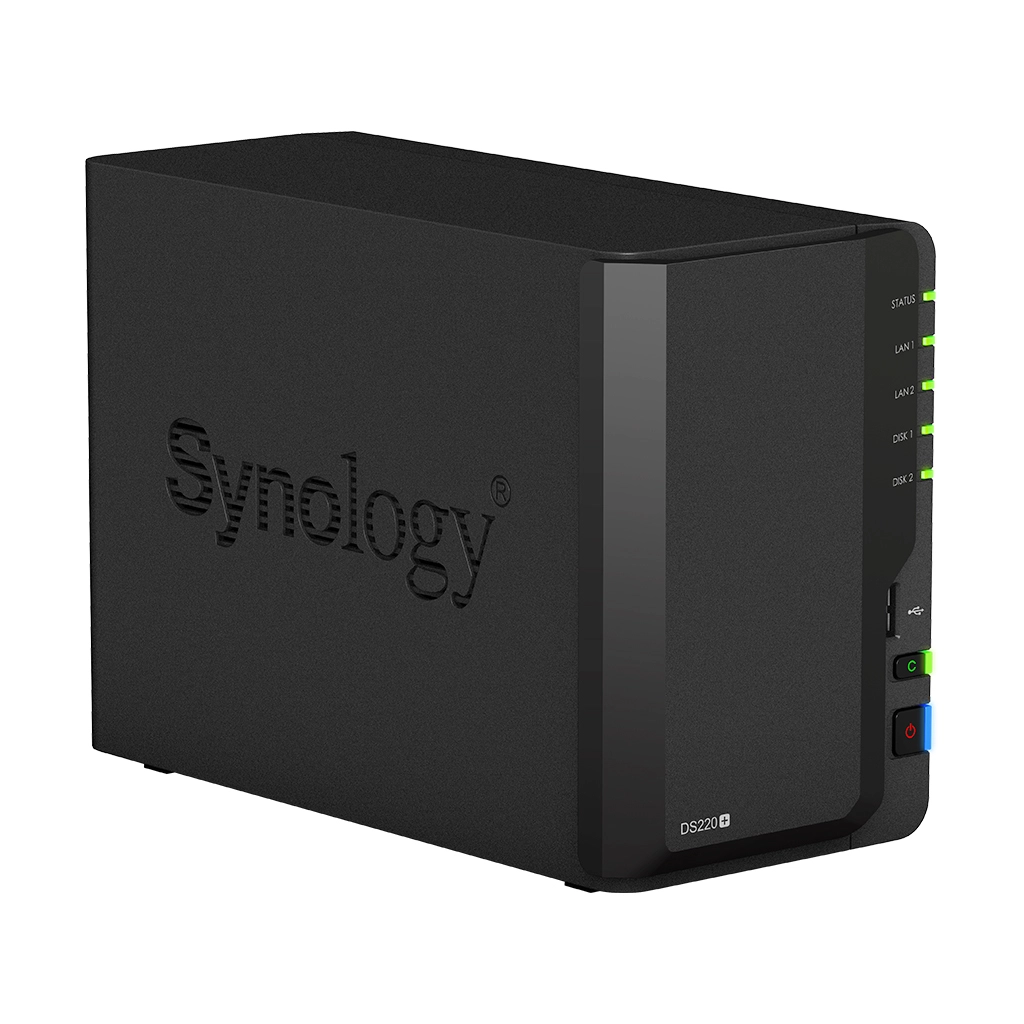

Synology DiskStation DS220+ - 2TB
Best offer
AED
7 29760
This price may no longer be valid
Key Features
- Storage drives installed: Yes
- Total installed storage capacity: 20TB
- Power consumption (HDD standby): 4.41W
- Online RAID migration: Yes
- Online RAID expansion: Yes
- Power supply unit (PSU) capacity: 60W
- Device class: Home & Home Office
- Backup features: Cloud, iSCSI LUN
- Number of storage drives installed: 2
- Installed storage drive type: HDD
- Processor threads: 2
- Storage drive size: 2.5/3.5"
- Third-party support: Yes
- Hot-swap drive bays: Yes
- Multilingual support: Yes
Specifications
Features
Operating system installed
DiskStation Manager
Backup function
✓
Fan diameter
92 mm
On/off switch
✓
Security algorithms
HTTPS, SSH, SSL/TLS
Noise level
19.30 dB
CPU configuration (max)
1
Product colour
Black
Type
NAS
Access Control List (ACL)
✓
PCI Express slots version
2.0
Thermal Design Power (TDP)
10 W
Multilingual support
✓
Storage drive size
2.5/3.5
Installed storage drive type
HDD
Weight & dimensions
Height
165 mm
Depth
232.20 mm
Width
108 mm
Power
External power adapter
✓
Power consumption (typical)
14.69 W
AC input voltage
100 - 240 V
Power supply location
External
AC input frequency
50 - 60 Hz
Number of power supply units
1
Power supply unit (PSU) capacity
60 W
Power consumption (HDD standby)
4.41 W
Performance
Processor ARK ID
197307
Processor operating modes
64-bit
Storage drive interface
Serial ATA II, Serial ATA III
USB copy function
✓
System log
✓
Hot spare
✓
Password authentication
✓
Share folder
CIFS/AFP/NFS/FTP/WebDAV
Share folder access right management
✓
Third-party support
✓
Number of storage drives installed
2
Backup features
Cloud, iSCSI LUN
Total installed storage capacity
20 TB
Other features
RAID controller type
Yes
Browser supported
Chrome, Edge, Firefox, Internet Explorer, Safari
Cable lock slot type
Kensington
Chassis type
Desktop
Digital Living Network Alliance (DLNA) certified
✓
Backup button
✓
Processor special features
Embedded options available
✗
Enhanced Intel SpeedStep Technology
✓
Execute Disable Bit
✓
Idle States
✓
Intel 64
✓
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Anti-Theft Technology (Intel® AT)
✗
Intel® Hyper Threading Technology (Intel® HT Technology)
✗
Intel® Identity Protection Technology (Intel® IPT)
✓
Intel® OS Guard
✓
Intel® Quick Sync Video Technology
✓
Intel® Secure Key
✓
Intel® Smart Response Technology
✗
Intel® Turbo Boost Technology
No
Maximum number of PCI Express lanes
6
Number of execution units
12
Thermal Monitoring Technologies
✓
UART
✓
Memory types supported by processor
DDR4-SDRAM, LPDDR4-SDRAM
Processor package size
25 x 24 mm
Storage
Supported file systems
BTRFS, FAT, HFS, NTFS, exFAT, ext3, ext4
RAID levels
0, 1, JBOD
RAID support
✓
Maximum supported storage capacity
32 TB
Supported storage drive types
HDD & SSD
Storage drive capacity
10000 GB
Number of storage drives supported
2
Storage drive sizes supported
2.5, 3.5
Supported storage drive interfaces
Serial ATA II, Serial ATA III
Hot-swap drive bays
✓
Online RAID expansion
✓
Online RAID migration
✓
Storage drives installed
✓
Design
Reset button
✓
LED indicators
HDD, LAN, Power, Status
Cable lock slot
✓
Cooling type
Active
Device class
Home & Home Office
Graphics
Number of displays supported (on-board graphics)
3
Maximum on-board graphics card memory
8 GB
On-board graphics card ID
0x3185
On-board graphics card burst frequency
700 MHz
On-board graphics card base frequency
250 MHz
On-board graphics card dynamic frequency (max)
700 MHz
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.4
Computer system
Processor cores
2
Processor model
J4025
Processor manufacturer
Intel
Processor frequency
2 GHz
Processor family
Intel® Celeron®
Internal memory
2 GB
Packaging content
Cables included
AC, LAN (RJ-45)
Power cables quantity
1
Network
Supported network protocols
CalDAV, FTP, HTTP, HTTPs, LDAP, NFS Kerberized sessions, NFSv3, NFSv4, NFSv4.1, SMB1 (CIFS), SMB2, SMB3, SNMP, iSCSI
Ethernet LAN data rates
10, 100
Built-in FTP server
✓
Ethernet LAN
✓
iSCSI support
✓
Link aggregation
✓
Wake-on-LAN ready
✓
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
PCI Express configurations
1x4+1x2, 2x1+1x2+1x2, 4x1
USB port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Operating altitude
0 - 5000 m
Storage relative humidity (H-H)
5 - 95 %
Technical details
Sustainability compliance
✓
Certification
BSMI, CCC, CE, EAC, FCC, KC, RCM, VCCI
Compliance certificates
BSMI, CCC, EAC, Federal Communications Commission (FCC), KC, REACH, RoHS, UKCA, VCCI
Processor
Maximum internal memory supported by processor
8 GB
Processor codename
Gemini Lake Refresh
On-board graphics card model
Intel® UHD Graphics 600
Processor lithography
14 nm
Tjunction
105 °C
L2 cache
4 MB
Processor socket
BGA 1090
Processor cache
4 MB
Processor boost frequency
2.90 GHz
Processor threads
2
Memory
ECC
✗
Internal memory type
DDR4
Maximum RAM supported
6 GB
Memory slots
1
Camera
Snapshot
✓
Logistics data
Harmonized System (HS) code
84714100
Product Details
Compact and high performance NAS solution
Synology DS220+ is a compact network-attached storage solution designed to streamline your data and multimedia management. It features smooth data sharing, video streaming, and photo indexing, as well as well-rounded data protection and recovery options.
Accelerate demanding applications
A more powerful CPU speeds up computing-intensive applications. The new 2-core processor boosts photo indexing, database response times, and web PHP response efficiency. Easily categorize your photo memories, smoothly manage files across computers and mobile devices, and enjoy blazing fast web applications.
Your personal entertainment and multimedia hub
Access multimedia content anytime, anywhere through an intuitive web-based interface.
Audio Station
Audio Station is your personal music center, designed to intelligently sort and organize your audio files, and stream to Google Cast enabled devices. Audio Station supports lossless formats to ensure pristine audio quality.
Moments
Organize your photos intelligently with Moments, a modern, AI-enabled photo management application that lets you effortlessly preserve your precious memories. Learn more
Video Station
Video Station lets you easily manage and organize movies, TV shows, and home videos, and stream content to computers, smartphones, and media players.
Seamless integration with your mobile devices
Synology mobile applications are designed to allow quick and secure access to your data wherever you are.
Btrfs: Next generation storage efficiency
The Btrfs file system introduces cutting-edge storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
Access and sync your files seamlessly
Synology Drive provides a built-in universal portal to access your data anytime and anywhere, and synchronize all your files across platforms, including Windows, macOS, Linux, Android, and iOS.
- Sync files on demand: Save the storage space and network bandwidth of your PC.
- Go back in time: Easily retrieve previous versions of your shared files.
- Back up your data: Protect your files as scheduled or in real-time.
Powered by Synology DSM
Desktop Backup
Simplified backup solution for your Mac, PC, and mobile devices.
DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.
Snapshot Replication
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.
Synology Drive
A versatile solution for file management and synchronization.
File Server/Management
Powerful built-in file management and sharing services.
Security
Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.
