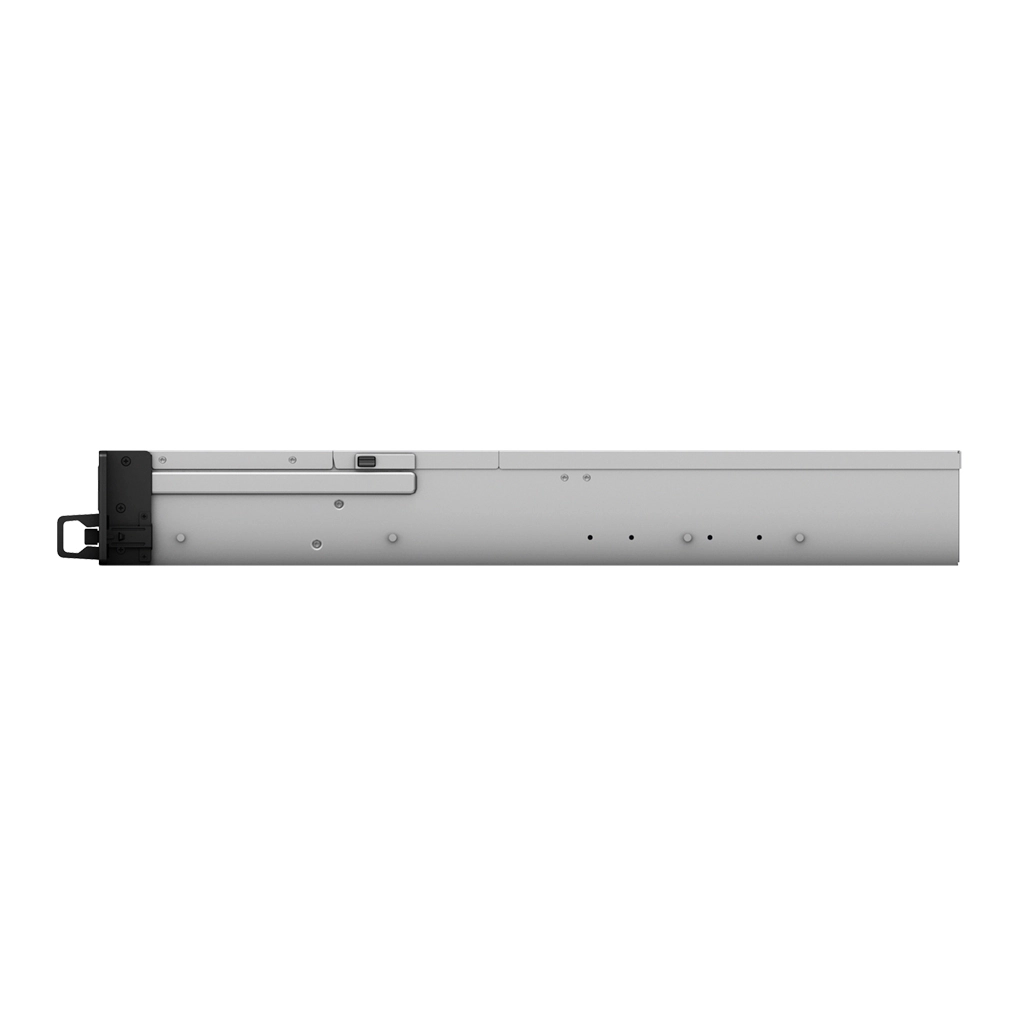

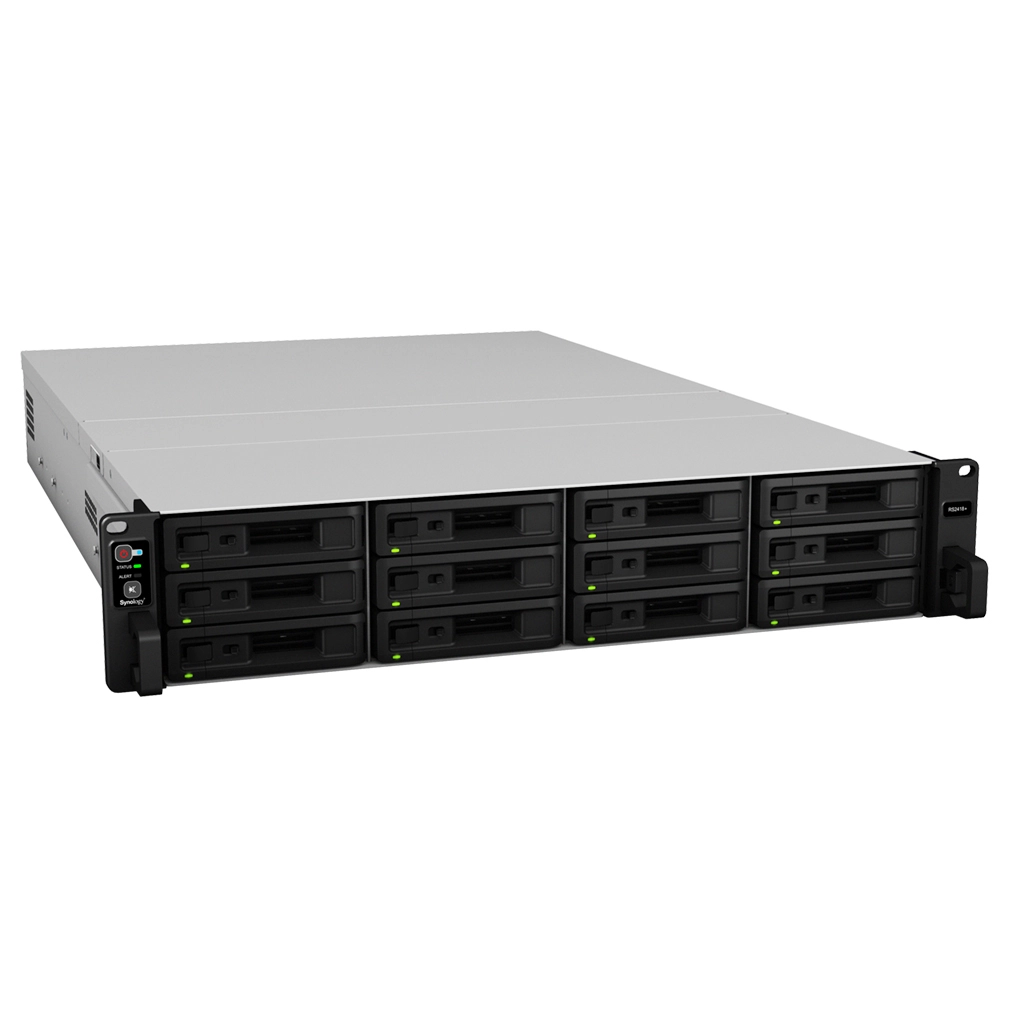

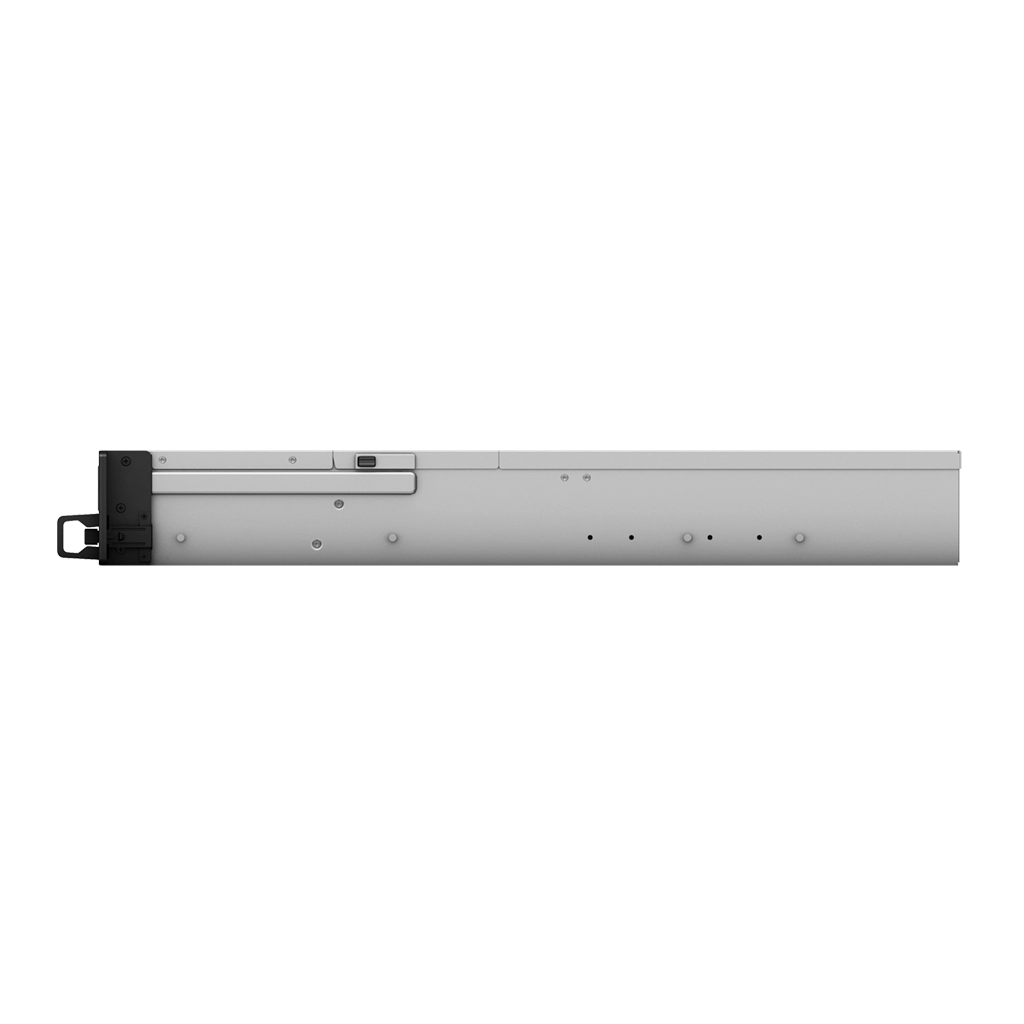

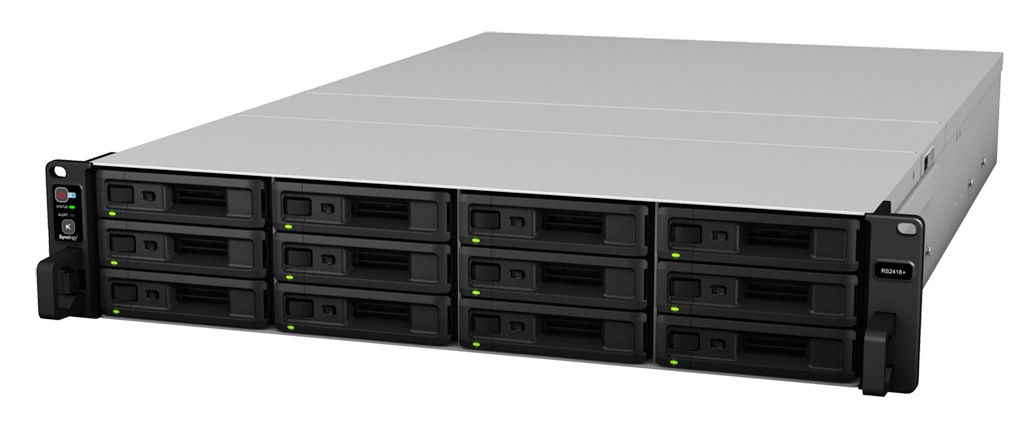

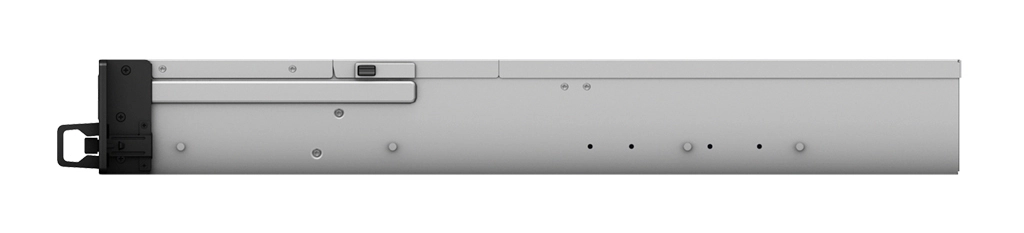

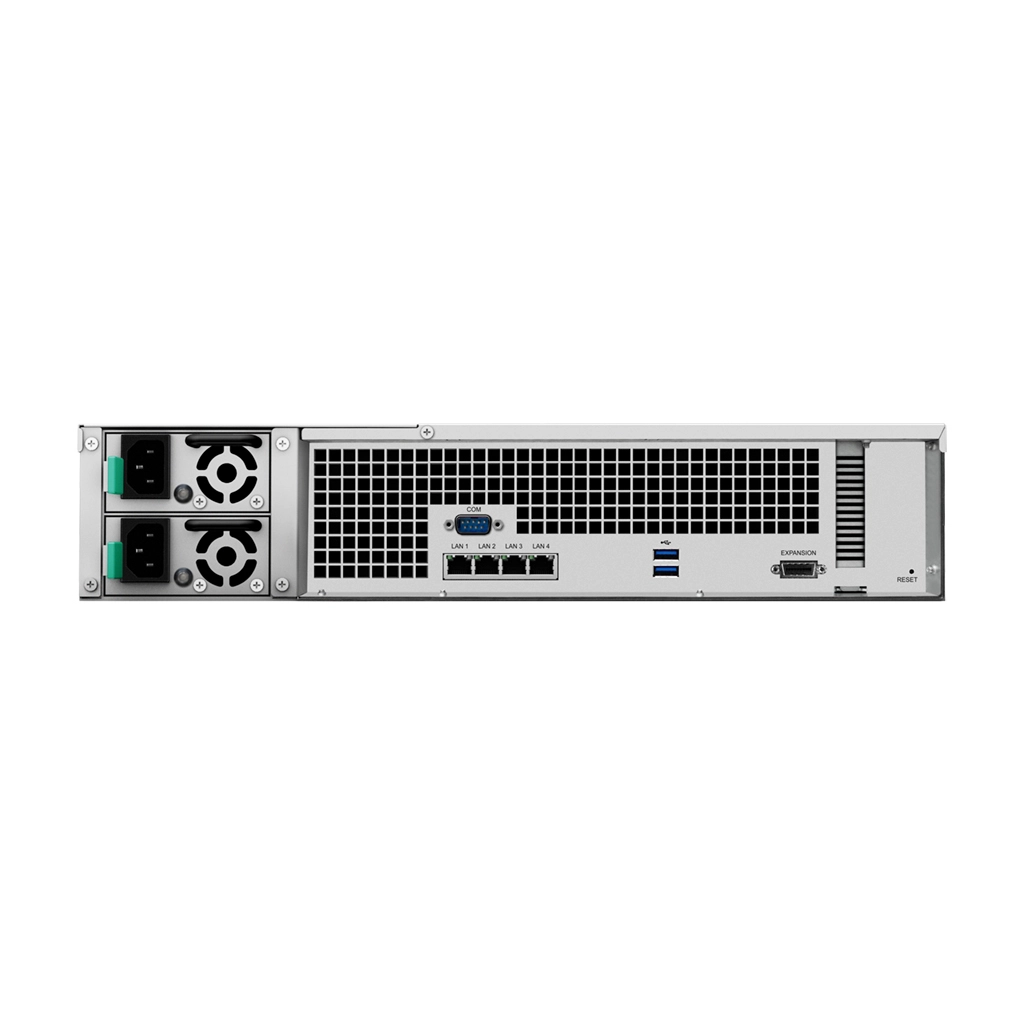

Synology RS2418+ 12-Bay
Key Features
- Storage drives installed: Yes
- Total installed storage capacity: 168TB
- Online RAID migration: Yes
- Online RAID expansion: Yes
- Power supply unit (PSU) capacity: 500W
- Device class: Large Enterprise Business
- Backup features: Cloud, iSCSI LUN
- Number of storage drives installed: 12
- Installed storage drive type: HDD
- Processor threads: 4
- Hot-swap drive bays: Yes
- Multilingual support: Yes
- Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
- Share folder access right management: Yes
- Type: NAS
Specifications
Features
ECC supported by processor
✓
Backup function
✓
Fan diameter
80 mm
On/off switch
✓
Security algorithms
256-bit AES, HTTPS, SSL/TLS
Noise level
54 dB
CPU configuration (max)
1
Product colour
Black
Type
NAS
Access Control List (ACL)
✓
PCI Express slots version
3.0
Tcase
87 °C
S.M.A.R.T. support
✓
Thermal Design Power (TDP)
15 W
Multilingual support
✓
Installed storage drive type
HDD
Weight & dimensions
Height
88 mm
Depth
724 mm
Width
482 mm
Power
Power consumption (typical)
109 W
AC input voltage
100 - 240 V
Power supply location
Built-in
AC input frequency
50 - 60 Hz
Power consumption (sleep)
52.40 W
Number of power supply units
2
Redundant power supply (RPS) support
✓
Power supply unit (PSU) capacity
500 W
Performance
Processor ARK ID
97929
Processor operating modes
64-bit
System log
✓
Hot spare
✓
Share folder
512
Share folder access right management
✓
Number of storage drives installed
12
Backup features
Cloud, iSCSI LUN
Total installed storage capacity
168 TB
System requirements
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other features
RAID controller type
Yes
Browser supported
Chrome, Firefox, Internet Explorer 10, Internet Explorer 10+, Safari, Safari 10+
Chassis type
Rack (2U)
Processor special features
Embedded options available
✓
Execute Disable Bit
✓
Intel QuickAssist Technology
✓
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel Secure Boot
✓
Intel Secure Boot Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Hyper Threading Technology (Intel® HT Technology)
✗
Intel® OS Guard
✓
Intel® Secure Key
✓
Intel® Turbo Boost Technology
No
Maximum number of PCI Express lanes
12
Memory channels supported by processor
Dual
Memory types supported by processor
DDR4-SDRAM
Processor package size
34 x 28 mm
Processor code
SR3L7
Storage
Supported file systems
BTRFS, FAT, HFS, NTFS, exFAT, ext3, ext4
RAID levels
0, 1, 1+0, 5, 6, JBOD
RAID support
✓
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Storage drive sizes supported
2.5, 3.5
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
Hot-swap drive bays
✓
Online RAID expansion
✓
Online RAID migration
✓
Storage drives installed
✓
Design
Reset button
✓
LED indicators
HDD, LAN, Power, SSD
Cooling type
Active
Drive bay locking
✓
Device class
Large Enterprise Business
Computer system
Processor cores
4
Processor model
C3538
Processor manufacturer
Intel
Processor frequency
2.10 GHz
Processor family
Intel Atom®
Internal memory
4 GB
Packaging content
Cables included
AC
Quick installation guide
✓
Network
Wi-Fi
✗
Supported network protocols
AFP, CIFS, CalDAV, FTP, NFS, OpenVPN), SNMP, SSH, Telnet, VPN (PPTP, WebDAV, iSCSI
Ethernet LAN data rates
10, 100
Ethernet LAN
✓
iSCSI support
✓
Link aggregation
✓
Wake-on-LAN ready
✓
Ports & interfaces
RS-232 ports
1
Ethernet LAN (RJ-45) ports
4
USB port
✓
Expansion ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95 %
Technical details
Compliance certificates
RoHS
Processor
Conflict-Free processor
✓
Maximum internal memory supported by processor
256 GB
Processor codename
Denverton
Stepping
B1
Processor lithography
14 nm
Processor cache type
Smart Cache
Tjunction
100 °C
L2 cache
8 MB
Processor socket
BGA 1310
Processor cache
8 MB
Processor boost frequency
2.10 GHz
Processor threads
4
Memory
Memory form factor
DIMM
Internal memory type
DDR4
Maximum RAM supported
64 GB
Memory slots
4
Memory clock speed
2133 MHz
Camera
Snapshot
✓
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
Product Details
High-capacity and scalable NAS designed for businesses with flexible storage and M.2 SSD expandability
Scalable Storage Server On-Demand
RS2418+/RS2418RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory, and optional high-speed NIC or M.2 SSD cache support. It serves perfectly as a centralized file server, backup target for distributed businesses, or backup target for employee workstations in a growing business.
Boost your storage performance with easy-to-install add-in cards
Equipped with a PCIe 3.0 slot, RS2418+ supports installing an M.2 SSD adapter card or 10GbE NIC for a high-IOPS system cache and ultra-fast data transmission.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Ultimate Backup Solution
RS2418+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for
Office 365/ G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyzes system settings, password strength, network preferences, and removes any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to keep data from unauthorized access.
2-step verification
Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
Trust Level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.
Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and your NAS.
High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Drive
A versatile solution for file management and synchronization.
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
VMM
Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
