Trendnet TI-IG30 - 30 Watt Gigabit PoE+

Name: Trendnet TI-IG30 - 30 Watt Gigabit PoE+
Brand: Trendnet
SKU: 474443
Availability: InStock

Best offer

AED

249⁸⁷

Key Features

Wall mountable: Yes
Surge protection: Yes
Duplex system: Half
Ethernet LAN data rates: 10, 100Mbit/s
Ethernet interface type: Gigabit Ethernet
Product colour: Black
Input voltage: 48 - 56 VV
Total Power over Ethernet (PoE) budget: 30W
LED indicators: Yes
Power over Ethernet (PoE): Yes
Rack mounting: No
Dimensions (WxDxH): 32 x 104 x 82mm
Power consumption (max): 36W
Ethernet LAN (RJ-45) ports: 2
Weight: 134g

Specifications

Features

Rack mounting

✗

Product colour

Black

Wall mountable

✓

Weight & dimensions

Weight

134 g

Power

Power requirements

Power protection features

Overload

Power consumption (max)

36 W

Power over Ethernet (PoE)

✓

Input voltage

48 - 56 V

Total Power over Ethernet (PoE) budget

30 W

Performance

Surge protection

✓

Other features

Dimensions (WxDxH)

104 x 82 x 32 mm

Design

LED indicators

Yes

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Duplex system

Half

Ethernet LAN data rates

10, 100

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

Technical details

Certification

CE, FCC

Logistics data

Harmonized System (HS) code

85044095

Product Details

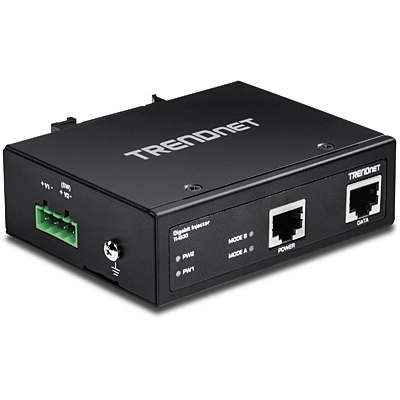

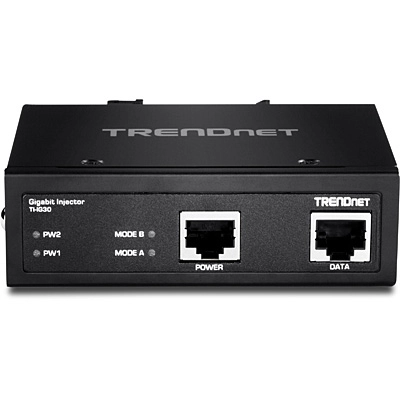

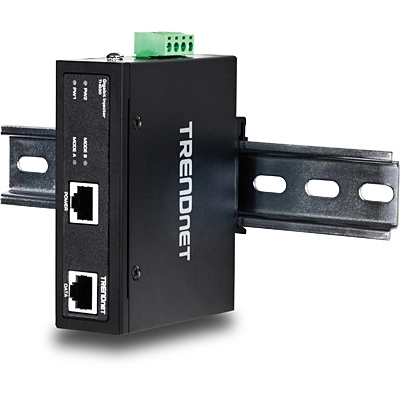

TRENDnet’s TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+ device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.
