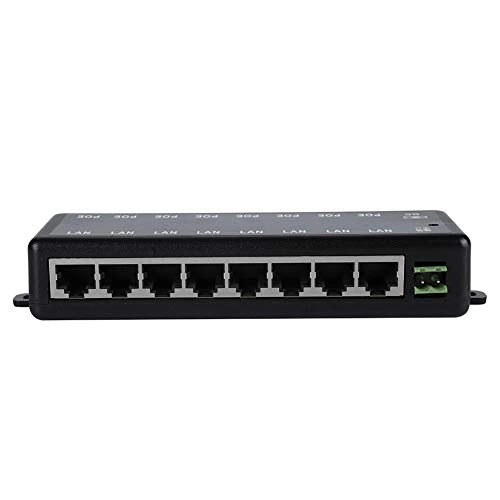

XBAILAZ 8 Port PoE Injector - DC12V-48V 8 ports IEEE802.3af/at 100 Megabits Per Second

Specifications:

Voltage: DC12V-48V 15A(Biggest)

Led: Indicate the working state

Power pin: 4&5(+), 7&8(-); Data pin: 1236

Lan port: 8ports in RJ45(data in), 8port poe RJ45(data&power out)

Lan environment: 10/100Mbps Base-T, Ethernet cable: TIA/EIA 568 Cat.5 or Cat.5e

Data in: PC/Hub/Switch/Router, etc.

Working temp: 0~+40°C

Working humidity: 20 ~90% RH non-condensing

Storage temp & humidity: -20~+85°C, 10~95% RH

Size: 14.5cm*5cm*2.7cm/5.7*2.0*1.1in

Package Weight:148g/5.2oz

Notes:

1. Please select according your device power consumption, in order to ensure stable running, the total power consumption must be lower than the total power supply.

2. Tip: the power voltage should not be over DC48V.
