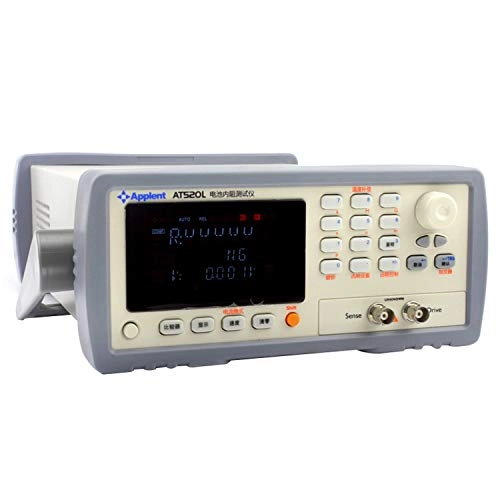

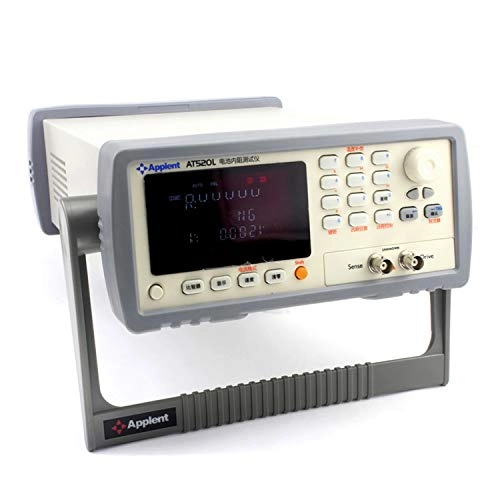

Zeenyi AT520L

Feature High brightness, Four Colors VFD Display Double Display: Internal resistance and voltage of battery can be displayed simultaneously Correction Function: Short-circuit zero-setting for all ranges Comparator (sorting) Function: HI/IN/LOW/GD/NG sorting results display and output 1kHz AC low current test Four terminal test Beeper alarm Kaypad lock funtion Data hold funtion Application Applications: Assembly Line test, thin provinsioning Electromechanical components Contact resistance test Alkaline batteries, lead batteries lifttime assessment UPS Online test Storage battery factory checking Supper Capacitor ESR Measurement Specification Parameters AC resistance, DC voltage, θ Accuracy Resistance:0.5% Voltage:0.1% Range Resistance:10μΩ～32Ω Voltage:1mV~60VDC <;; 20mV, measurement current: ; 10mA Range Automatic & manual 4 ranges Speed 10 ts,3 t/s, 1 t/s Result Display Show, ΔABS,Δ%,θ,sorting results Display Max Resistance:3,200（32/3 ） Voltage:6,000 Adjustment Short-circuit reset for all range, REL function Comparator 1 group record, NG-LO,GD-IN,NG-HI display and output. Beep is adjustable Trigger Internal, manual, external (optional) Interface RS-232C Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA 264mm (Width)x107mm (Height)x350mm (Depth) 4kg ATL505 Kelvin test wire ATL801 RS232 interface cable ATL506A: test probe ATL506: test leads Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
