sedodogo rear view mirror - 4.3 Inch + rear view camera - Super HD 1280p

All cameras are checked before they are sent to you.

Replacement for: Fiat Ducato 244 Bus Box/Peugeot Boxer/Citroen Jumper Relay 2002-2006 Brake Light 3 Brake Light Transporter Third

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL
• Effective pixels: 1280 x 720
• Resolution: 1000 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

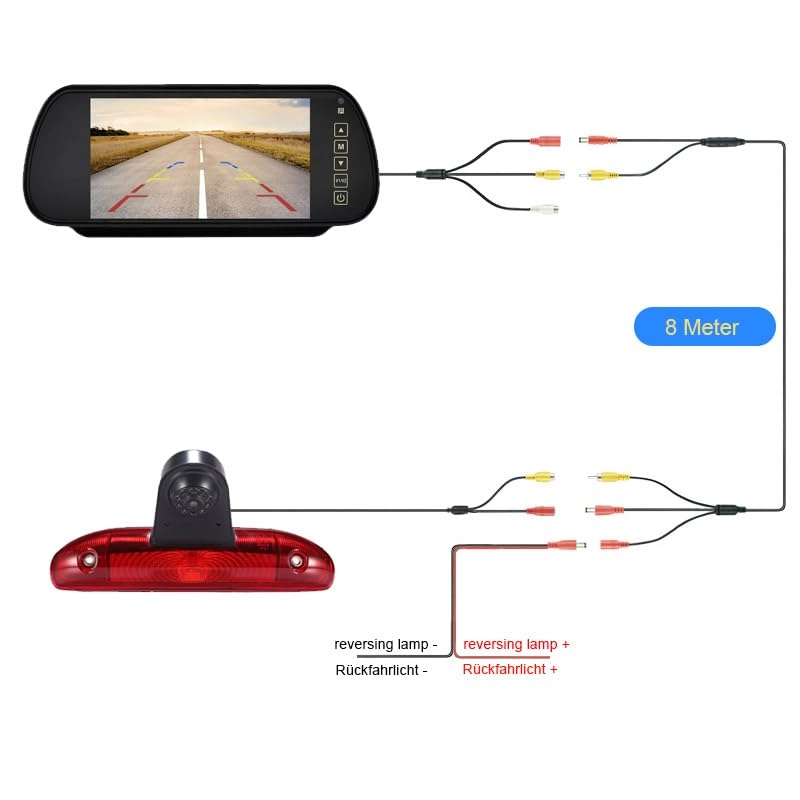

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.

Packing list:

• 1 x 7 inch rear view mirror.
• 1 x power cable (for monitor).
• 1 x user manual (for monitor).
• 1 x car rear view camera.
• 1 metre DC cable (for camera).
• 8 meter AV cable (for camera)
