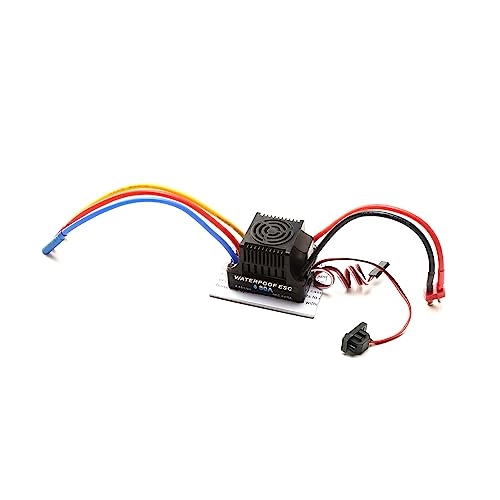

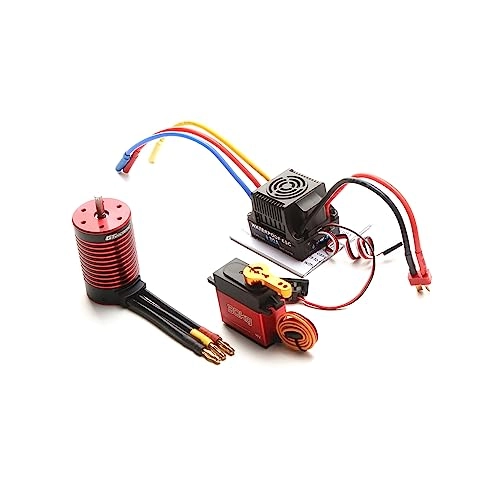

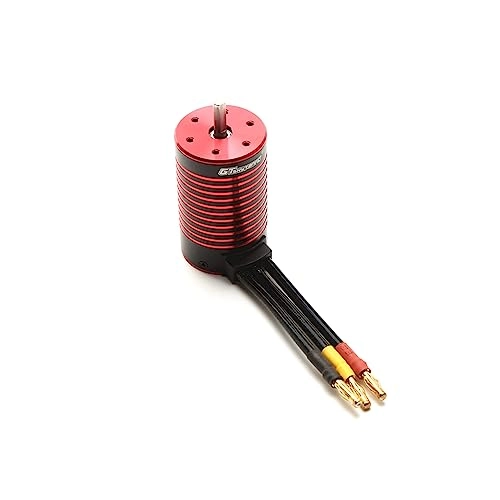

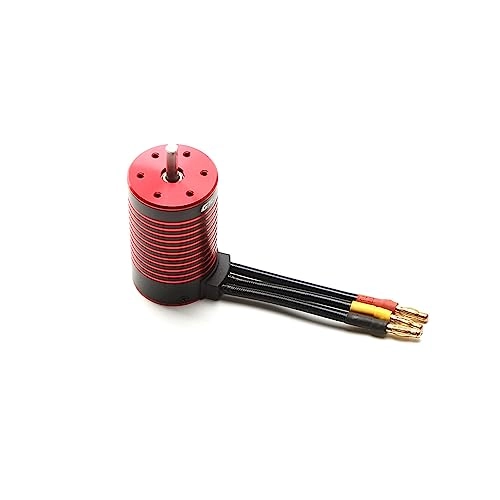

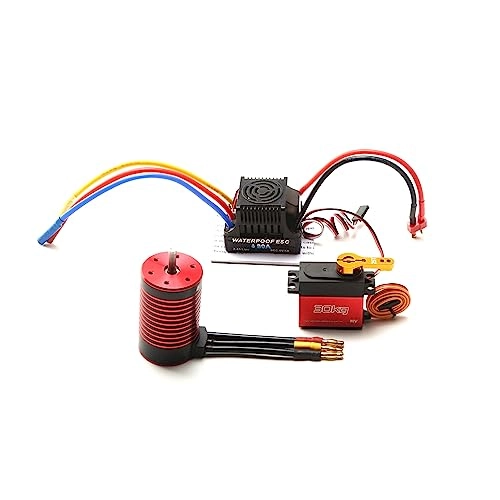

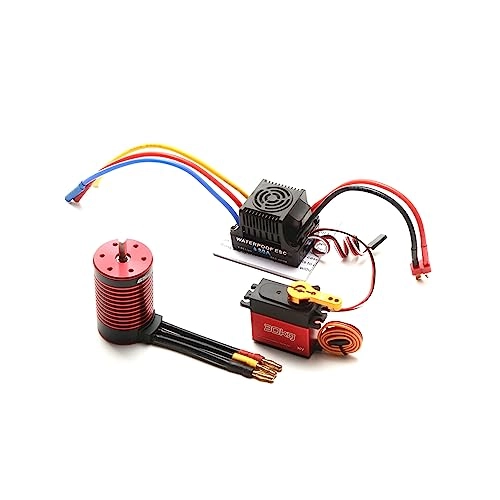

Fawoonu 3660 Brushless Motor - 2600KV Waterproof + 80A Brushless ESC + 30KG Servo

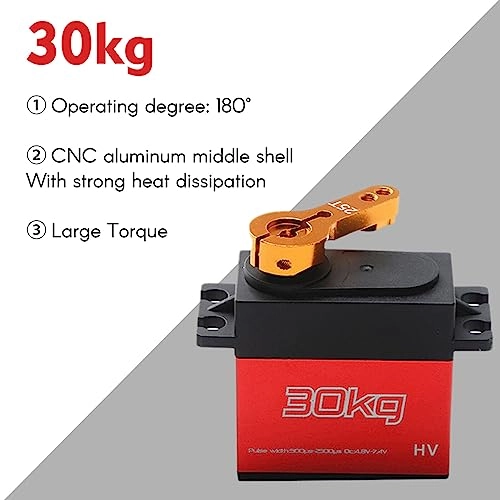

KV<3000KV 2. Off-road: 3670-size or smaller motor with the <3000KV For 3S-4S Lipo or 9 cells NiMH: On-road: 3660-Size or smaller motor with the KV<3000KV Off-road: 3660-size or smaller motor with the <3000KV Suitable Car: 110 18 Remote Control Car Resistance: 0.0005ohm Battery: 2-4S Lipo4-12Cells NiMH BEC Output: 6V5A ( mode) DimensionsWeight: 52*39*38mm92g Waterproof 30KG Servo 180 Degree: Apply Environmental Conditon: 1. Storage Temperature Range: -30°C～80°C 2. Operating Temperature Range: -25°C～70°C Standard Test Environment: 1.Temperature Range: 25°C～70°C 2. Humidity Range: 65%±10% Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 69g±2g 3. Gear Type: 5 Metal 4. Limit Angle: 180° 5. Bearing: 2BB 6. Horn Gear Spline: 25T Diameter: 5.9mm 7. Horn Type: Plastic, POM 8. Case: Engineering Plastics(PBT)+Aluminum alloy 9. Connector Wire: 320mm±5mm 10. Motor: Carbon Brush Motor Electrical Specification: 1. Operat Voltage: 4.8V - 7.2V 2. No Load Speed: 0.24sec60° - 0.17sec60° 3. Running Current: 140mA - 200mA 4. Peak Stall Torque: 29.5kg.cm - 32kg.cm 5. Stall Current: 2600mA±10% - 3400mA±10% 6. Working Voltage Range: 4.8 - 7.2V Control Specification: 1. Command Signal: Pulse Width Modification 2. Amplifier Type: Digital Controller 3. Pulse Width Range: 500～2500usec 4. Neutral Position: 1500usec 5. Running Degree: 180°±3°(when 500～2500usec) 6. Dead Band Width: 5 usec 7. Rotating Direction: Counterclockwise (when 1000～2000usec) Package Information: Package Size: 12*8*5cm Package W
