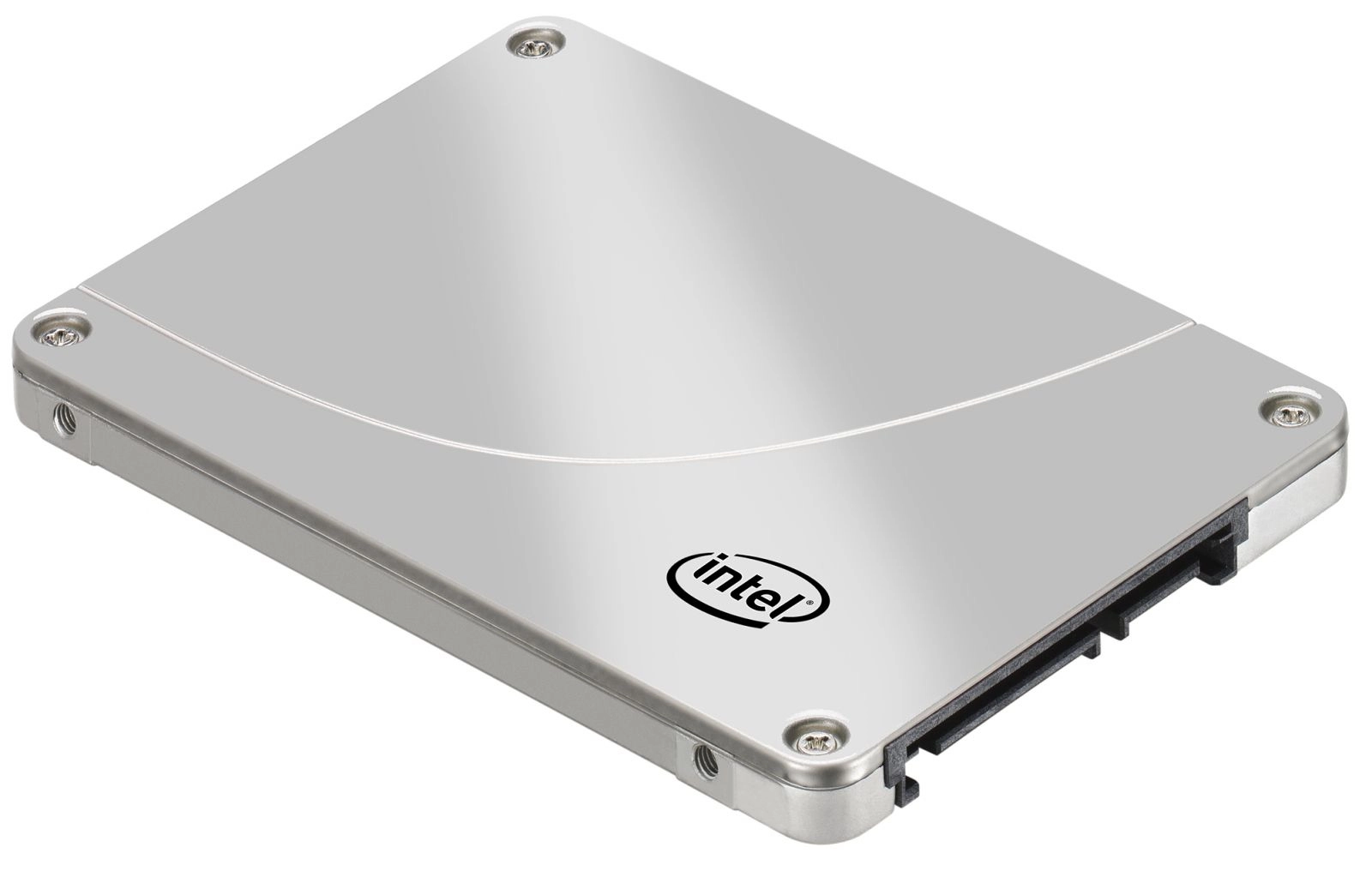

Intel 530 Series - 240GB 2.5 Inches

Best offer
AED
1 01201

Key Features

  • Random read (4KB): 41000, 50000, 85000IOPS
  • Random write (4KB): 60000, 70000, 80000IOPS
  • Random read (8KB): 41000, 74000IOPS
  • Random write (8KB): 80000, 85000IOPS
  • Write latency: 50, 80, 85µs
  • Read latency: 50, 80µs
  • Component for: PC/Laptop
  • SSD temperature monitoring: No
  • End-to-End Data Protection: No, Yes
  • Enhanced Power Loss Data Protection technology: No, Yes
  • Uncorrectable Bit Error Rate (UBER): < 1 per 10^16 bits read
  • Data transfer rate: 6Gbit/s
  • S.M.A.R.T. support: Yes
  • Power consumption (idle): 0.05, 0.055, 0.125, 0.6W
  • Power consumption (read): 0.09, 0.165, 0.195, 0.85W
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Product series
Intel 520, Intel 530, Intel 535, Intel® SSD Pro 5400s Series
Launch date
2013-07-31T00:00:00, Q1'12, Q3'13
Mean time between failures (MTBF)
1200000h, 1600000h
Bundled software
Intel Data Migration Software, Intel Solid-State Drive Toolbox
Market segment
Mobile
Security algorithms
128-bit AES, 256-bit AES
Lithography
16nm, 20nm, 25nm
Connectivity technology
Wired
Product colour
Grey, Silver
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^16 bits read
Data transfer rate
6 Gbit/s
S.M.A.R.T. support
✓
Power consumption (idle)
0.05W, 0.06W, 0.13W, 0.60W
SSD temperature monitoring
✗
Component for
PC/Laptop

Weight & dimensions

Weight
78 g
Height
7 mm
Depth
7 mm

Power

Operating voltage
5 V
Power consumption (standby)
0.60 W
Power consumption (read)
0.09W, 0.17W, 0.20W, 0.85W
Power consumption (write)
0.09W, 0.17W, 0.20W, 0.85W
Power consumption (sleep)
0.01 W

Other features

Product family
Consumer SSD, Legacy consumer SSD, Professional SSD
SSD weight
78 g
SSD hardware encryption
AES 128 bit, AES 256 bit
SSD power consumption (active)
140 mW, 850 mW (MobileMark 2007 Workload)
SSD power consumption (idle)
55 mW, 600 mW (DIPM)
SSD components
Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Product brief URL
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ssd-530-brief.pdf
SSD shock
1, 1500 G (Max) at 0.5 msec, 500 G/.5 msec
Random read (8GB span)
5000IOPS, 41000IOPS, 50000IOPS, 74000IOPS
Random write (8GB span)
6000IOPS, 60000IOPS, 80000IOPS, 85000IOPS
Drive capacity
240 GB
Sequential writing speed
490MB/s, 520MB/s
Sequential reading
540MB/s, 550MB/s
Intel Rapid Start Technology version
1
SSD ARK ID
66250, 75331, 86734, 94446
SSD usage tag
Consumer, Professional
Intel High Endurance Technology (HET)
✗

Processor special features

Intel Smart Response Technology version
1.00
Intel® Rapid Start Technology
✓
Intel® Smart Response Technology
✓

Storage

RAID support
✓
NVMe
✗
SSD form factor
2.5"
SSD capacity
240 GB

Design

Internal
✓

Ports & interfaces

Interface
Serial ATA III

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95 %
Non-operating vibration
2.17G, 3.13G
Operating vibration
2.17 G
Non-operating shock
1500 G
Operating shock
1500 G
Storage relative humidity (H-H)
5 - 95 %

Technical details

Product codename
Cherryville, Dale Crest, Loyd Star Pro, Temple Star
Last change
63903513
Status
Discontinued, Launched
Product name
2.5in SATA 6Gb/s, 20nm, 25nm, Intel SSD 520 Series (240GB, Intel SSD 530 Series (240GB, MLC)
Born on date
Q1'12, Q3'13
Certification
BSMI, CE, KCC, Microsoft WHCK/WHLK, RCM, SATA-IO, UL, VCCI
Compliance certificates
RoHS

Processor

Processor lithography
16nm, 20nm, 25nm

Security

TRIM support
✓
Hardware encryption
✓
Enhanced Power Loss Data Protection technology
✓
End-to-End Data Protection
✓

Logistics data

Harmonized System (HS) code
84717070

Solid state drive

Read speed
540MB/s, 550MB/s, 560MB/s
Write speed
480MB/s, 490MB/s, 520MB/s
Memory type
MLC, TLC
Read latency
50µs, 80µs
Write latency
50µs, 80µs, 85µs
Random write (8KB)
80000IOPS, 85000IOPS
Random read (8KB)
41000IOPS, 74000IOPS
Random write (4KB)
60000IOPS, 70000IOPS, 80000IOPS
Random read (4KB)
41000IOPS, 50000IOPS, 85000IOPS

Product Details

Intel Evolving Storage Technology Intel® Solid State Drives (Intel® SSDs) continue to evolve with the introduction of the Intel® SSD 535 Series. Designed for a wide range of consumer and embedded platforms, including Ultrabook™, traditional desktops and laptops, mini computers, and digital signage, as well as the latest tablets and small form factor mobile systems, Intel SSD 535 Series combines high quality, reliable performance and low power consumption for space conscious computing. Small Form Factors The Intel SSD 535 Series M.2 form factor delivers outstanding performance for thin and light computing devices. Intel’s SSD M.2 form factor requires far less space than a traditional 2.5-inch form factor storage device. Intel SSD 535 Series is also available in traditional 2.5-inch form factors, providing a variety of solid state technology solutions. The Intel SSD 535 Series product line is available in capacities ranging from 56GB to 480GB. Latest NAND Technology Intel SSD 535 Series uses the latest 16nm NAND technology. You will also benefit from the high quality and reliability you’ve come to expect from Intel. Along with power and space savings, reliability, and peace of mind, the Intel SSD 535 Series comes with Intel’s outstanding customer support and 5-year limited warranty. A New Generation of Power Efficient Performance With the Intel SSD 535 Series, your computer will effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The Intel SSD 535 Series accelerates platform performance with sequential reads of up to 540 megabytes and sequential writes of up to 490 megabytes per second (MB/s) and random read and write input/output operations (IOPS) of up to 48K and 80K respectively. In addition to strong performance gains, Intel SSD 535 Series provides extended battery life through low power modes. Idle power consumption of Intel SSD 535 Series is reduced by >90% over a typical hard disc drive, thereby reducing power consumption from watts to milliwatts. When the Intel SSD 535 Series is coupled with a 4th or 5th generation Intel® Core-based platform, advanced power mode settings reduce power dissipation another order of magnitude – from milliwatts to microwatts. Product Spotlight - High performance for demanding applications; - High quality and reliability; - Low power consumption; - Space-conscious form factors; - 16nm NAND technology; - Wide range of capacities.

Files

Product Brochure

mmo_18640996_1480261454_7206_24842.pdf

PDF• 205.2 KB
