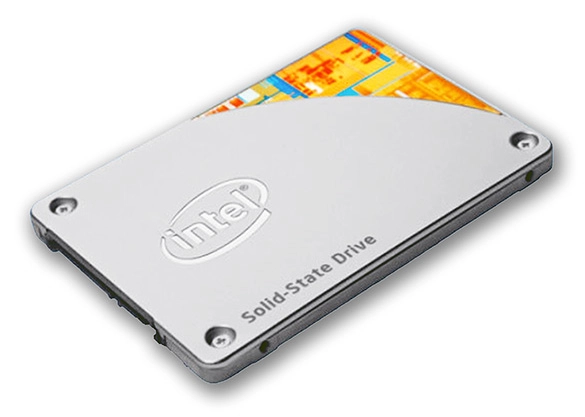

Intel Pro 5400s Series - 180GB 2.5-inch

Name: Intel Pro 5400s Series - 180GB 2.5-inch
Brand: Intel
SKU: 367506
Availability: InStock

Best offer

AED

1 026³²

SSD capacity

SSD form factor

Key Features

Random read (4KB): 48000IOPS
Random write (4KB): 80000IOPS
Random read (8KB): 71000IOPS
Random write (8KB): 85000IOPS
Write latency: 50, 85µs
Read latency: 50, 80µs
Component for: PC/Laptop
SSD temperature monitoring: No
End-to-End Data Protection: No, Yes
Enhanced Power Loss Data Protection technology: No
Uncorrectable Bit Error Rate (UBER): < 1 per 10^16 bits read
Data transfer rate: 6Gbit/s
S.M.A.R.T. support: Yes
Power consumption (idle): 0.05, 0.055, 0.5W
Power consumption (read): 0.09, 0.9W

Offers (2)

2 offers

From

AED

1 026

Intel 540s Series 180GB 2.5in SSD MPN: SSDSC2KW180H6X1

AED

1 026³²

Price History

Loading price history...

Specifications

Features

Product series

Intel Pro 2500, Intel® SSD 540s Series, Intel® SSD E 5400s Series, Intel® SSD Pro 5400s Series

Launch date

2014-07-22T00:00:00, Q1'16, Q2'15

Mean time between failures (MTBF)

1200000h, 1600000h

Bundled software

Intel Setup & Configuration Intel Data Migration

Market segment

Mobile

Security algorithms

256-bit AES

Lithography

16nm, 20nm

Product colour

Grey, Silver

Uncorrectable Bit Error Rate (UBER)

< 1 per 10^16 bits read

Data transfer rate

6 Gbit/s

S.M.A.R.T. support

✓

Power consumption (idle)

0.05W, 0.06W, 0.50W

SSD temperature monitoring

✗

Component for

PC/Laptop

Weight & dimensions

Weight

78 g

Height

7mm, 69.80mm

Depth

7mm, 100.40mm

Width

69.80mm, 100.50mm

Power

Operating voltage

5 V

Power consumption

165 mA

Power consumption (read)

0.09W, 0.90W

Power consumption (write)

0.09W, 0.90W

Power consumption (sleep)

0.01 W

Other features

Product family

Consumer SSD, Embedded SSDs, Professional SSD

Power consumption (active)

0.17 W

SSD weight

78 g

SSD hardware encryption

AES 256 bit

SSD power consumption (active)

165 mW, 90 mW Typical

SSD power consumption (idle)

50 mW Typical, 55 mW

Product brief URL

http://www.intel.com/content/www/us/en/solid-state-drives/ssd-pro-2500-series-brief.html, http://www.intel.com/content/www/us/en/solid-state-drives/ssd-pro-5400s-series-spec.html

SSD shock

1500 G/0.5 ms, 1500 G/0.5ms

Random read (8GB span)

48000IOPS, 71000IOPS

Random write (8GB span)

80000IOPS, 85000IOPS

Drive capacity

180 GB

Remote Secure Erase (RSE) technology version

1.00

Sequential writing speed

475MB/s, 490MB/s

Sequential reading

540MB/s, 560MB/s

Intel Rapid Start Technology version

SSD ARK ID

81043, 86732, 94213, 94442, 94449

SSD usage tag

Consumer, Embedded, Professional

Intel High Endurance Technology (HET)

✗

Processor special features

Intel Smart Response Technology version

1.00

Intel Stable Image Platform Program (SIPP)

✓

Intel® Rapid Start Technology

✓

Intel® Smart Response Technology

✓

Storage

NVMe

✗

SSD form factor

2.5"

SSD capacity

180 GB

Design

Internal

✓

Ports & interfaces

Interface

Serial ATA III

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Operating relative humidity (H-H)

5 - 95 %

Non-operating vibration

3.13 G

Operating vibration

2.17 G

Non-operating shock

1500 G

Operating shock

1500 G

Storage relative humidity (H-H)

5 - 95 %

Technical details

Product codename

Loyd Star, Loyd Star Pro, Temple Star

Last change

63903513

Status

End of Life, Launched

Product name

2.5in SATA 6Gb/s, 20nm, Intel SSD Pro 2500 Series (180GB, MLC)

Born on date

Q3'14

Certification

BSMI, C-Tick, CE, KCC, Microsoft WHCK, Microsoft WHCK/WHLK, RCM, SATA-IO, UL, VCCI

Compliance certificates

RoHS

Processor

Processor lithography

20 nm

Security

Hardware encryption

✓

Enhanced Power Loss Data Protection technology

✗

End-to-End Data Protection

✓

Brand-specific features

Intel® Remote Secure Erase

✓

Logistics data

Harmonized System (HS) code

84717070

Solid state drive

Read speed

540MB/s, 560MB/s

Write speed

475MB/s, 490MB/s

Memory type

MLC, TLC

Read latency

50µs, 80µs

Write latency

50µs, 85µs

Random write (8KB)

85000 IOPS

Random read (8KB)

71000 IOPS

Random write (4KB)

80000 IOPS

Random read (4KB)

48000 IOPS

Product Details

End-to-End Data Protection End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back. Intel® Smart Response Technology Intel® Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive. Intel® Rapid Start Technology Intel® Rapid Start Technology allows quick system resumes from the hibernate state. Intel® Remote Secure Erase Intel® Remote Secure Erase provides IT administrators a secure method for remotely wiping an Intel SSD from a familiar management console when retiring or repurposing a system. This allows for immediate re-use while saving administrative time and costs.
