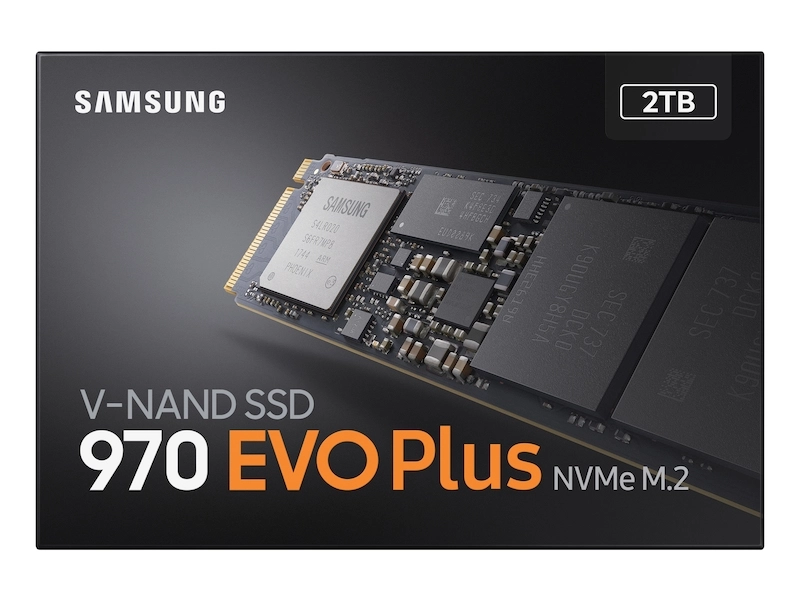

Samsung 970 EVO Plus - 2TB M.2

Best offer
AED
1 76400

Key Features

  • NAND flash type: MLC (Multi Level Cell)
  • NVMe version: 1.3
  • Random read (4KB): 620000IOPS
  • Random write (4KB): 560000IOPS
  • DevSlp (device sleep) support: Yes
  • Component for: PC
  • Active garbage collection: Yes
  • Power consumption DevSlp (device sleep): 5mW
  • M.2 SSD size: 2280 (22 x 80 mm)
  • TCG Opal 2.0: Yes
  • Opal SSC 2.0: Yes
  • S.M.A.R.T. support: Yes
  • Power consumption (idle): 0.003, 0.03W
  • Power consumption (average): 6W
  • Power consumption (read): 6W
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Launch date
4/16/2018
Mean time between failures (MTBF)
1500000 h
Bundled software
Magician Software for SSD management
Protection features
Temperature proof
Security algorithms
256-bit AES
Controller type
Samsung Phoenix
Product colour
Black
S.M.A.R.T. support
✓
Power consumption (idle)
0.00W, 0.03W
TCG Opal 2.0
✓
Opal SSC 2.0
✓
Active garbage collection
✓
Component for
PC
DevSlp (device sleep) support
✓
NAND flash type
MLC (Multi Level Cell)

Packaging data

Package type
Box

Weight & dimensions

Weight
8g, 8000g
Height
2.38 mm
Depth
22.10 mm
Width
80.20 mm

Power

Operating voltage
3.30 V
Power consumption (max)
9W, 10W
Power consumption (standby)
0.03W, 0.30W
Power consumption (average)
6 W
Power consumption (read)
6 W
Power consumption (write)
6 W
Power consumption (sleep)
0.01 W
Power consumption DevSlp (device sleep)
5 mW

Other features

PCI Express interface data lanes
x4

Storage

NVMe
✓
SSD form factor
M.2
SSD capacity
2000 GB

Ports & interfaces

Interface
PCI Express 3.0

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95 %
Non-operating vibration
20 G
Non-operating shock
1500 G
Operating shock
1500 G
Storage relative humidity (H-H)
5 - 95 %

Technical details

Compliance certificates
RoHS

Security

TRIM support
✓
Hardware encryption
✓

Logistics data

Harmonized System (HS) code
84717070

Solid state drive

Read speed
3500 MB/s
Write speed
2500MB/s, 3300MB/s
Memory type
3D MLC, V-NAND, V-NAND MLC
M.2 SSD size
2280 (22 x 80 mm)
Random write (4KB)
560000 IOPS
Random read (4KB)
620000 IOPS
NVMe version
1.3

Product Details

High-performance, highly reliable NVME M.2 SSD featuring exceptionally fast sequential speeds and outstanding endurance. Featuring our latest V-NAND technology and a newly enhanced Phoenix controller, Samsung 970 EVO Series NVMe M.2 SSDs deliver outstanding performance in Non-Volatile Memory Express (NVMe), with exceptionally fast sequential speeds outperforming our previous 960 EVO models. Plus, Samsung's Magician software solution provides advanced functionality for you to manage, monitor and maintain your drive. Non-Volatile Memory Express (NVMe) 970 EVO 2TB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 EVO 2TB model with exceptionally fast sequential read/write speeds up to 3,500/2,500 MB/s. They also support PCI Express® (PCIe) Gen 3 x 4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing. TurboWrite Technology Samsung’s intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptionally fast speeds of NVMe. Dynamic Thermal Guard This feature constantly monitors and works to maintain ideal temperatures to protect the integrity of your data and safeguard from overheating. When temperatures rise above an optimal threshold, the Dynamic Thermal Guard automatically throttles them down to protect data while maintaining responsiveness. 5-Year Limited Warranty Secure your investment with a 5-year limited warranty up to 1,200TBW. The 970 EVO Series also minimizes performance degradation over time, in order to provide sustained performance for high-end business use. Professional-Quality Drive Management With the Samsung Magician software solution, you get advanced functionality to manage, monitor and maintain your 970 EVO SSDs. Magician provides personalized firmware checking and additional functions tailored for individual drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date. V-NAND Technology Samsung's proprietary V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint. SSD Data Security This drive includes an AES-256-bit hardware based, full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667. Highly-Efficient Power Management Thanks to exceptionally low active power consumption, you can work efficiently for long periods of time. Device Sleep Mode is also supported for ultra-thin laptop PCs and high-end desktop main boards. Samsung SSD Components Samsung's solid state drives are built entirely from Samsung components, leveraging our extensive OEM expertise to allow complete, optimized integration.
Always Evolving SSD

Always Evolving SSD

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.

Level Up Performance

Level Up Performance

The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.

Design Flexibility

Design Flexibility

The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.

Exceptional Endurance

Exceptional Endurance

The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.

Unparalleled Reliability

Unparalleled Reliability

Achieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

Samsung Magician

Samsung Magician

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.

Files

Product Brochure

mmo_66640305_1549036114_2728_2452.pdf

PDF• 4.1 MB

User manual

mmo_66640305_1594127037_6607_26976.pdf

PDF• 884.6 KB

Installation Guide

mmo_66640305_1594127051_8818_30235.pdf

PDF• 678.2 KB

Brochure

mmo_66640305_1594127071_9106_11010.pdf

PDF• 2.9 MB
