IPC-HFW2231T-ZS-S2
IPC-HFW2231T-ZS-S2
IPC-HFW2231T-ZS-S2
IPC-HFW2231T-ZS-S2
IPC-HFW2231T-ZS-S2

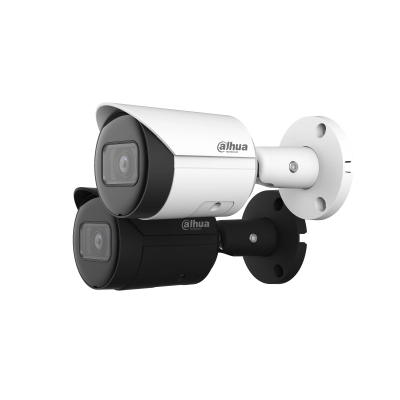

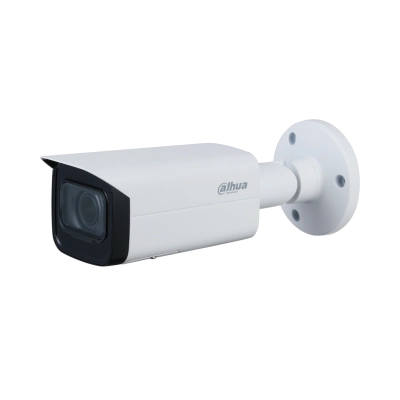

Dahua Technology IPC-HFW2231T-ZS-S2

Best offer
AED
22000

Key Features

  • Minimum illumination (panoramic camera): 0.002lx
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 120dB
  • Camera tilt control: Yes
  • Video intelligence analytic: Yes
  • People counting function: Yes
  • Camera pan control: Yes
  • Noise reduction technology: 3D noise reduction
  • Lens viewing angle, vertical: 23°°
  • Auto flip: Yes
  • Fixed focus: Yes
  • Type: IP security camera
  • Active tampering alarm: Yes
  • Mirror: Yes
  • Fog proof: Yes
  • Motion sensor: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Web browser
✓
Plug and Play
✓
Voice codecs
G.711a, G.711alaw, G.723, G.723.1, G.726, G.726-32
Number of sensors
1
Audio formats supported
AAC
Card reader integrated
✓
Quality of Service (QoS) support
✓
Maximum memory card size
256 GB
Video motion detection
✓
Connectivity technology
Wired
Product colour
Black, White
Video streaming
✓
Fixed focus
✓
Type
IP security camera
Active tampering alarm
✓
Mirror
✓
Fog proof
✓
Motion sensor
✓
Flip & mirror
✓
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576
ROM capacity
128 MB

Weight & dimensions

Weight
480g, 950g
Height
117.90 mm
Depth
159 mm
Diameter
70 mm
Length
166.20 mm

Management features

Web-based management
✓
Management software
DMSS, DSS, Smart PSS

Power

Power consumption (typical)
4.90W, 12.40W
AC input voltage
12 V, 24 V
Power source type
AC, DC, PoE
DC output voltage
12

Performance

Number of effective pixels (H x V)
1920 x 1080, 2688 x 1520
Camera pan control
✓
People counting function
✓

System requirements

Mobile operating systems supported
Android, iOS

Other features

Noise reduction
✓

Ergonomics

Angle of rotation
355°, 360°

Storage

Compatible memory cards
MicroSD (TransFlash)
Built-in HDD
✗

Design

International Protection (IP) code
IP67
IK code
IK10
Housing material
Metal
Placement supported
Indoor/Outdoor
Mounting type
Ceiling/Wall
Form factor
Bullet, Dome

Packaging content

Manual
✓

Network

Wi-Fi
✗
Bluetooth
✗
Networking standards
IEEE 802.1x
Supported network protocols
802.1x, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SFTP, SMTP, SNMP, TCP, UDP, UPnP
Streaming method
Multicast, Unicast
Ethernet interface type
Fast Ethernet
Ethernet LAN
✓

Ports & interfaces

DC-in jack
✓
Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 95 %

Lens system

Maximum aperture number
1.60
Number of lenses
1, 2
Noise reduction technology
3D noise reduction

Video

Video compression formats
H.264, H.264B, H.265, H.265 Pro, MPEG
Frame rate
30 fps
Smart IR
✓
Privacy masking
✓
Supported video modes
1080p, 720p
Video intelligence analytic
✓

Security

Privacy protection
✓

Camera

Day/night mode
✓
Gain control type
Auto/Manual
Back Light Compensation (BLC)
✓
Adjustment shutter speed
Auto/Manual
Camera shutter speed
1/3 - 1/100000 s, 1/3 s–1/100000
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding
✓
Normal focusing range
2.5 - 6 m
Total megapixels
4MP, 5MP
Number of cameras
1
Focal length range
8 - 32 mm
Bit rate
H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps– 8192 Kbps
Sensor type
CMOS
Lens viewing angle, horizontal
43°
Progressive scan
✓
White balance
Auto, Lamp, Manual, Natural, Outdoor, Street lamp
Wide Dynamic Range (WDR)
✓
Auto focus
✓
Effective sensor resolution
2 pixels
Alarm input/output
✓
Highlight Compensation (HLC)
✓
Digital Wide Dynamic Range (DWDR)
✓
Auto flip
✓
Lens viewing angle, vertical
23°
Camera tilt control
✓

Shutter

Camera shutter type
Electronic

Pan-tilt unit

Tilt angle range
[object Object],[object Object]
Pan range
[object Object],[object Object]

Image sensor

Maximum resolution
2688 x 1520, 1920 x 1080
Minimum illumination
0.00 lx

Night vision

Number of illumination LEDs
3
Night vision
✓
LED type
IR
Night vision distance
80 m

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)
120 dB
Minimum illumination (panoramic camera)
0.00 lx

Product Details

Series Overview With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67. Functions Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. WDR With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow. Starlight With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance. IVS With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Files

Product Brochure

mmo_78269962_1583852091_6759_32635.pdf

PDF• 462.3 KB

User manual

mmo_78269962_1583852098_5271_7332.pdf

PDF• 799.6 KB
