Spec:
Item Type: Modem Router
Material: PVC EVA PCB ABS
Weight: Approx. 964g / 34oz
Product Size: Approx. 235x140mm / 9.25x5.51in

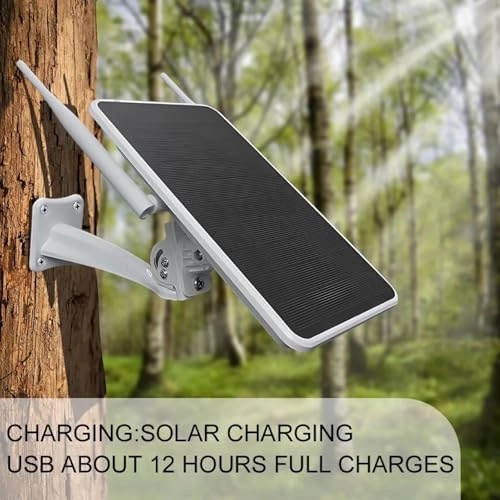

Solar Power: 6W
Power Supply: Solar Power or UBS Power Cord, Choose One of the Ways to Supply Power.
Battery (Built in): Li Battery 12000MAh
4G Main Chip: For ZX297520M
WIFI Chip: For RTL8192ES CG
Network Type: FDD LTE, TDD LTE, WCDMA HSPA+, TD SCDMA, GSM GPRS EDGE;
Speed:
FDD LTE, TDD LTE: 50M Uplink, 150Mbps Downlink.
HSPA+: 5.76M Uplink, 2Mbps Downlink.
TD SCDMA: 2.2Mbps Uplink, 2.8Mbps Downlink;
Network Port: 10/100M Adaptive RJ45 Interface. Support up to 8 Devices WIFl Access;
WIFI Standard: 2412MHz-2472MHz, 802.1lb g n.
Maximum Transfer Rate up to 72Mbps;
USIM or SIM Card (Excluded): Small SIM Card;
Note: Sim Card Slot on the Back of That Back Panel, Remove the Screws Are Opened to See the Card Slot to Insert the Card to Use;
Green Light: Full Charge
Blue Light Flashing: Solar Charging
Red Light: Low Battery
Blue Flash: Sim Card Is Working
Default Password: Admin
Applications: IPC, Yacht, Yard, caravans, Farm, Ranch, Square, Telephone, Amusement Park, Passenger Ship, Broadcasting Speaker, PC.
Audience Groups:
1. Networking of Equipment in Extreme Environments Such as Oilfields, Mines and Construction Sites.
2. Entertainment and Communication During Wild Camping and caravans Travelling.
3. Alternative to Expensive Wired Broadband to Solve the Basic Network Needs of Families or Small Businesses.
4. Temporary Network for Exhibitions, Music Festivals and Disaster Relief Sites.
5. Farms, Ranches, Construction Sites.
How to Use:
Device Access:
1. Insert Data Card: Please use a standard small SIM card (Excluded). Insert from top to bottom.
2. Wired Connection: Connect the device cable to the 4G router RJ45 network port; if connecting multiple devices, connect a standard network
