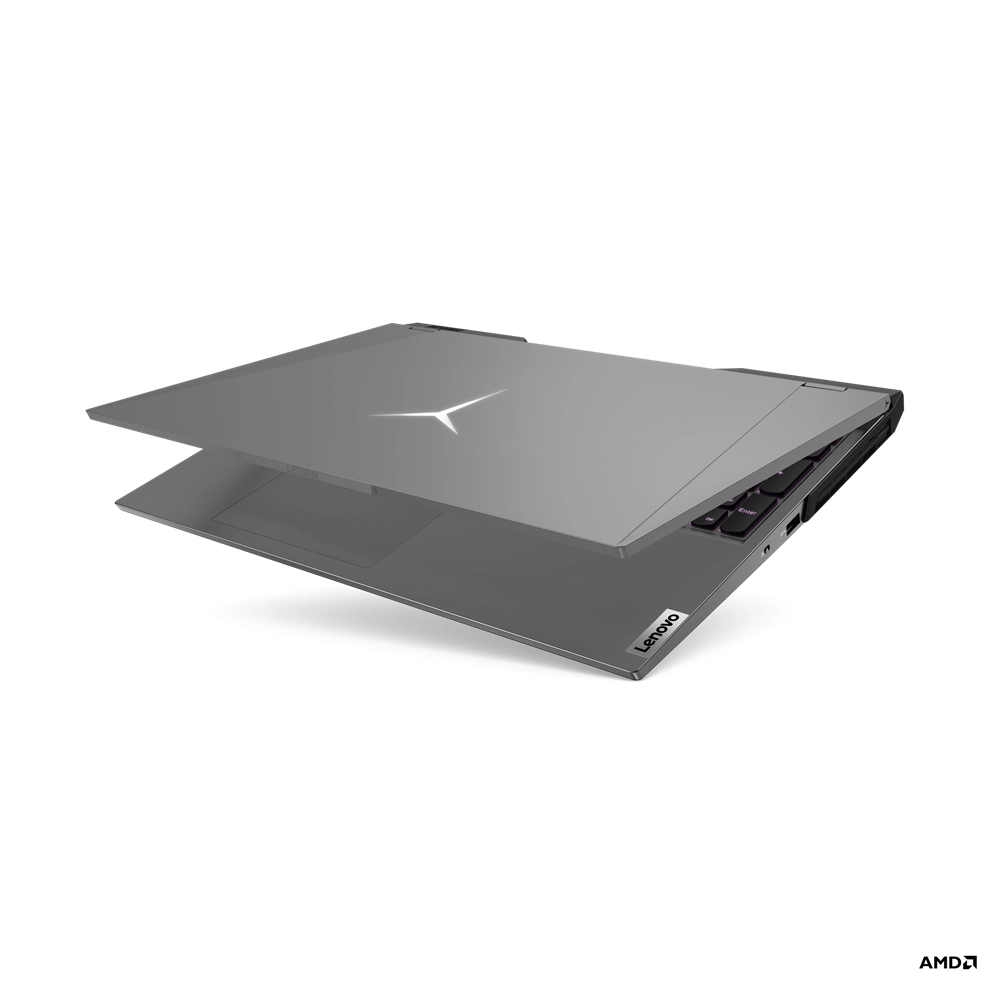

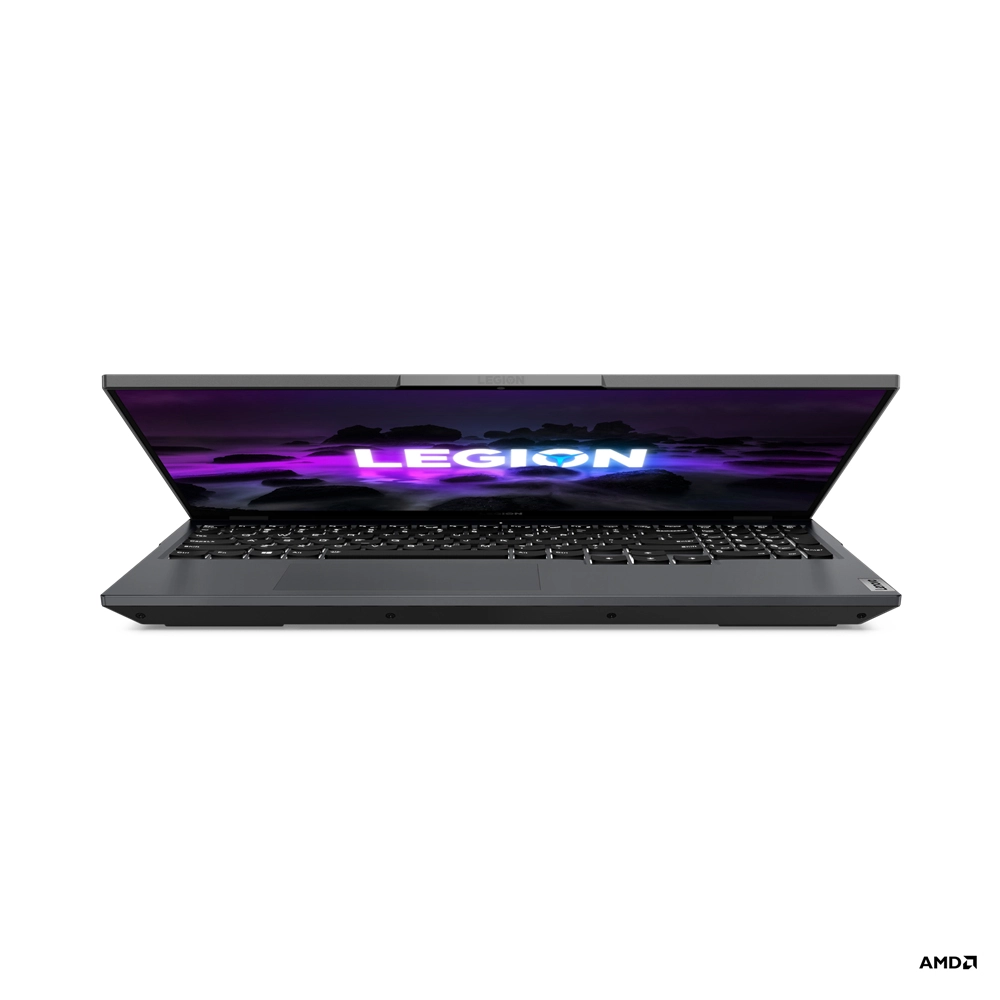

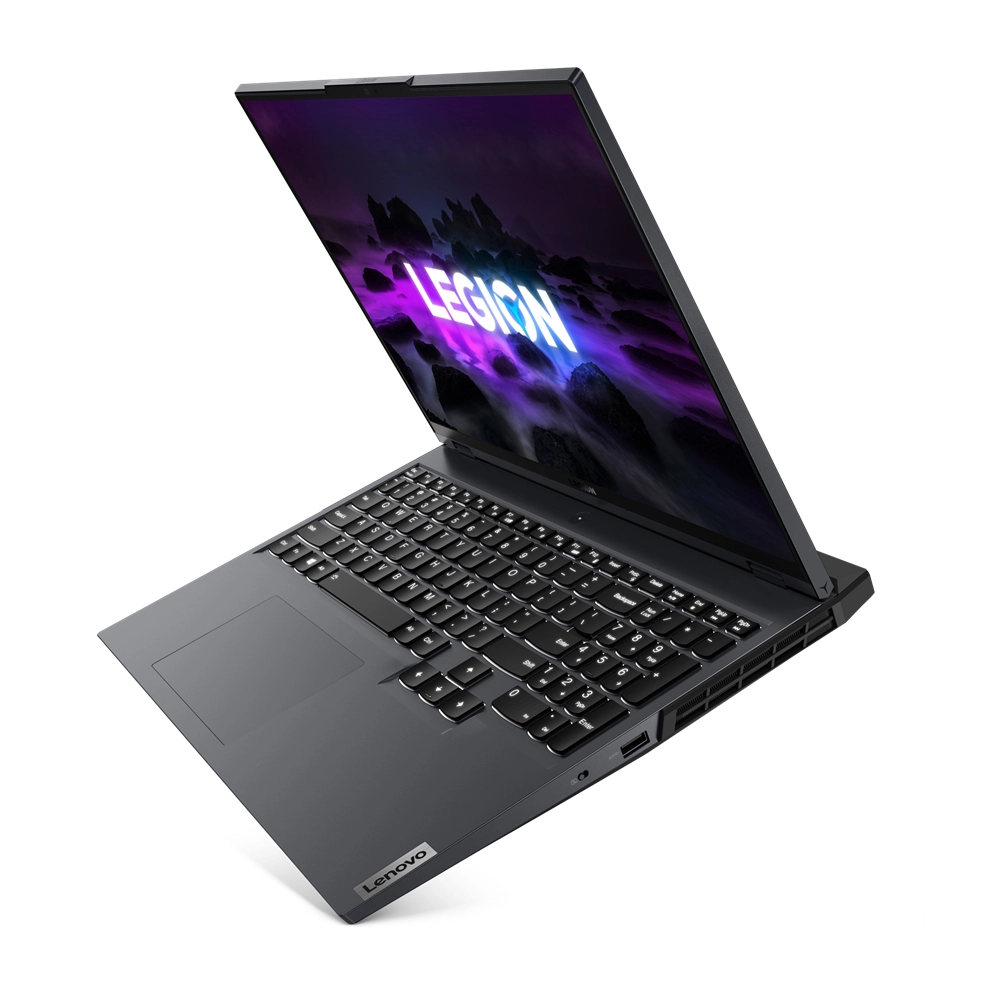

Lenovo Legion 5 Pro - 16'' Ryzen 7 5800H 16GB DDR4 1000GB SSD
Best offer
AED
7 99900
AED
9 59900
-16%
Key Features
- Discrete graphics card: Yes
- Fast charging time (50%): 30min
- Keyboard backlit colour: Blue, RGB, Various, White
- Discrete GPU manufacturer: NVIDIA
- Discrete graphics card memory: 6, 8GB
- Discrete graphics memory type: GDDR6
- On-board GPU manufacturer: AMD
- On-board graphics card family: AMD Radeon
- Processor threads: 8
- Front camera HD type: HD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
- Windows 11 free upgrade: Yes
- Front camera: Yes
- Total SSDs capacity: 512, 1000GB
- Height (front): 21.7mm
Specifications
Features
Bundled software
Office Trial
Internal memory
16000 MB
Built-in microphone
✓
Operating system installed
Windows 10 Home, Windows 11 Home, Windows 11 Pro
Card reader integrated
✗
Password protection type
HDD, Power on, Supervisor
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
5.1
Speaker power
2 W
Maximum refresh rate
165 Hz
Product colour
Black, Grey
Keyboard layout
AZERTY, QWERTY
Resolution
2560 x 1600 pixels
Pointing device
Touchpad
Memory channels
Dual-channel
Colour name
Black, Black (Bottom), Dove Grey, Stingray, Storm Grey, Storm Grey (Top), Storm Grey (Top) Black (Bottom), Storm grey (top) Black (bottom), Storm grey/Black
Number of microphones
2
Numeric keypad
✓
Display surface
Matt
Product type
Laptop
Front camera resolution
1280 x 720 pixels
Fingerprint reader
✗
Trusted Platform Module (TPM) version
2.0
Keyboard language
Belgian, Danish, English, Finnish, French, German, Hungarian, Italian, Nordic, Norwegian, Portuguese, Swedish, UK English
Front camera
✓
Weight & dimensions
Width (imperial)
14.02 "
Weight
2300g, 2450g
Depth
260.40mm, 264.20mm, 264.40mm
Width
356 mm
Height (rear)
26.90 mm
Height (front)
21.70 mm
Display
Display resolution
2560 x 1600 pixels
Panel type
IPS
Touchscreen
✗
Native aspect ratio
16:10, 16:9
Colour gamut
100 %
High Dynamic Range (HDR) technology
DisplayHDR 400, Dolby Vision, High Dynamic Range (HDR) 400
Anti-glare screen
✓
RGB colour space
Adobe RGB, sRGB
Contrast ratio (typical)
1200:1
Display brightness
500 cd/m²
LED backlight
✓
Power
Battery technology
Lithium Polymer (LiPo)
Battery life (max)
4.20h, 7.30h, 8h, 8.10h
AC adapter input voltage
100 - 240 V, 230 V
AC adapter frequency
50 Hz, 50/60 Hz
AC adapter power
230W, 300W
Charging port type
DC-in jack
Performance
Virtual Reality (VR) ready
✓
Fast charging
✓
Motherboard chipset
AMD SoC
AMD FreeSync
✓
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Optical drive
Optical drive type
No
Other features
Chassis type
Clamshell
Total storage capacity
512GB, 1000GB
Maximum internal memory
32000 MB
Repairability index
7.3
Storage
NVMe
✓
Storage media
SSD
SSD interface
NVMe, PCI Express, PCI Express 3.0
SSD capacity
512 GB
SSD form factor
M.2
Total SSDs capacity
512GB, 1000GB
Software
Windows 11 free upgrade
✓
Design
Housing material
Aluminium
Market positioning
Gaming
Form factor
Clamshell
Graphics
NVIDIA G-SYNC
✓
On-board graphics card memory
8 GB
Discrete graphics card model
NVIDIA GeForce RTX 3060, NVIDIA GeForce RTX 3070
On-board graphics card
✓
On-board graphics card family
AMD Radeon
On-board GPU manufacturer
AMD
Discrete graphics memory type
GDDR6
Discrete graphics card memory
6GB, 8GB
Discrete GPU manufacturer
NVIDIA
Discrete graphics card
✓
Computer system
Operating system architecture
64-bit
Processor cores
8
Processor model
5800H
Processor manufacturer
AMD
Processor frequency
3.20GHz, 4.40GHz
Operating system language
German, English
Processor family
AMD Ryzen™ 7
Internal memory
16 GB
Antenna type
2x2
Privacy camera
✓
Privacy type
Privacy shutter
Audio chip
Realtek ALC3306
Packaging content
Trial software
Microsoft Office, Office, Office Trial
Keyboard backlit colour
Blue, RGB, Various, White
Network
Bluetooth
✓
Ethernet LAN data rates
10, 100, 1000
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN
✓
Mobile network connection
✗
Ports & interfaces
USB Sleep-and-Charge ports
1, 4
USB Sleep-and-Charge
✓
USB Power Delivery (USB PD)
✓
USB Type-C DisplayPort Alternate Mode
✓
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Combo headphone/mic port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1, 2
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
8 - 95 %
Maximum shipping altitude
3048 m
Non-operating altitude
0 - 3048 m
Operating altitude
0 - 2438 m
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
5 - 43 °C
Technical details
Sustainability compliance
✓
Certification
ENERGY STAR® 8.0
ErP Lot 3
TUV Low Blue Light
RoHS compliant, ErP Lot 3, TUV Low Blue Light
Introduction year
2021
Sustainability certificates
ENERGY STAR, ErP
Compliance certificates
RoHS
Processor
Processor series
AMD Ryzen 7 Series
Processor generation
AMD Ryzen 5000 Series
On-board graphics card model
AMD Radeon Graphics, Not available
Processor cache type
L2, L2 & L3, L3
L2 cache
16 MB
Processor cache
16 MB
Processor boost frequency
4.40 GHz
Processor threads
8
Memory
Memory form factor
SO-DIMM
Maximum internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
3200 MHz
Memory layout (slots x size)
2 x 8
Audio
Audio system
Nahimic Audio
Number of built-in speakers
2
Keyboard
Keyboard backlit
✓
Full-size keyboard
✓
Island-style keyboard
✓
Video
High Dynamic Range (HDR) supported
✓
HD type
WQXGA
Camera
Front camera HD type
HD
Battery
Battery capacity
80 Wh
Fast charging time (50%)
30 min
Logistics data
Harmonized System (HS) code
84713000
Solid state drive
Number of SSDs installed
1
Product Details
Pro-level performance
Engineered to deliver devastation in and out of the arena, the Legion 5 Pro deploys AMD Ryzen™ processing and NVIDIA® GeForce RTX™ graphics to dish out high-resolution gaming. The world’s first 16" QHD gaming laptop with up to 165Hz refresh sets up a “winning zone” that gives you an extra edge and ups your peripheral vision. Combined with Nahimic 3D audio that pinpoints footsteps in space, you’ll be able to see and hear any scrub headed your way before they even get within firing range.
Ultimate performance. Uncompromised battery life.
With the all-new AMD Ryzen™ 5000 H-Series Mobile Processors, you can enjoy the best competitive gaming performance on a thin and light notebook with amazing battery life. Never compromise on your gaming laptop again.
Ultimate performance for gamers & creators
Experience ultimate performance with the latest NVIDIA® GeForce RTX™ 30 Series Laptop GPUs for gamers and creators. Supercharged with Ray Tracing Cores, Tensor Cores, and streaming multiprocessors, our thin and light design delivers the most realistic ray-traced graphics, cutting-edge new features, and the power of AI.
Xbox Game Pass. Discover your next favorite game.
Play over 100 high-quality PC games for one low monthly price. EA Play is included and gives you more of the games you love, with access to top Electronic Arts titles on PC, more rewards, and more exclusive content! Use the Xbox app on PC to download and play new games like Halo Infinite the same day they release. With games added all the time, you'll always have something new to play.
Expand your winning zone
Rise above FHD gaming to a new degree of visual superiority with the world’s first 16" QHD gaming display, supporting NVIDIA G-Sync and AMD FreeSync. It boasts 34% increased pixel density, Dolby Vision™, VESA DisplayHDR™ 400 support, and 100% sRGB color accuracy with over 500 nits peak brightness. Ensure you’re leagues ahead of the pack with overdrive technology, powering up-to-165Hz refresh rates and 3ms response times.
Cooler. Smarter. Coldfront 3.0.
Building on a generational legacy of max clock speeds for hours of gaming with zero throttling, the Legion 5 Pro’s Legion Coldfront 3.0 takes first-class thermal performance even further. It deploys an intelligent intake system, turbo-charged dual fan design, thermal intake vents beneath keyboard switches, and a quad channel exhaust system.Heat sinks combine with a new intelligent mode to AI-optimize the most demanding eSports titles for next-gen performance—with no framerate drops or stutters at QHD resolution. You can even control the fan speed and voltage with Q Control 4.0 for that full-throttle flow or to extend battery life.
Introducing the Lenovo Legion AI Engine
Take a revolutionary leap forward in your gaming with the Lenovo Legion AI Engine, a system of AI solutions that delivers the highest framerates on today's top AAA games.
Strike hard. Strike true.
The Legion TrueStrike Keyboard features innovative soft-landing switches that deliver deeper strokes with equal force on every strike. This enables you to strike enemies with extreme precision, hair-trigger speeds, and satisfying keystrokes. The superior layout is also illuminated via an optional 4-zone RGB backlight (select models only).
Immersive 3D Nahimic Audio for gamers
Nahimic drastically improves your gaming experience with its immersive 3D audio and engaging features for gamers. Build a competitive advantage with the sound tracker. Experience crystal-clear communication with teammates. Nahimic is a new way of playing and Legion Gamers can exclusively enjoy BT Link, an innovative audio solution that turns any Bluetooth speaker into a surround sound system.
