1. Water Proof: This LTE modem router features an IP66 professional grade water proof design. Its reinforced housing is built for longevity, making it resilient to rain, wind, and other harsh outdoor conditions.
2. Multi Device Compatibility: It's designed to work seamlessly with a variety of devices, including tablets, security cameras, smartphones, and computers, allowing any WiFi enabled electronic device to connect for enhanced functionality.
3. Outdoor Live Streaming: Utilize the LTE modem (4G SIM card) to access mobile networks and connect to a portable router, providing WiFi networks for live streaming devices, smartphones, and more.
4. Relay Functionality: The router comes with a relay function setting option, enabling it to connect to other available WiFi networks even without a data SIM card. It also supports continuous internet access for your networked devices through wired or wireless connections.
5. Stability: Equipped with a dependable industrial 4G module, this modem router guarantees stable performance and strong anti interference capabilities. It can support up to 8 devices connected via WiFi (IPC, phones, computers, etc.), catering to various networking needs.
6. WEB Client: The built in web client allows users to view 4G signal strength and modify settings like login passwords and wireless access passwords, providing ease of use and management.
Spec:
Item Type: Modem Router
Material: PVC EVA PCB ABS
Weight: Approx. 964g / 34oz
Product Size: Approx. 235x140mm / 9.25x5.51in

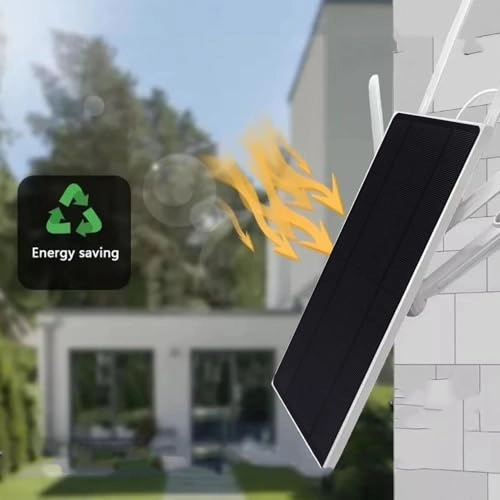

Solar Power: 6W
Power Supply: Solar Power or UBS Power Cord, Choose One of the Ways to Supply Power.
Battery (Built in): Li Battery 12000MAh
4G Main Chip: For ZX297520M
WIFI Chip: For RTL8192ES CG
Type: FDD LTE, TDD LTE, WCDMA HSPA+, TD SCDMA, GSM GPRS EDGE;
Speed:
FDD LTE, TDD LTE: 50M Uplink, 150Mbps Downlink.
HSPA+: 5.76M Uplink, 2Mbps Downlink.
TD SCDMA: 2.2Mbps Uplink, 2.8Mbps Downlink;
Port: 10/100M Adaptive RJ45 Interface. Support up to 8 Devices WIFl Access;
WIFI Standard: 2412MHz-2472MHz, 802.1lb g n.
Maximum Transfer Rate up to 72Mbps;
USIM or SIM Card (Excluded): Small SIM Card;
Note: Sim Card Slot on the Back of That Back Panel, Remove the Screws Are Opened to See the Card Slot to Insert the Card to Use;
Green Light: Full Charge
Blue Light Flashing: Solar Charging
Red Light: Low Battery
Blue Flash: Sim Card Is Working
Default Password: Admin
Applications: IPC, Yacht, Yard, , Farm, Ranch, Square, Telephone, Amusement , Passenger Ship, Broadcasting Speaker, PC.
Audience Groups:
1. Networking of Equipment in Extreme Environments Such as Oilfields, Mines and Construction Sites.
2. Entertainment and Communication During Wild Camping and Travelling.
3. Alternative to Expensive Wired Broadband to Solve the Basic Needs of Families or Small Businesses.
4. Temporary for Exhibitions, Music Festivals and Disaster Relief Sites.
5. Farms, Ranches, Construction Sites.
How to Use:
Device Access:
1. Insert Data Card: Please use a standard small SIM card (Excluded). Insert from top to bottom.
2. Wired Connection: Connect the device cable to the 4G router RJ45 port; if connecting multiple devices, connect a standard switch to the 4G router and then connect devices to the switch.
3. Wireless Connection: Turn on the device, search for WIFI named 'MIFI_XXXX' for example: Select one of the connections, WIFI default password: 1234567890 (you can change it by entering the password after accessing the WEB interface).

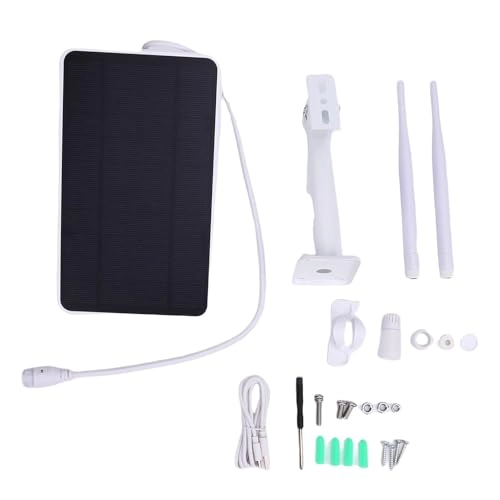

PackageList:
1 x Modem Router
2 x Antennaes
4 x Plastic Expansion Pipe
4 x Long Screw
3 x Washer
3 x Screw
4 x Accessory
1 x USB Cable
1 x
1 x Instruction Manual
1 x Installation Bracket
1 x Installation Bracket Accessory
