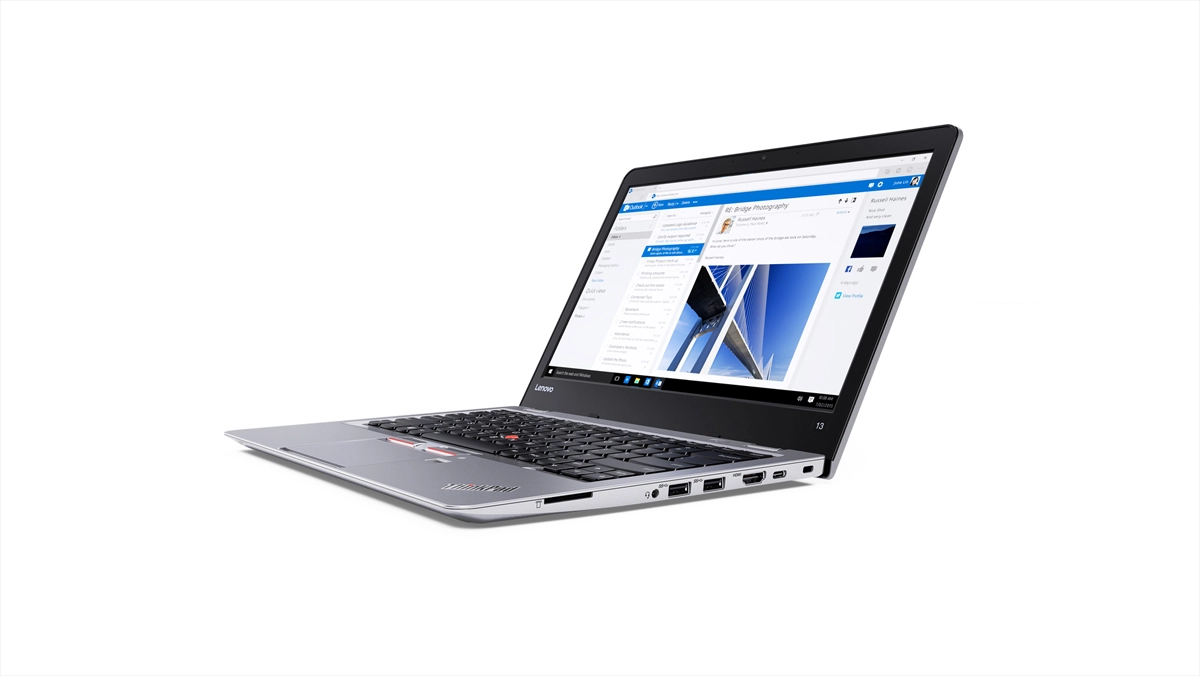

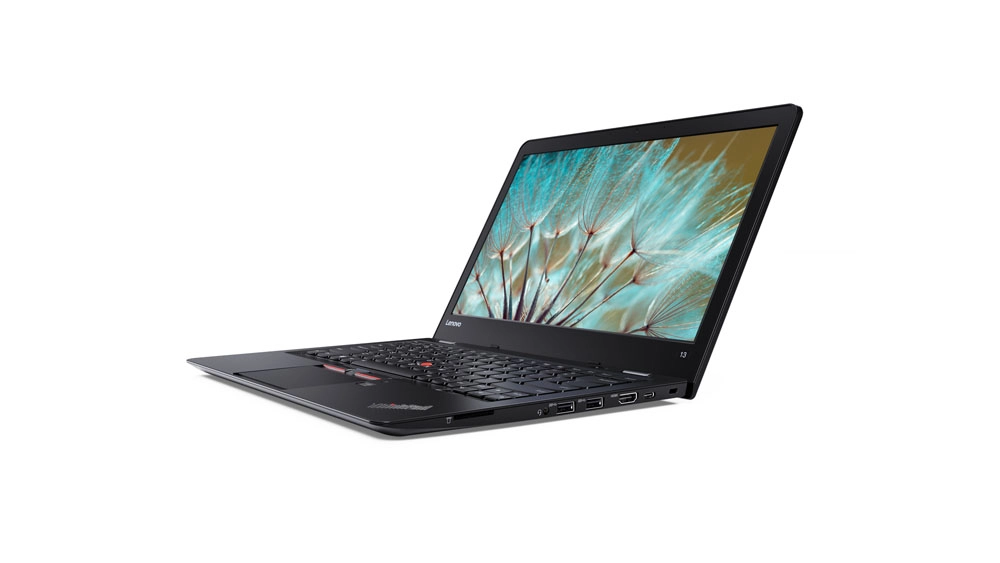

Lenovo (Renewed) ThinkPad 13 - 13.3'' 256GB 8GB Core i3-6100U
Key Features
- Discrete graphics card: No
- LightScribe: No
- On-board graphics card family: Intel HD Graphics
- Maximum internal memory (64-bit): 16, 32GB
- Processor threads: 2, 4
- Front camera HD type: HD
- Front camera signal format: 720p
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Front camera: Yes
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Configurable TDP-down: 7.5W
- Touch technology: Multi-touch
- Resolution: 1366 x 768, 1920 x 1080pixels
- Pointing device: ThinkPad UltraNav
- PCI Express slots version: 3.0
Specifications
Features
Front camera resolution
1 MP
Touchscreen type
Capacitive
ECC supported by processor
✗
Internal memory
4000MB, 8000MB
3D
✗
Built-in microphone
✓
Operating system installed
Windows 10 Home, Windows 10 Pro, Windows 7 Professional
Card reader integrated
✓
Accelerometer
✗
Password protection type
HDD, Power on, Supervisor
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
4.1
CPU configuration (max)
1
Speaker power
2 W
Product colour
Black, Silver
Keyboard layout
QWERTY
Touch technology
Multi-touch
Resolution
1366 x 768, 1920 x 1080
Pointing device
ThinkPad UltraNav
PCI Express slots version
3.0
Numeric keypad
✗
Display surface
Matt
Product type
Laptop, Ultrabook
Front camera resolution
1280 x 720 pixels
Fingerprint reader
✓
System bus rate
4 GT/s
Keyboard language
US English
Thermal Design Power (TDP)
15 W
Front camera
✓
Weight & dimensions
Width (imperial)
12.69 "
Weight
1440 g
Height
19.10mm, 19.80mm
Depth
222.80 mm
Width
322.40 mm
Display
Display resolution
1366 x 768, 1920 x 1080
Panel type
IPS
Touchscreen
✓
Native aspect ratio
16:9
Contrast ratio (typical)
500:1, 600:1
Display brightness
200cd/m², 220cd/m²
LED backlight
✓
Power
Battery technology
Lithium Polymer (LiPo)
Battery life (max)
11.60h, 14.56h
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz
AC adapter power
45 W
Performance
Processor ARK ID
88180, 95442
Processor operating modes
64-bit
Motherboard chipset
Intel SoC
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Optical drive
Optical drive type
No
LightScribe
✗
Other features
Intel segment tagging
Home Office, Small Business
Chassis type
Clamshell
Total storage capacity
128GB, 256GB
Maximum internal memory
16000MB, 32000MB
Maximum internal memory (64-bit)
16GB, 32GB
Processor special features
Embedded options available
✓
Enhanced Intel SpeedStep Technology
✓
Execute Disable Bit
✓
Graphics & IMC lithography
14 nm
Idle States
✓
Intel 64
✓
Intel Enhanced Halt State
✓
Intel Secure Key Technology version
1.00
Intel Trusted Execution Technology
✗
Intel TSX-NI
✗
Intel TSX-NI version
0.00, 1.00
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel Clear Video Technology
✓
Intel Flex Memory Access
✓
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel Smart Response Technology version
1.00
Intel Stable Image Platform Program (SIPP)
✗
Intel Stable Image Platform Program (SIPP) version
0
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Clear Video HD Technology (Intel® CVT HD)
✓
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
✓
Intel® Hyper Threading Technology (Intel® HT Technology)
✓
Intel® Identity Protection Technology (Intel® IPT)
✓
Intel® Insider™
✓
Intel® InTru™ 3D Technology
✓
Intel® My WiFi Technology (Intel® MWT)
✓
Intel® OS Guard
✓
Intel® Quick Sync Video Technology
✓
Intel® Secure Key
✓
Intel® Small Business Advantage (Intel® SBA)
✓
Intel® Smart Cache
✓
Intel® Smart Response Technology
✓
Intel® Turbo Boost Technology
No
Intel® Wireless Display (Intel® WiDi)
✓
Maximum number of PCI Express lanes
12
Thermal Monitoring Technologies
✓
Processor package size
42 X 24 mm, 42 x 24 mm
Processor code
SR2EU, SR2ZW
Intel Software Guard Extensions (Intel SGX)
✓
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Storage
Compatible memory cards
MMC, SD, SDHC, SDXC
Storage media
SSD
SSD interface
SATA III
SSD capacity
256 GB
SSD form factor
M.2
Design
Housing material
Acrylonitrile butadiene styrene (ABS), Plastic
Cable lock slot
✓
Market positioning
Business
Form factor
Clamshell
Screen shape
Flat
Graphics
Maximum on-board graphics card memory
1.74GB, 32GB
On-board graphics card ID
0x5916, 1916
On-board graphics card base frequency
300 MHz
On-board graphics card dynamic frequency (max)
1000 MHz
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.4
Discrete graphics card model
Not available
On-board graphics card
✓
On-board graphics card family
Intel HD Graphics
Discrete graphics card
✗
Computer system
Operating system architecture
64-bit
Processor cores
2
Processor model
i3-6100U
Processor manufacturer
Intel
Processor frequency
2.30GHz, 2.40GHz
Processor family
Intel Core i3-6100 series, Intel® Core™ i3
Internal memory
4 GB
Antenna type
2x2
Packaging content
Trial software
McAfee LiveSafe
Quick start guide
✓
Manual
✓
AC adapter included
✓
Power cord included
✓
Network
Wi-Fi
✓
Bluetooth
✓
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN
✗
Ports & interfaces
USB Sleep-and-Charge ports
1
USB Sleep-and-Charge
✓
Microphone in
✗
PCI Express configurations
1x2+2x1, 1x4, 2x2, 4x1
Docking connector
✓
Combo headphone/mic port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
DVI port
✗
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Technical details
Certification
EPEAT Gold (US only), MIL-STD-810G
Sustainability certificates
ENERGY STAR, EPEAT Gold
Number of battery cells
3, 3+4
Compliance certificates
RoHS
Processor
Conflict-Free processor
✓
Processor codename
Kaby Lake, Skylake
Processor series
Intel Core i3-6100 series
Processor generation
6th Gen, 7th Gen
On-board graphics card model
Intel® HD Graphics 520, Intel® HD Graphics 620
Bus type
OPI, QPI
Stepping
D1, H0
Processor lithography
14 nm
Processor cache type
Smart Cache
Configurable TDP-down frequency
0.80 GHz
Tjunction
100 °C
L2 cache
3 MB
Processor socket
BGA 1356
Processor cache
3 MB
Configurable TDP-down
7.50 W
Processor threads
2, 4
Memory
Memory form factor
SO-DIMM
Maximum internal memory
16GB, 32GB
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
2133 MHz
Memory layout (slots x size)
1 x 8, 2 x 4
Audio
Number of built-in speakers
2
Keyboard
Keyboard backlit
✗
Island-style keyboard
✓
Windows keys
✓
Video
HD type
Full HD, HD
Camera
Front camera HD type
HD
Front camera signal format
720p
Battery
Battery capacity
42 Wh
Solid state drive
Number of SSDs installed
1
Product Details
Tough Enough for the Military
Tested against 12 military-grade requirements and passing more than 200 quality checks, ThinkPad 13 was designed to withstand work, travel, fun, and anything else you can throw at it.
Keep Your Hands on the Keyboard – Because You'll Want To
The legendary ThinkPad keyboard is so comfortable to use, you won't want to move your fingers off it – not even to use a mouse. So it's a good thing you won't have to, because this keyboard includes two pointing options – the world-famous TrackPoint and our intuitive, clickable TrackPad. Move your cursor, make selections, zoom in and out, and drag and drop easily and comfortably. These features are only two of the reasons our keyboard has won awards and the hearts of users across the world! It's accurate, ergonomic, and easy to see at any time, thanks to its two-stage adjustable soft-white backlight.
Get Help Anywhere, If You Happen to Need It
ThinkPad 13 comes with a standard worldwide warranty. Now you can get help in 160 countries around the world. These machines travel better than some people do!
Easy to Take With You – Even Without a Charger
At 3.17 lbs / 1.44 kg and merely 0.75" - 0.77" thin / 19.1 mm – 19.8 mm, ThinkPad 13 is eminently portable. And it has all the battery power you need – up to 11 hours – to move from desk to meetings and elsewhere, and stay productive throughout the business day with plenty of charge left afterward.
Productivity Never Looked So Good
ThinkPad 13 has a 13.3" display that renders in Full High Definition (FHD), so even spreadsheets look beautiful. And with In-plane Switching (IPS) technology, they’ll show in vibrant color and be visible from almost any angle.
Professional but Pleasant
Available in Silver or Black, ThinkPad 13 has a professional, conservative look that’s sure to impress, while still enabling you to express yourself.
It’s All in the Curves
ThinkPad 13 boasts a clean modern design, with rounded corners that give it an element of sleekness. An apt look for something so fast.
Lose the Ethernet Cable
With support for 802.11 AC wireless signals, there’s no need to be limited by the length of an Ethernet cable. Simply access the signal available from many wireless routers, and you’re online in no time.
Plenty of Ports
Connect to just about any accessory you need, whether it’s an external drive via speedy USB 3.0, a phone or other device via USB Type-C, or a TV or other monitor via HDMI. Whatever you have, plug it in and get started.
Docking With Power
A OneLink+ port enables you to transform ThinkPad 13 into a full-featured machine at your desk. Simply plug into the dock and you have instant access to superfast data transfers; high-quality, uncompressed video; and convenient accessories such as keyboard, mouse, printer, and up to two external displays. And the OneLink+ connector charges your battery while you’re working.
