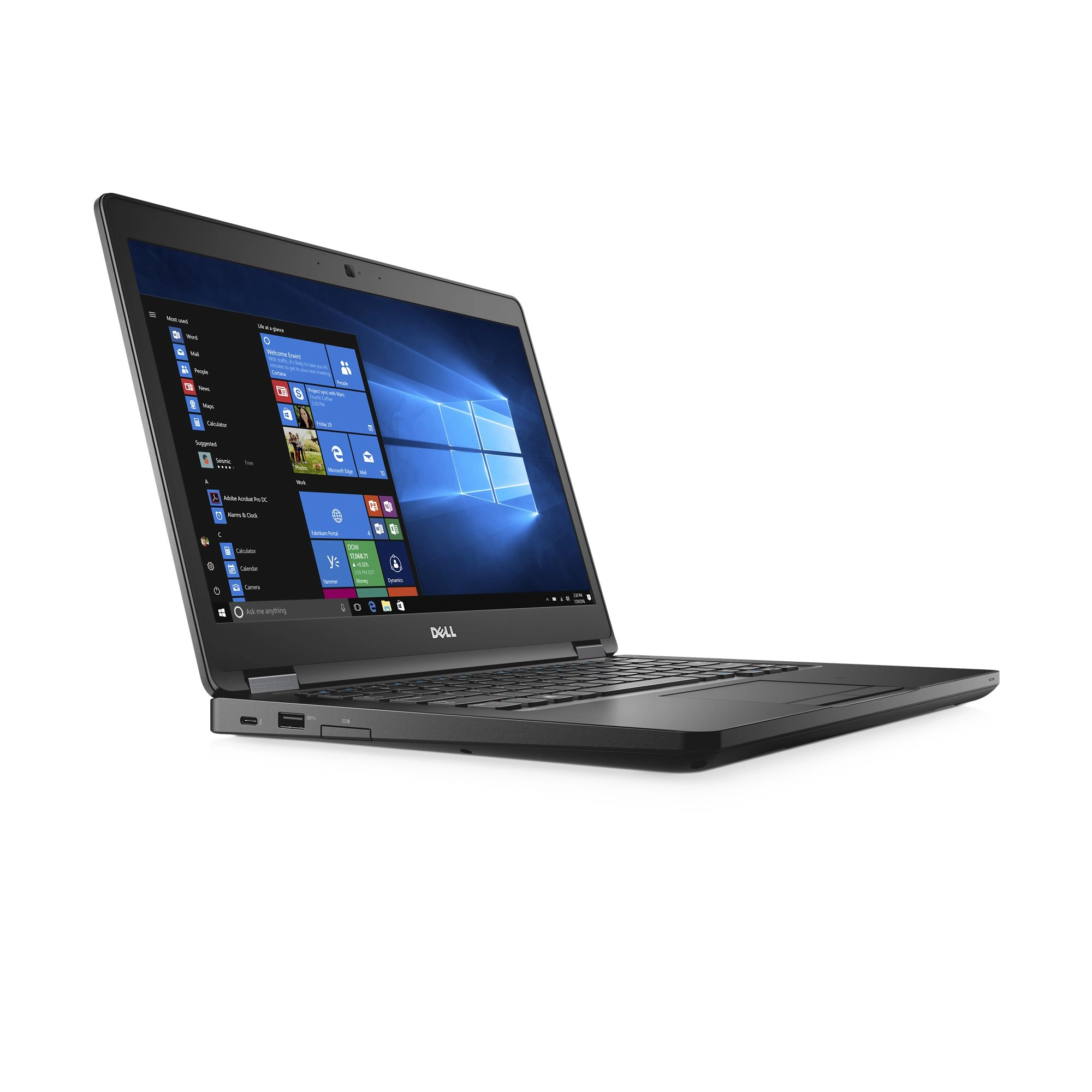

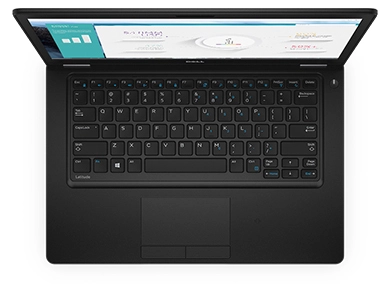

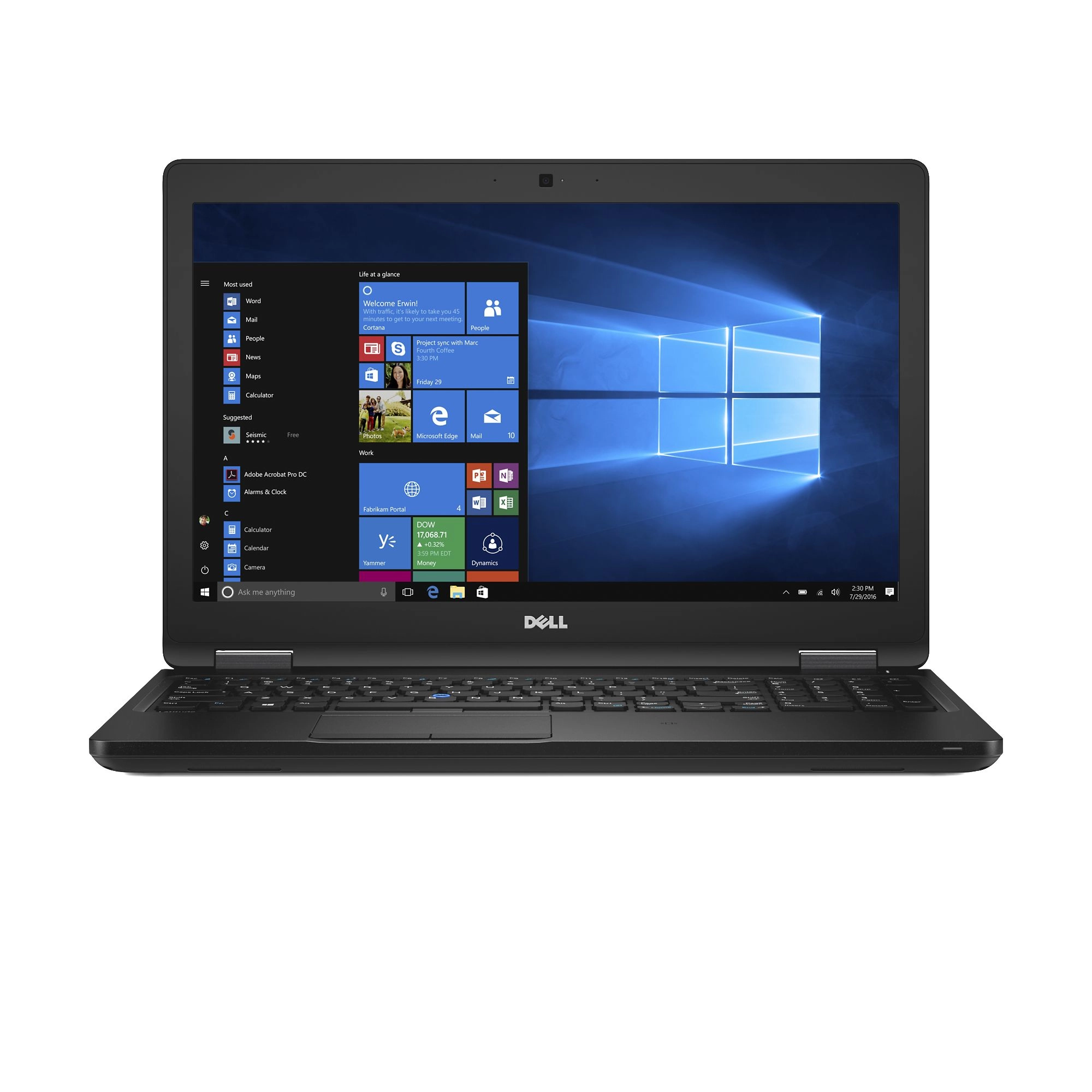

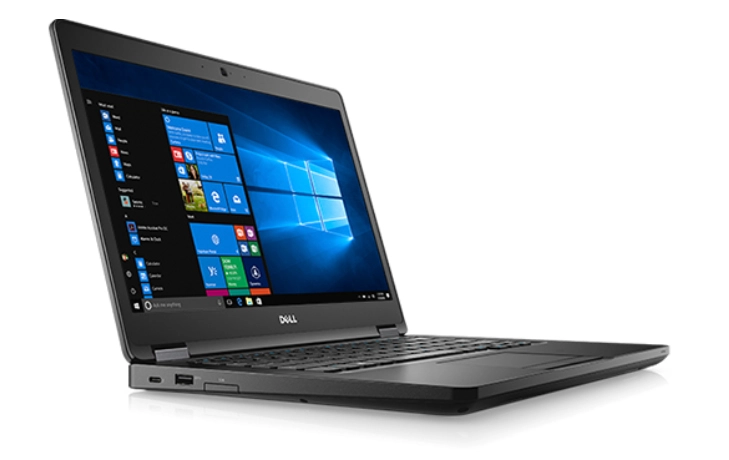

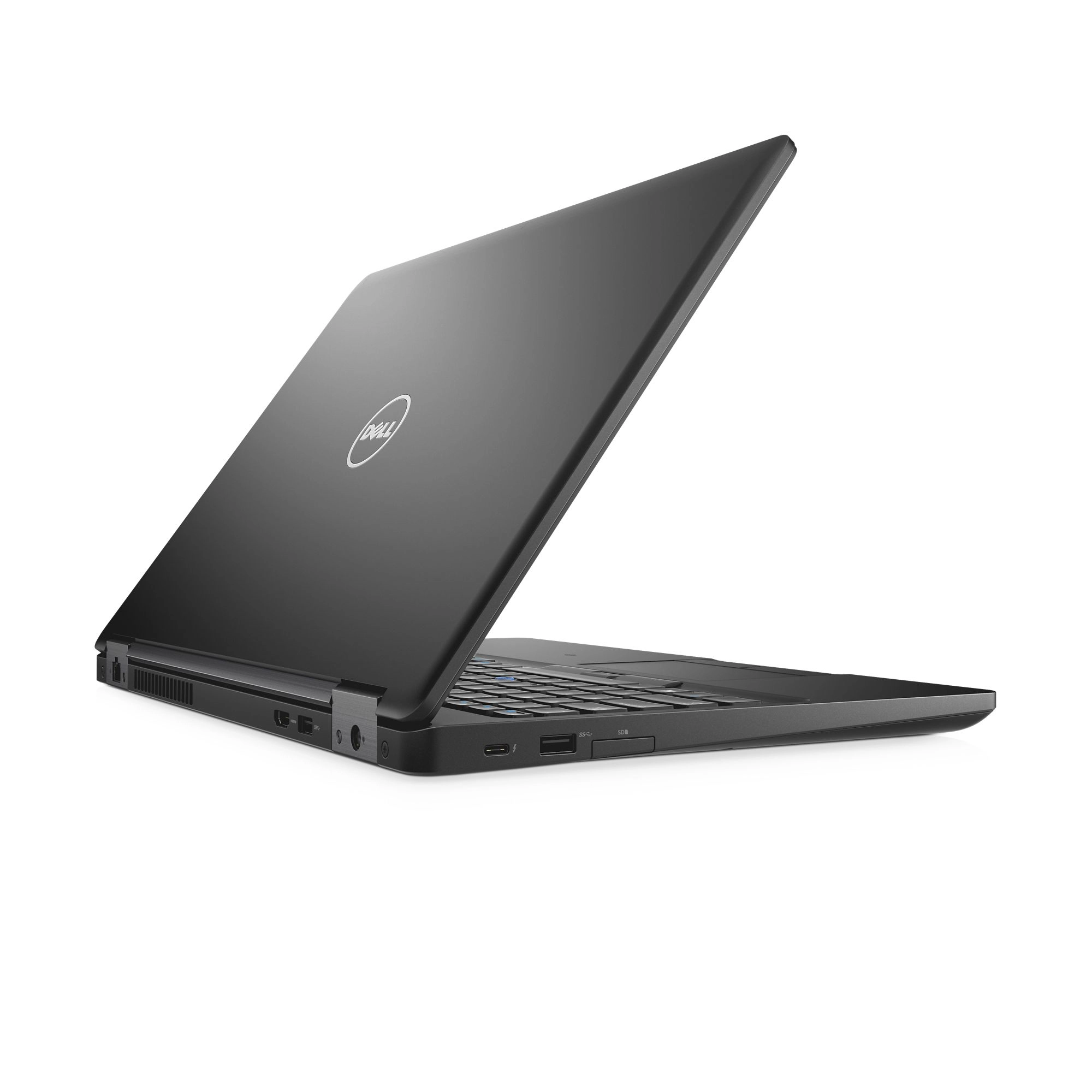

DELL Latitude 5580 E7-UQ8R-PVV0 - 15.6'' Core i5-7300U 8GB DDR4 256GB SSD
Key Features
- Discrete graphics card: No
- On-board graphics card family: Intel HD Graphics
- Maximum internal memory (64-bit): 32GB
- Number of discrete graphics cards supported: 1
- Processor threads: 2, 4
- Front camera HD type: HD
- Front camera signal format: 720p
- Keyboard included on selected markets only: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Front camera: Yes
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Configurable TDP-up frequency: 2.7GHz
- Configurable TDP-up: 25W
- WLAN controller model: Intel Dual Band Wireless-AC 8265
- Configurable TDP-down: 7.5W
Specifications
Features
Front camera resolution
0.92 MP
Bundled software
- Microsoft Office Home & Business 2016, - Microsoft Office Home & Student 2016, - Microsoft Office Professional 2016, Microsoft Office Home & Business 2016
ECC supported by processor
✗
Internal memory
8000 MB
3D
✗
Built-in microphone
✓
Operating system installed
Ubuntu Linux, Windows 10 Home, Windows 10 Pro
Card reader integrated
✓
Password protection type
BIOS, Supervisor, User
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
4.1, 4.2
CPU configuration (max)
1
Keyboard layout
AZERTY
SmartCard slot
✓
Speaker power
2 W
Product colour
Black
Number of HDDs installed
1
Resolution
1366 x 768, 1920 x 1080
Pointing device
Touchpad
PCI Express slots version
3.0
Display surface
Matt
Product type
Laptop
Front camera resolution
1280 x 720 pixels
Fingerprint reader
✓
Keyboard language
Czech, French, German, Slovakian, Swiss, UK English
Thermal Design Power (TDP)
15 W
Numeric keypad
✓
System bus rate
4 GT/s
Front camera
✓
Weight & dimensions
Width (imperial)
13.13", 14.80"
Weight
1600g, 1900g, 1930g
Height
22.40mm, 23.20mm
Depth
228.90mm, 250.70mm
Width
333.40mm, 376mm
Display
Display resolution
1366 x 768, 1920 x 1080
Touchscreen
✗
Native aspect ratio
16:9
Pixel pitch
0.23 x 0.23, 0.18 x 0.18, 0.25 x 0.25
Display brightness
200cd/m², 300cd/m²
LED backlight
✓
Power
Battery technology
Lithium-Ion (Li-Ion)
AC adapter input voltage
100 - 240 V
AC adapter output current
1.70A, 3.34A, 4.62A
AC adapter output voltage
19 V, 19.5 V
AC adapter frequency
50 - 60 Hz
AC adapter power
65W, 90W
Performance
Processor ARK ID
97472
Processor operating modes
64-bit
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Optical drive
Optical drive type
No
Other features
Dell E-Value Code
S032L558015DEAT
Cable lock slot type
Noble
Intel segment tagging
Enterprise
Total storage capacity
128GB, 256GB, 500GB
Maximum internal memory
32000 MB
Dual-screen
✗
Chassis type
Clamshell
Maximum internal memory (64-bit)
32 GB
Processor special features
Embedded options available
✓
Enhanced Intel SpeedStep Technology
✓
Execute Disable Bit
✓
Idle States
✓
Intel 64
✓
Intel Enhanced Halt State
✓
Intel Secure Key Technology version
1.00
Intel Trusted Execution Technology
✓
Intel TSX-NI
✓
Intel TSX-NI version
1.00
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel Clear Video Technology
✓
Intel Flex Memory Access
✓
Intel Identity Protection Technology version
1.00
Intel Smart Response Technology version
1.00
Intel Stable Image Platform Program (SIPP)
✓
Intel Stable Image Platform Program (SIPP) version
1
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Clear Video HD Technology (Intel® CVT HD)
✓
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
✓
Intel® Hyper Threading Technology (Intel® HT Technology)
✓
Intel® Identity Protection Technology (Intel® IPT)
✓
Intel® My WiFi Technology (Intel® MWT)
✓
Intel® OS Guard
✓
Intel® Quick Sync Video Technology
✓
Intel® Secure Key
✓
Intel® Smart Response Technology
✓
Intel® Turbo Boost Technology
2.0
Maximum number of PCI Express lanes
12
Thermal Monitoring Technologies
✓
Processor package size
42 X 24 mm
Processor code
SR340
Intel Software Guard Extensions (Intel SGX)
✓
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Storage
HDD speed
7200
Compatible memory cards
SD
HDD capacity
500 GB
Storage media
HDD, SSD
SSD form factor
M.2
SSD interface
SATA, SATA III
SSD capacity
256 GB
HDD interface
SATA, SATA III
HDD size
2.5
Design
Cable lock slot
✓
Market positioning
Business
Form factor
Clamshell
Graphics
Graphics card Open GL support
✓
Maximum on-board graphics card memory
32 GB
On-board graphics card base frequency
300 MHz
On-board graphics card dynamic frequency (max)
1100 MHz
Discrete graphics card model
Not available
On-board graphics card ID
0x5916
On-board graphics card 4K support
✓
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.4
On-board graphics card
✓
Number of discrete graphics cards supported
1
On-board graphics card family
Intel HD Graphics
Discrete graphics card
✗
Computer system
Operating system architecture
64-bit
Processor cores
2
Processor model
i5-7300U
Processor manufacturer
Intel
Processor frequency
2.60 GHz
Operating system language
German, English, Multilingual
Processor family
Intel Core i5-7300 Mobile Series, Intel® Core™ i5
Internal memory
8 GB
Antenna type
2x2
Audio chip
Realtek ALC3246
WLAN controller model
Intel Dual Band Wireless-AC 8265
Packaging content
Trial software
McAfee, Microsoft Office, Microsoft office
Warranty card
✓
Quick start guide
✓
Manual
✓
Drivers included
✓
AC adapter included
✓
Power cord included
✓
Keyboard included on selected markets only
✓
Network
Wi-Fi
✓
Bluetooth
✓
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN
✓
Ethernet LAN data rates
10, 100
Ports & interfaces
Number of USB ports with PowerShare support
1
PowerShare
✓
USB Sleep-and-Charge ports
1
USB Sleep-and-Charge
✓
USB Type-C DisplayPort Alternate Mode
✓
Ethernet LAN (RJ-45) ports
1
Microphone in
✗
VGA (D-Sub) ports quantity
1
Docking connector
✓
HDMI ports quantity
1
DVI port
✗
PCI Express configurations
1x2+2x1, 1x4, 2x2, 4x1
DisplayPorts quantity
1
Combo headphone/mic port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2, 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
10 - 90 %
Non-operating altitude
0 - 10668 m
Operating altitude
0 - 3048 m
Storage relative humidity (H-H)
[object Object],[object Object]
Technical details
Certification
FCC, UL
Sustainability certificates
ENERGY STAR
Number of battery cells
3, 4
Processor
Conflict-Free processor
✓
Processor codename
Kaby Lake
Processor series
Intel Core i5 Series, Intel Core i5-7300 Mobile Series
Processor generation
7th Gen
On-board graphics card model
Intel® HD Graphics 620
Bus type
OPI
Stepping
H0
Processor cache type
Smart Cache
Configurable TDP-down frequency
0.80 GHz
Tjunction
100 °C
L2 cache
3 MB
Processor socket
BGA 1356
Processor boost frequency
3.50 GHz
Processor lithography
14 nm
Processor cache
3 MB
Configurable TDP-down
7.50 W
Configurable TDP-up
25 W
Configurable TDP-up frequency
2.70 GHz
Processor threads
2, 4
Memory
Memory form factor
SO-DIMM
Maximum internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
2400 MHz
Memory layout (slots x size)
1 x 8
Audio
Audio system
MaxxAudio Pro
Speakers manufacturer
Waves
Number of built-in speakers
2
Keyboard
Full-size keyboard
✓
Keyboard backlit
✓
Island-style keyboard
✓
Windows keys
✓
Video
HD type
Full HD, HD
Camera
Front camera HD type
HD
Front camera signal format
720p
Battery
Battery voltage
7.60V, 11.40V
Battery capacity
68 Wh
Logistics data
Harmonized System (HS) code
84713000
Solid state drive
Number of SSDs installed
1
Product Details
Work flexibly on-the-go
The ultimate 14.0" productivity tool, designed for better security, manageability and reliability. Built with a versatile design and essential business features.
Security you can rely on
Log in with ease: Activate Windows Hello via optional infrared camera to facilitate facial recognition for easy and secure access.
Trusted authentication: The Latitude 5480 offers multiple security options to meet your diverse security needs. Features include essential multi-factor authentication hardware such as touch fingerprint reader, contacted FIPS 201 Smart Card Reader and Contactless Smart Card Reader NFC with Control Vault 2™ Fips 140-2 Level 3 Certification to prevent unauthorized access.
Protection from attacks: Dell™ ControlVault™ provides a more secure alternative for storing and processing passwords, biometric templates and security codes.
Manage with ease: Through Dell unique vPro extensions, you can remotely manage a fleet of devices, including diagnostics whether they are powered on or off.
Keeps up with you, and your work
The power to perform: Leverage scalable performance using Intel’s® latest 7th Gen Core™ i Dual (U) or Quad Core™ (H) processors, NVIDIA® graphics and a range of storage options from HDD to M.2 PCIe NVMe.
Designed with purpose: Work confidently on a laptop equipped with all-day battery life and if needed, bring your Dell Power Companion for an extended day.
Focus on work, not your notebook: Tested against 15 MIL STD 810G benchmarks, our incredibly durable systems make sure your work stays safe wherever you go.
