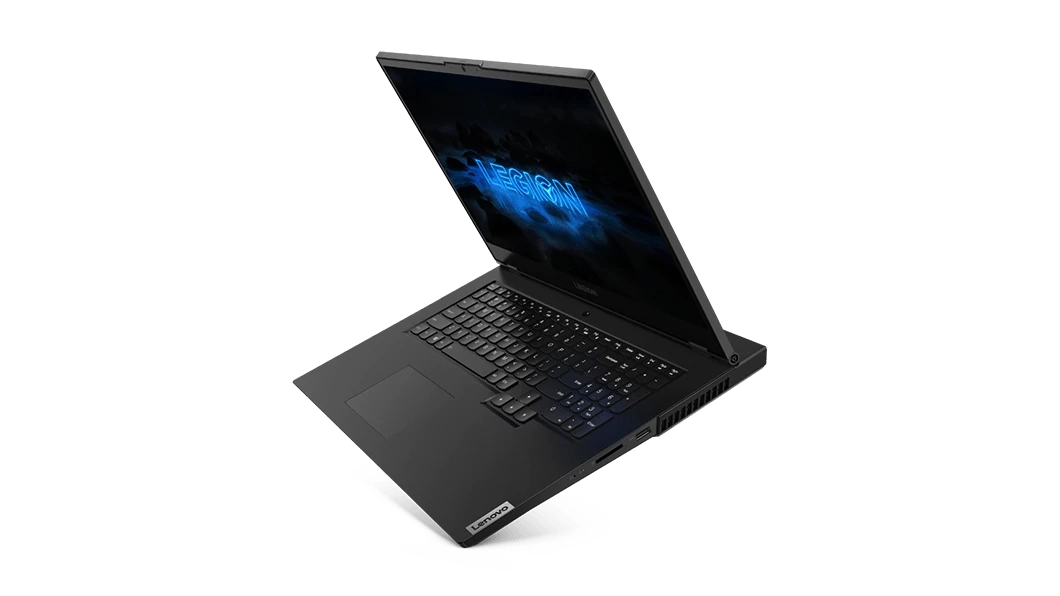

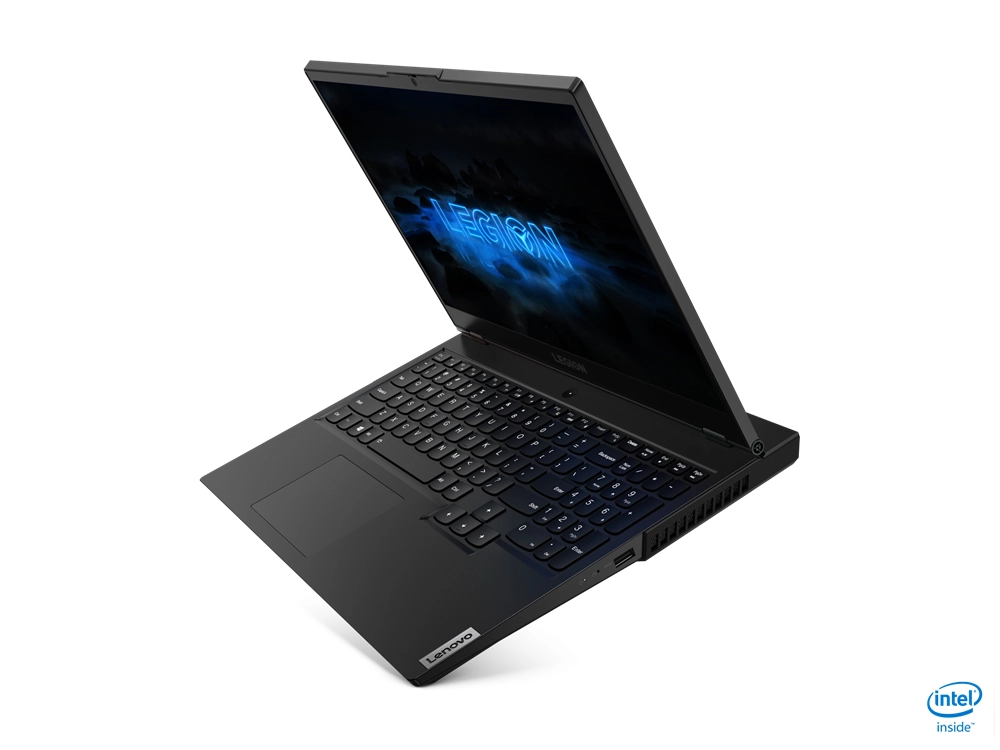

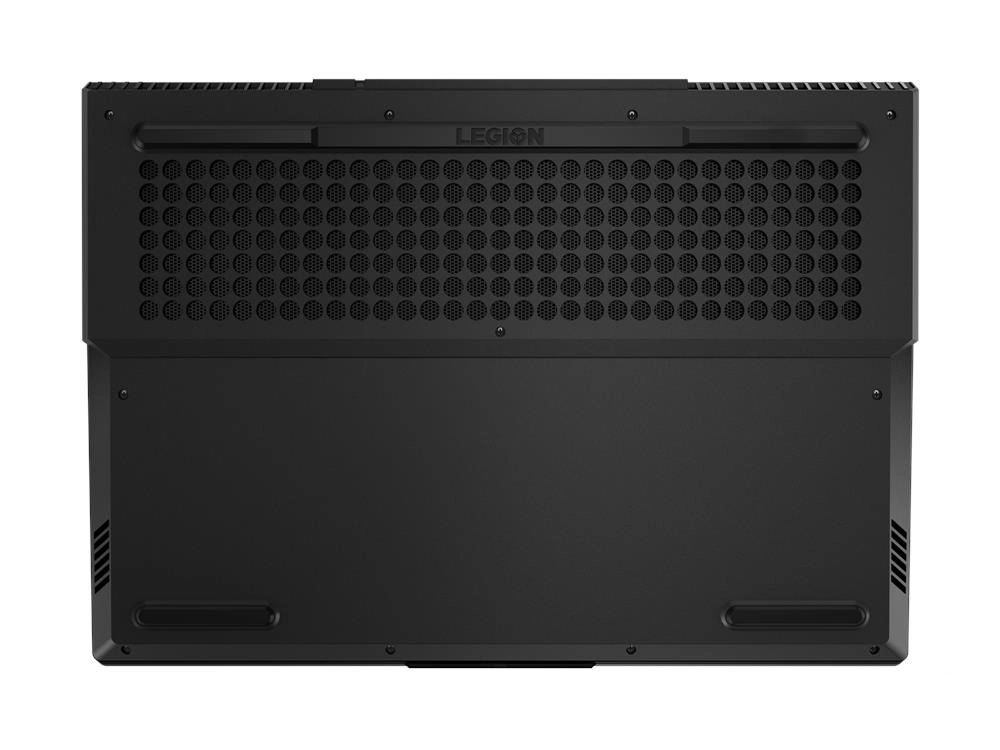

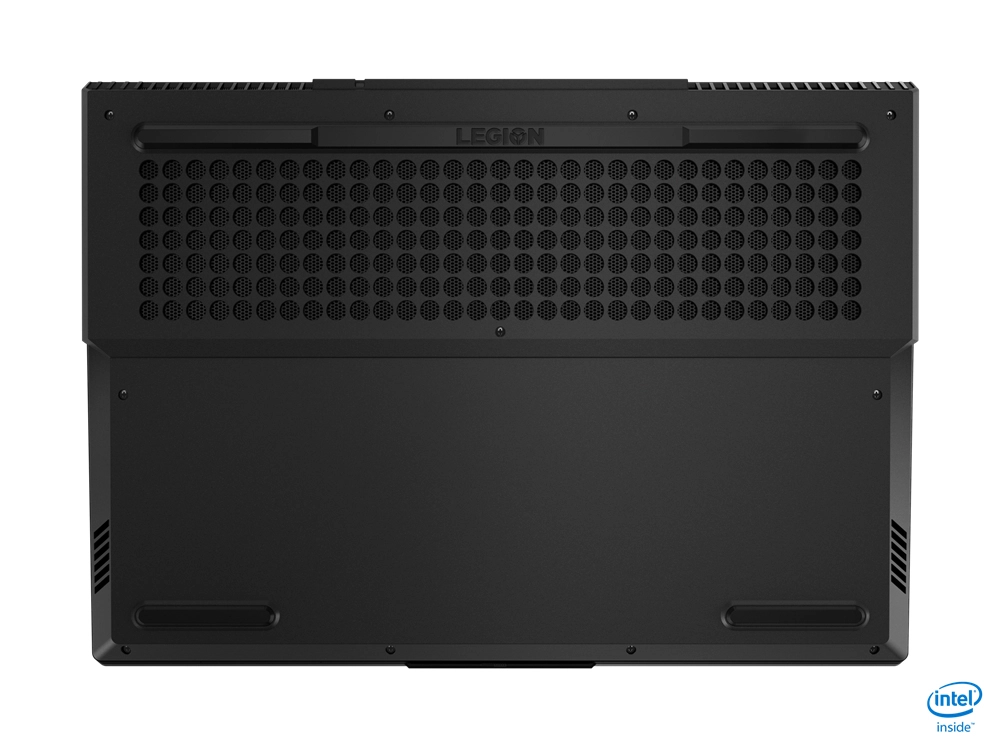

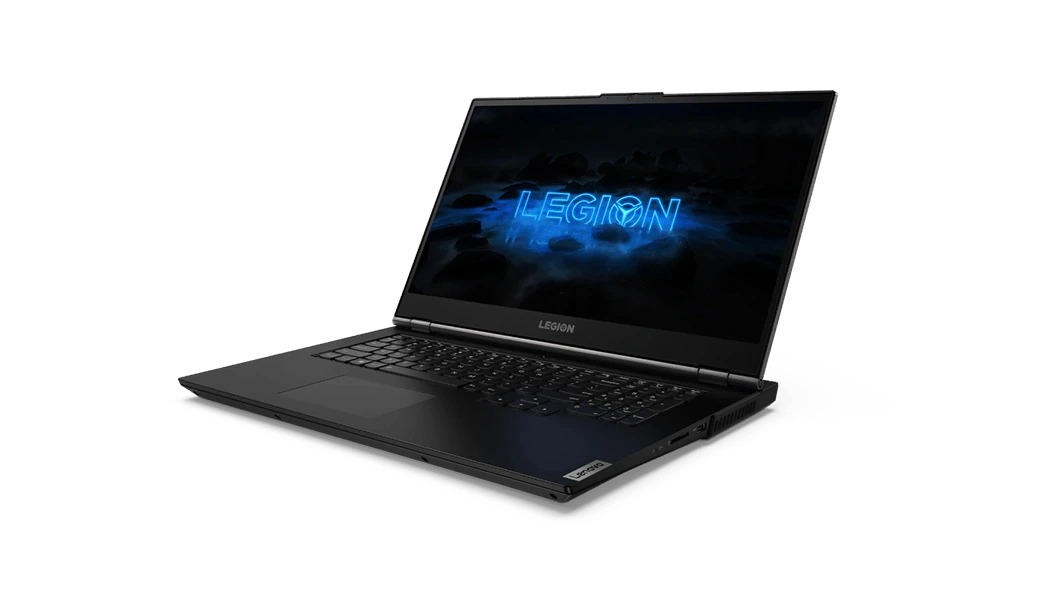

Lenovo Legion 5 - 15.6'' Core i7-10750H 16GB DDR4 512GB SSD + 32G Micro SD Card
Key Features
- Discrete graphics card: Yes
- Fast charging time (50%): 30min
- Keyboard backlit colour: Various, White
- Intel® Evo™ Platform Verified: No
- Discrete GPU manufacturer: NVIDIA
- Discrete graphics card memory: 4, 6GB
- Discrete graphics memory type: GDDR6
- Total HDDs capacity: 1000GB
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel® UHD Graphics
- Processor threads: 12, 6, 8
- Front camera HD type: HD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Windows 11 free upgrade: Yes
- Front camera: Yes
Specifications
Features
Front camera resolution
1 MP
Internal memory
16000 MB
Built-in microphone
✓
Operating system installed
Windows 10 Home
Card reader integrated
✓
Password protection type
HDD, Power on, Supervisor
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
5.0
CPU configuration (max)
1
Speaker power
2 W
Maximum refresh rate
60Hz, 120Hz, 144Hz, 240Hz
Product colour
Black
Keyboard layout
AZERTY, QWERTY
Number of HDDs installed
1
Resolution
1920 x 1080 pixels
Pointing device
Touchpad
PCI Express slots version
3.0
Colour name
Phantom Black, Phantom black
Number of microphones
2
Numeric keypad
✓
Display surface
Matt
Product type
Laptop
Front camera resolution
1280 x 720 pixels
Fingerprint reader
✗
System bus rate
8 GT/s
Trusted Platform Module (TPM) version
2.0
Keyboard language
Belgian, English, German, Italian, Portuguese, Spanish, Swiss, Turkish, UK English
Thermal Design Power (TDP)
45 W
Front camera
✓
Weight & dimensions
Width (imperial)
14.30", 15.69"
Weight
2300g, 2460g, 2980g
Depth
259.60mm, 290mm
Width
363.10mm, 398.60mm
Height (rear)
26.10mm, 26.20mm
Height (front)
23.60mm, 24.30mm
Display
Display resolution
1920 x 1080 pixels
Panel type
IPS, WVA
Touchscreen
✗
Native aspect ratio
16:9
Colour gamut
45%, 72%, 100%
High Dynamic Range (HDR) technology
Dolby Vision
Anti-glare screen
✓
RGB colour space
NTSC, sRGB
Display brightness
250cd/m², 300cd/m², 500cd/m²
LED backlight
✓
Power
Battery technology
Lithium Polymer (LiPo), Lithium-Ion (Li-Ion)
Battery life (max)
5.90h, 6.80h, 7.70h, 7.80h, 8h, 10h
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz, 50/60 Hz
AC adapter power
170W, 230W
Charging port type
DC-in jack
Performance
Processor ARK ID
201837, 201839
Virtual Reality (VR) ready
✓
Fast charging
✓
Processor operating modes
64-bit
Motherboard chipset
Intel HM470
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Optical drive
Optical drive type
No
Other features
Cable lock slot type
Kensington
Chassis type
Clamshell
Total storage capacity
256GB, 512GB, 1130GB, 1260GB, 1510GB
Maximum internal memory
16000MB, 32000MB
Repairability index
7.9
Processor special features
Embedded options available
✗
Enhanced Intel SpeedStep Technology
✓
Execute Disable Bit
✓
Idle States
✓
Intel 64
✓
Intel Trusted Execution Technology
✗
Intel Virtualization Technology (VT-x)
✓
Intel Virtualization Technology for Directed I/O (VT-d)
✓
Intel VT-x with Extended Page Tables (EPT)
✓
Intel Flex Memory Access
✓
Intel Stable Image Platform Program (SIPP)
✗
Intel® AES New Instructions (Intel® AES-NI)
✓
Intel® Hyper Threading Technology (Intel® HT Technology)
✓
Intel® Identity Protection Technology (Intel® IPT)
✓
Intel® OS Guard
✓
Intel® Quick Sync Video Technology
✓
Intel® Secure Key
✓
Maximum number of PCI Express lanes
16
Thermal Monitoring Technologies
✓
Processor package size
42 x 28 mm
Intel Software Guard Extensions (Intel SGX)
✓
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Intel® vPro™ Platform Eligibility
✗
Intel® Evo™ Platform Verified
✗
Storage
HDD speed
5400, 7200
Compatible memory cards
MMC, SD, SDHC, SDXC
HDD capacity
1000 GB
NVMe
✓
Storage media
HDD+SSD, SSD
SSD interface
NVMe, PCI Express, PCI Express 3.0
SSD capacity
256 GB
HDD interface
SATA III
SSD form factor
M.2
HDD size
2.5
Total SSDs capacity
128GB, 256GB, 512GB
Total HDDs capacity
1000 GB
Software
Windows 11 free upgrade
✓
Design
Housing material
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Cable lock slot
✓
Market positioning
Gaming
Form factor
Clamshell
Graphics
On-board graphics card ID
0x9BC4
On-board graphics card base frequency
350 MHz
On-board graphics card dynamic frequency (max)
1050MHz, 1150MHz
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.5
Discrete graphics card model
NVIDIA® GeForce RTX™ 2060, NVIDIA® GeForce® GTX 1650, NVIDIA® GeForce® GTX 1650 Ti, NVIDIA® GeForce® GTX 1660 Ti
On-board graphics card
✓
On-board graphics card family
Intel® UHD Graphics
On-board GPU manufacturer
Intel
Discrete graphics memory type
GDDR6
Discrete graphics card memory
4GB, 6GB
Discrete GPU manufacturer
NVIDIA
Discrete graphics card
✓
Computer system
Operating system architecture
64-bit
Processor cores
6
Processor model
i7-10750H
Processor manufacturer
Intel
Processor frequency
2.60 GHz
Operating system language
German, English
Processor family
Intel® Core™ i7
Internal memory
16 GB
Antenna type
2x2
Privacy camera
✓
Privacy type
Privacy shutter
Audio chip
Realtek ALC3287
Packaging content
Trial software
Microsoft Office 365, Office
Cables included
AC
Mouse included
✓
Keyboard backlit colour
Various, White
Network
Bluetooth
✓
Ethernet LAN data rates
10, 100
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WWAN
Not installed
Ethernet LAN
✓
Mobile network connection
✗
Ports & interfaces
USB Sleep-and-Charge ports
1
USB Sleep-and-Charge
✓
USB Type-C DisplayPort Alternate Mode
✓
Ethernet LAN (RJ-45) ports
1
PCI Express configurations
1x16, 1x8+2x4, 2x8
HDMI version
2.0
Combo headphone/mic port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
8 - 95 %
Maximum shipping altitude
3048 m
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
5 - 43 °C
Technical details
Certification
ErP Lot 3
RoHS compliant, ErP Lot 3
RoHS, ErP lot3
Compliance certificates
RoHS
Processor
Processor codename
Comet Lake
Processor series
Intel Core i7 Series
Processor generation
10th Gen
On-board graphics card model
Intel® UHD Graphics
Processor lithography
14 nm
Processor cache type
Smart Cache
Tjunction
100 °C
L2 cache
12 MB
Processor socket
BGA 1440
Processor cache
12 MB
Processor boost frequency
5 GHz
Configurable TDP-down
35 W
Processor threads
12, 6, 8
Memory
Memory form factor
SO-DIMM
Maximum internal memory
16GB, 32GB
Internal memory type
DDR4-SDRAM
Memory slots
1x SO-DIMM, 2x SO-DIMM
Memory clock speed
2933 MHz
Memory layout (slots x size)
2 x 8
Audio
Audio system
Dolby Atmos
Speakers manufacturer
Harman Kardon
Built-in subwoofer
✗
Number of built-in speakers
2
Keyboard
Keyboard backlit
✓
Full-size keyboard
✓
Island-style keyboard
✓
Video
HD type
Full HD
Camera
Front camera HD type
HD
Battery
Battery capacity
60Wh, 80Wh
Fast charging time (50%)
30 min
Logistics data
Harmonized System (HS) code
84713000
Solid state drive
Number of SSDs installed
1
Product Details
Streamlined power
Offering a wide range of performance options for any level of gamer, the Legion 5i 15 pairs flexibility with incredible power, as well as a clean and minimalist design. Powered by up to 10th Gen Intel®Core™i7 H processors, optional NVIDIA®GeForce RTX™graphics, and plenty of memory, not only will you be able to play your favorite AAA titles, they will come to life on your screen.
Big-time entertainment. Refined design.
Experience gaming like never before on the Legion 5i powered by 10th Gen Intel®Core™ H-Series processors. Play and stream the latest AAA titles at peak performance on the Legion 5i with up to 5.1GHz clock speeds, 8 cores, 16 MB of Intel®Smart Cache, Intel®Thermal Velocity Boost, Intel®Dynamic Tuning, and Intel®Wi-Fi 6.
Discover your next favorite game
Gain unlimited access to over 100 high-quality PC games on Windows 10 with Xbox Game Pass for PC (Beta)1. Join for a low monthly price during the Beta period2. Download and play new games on day one like Gears 5—plus recent blockbusters like Age of Empires II and critically-acclaimed indie games. With games added all the time, you’ll always have something new to play.1Active subscription required; continues until cancelled; game catalog varies over time. Requires Windows 10 and an app to play PC games; see details at xbox.com/pcgamesplan. See xbox.com/gamepass.2Price subject to availability.
GeForce RTX™ Gaming. RTX. It’s On.
Incredibly fast, quiet performance. Real-time ray tracing and AI-enhanced graphics. And the mobility of the world’s thinnest and lightest designs. All powered by the NVIDIA Turing™ GPU architecture and the groundbreaking RTX platform. It’s everything you want to game your best. And it’s only in GeForce RTX gaming laptops.
Advanced Coldfront Cooling
The Legion 5i 15 keeps its cool no matter how hard you push it with the Coldfront 2.0 system which cools and dissipates heat via a dual-channel thermal mechanism of 67 liquid crystal polymer-coated fan blades and copper pipes. This means your laptop will run optimally, so you can always be at the top of your game. And with Q Control 3.0 allowing you to manually select between Quiet, Balance, and Performance thermal modes, you’ll blast through noobs like a pro. Also, every Legion laptop features Dual Burn Support, pushing the CPU & GPU together for max performance in-game. This combination of performance and cooling means no crashing, just owning.
A display of excellence
Whether you’re looking for the fastest possible refresh rate to keep an edge in multiplayer gaming, or you simply enjoy eye-popping visuals brought to your screen, the Legion 5i has you covered with options that satisfy both needs on a 15.6″ FHD IPS (1920 x 1080) display. Enjoy up to 240Hz refresh rates and 1ms response times or immerse yourself into whole new worlds with Dolby Vision™ supported by VESA DisplayHDR and 100% sRGB.
Strike hard. Strike true.
Made for gamers by gamers, the Legion 5i is equipped with the TrueStrike keyboard which turns this laptop into a highly ergonomic and precise weapon for your favorite titles. With full-sized keys, a numeric pad, large arrow keys, and TrueStrike switches that provide 100% anti-ghosting and soft landing, you’ll never miss a shot on your way to the top of the leaderboard. And with a white or optional 4-zone RGB backlight, you can see your controls in any situation.
Power that won’t quit
The bountiful power of the Legion 5i doesn’t mean you have to compromise battery life. With up to a robust 80Whr battery which provides over 5 hours* of power, you can own the competition wherever you want without a dead battery making you look like a rage-quitter. And when your battery does start to run out, Rapid Charge Pro will bring you from 0% - 50% in under 30 minutes. Additionally, Hybrid Mode and Advanced Optimus Technology intelligently directs graphical power to the display through the dedicated GPU or integrated GPU for improved battery life while Q Control 3.0 allows for Quiet Mode, lowering the voltage requirement to your CPU for a marathon of unplugged productivity.*All battery life claims are approximate and based on test results using the MobileMark®2014 ver 1.5 battery life benchmark test. Actual results will vary, and depend on numerous factors including product configuration and usage, software, operating conditions, wireless functionality, power management settings, screen brightness and other factors. The maximum capacity of the battery will naturally decrease with time and usage.
If looks could kill
A seamless fusion of practicality, precision, and performance, the Legion 5i boasts clinic-clean lines infused with subtle design notes, from the chameleon light-refracting hinge and logo finish, to the durable anti-smudge polymer talcum-injected materials. The understated Phantom Black body further balances and blends your gaming and daily lifestyles via a clean display framed by slim, three-sided mylar bezels and a top-placed webcam with privacy shutter.
Here comes the boom
Feel the powerful audio and deep bass of Legion 5i’s 2W Harman Kardon®speaker system. And with Dolby Atmos®Headphone Support, experience the all-enveloping atmosphere of surround sound in three-dimensional space through, with audio you’ll hear coming from any direction with profound clarity and depth to fully immerse you in each gaming environment. Gamers also score a distinct audio edge by locating discrete sounds from anywhere in the game so they can accurately track down threats from above or behind.
The Lenovo Vantage
Battle-ready performance, immersive experiences and seamless gameplay with Lenovo™ Vantage for Gaming. Choose performance mode for apps and games to calibrate automatically. Overclock CPUs and GPUs and use memory release to push frame rates to the limit. Downshift to Quiet Mode to save battery life or choose Balance Mode for normal use. Control it all in one place!
Savage Performance. Superior Style.
Legion gaming accessories are crafted to help you win, delivering legendary performance, reliability, and aesthetics. Whether you need an armored bag to protect your gear, a precision mouse to improve your aim, or a tactile keyboard for fearlessly commanding your siege, each addition makes a powerful ally on your path to victory.
