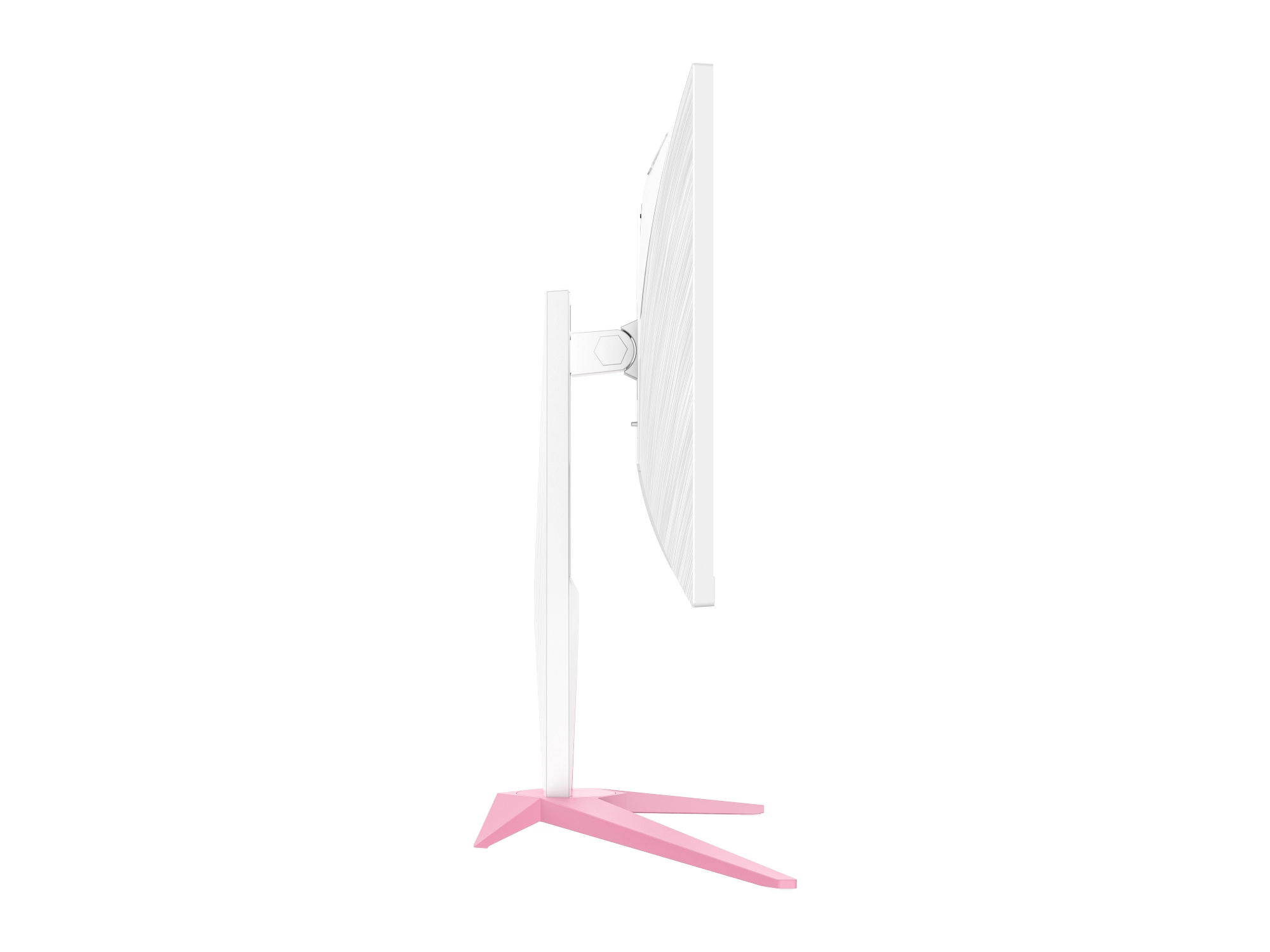

AOC AG275QXN/EU - 27 inch 2560 X 1440
Key Features
- VESA Adaptive Sync support: Yes
- Low input lag: Yes
- USB upstream port type: USB Type-B
- FPS counter: Yes
- Dial point: Yes
- Shadow control: Yes
- Local dimming zones: 16
- Display brightness (typical): 400cd/m²
- Number of upstream ports: 1
- Number of USB Type-B upstream ports quantity: 1
- USB Type-A downstream ports quantity: 4
- AMD FreeSync refresh rate range: 48 - 170Hz
- Flicker-free technology: Yes
- Detachable stand: Yes
- AMD FreeSync type: FreeSync Premium
Specifications
Features
DCI-P3 coverage
94 %
Light effects
✗
Plug and Play
✓
Feet colour
Black, Gold, White
Viewable size, vertical
336 mm
Viewable size, horizontal
597 mm
Digital vertical frequency
48 - 240 Hz
Digital horizontal frequency
30 - 255 kHz
Tilt adjustment
✓
Maximum refresh rate
170 Hz
Product colour
Black
Audio input
Yes
Wall mountable
✓
Colour gamut standard
DCI-P3
Resolution
2560 x 1440 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080), 2560 x 1440
Backlight type
W-LED
Display brightness (typical)
400 cd/m²
Packaging data
Package type
Box
Package weight
9280 g
Package height
189 mm
Package depth
478 mm
Package width
780 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
1262585
Weight & dimensions
Package weight
9.28 kg
Weight (with stand)
6450 g
Height (with stand)
561.10 mm
Depth (with stand)
231.80 mm
Width (with stand)
613.40 mm
Weight (without stand)
5810 g
Height (without stand)
365.70 mm
Width (without stand)
613.40 mm
Depth (without stand)
50.30 mm
Display
Adobe RGB coverage
100 %
Display resolution
2560 x 1440 pixels
Display diagonal (metric)
68.60 cm
Panel type
IPS
Touchscreen
✗
Native aspect ratio
16:9
Colour gamut
94 %
Display technology
LCD, LED
High Dynamic Range (HDR) technology
DisplayHDR 400
Anti-glare screen
✓
Motion blur reduction
✓
Vertical scan range
48 - 170 Hz
Contrast ratio (typical)
1000:1
Horizontal scan range
30 - 250 kHz
Display number of colours
1.07 billion colours
NTSC coverage (typical)
106 %
sRGB coverage (typical)
98 %
Pixel pitch
0.23 x 0.23 mm
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Contrast ratio (dynamic)
80000000:1
Dynamic contrast ratio marketing name
Mega DCR
Pixel density
109 ppi
Response time
1 ms
Power
Power supply type
Internal
External power adapter
✗
Energy efficiency scale
A+++ to G
Power consumption (typical)
36 W
AC input voltage
100 - 240 V
Energy consumption (HDR) per 1000 hours
46 kWh
Energy consumption (SDR) per 1000 hours
26 kWh
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
F
AC input frequency
50 - 60 Hz
Input current
1.5 A
Power consumption (standby)
0.50 W
Power consumption (off)
0.30 W
Charging port type
USB Type-A
Performance
Fast charging
✓
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Low Blue Light technology
✓
Number of OSD languages
19
On Screen Display (OSD)
✓
HDCP version
2.2
HDCP
✓
Game mode
✓
AMD FreeSync
✓
NVIDIA G-SYNC type
G-SYNC Compatible
AMD FreeSync type
FreeSync Premium
Flicker-free technology
✓
AMD FreeSync refresh rate range
48 - 170 Hz
VESA Adaptive Sync support
✓
Other features
Anti-Blue-Light technology
✓
Cable lock slot type
Kensington
Local dimming zones
16
Shadow control
✓
Dial point
✓
FPS counter
✓
Low input lag
✓
Design
VESA mounting
✓
LED indicators
Yes
Cable lock slot
✓
Market positioning
Gaming
Panel mounting interface
100 x 100
Front bezel colour
Black/Gold, Black/Red
Pivot
✓
Screen shape
Flat
Swivelling
✓
Frameless design
✓
Height adjustment
✓
Exterior finish type
Matt, Matt/Textured
Detachable stand
✓
Graphics
NVIDIA G-SYNC
✓
Packaging content
USB cable length
1.80 m
Cables included
AC, DisplayPort, HDMI, USB
Stand included
✓
AC adapter included
✓
Camera included
✗
Power adapter included
✓
DisplayPort cable length
1.80 m
HDMI cable length
1.80 m
Network
Wi-Fi
✗
Bluetooth
✗
Ethernet LAN
✗
Ports & interfaces
DC-in jack
✓
Headphone out
✓
Headphone outputs
1
AC (power) in
✓
Headphone connectivity
3.5 mm
DisplayPort version
1.4
Built-in USB hub
✓
USB hub version
2.0 / 3.2 Gen 1 (3.1 Gen 1), 3.2 Gen 1 (3.1 Gen 1)
DisplayPorts quantity
2
HDMI version
1.4, 2.0
HDMI
✓
HDMI ports quantity
2
USB Type-A downstream ports quantity
4
Number of USB Type-B upstream ports quantity
1
Number of upstream ports
1
USB upstream port type
USB Type-B
Technical details
Certification
ISO 9241-307, True
Audio
Built-in speaker(s)
✗
Number of speakers
2
RMS rated power
10 W
Video
High Dynamic Range (HDR) supported
✓
HD type
Quad HD
Supported video modes
1080p, 1440p, 2160p
Camera
Built-in camera
✗
Product Details
QHD RESOLUTION
With 2560 x 1440 resolution, Quad HD (QHD) offers superior picture quality and sharp imagery that reveals the finest details. The widescreen 16:9 aspect ratio provides plenty of space to spread out and work, plus allows you to enjoy games or movies in their original size.
IPS PANEL
IPS panel ensures an excellent viewing experience with lifelike yet brilliant and accurate colours. Colours look consistent no matter from which angle you look at the display
170HZ REFRESH RATE
A 170Hz refresh rate, well over twice the industry standard of 60Hz, makes games run smooth as silk. Realize the potential in your graphics card. Forget screen tearing and forget motion blur. Feel your reflexes become one with the action. Never look back.
1MS RESPONSE TIME GTG - GREY-TO-GREY
GtG stands for Grey-To-Grey and represents how long it takes for one pixel to change between one gray level to the next. In gaming, every millisecond counts and can be the differentiator between hitting or missing a shot. Fast response time also eliminates ghosting and motion blur.
1MS MPRT - MOVING PICTURE RESPONSE TIME
MPRT is an acronym for moving picture response time. MPRT technology disables and enables your monitor backlight during picture changes. Through the reduced time a frame is shown on the monitor, “ghosting” and “blurring” effects are reduced, resulting in a smoother, more “fluid” feeling gaming experience.
VESA CERTIFIED DISPLAYHDR™ 400
Even the lowest level of High Dynamic Range (HDR) feature poses a significant upgrade to common monitors. The peak luminance of 400 cd/m² enables your display to hone the picture quality with a manifold colour spectrum and more diverse contrast. The VESA-certificate ensures richness of detail and realistic portrayals of game and film worlds.
FREESYNC PREMIUM AND G-SYNC COMPATIBLE
The most fluid and tear-free gaming experience, no matter what GPU you use. FreeSync Premium ensures a high refresh rate of at least 120Hz, as well as low framerate compensation for AMD graphics cards. Those who use a NVIDIA product instead can also enjoy the benefits and let their games run as smoothly as possible
HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).
FULL ERGONOMICS
Feel the comfort! AOC’s height, tilt and swivel-adjustable stands help you find the most comfortable and healthy position.
MINIMAL BEZEL DISTRACTION FOR THE ULTIMATE BATTLE STATION
Expand your view with multiple monitor set-up. The narrow border and frameless design offer the minimal bezel distraction for the ultimate battle station.
AOC G-MENU
AOC G-Menu is a free tool that you can install on your PC to have complete customization paired with maximum convenience.
AOC GAME COLOR AND SHADOW CONTROL
Bring the battle out of the shadows with AOC Shadow Control and AOC Game Color! Adjust grey levels for better picture detail and brighten dark areas or sink them back into blackness on the fly, without affecting the rest of the display.
LOW INPUT LAG
Unleash your reflexes by switching to the AOC Low Input Lag mode. Forget graphical frills: this mode rewires the monitor in favour of raw response time, giving the ultimate edge in hair trigger stand offs.
GOOD FOR CONSOLE GAMING
Many of our top-notch monitors are not only designed to work with PC towers but are also compatible with consoles. You can easily plug them into your Xbox or PlayStation and enjoy the great image quality. The monitors support up to 120Hz, so even the newest generation models run on the highest settings.
6 GAMES MODE
Tailor your display to the game with a click of a button. Switch settings between in-built presets for FPS, racing, or RTS games, or customise your own ideal conditions and save them. The AOC Settings KeyPad makes switching profiles or adjusting features quick and easy.
Files
EU Energy Label
mmo_101382998_1707959848_2909_4117831.pdf
PDF• 74.8 KB
EU Product Fiche
mmo_101382998_1664283138_9493_19547.pdf
PDF• 56.5 KB
UK Energy Label
mmo_101383040_1727861520_385_3566381.pdf
PDF• 30.7 KB
Product Brochure
mmo_101383040_1727861541_0279_3297555.pdf
PDF• 235.7 KB
User manual
mmo_101383040_1727861577_7214_3305554.pdf
PDF• 3.6 MB
