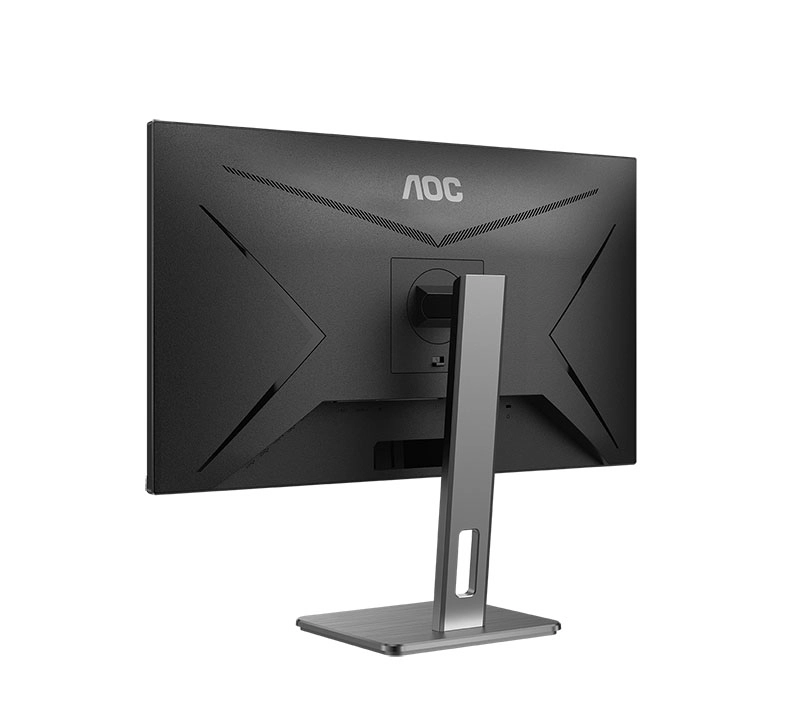

AOC U28G2XU2 - U28G2XU2/BK 28 Inches 3840 x 2160 Pixels
Key Features
- VESA Adaptive Sync support: Yes
- Low input lag: Yes
- USB upstream port type: USB Type-B
- FPS counter: Yes
- Dial point: Yes
- Shadow control: Yes
- Display brightness (typical): 300, 370cd/m²
- Number of upstream ports: 1
- Number of USB Type-B upstream ports quantity: 1
- USB Type-A downstream ports quantity: 4
- AMD FreeSync refresh rate range: 48 - 144, 40 - 60Hz
- Detachable stand: Yes
- AMD FreeSync type: FreeSync, FreeSync Premium
- Picture-by-Picture (PbP): Yes
- Exterior finish type: Textured
Specifications
Features
Country of origin
China
DCI-P3 coverage
93 %
Light effects
✗
Built-in microphone
✗
Feet colour
Black
Viewable size, vertical
341 mm
Viewable size, horizontal
621 mm
Tilt adjustment
✓
Maximum refresh rate
60Hz, 144Hz
Product colour
Black, Grey, Red
Audio input
Yes
Wall mountable
✓
Colour gamut standard
sRGB
Resolution
3840 x 2160 pixels
Supported graphics resolutions
3840 x 2160
Backlight type
W-LED
Display brightness (typical)
300cd/m², 370cd/m²
Packaging data
Package type
Box
Recyclable packaging material
100 %
Package weight
8620g, 8950g
Package height
593mm, 715mm
Package depth
160mm, 593mm, 717mm
Package width
160mm, 162mm, 715mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
400523, 553593, 1214118
Weight & dimensions
Package weight
8.62kg, 8.95kg
Weight (with stand)
6130g, 6370g, 6760g
Height (with stand)
404mm, 469.50mm, 531.90mm
Depth (with stand)
200.10mm, 227.40mm, 244.90mm
Width (with stand)
636.40 mm
Weight (without stand)
4770g, 6370g
Height (without stand)
368.50 mm
Width (without stand)
636.40 mm
Depth (without stand)
49.30mm, 53mm
Display
Adobe RGB coverage
89%, 105%
Display resolution
3840 x 2160 pixels
Display diagonal (metric)
71.10cm, 71.12cm
Panel type
IPS
Touchscreen
✗
Native aspect ratio
16:9
Display technology
LED
High Dynamic Range (HDR) technology
DisplayHDR 400, High Dynamic Range (HDR) 400
Anti-glare screen
✓
Motion blur reduction
✓
Vertical scan range
[object Object],[object Object]
Contrast ratio (typical)
1000:1
Horizontal scan range
30 - 140 kHz
Display number of colours
1.07 billion colours, 16.7 million colours
NTSC coverage (typical)
85%, 107%
sRGB coverage (typical)
99%, 119%
Pixel pitch
0.16 x 0.16 mm
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Contrast ratio (dynamic)
80000000:1, 50000000:1
Pixel density
157 ppi
Response time
1ms, 4ms
Colour depth
8bit, 10bit
Surface hardness
3H
Power
Power supply type
Internal
External power adapter
✓
Energy efficiency scale
A+++ to G
Power consumption (typical)
45 W
AC input voltage
100 - 240 V
Energy consumption (HDR) per 1000 hours
60 kWh
Energy consumption (SDR) per 1000 hours
32kWh, 33kWh
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
G
AC input frequency
50 - 60 Hz
Input current
1.5 A
Power consumption (standby)
0.30W, 0.50W
Power consumption (off)
0.30W, 0.50W
Performance
Fast charging
✓
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Low Blue Light technology
✓
Number of OSD languages
16, 19
On Screen Display (OSD)
✓
HDCP
✓
Game mode
✓
AMD FreeSync
✓
Picture-in-Picture
✓
AMD FreeSync type
FreeSync, FreeSync Premium
AMD FreeSync refresh rate range
[object Object],[object Object]
VESA Adaptive Sync support
✓
Other features
Heavy metals free
Hg (mercury)
Cable lock slot type
Kensington
Shadow control
✓
Dial point
✓
FPS counter
✓
Low input lag
✓
Design
VESA mounting
✓
LED indicators
Yes
Cable lock slot
✓
Market positioning
Gaming
Panel mounting interface
100 x 100
Front bezel colour
Black/Red
Pivot
✓
Screen shape
Flat
Swivelling
✓
Frameless design
✓
Height adjustment
✓
Exterior finish type
Textured
Detachable stand
✓
Graphics
NVIDIA G-SYNC
✗
Packaging content
Cables included
AC, DisplayPort, HDMI
Stand included
✓
Camera included
✗
DisplayPort cable length
1.80 m
HDMI cable length
1.80 m
Ports & interfaces
Headphone out
✓
Headphone outputs
1
Microphone in
✓
AC (power) in
✓
Headphone connectivity
3.5 mm
DisplayPort version
1.2, 1.4
Built-in USB hub
✓
USB hub version
3.2 Gen 1 (3.1 Gen 1)
DisplayPorts quantity
1, 2
HDMI version
2.0, 2.1
HDMI
✓
Audio output
Yes
HDMI ports quantity
2
DVI port
✗
USB Type-A downstream ports quantity
4
Number of USB Type-B upstream ports quantity
1
Number of upstream ports
1
USB upstream port type
USB Type-B
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 85 %
Non-operating altitude
0 - 12192 m
Operating altitude
0 - 5000 m
Storage relative humidity (H-H)
5 - 93 %
Technical details
Sustainability compliance
✓
Commodity Classification Automated Tracking System (CCATS)
8528521000
Certification
BSMI, CB, CE, FCC, ISO 9241-307, KC / KCC / eStandby, True
Compliance certificates
CE, REACH, RoHS
Picture-by-Picture (PbP)
✓
Audio
Built-in speaker(s)
✓
Number of speakers
2
RMS rated power
3W, 6W
Video
High Dynamic Range (HDR) supported
✓
HD type
4K Ultra HD
Camera
Built-in camera
✗
Logistics data
Harmonized System (HS) code
85285210
Product Details
28 inch IPS, UHD, Adjustable Stand, USB 3.2, Super Color, Low Blue Mode, Flicker Free Monitor
The AOC P2 Series delivers a versatile display eco-system for a range of commercial and business applications that extend beyond office work to include content creation. The 28-inch U28P2U monitor in the series delivers extra-sharp images at 4K UHD (3840 x 2160) resolution on an IPS panel, supporting wide viewing angles of 178°/178° to maintain brightness and color integrity when viewed off-center. The three-sided frameless design ensures an immersive viewing experience, with vivid, true-to-life Supercolor reproduction supported by an HDR mode and 119% sRGB color gamut. A height-adjustable stand (HAS), plus AOC’s Flicker-Free technology, ensure user comfort. I/O connectivity includes a 4-port USB 3.2 hub, and HDMI and DisplayPort ports.
Designed with wide viewing angles
IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.
Brilliant visuals with ultra detailed pictures
4K Ultra High-Definition (3840 x 2160) resolution delivers ultra-crisp picture quality and allows users to see more on the screen at one time. This provides more screen 'real estate' and also shows more detail for sharper and more brilliant images. Whether working on the next beautiful photo, design, or even just used for productivity, users will marvel at the true, crisp image that only a UHD display can provide.
HDR mode visual enhancement
Through a combination of advanced algorithmic functions, the HDR Mode essentially transforms non-HDR content into HDR-like visuals via 3 different modes. By enhancing RGBCMY color for more vivid images (via improved saturation and range), increasing dynamic contrast for clarity and image sharpness, the HDR mode ensures you.
Bringing depth to your colors
AOC Super Color technology enlivens the viewing experience with more passionate reds, enchanting greens and soothing blues. With this hardware solution, you can enjoy better color accuracy and true-to-life color reproduction in your photos, videos and more.
Upscaling content from standard to high definition
The AOC ClearVision image performance engine upscales Standard-Definition (SD) sources to High-Definition (HD), resulting in sharper, more vivid viewing.
An ergonomic design
An adjustable stand allows for tilt, rotation, swivel and height adjustment do dial-in a comfortable and ergonomic viewing experience.
Reducing shortwave blue light output for healthier eyes
Low Blue Mode setting ensures a more healthy viewing experience for prolonged computer use without compromising the naturally vivid colors of the display.
A universally respected anti-tearing solution
Screen tearing doesn't only harm gaming performance, it also destroys immersion. Adaptive Sync technology eradicates this disastrous problem by ensuring your monitor's refresh rate is always synced with your processor's.
Protect your eyes from screen flicker
Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.
Multitask like it was nothing
Picture-in-Picture and Picture-by-Picture empowers you to multitask like it was nothing. These features display and fine-tune content from different PCs sources onto your screen at once, making it much easier to work on multiple projects at the same time.
Built-in convenient multitasking software
Screen+ allows you to split, customize, and organize your monitor's layout. Make multitasking easier by resizing and displaying multiple windows at once.
Easy adjustments just one click away
AOC's i-Menu allows direct access to the monitor's on-screen display settings utilizing a mouse.
Connectable with other devices
HDMI compatibility unlocks a wider array of connectivity options for users, including gaming consoles, laptops, Blu-Ray players, and more. DisplayPort is the main PC-to-monitor connection format in the industry, with better refresh rates and the ability to transmit good quality audio in addition to visual data.
Files
Product Brochure
mmo_85984999_1605789820_0578_7224.pdf
PDF• 2.6 MB
User manual
mmo_85984999_1605789848_8713_7341.pdf
PDF• 1.6 MB
EU Energy Label
mmo_86092851_1671738422_3117_27890.pdf
PDF• 69.1 KB
EU Product Fiche
mmo_86092851_1603751149_1643_16842.pdf
PDF• 3 MB
