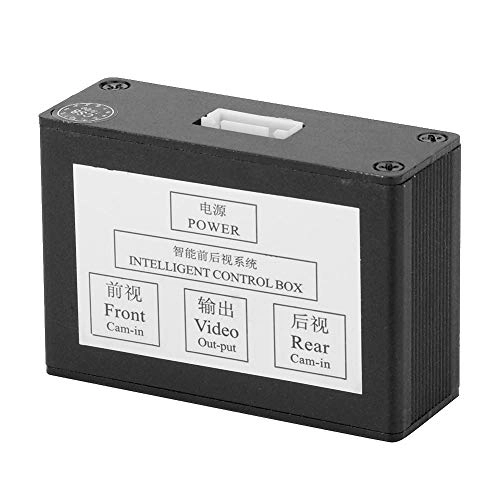

HXNYT Camera Converter

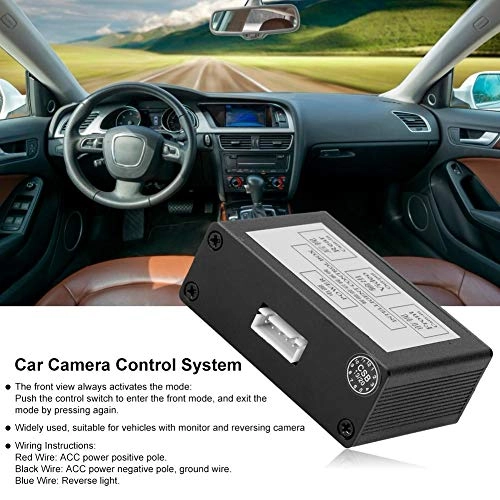

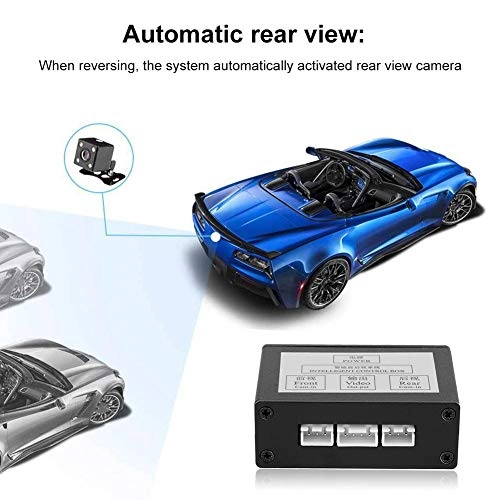

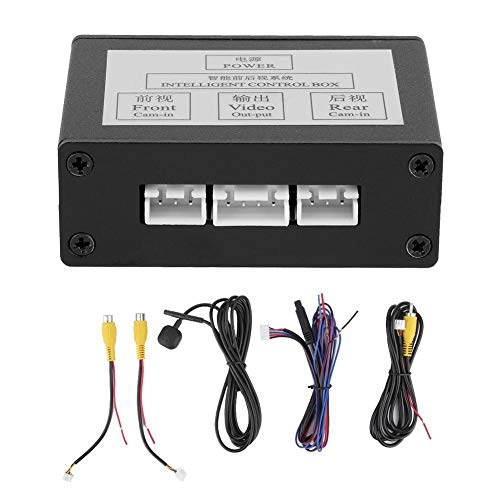

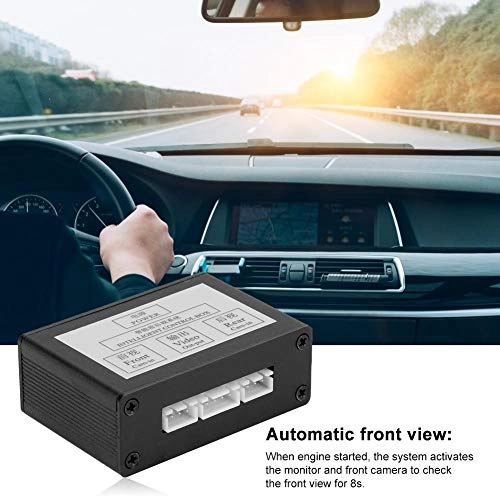

Specification:Condition: 100% Brand New Item Type: Camera Converter Material: Zinc Alloy Color: As picture shown Operating Voltage: 9-16V Operating Current: <10mA Operating Temperature: -10℃ - 70℃ Relative Humidity: ≤ 95% Voltage Output: DC12V Wiring Instructions: Red Wire: ACC power positive pole. Black Wire: ACC power negative pole, ground wire. Blue Wire: Reverse light.Application:As long as the car with a display (such as for android navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera signal input, after installing the switcher can be an additional front camera signal input, it had no effect on the original screen. Package List:1 x Camera Converter4 x Power Cable1 x Insruction Note:1.The small red wire at the temporary input port of the camera video is connected to the positive pole of the front and rear camerapower supplyrespectively.2.The small redwireof the output port is connected to the triggerwireof the display screen. Iftheoriginal trigger line of the display screen is connected to the inverted headlight, it should be disconnected from the backlight firstly and then connected to the small red line.
