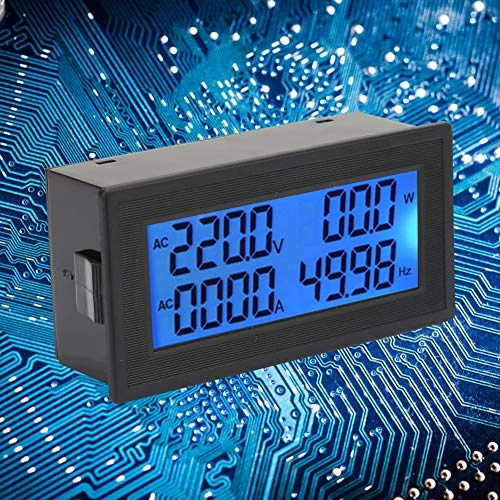

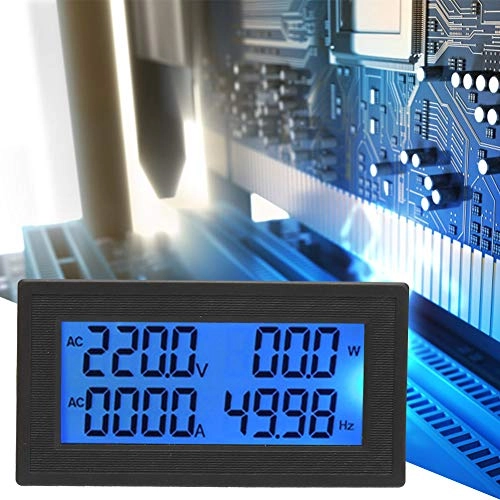

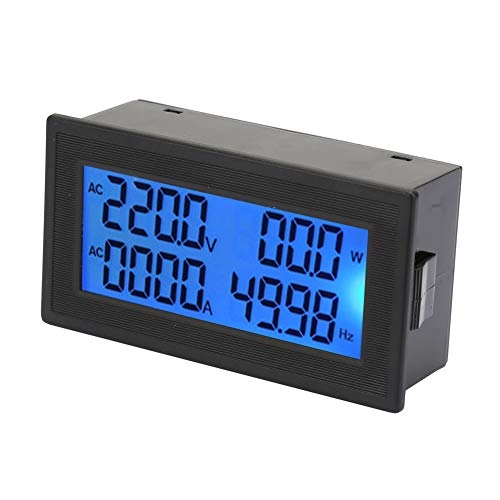

Bonbela YB5140DM

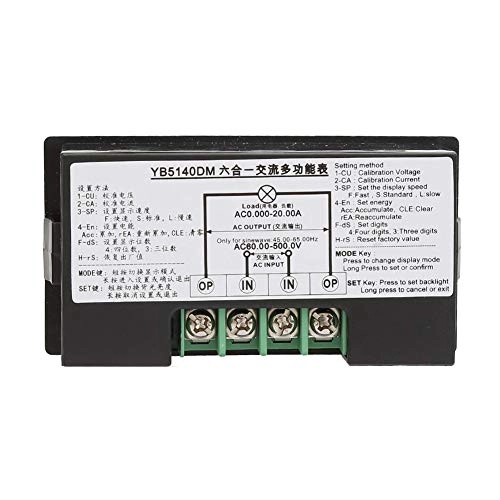

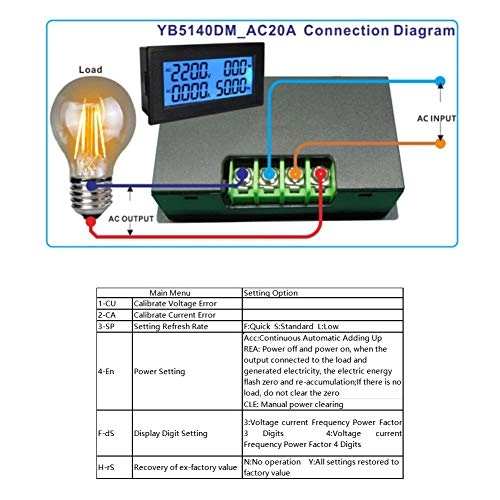

Specifications: Operating Temperature:-10~50°C Operating Humidity:10~80% Working Air Pressure:80~106kPa No Direct Sunshine Packing List: 1*Multifunctional Meter Note: 1. As different computers display colors differently, the color of the actual item may vary slightly from the above images. 2. Two terminals in the middle, left and right terminals are outlet. 3. Do not use when there is high frequency voltage. Manual: Mode Switch:Click for each, change the viewing mode of variable display area: Show the frequency only Hz _ show power factor PF _ show power only kWh-power factor PF, frequency Hz cycle display-power factor PF, power kWh cycle display - frequency Hz, power kWh frequency Hz, power kWh frequency Hz, power factor PF, power KWh _ cycle length accordingly, press the button to enter Setting mode or confirm output. Setting Switch:Change the brightness of a backlight for each click: highlight, low light, no light setting mode, Each click is added or migrated to that option Long press, cancel or exit settings. Main Menu Setting Option 1-CU Voltage Calibration Error 2-CA Calibration Error 3-SP Adjustment Refresh Rate F:Fast S:Standard L:Low 4-En Power Setting Acc:Continuous Auto Collect REA: Power When the output is connected to the load and generates electricity, the electric energy resets and recollects;No load clean zero CLE: Manual power cleaning F-dS Display Digit 3: Voltage Frequency Power Factor 3 Digits
