Ruijie Networks RG-RAP72-Wall 3570 Mbps

Best offer
AED
47979

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate (2.4 GHz): 688Mbit/s
  • Maximum data transfer rate (5 GHz): 2882Mbit/s
  • Antenna direction type: Omni-directional
  • Antenna gain level (max): 4.56dBi
  • Maximum data transfer rate: 3570Mbit/s
  • Placement: Ceiling, Pole, Wall
  • DC voltage range: 12 VV
  • Frequency band: 2.4 - 5.85 GHzGHz
  • DHCP client: Yes
  • DHCP server: Yes
  • Power over Ethernet (PoE) type supported: PoE+
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Antenna type: Internal
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Internal memory
512 MB
Security algorithms
SSH, SSID, WMM, WPA2-PSK
Maximum indoor range
25 m
MIMO
✓
Product colour
White
Antenna gain level (max)
4.56 dBi
Maximum data transfer rate
3570 Mbit/s
Placement
Ceiling, Pole, Wall
DC voltage range
12 V
Frequency band
2.4 - 5.85 GHz
DHCP client
✓
DHCP server
✓
Maximum data transfer rate (5 GHz)
2882 Mbit/s
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
5 GHz
✓
2.4 GHz
✓

Packaging data

Package weight
450 g
Package height
51 mm
Package depth
102 mm
Package width
129 mm

Weight & dimensions

Weight
270 g
Height
190 mm
Depth
41 mm
Width
190 mm

Power

Power consumption (typical)
14 W
Input current
1.5 A
Power over Ethernet (PoE)
✓
Power over Ethernet (PoE) type supported
PoE+

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Design

International Protection (IP) code
IP41
Reset button
✓
Antenna direction type
Omni-directional

Computer system

Antenna type
Internal

Network

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1AX
Supported network protocols
DNS, SSH, TFTP
VLAN support
✓
Cabling technology
10/100/1000Base-T(X)
MIMO type
Multi User MIMO

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %

Technical details

Compliance certificates
CE, ISED, RoHS, cTUVus

Memory

Flash memory
256 MB

Security

MAC address filtering
✓

Product Details

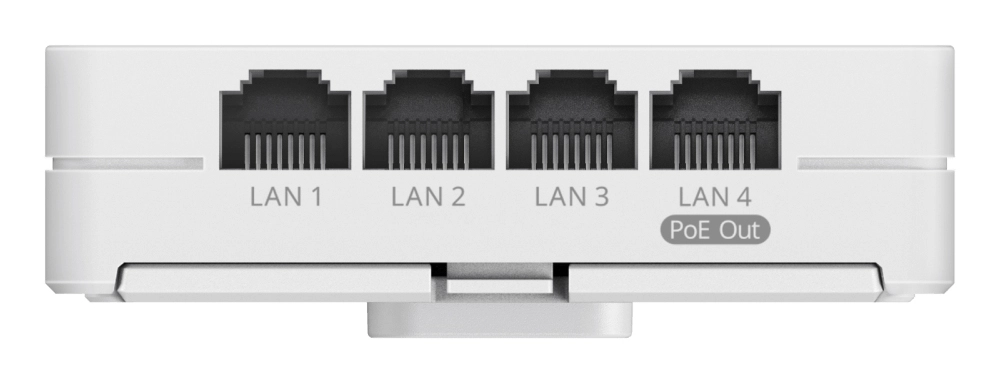

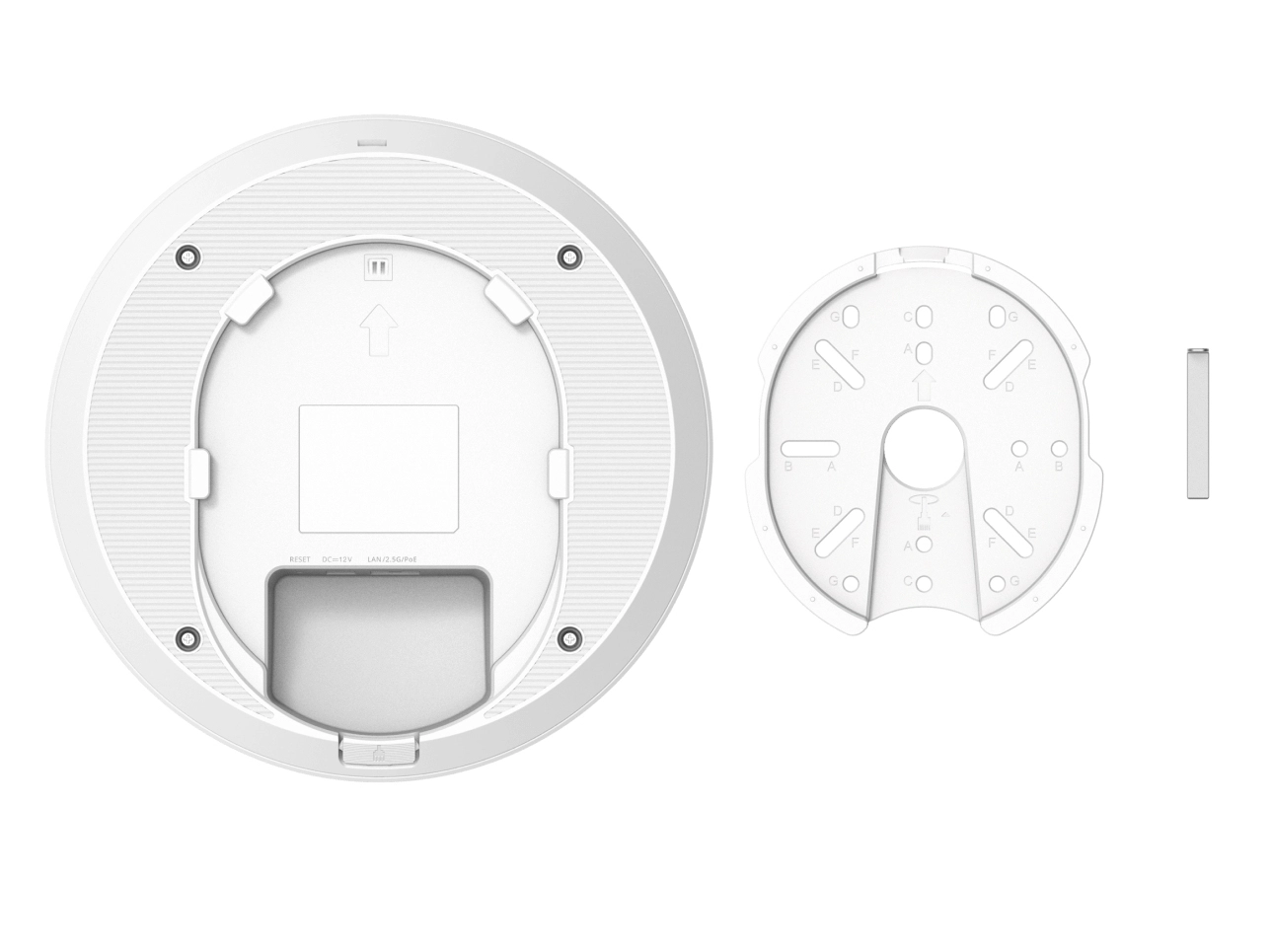

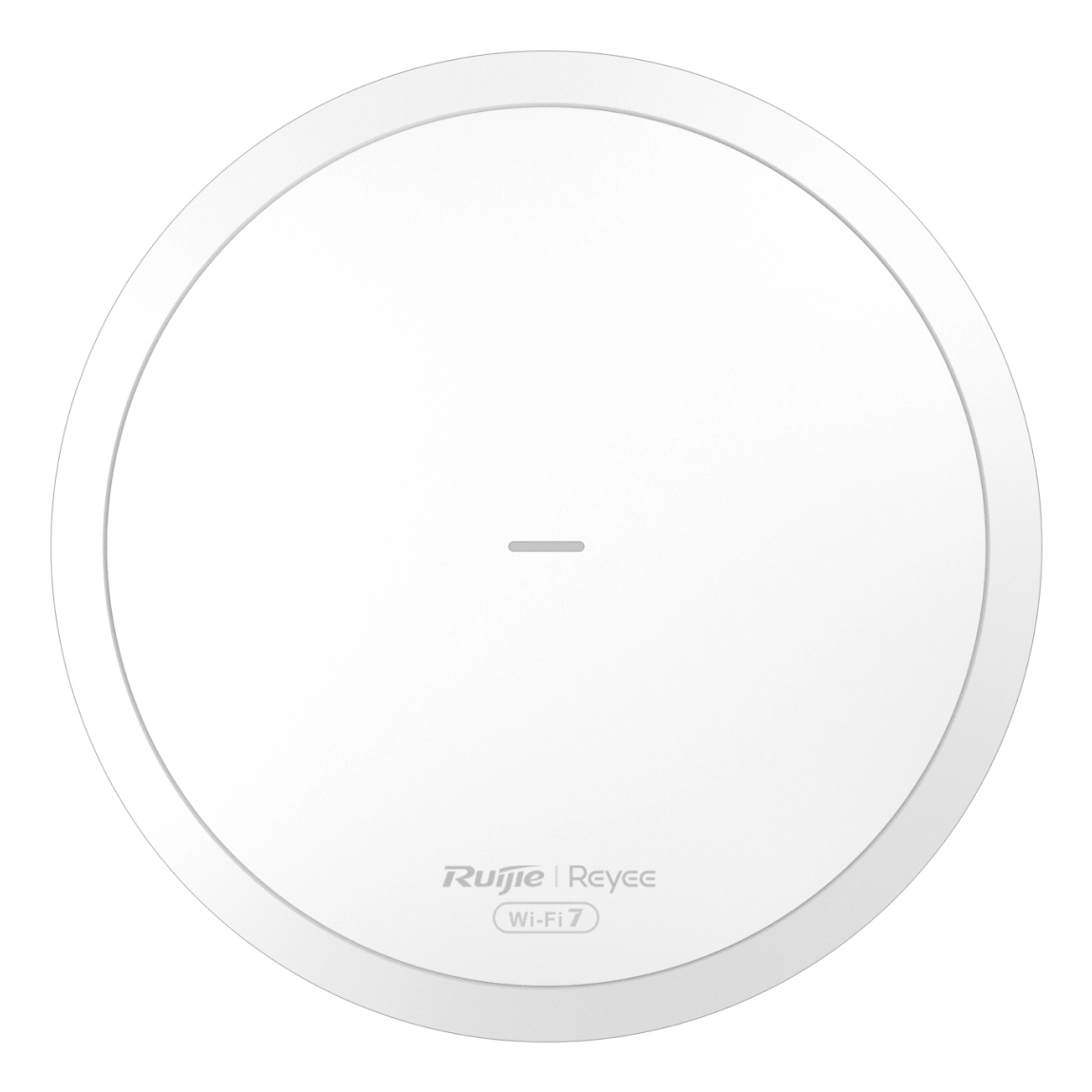

The RG-RAP72-Wall is a dual-band Wi-Fi 7 wireless access point (AP) launched by Ruijie Networks. Compliant with the IEEE 802.11be standard, the RG-RAP72-Wall is ideal for guest rooms in hotels and apartments, classrooms and dormitories in education sector, as well as office environments for small-and medium-sized enterprises.The RG-RAP72-Wall can operate simultaneously in IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, and IEEE 802.11n modes. It supports both the 2.4 GHz and 5 GHz bands, delivering a data rate of up to 3.57 Gbps.The RG-RAP72-Wall integrates essential functions such as wireless network security, a standalone portal, ReyeeMesh, QoS, and seamless roaming. It can work in conjunction with Ruijie Cloud to enable wireless client access control, operations and maintenance (O&M), and security access management.The RG-RAP72-Wall is fit in junction boxes with mainstream dimensions, and features an Ethernet port that supports PoEoutput. Additionally, its sleek and attractive design ensures easy deployment.

Files

Product Brochure

mmo_129297353_1756152706_5144_3749439.pdf

PDF• 991.4 KB
