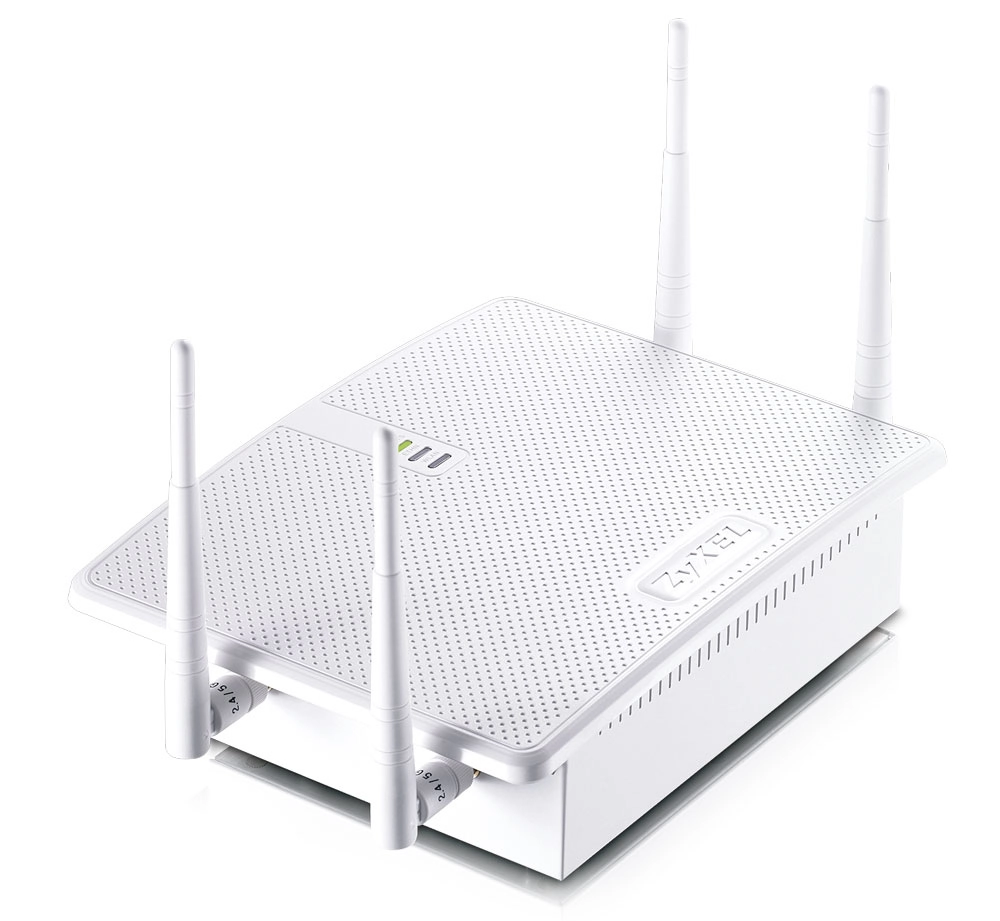

Zyxel NWA-5560-N

Name: Zyxel NWA-5560-N
Brand: Zyxel
SKU: 644301
Availability: InStock

Best offer

AED

2 798⁰⁰

Key Features

Command-line interface (CLI): Yes
Antenna features: Detachable antenna
Maximum data transfer rate: 300Mbit/s
Throughput data rate: 140Mbit/s
Frequency band: 2.412 - 2.472, 5.15 - 5.85 GHzGHz
DHCP client: Yes
Antenna connector type: RP-SMA
Internal: No
Antenna type: External
Ethernet LAN data rates: 10, 100Mbit/s
Modulation: 128-QAM, 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Cable lock slot: Yes
LED indicators: Yes
VLAN support: Yes
Power over Ethernet (PoE): Yes

Specifications

Features

Antennas quantity

Safety

EN 60950-1 (Class B)

Quality of Service (QoS) support

✓

Security algorithms

WEP, WPA, WPA2, WPA2-PSK

Maximum data transfer rate

300 Mbit/s

Throughput data rate

140 Mbit/s

Frequency band

2.412 - 2.472, 5.15 - 5.85 GHz

DHCP client

✓

Antenna connector type

RP-SMA

Packaging data

Package weight

1590 g

Package height

91 mm

Package depth

184 mm

Package width

326 mm

Weight & dimensions

Weight

805 g

Height

54 mm

Depth

174 mm

Width

218 mm

Management features

Command-line interface (CLI)

✓

Power

AC input voltage

12 V

Input current

1.5 A

Power over Ethernet (PoE)

✓

Other features

Cable lock slot type

Kensington

Design

LED indicators

Yes

Cable lock slot

✓

Internal

✗

Computer system

Antenna type

External

Network

Networking standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

VLAN support

✓

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Technical details

Certification

DGT LP0002 (Class B) FCC Part 15B, EN 301 489-17 V1.2.1: 08-2002 (Class B) EN 301 489-1 V1.5.1: 11-2004 (Class B), EN 301 893 V1.2.3:08-2003, FCC Part 15C 15.247, FCC Part 15E (Class B) EN 300 328 V1.7.1

Antenna

Antenna features

Detachable antenna

Radar

Modulation

128-QAM, 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK

Product Details

Superior, Secure WLAN Experience for Distributed Enterprise and Campus Today, businesses are facing continuous challenges providing wireless access to guests and mobile employees without compromising security. To fulfill this demand, ZyXEL develops an all-new Wireless LAN Controller Solution comprising of the NXC5200 WLAN Controller and NWA5000-N Series Managed Access Point (AP) in three models: the dual-band NWA5160N, the dual-radio NWA5560-N and, the dual-radio outdoor NWA5550-N. The solution is designed to deliver high-performance 11n Wireless to provide seamless mobility and security in medium-to large-scale campus and distributed enterprise environments. The NXC5200 integrates ZyXEL’s industry-leading ZyWALL Firewall features, such as Stateful Packet Inspection, to monitor data coming from mobile wireless users while the NWA5000-N Series works in conjunction with NXC5200 to deliver optimized performance and secure network services to remote branches or offices. The NXC5200 controller and NWA5000-N Series APs are ideally suited for advanced service delivery on wireless edge.
