- 108 Mbps WLAN, 802.11a/b/g standards
- 5 IPSec VPN channels integrated; optional: 25 simultaneous VPN channels and hardware VPN accelerator
- Stateful inspection firewall with Intrusion Detection/Denial-of-Service protection
- 4 separable switch ports
- Load balancing with up to 4 WAN connections
- ISDN interface for remote access, remote maintenance and dial-backup
- Approved for use in medical environments according to EN 60601-1-2
- Secure WLAN from authentication with IEEE 802.1x/EAP with key rollover and WEP128/WEP152, IEEE 802.11i and Multi-SSID
- Optional SIP proxy and gateway functions (as of LCOS 6.0)

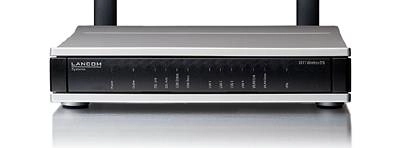

The DSL WLAN router LANCOM 1811 Wireless DSL offers maximum flexibility for the secure VPN interconnection of sites, branch offices or subsidiaries. With standard equipment including 5 VPN channels (25 optional), an integrated wireless module compliant with the WLAN standards IEEE 802.11a/b/g/h/i, an ISDN interface for backup, remote maintenance and LANcapi applications, and four separately controllable switch ports, this router is suitable for a highly diverse range of applications.
More Flexibility
The integrated wireless module makes the LANCOM 1811 Wireless DSL also suitable for use as an access point or WLAN bridge. The support of WLAN standards IEEE 802.11a/b/g/h/i and the two dual-band diversity antennas enable operation in the 2.4 or 5 GHz frequency bands. In both frequency bands, the turbo mode supports maximum data transfer rates of up to 108 Mbps.
With proven conformity to required standards of electromagnetic compatibility, LANCOM Systems is the first European manufacturer to offer WLAN routers offering high-speed wireless LAN capable of 108 Mbps for hospitals, medical practices and laboratories in the 5-GHz band too.
More Security
The integrated firewall with the latest security functions such as stateful inspection, Intrusion Detection and Denial-of-Service protection is supplemented by dynamic bandwidth management and comprehensive backup, high-availability and redundancy functions over ISDN and VRRP. The integrated VPN gateway that fulfills the IPSec standard and optional hardware accelerator provide optimal security for connecting telecommuters and branch offices thanks to the high-security 3-DES or AES encryption and support of digital certificates.
LANCOM is setting the standards in area of WLAN security, too. A comprehensive range of security technologies is supported in wireless LAN including IEEE 802.11i, 802.1x, WPA, WEP64/128//152, ACL or LEPS (LANCOM Enhanced Passphrase Security), which enables the configuration of an optimized solution, whatever the individual requirements. For example, Multi SSID allows the definition of up to 8 user groups, each with different levels of security.
More Management
LANCOM developments focus on performance, security and on management, too. LANCOM’s WLAN management tools offer real benefits to network administrators for the installation, control and monitoring of up to 250 access points. Settings for wireless, encryption, or access control lists can be grouped into partial configurations, which are then executed for multiple access points in one easy move. A group configuration is assigned to a group folder and the changes are automatically sent to all of the devices. Adding in new devices? Simply add them to the group folder by drag and drop. Different settings? WLAN group configuration offers an automatic update.
WLANmonitor visualizes the structures of the WLAN irrespective of physical location and facilitates the central surveillance of the entire wireless network. Which WLAN clients are logged on and where? How good are the connections? Which WLAN channel is in use? Were there failed authentications or attempts to break in? WLANmonitor provides the overview for reliable diagnosis. WLAN management can be so simple!
More Benefits
The versatile functions for address translation and routing allow the connection of completely different networks over common infrastructure. Existing networks at partner companies, home-office workstations or subsidiaries can be integrated into the VPN without problem. With the option of port separation and a separate address range, your own web servers can be securely separated from the LAN. Optional SIP proxy and SIP gateway functions offer big savings through the use of existing data connections for voice transmission (VoIP telephony). The integrated ISDN interface allows remote field installations, dial-up access and CAPI featured functions such as fax services for all connected PCs.
More Certainty for the Future.
From the very start, LANCOM products are designed for a product life of several years. They are equipped with hardware dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System—LCOS—are available several times a year, free of charge and offering major features. LANCOM offers unbeatable protection of your investment!
What’s more…
LANCOM Systems also offers suitable AirLancer client adapters—as PC card and PCI versions—as well as AirLancer Extender antennas for indoor and outdoor use, even in the 5-GHz frequency range.
