Specification

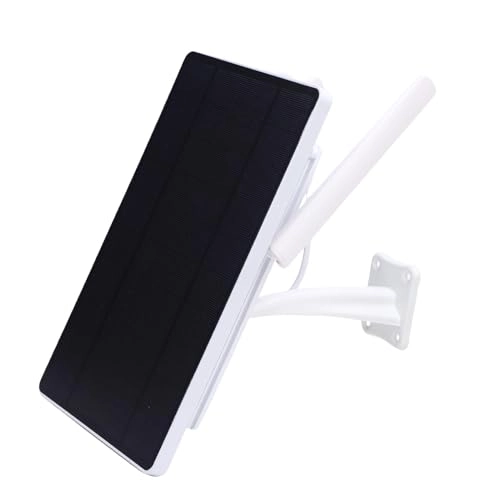

Item Type: Solar Powered Modem Router
Material: PVC, EVA, PCB, ABS
Weight: Approx. 1499.00g/52.88oz
Product Size: Approx. 284x170x50mm/11.2x6.7x2.0in
Solar Power: 10W
Power Supply: Solar Power or USB Power Cable
Battery: Li Battery 15000mAh (Shipped with Built in Battery)
4G Main Chip: ZX297520M
WIFI Chip: RTL8192ES CG
Type: FDD LTE, TDD LTE, WCDMA, HSPA+, TD SCDMA, GSM, GPRS, EDGE
Speed: FDD LTE, TDD LTE: Up to 50Mbps, Down to 150Mbps, HSPA+: Up to 5.76Mbps, Down to 2Mbps, TD SCDMA: Up to 2.2Mbps, Down to 2.8Mbps
Port: 10/100M Adaptive RJ45 Interface, Supports Up to 8 WIFI Devices
WIFI Standard: 2412MHz to 2472MHz, 802.1lb, g, n, Up to 72Mbps
USIM, SIM Card: SIM Card (Not Included)
Indicator: Green Light On for Full Charge, Blue Light Flashing for Solar Charging, Red Light On for Low Battery, Blue Flashing for SIM Card Working
WEB Login Default Password: admin
Application: IPC, Yacht, Security Camera, Courtyard, RV, Farm, Pasture, Phone, Playground, Passenger Ship, Public Address System, PC
Target Audience:
1. Equipment Networking and Remote Detecting in Extreme Environments like Oilfields, Mines, Construction Sites
2. Entertainment and Communication for Camping and RV Travel
3. Alternative to Expensive Wired Broadband for Home or Small Businesses
4. Temporary Networking Solutions for Events, Music Festivals, Disaster Relief Sites
5. Remote Detecting for Farms, Pastures, and Construction Sites
How to Use
Device Access:
1. Insert Data Card: Please use a standard SIM card(not included). Insert from top to bottom.
2. Wired Connection: Connect the device cable to the 4G router RJ45 port; if you need to connect multiple devices, you can connect a standard switch to the 4G router and then connect the devices to the switch.
3. Wireless Connection: Turn on the device, search for WIFI
