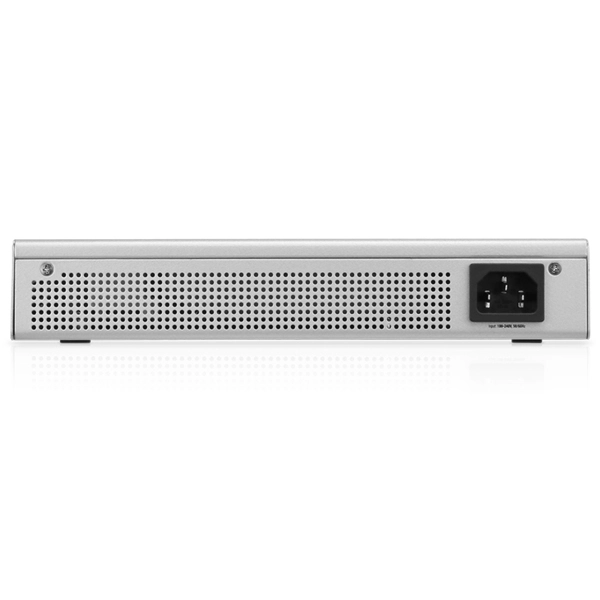

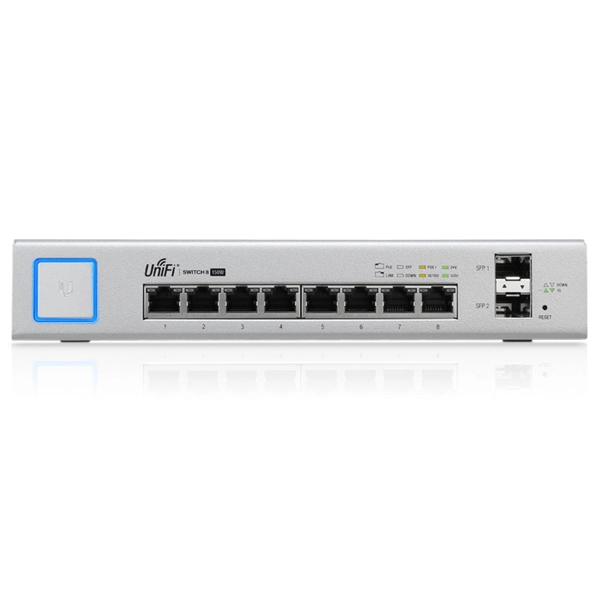

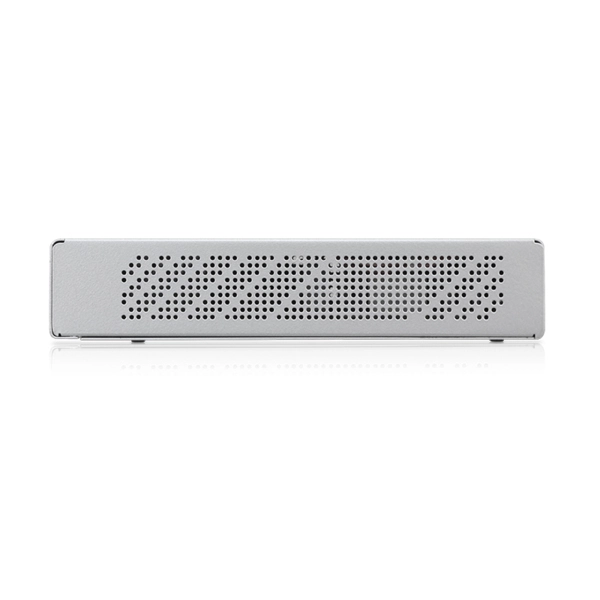

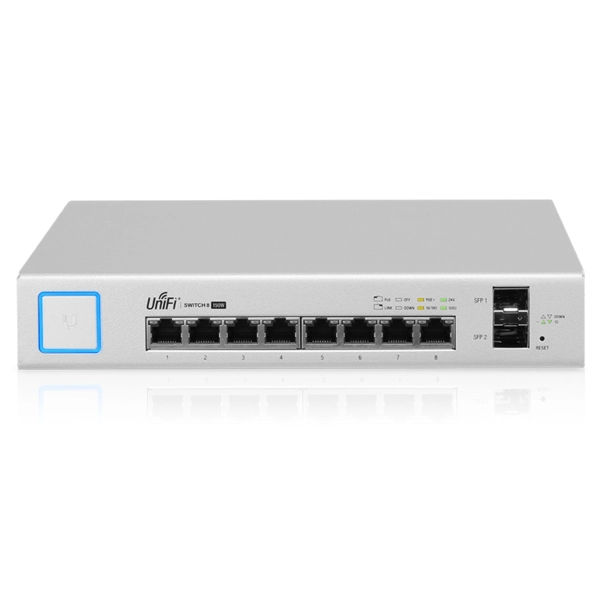

Ubiquiti US-8-150W - 8-ports

Name: Ubiquiti US-8-150W - 8-ports
Brand: Ubiquiti
SKU: 641901
Availability: InStock

Best offer

AED

2 426³⁴

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Port mirroring: Yes
Jumbo frames: 9216
Switching capacity: 20Gbit/s
Full duplex: Yes
MAC address table: 16384entries
Authentication type: IEEE 802.1x, RADIUS
Auto-sensing: Yes
Jumbo frames support: Yes
Forwarding rate: 14.88Mpps
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T

Specifications

Features

Internal memory

256 MB

Processor frequency

400 MHz

Product colour

Grey

Switching capacity

20 Gbit/s

Full duplex

✓

MAC address table

16384 entries

Authentication type

IEEE 802.1x, RADIUS

Auto-sensing

✓

Jumbo frames support

✓

Forwarding rate

14.88 Mpps

Switch layer

Weight & dimensions

Weight

1650 g

Height

43 mm

Depth

204 mm

Width

235 mm

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

150 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

34.20 W

Design

Fanless

✓

LED indicators

Activity, Link, PoE, Speed, Status

Computer system

Built-in processor

✓

Processor model

ARM Cortex-A9

Packaging content

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

VLAN support

✓

Number of VLANs

255

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Ethernet LAN data rates

10, 100

10G support

✗

Link aggregation

✓

Flow control support

✓

Jumbo frames

9216

Port mirroring

✓

Ports & interfaces

SFP module slots quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Technical details

Certification

ETSI300-019-1.4 CE, FCC, IC

Switch type

Managed

Memory

Flash memory

32 MB

Security

Authentication

Port-based authentication

Broadcast storm control

✓

Logistics data

Harmonized System (HS) code

85176990

Solid state drive

Memory type

DDR3-SDRAM

Product Details

Expand and power your network with the UniFi® Switch 8 150W, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi® Switch 8 150W is a fully managed PoE+ Gigabit switch, delivering robust performance and intelligent switching for enterprise networks. The UniFi® Switch 8 150W offers the flexibility of (8) Gigabit RJ45 ports with auto-sensing PoE+ or 24V Passive PoE to power your UniFi access points and other PoE devices. Additionally, two SFP ports provide uplink and fiber connectivity options capable of delivering speeds of up to 1 Gbps each. The UniFi® Switch 8 150W supports up to 10 Gbps total, non-blocking line rate.

Files

Product Brochure

mmo_86392510_1631610029_3985_94.pdf

PDF• 3.8 MB
