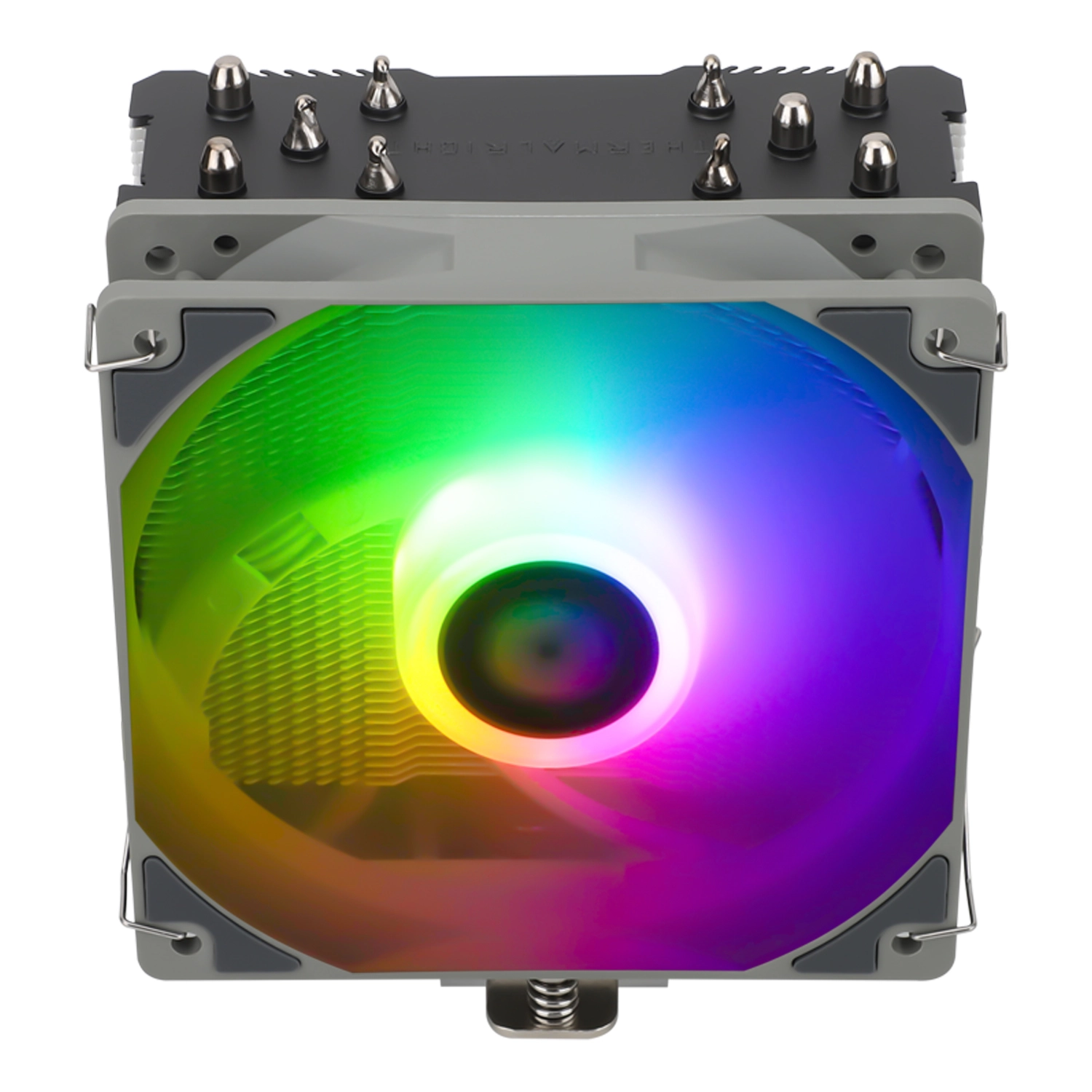

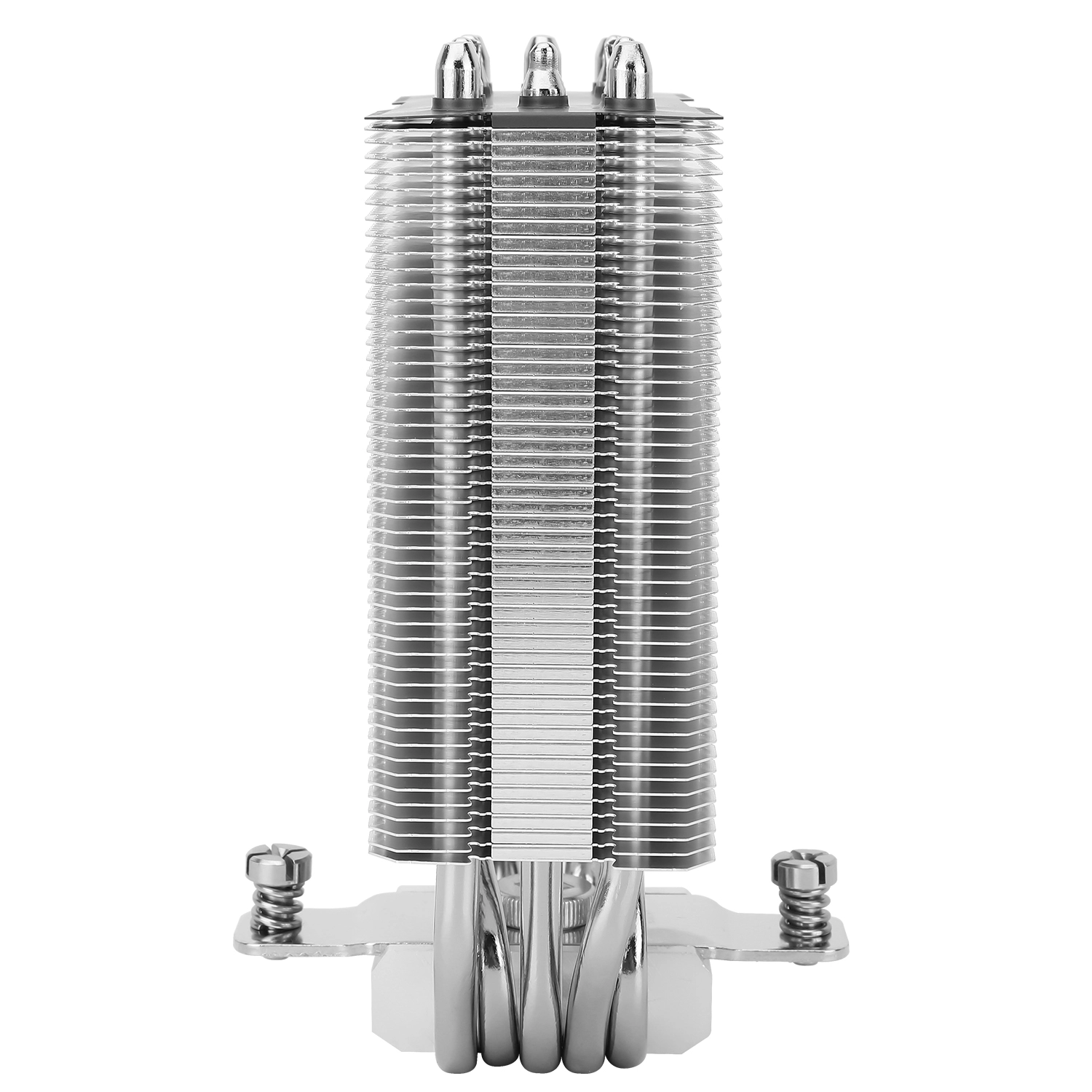

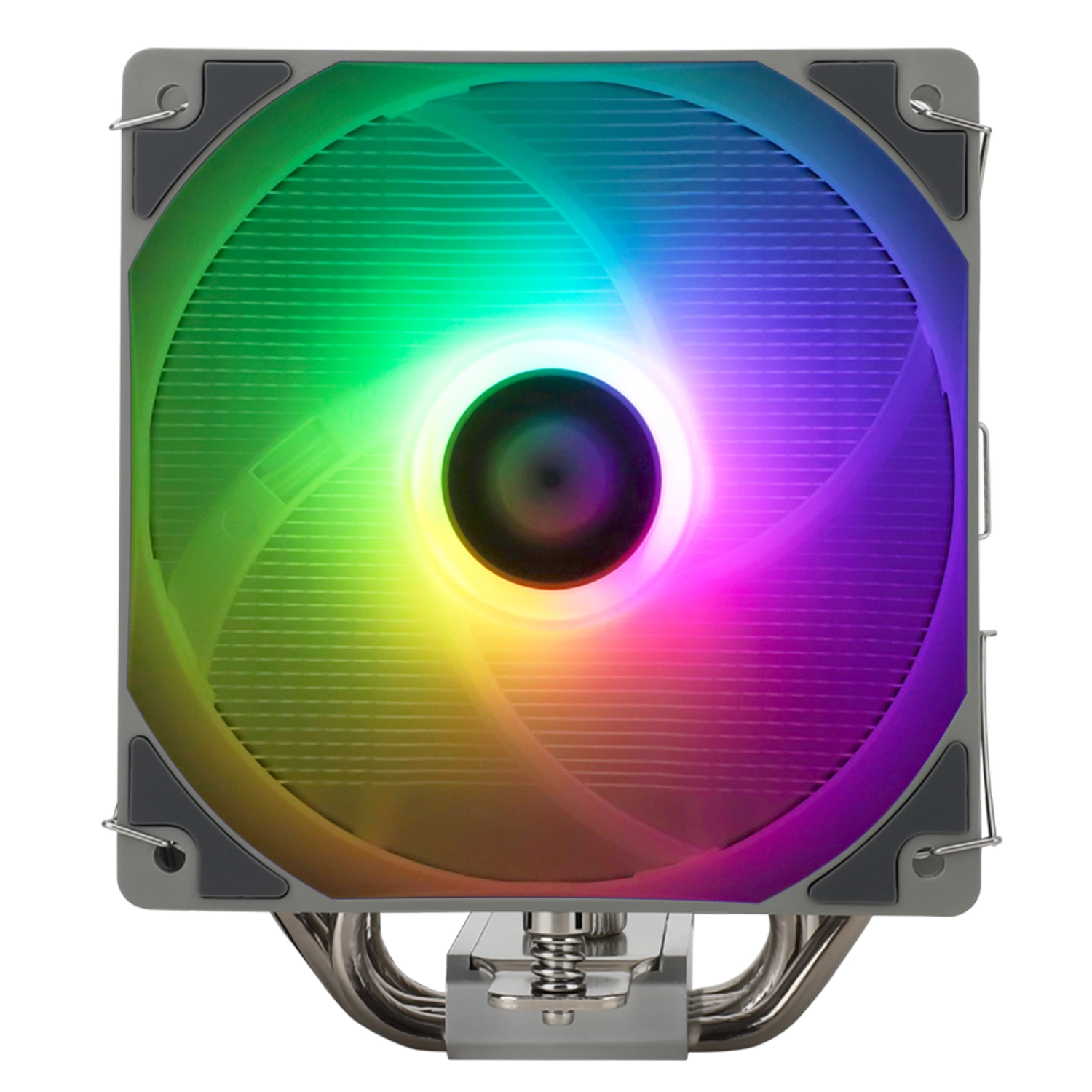

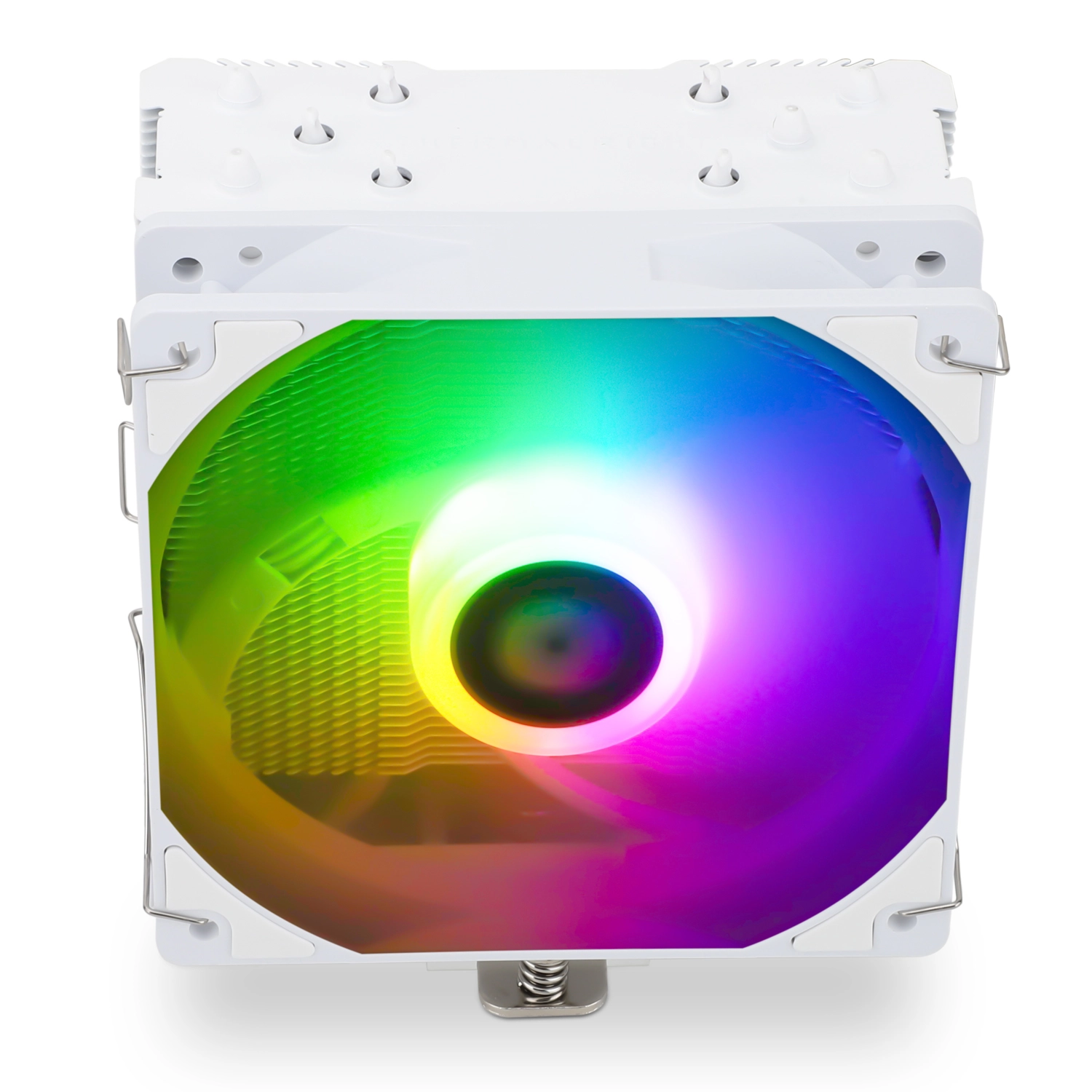

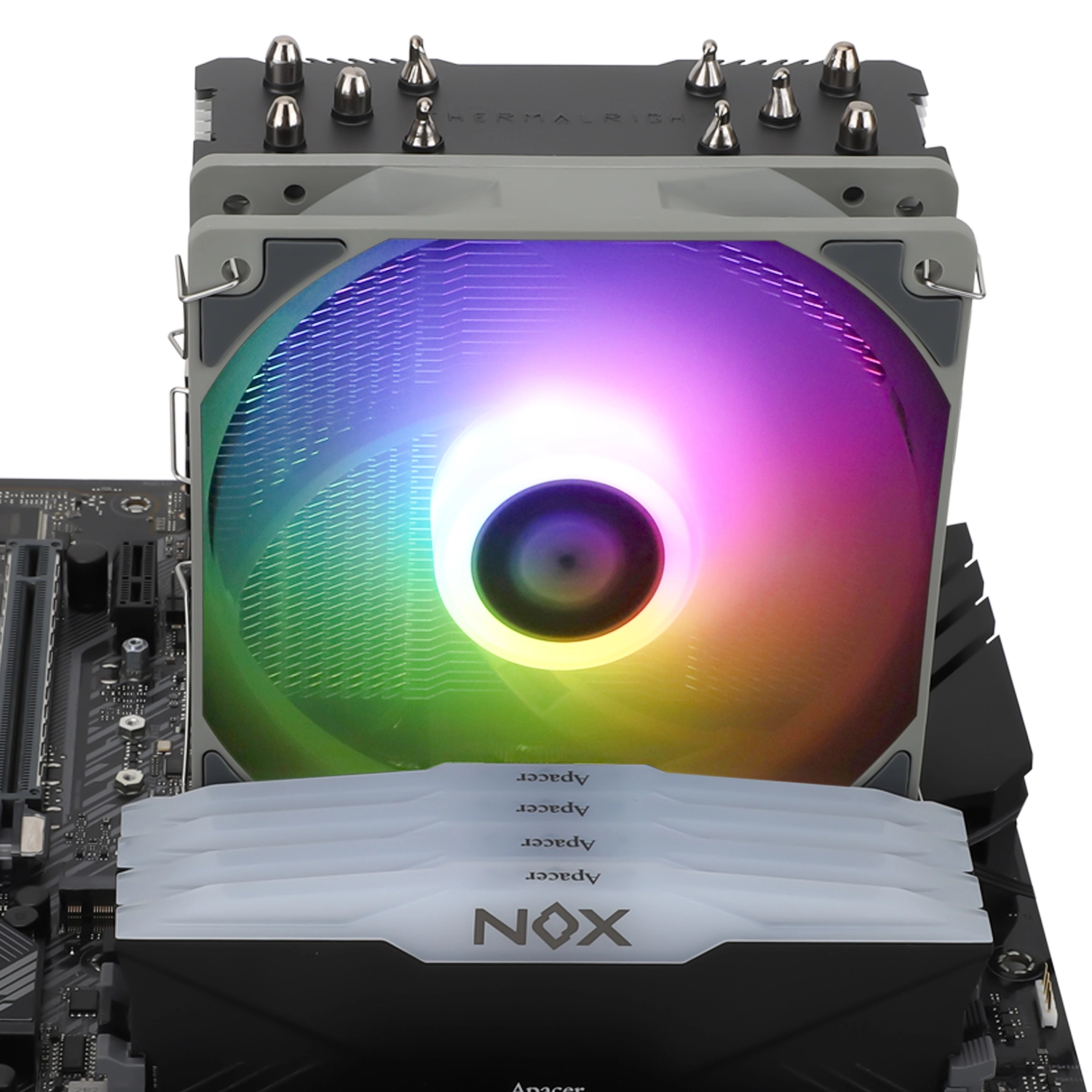

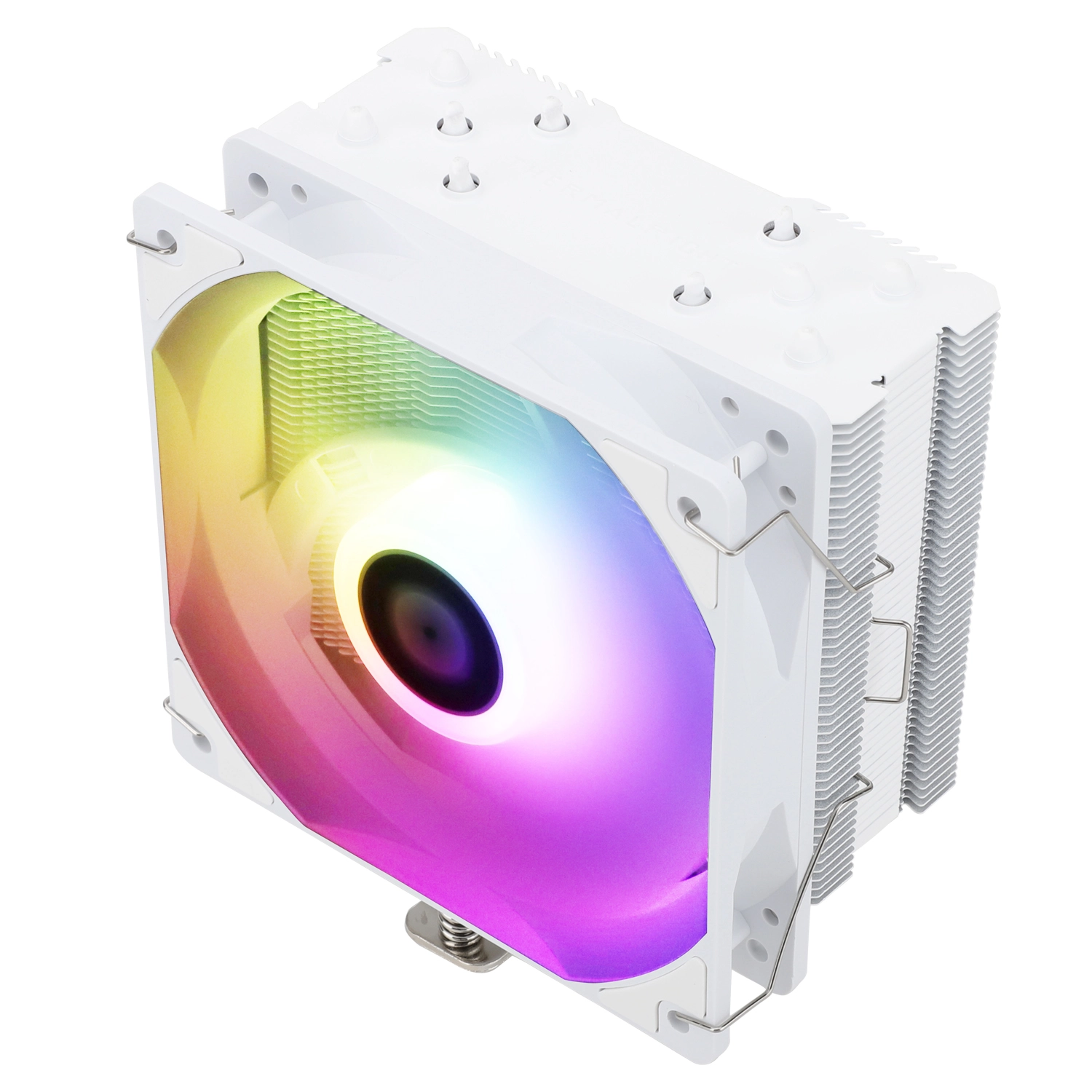

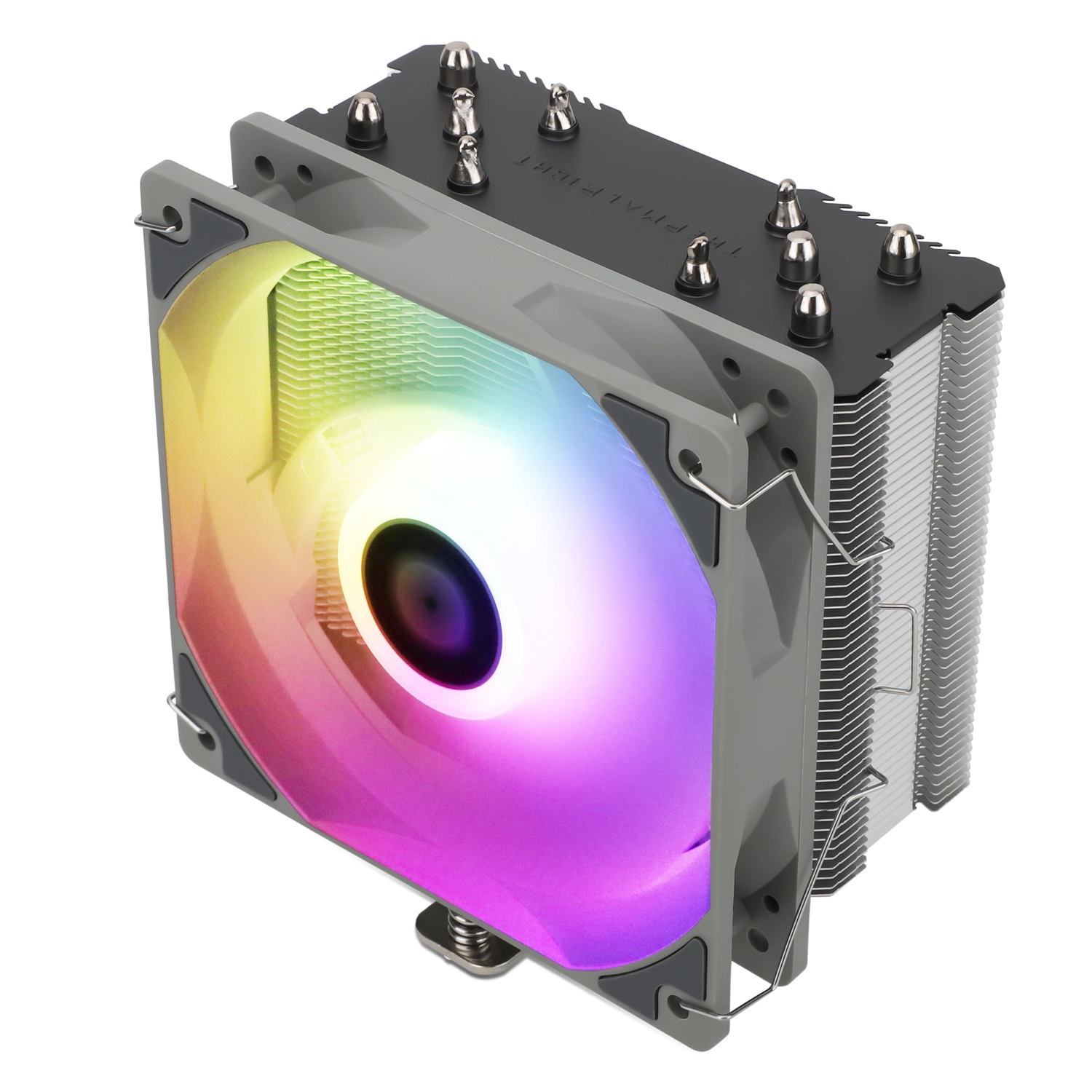

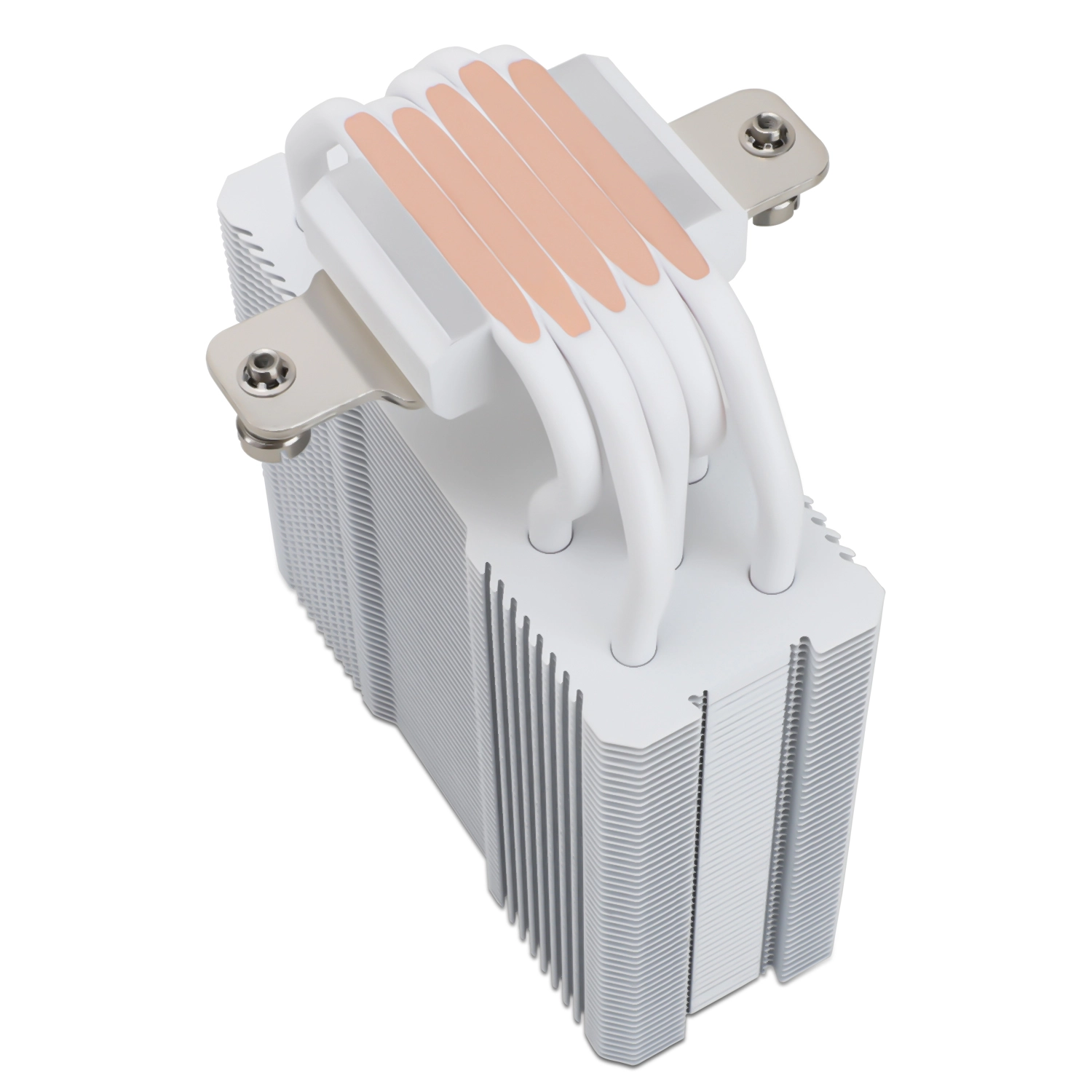

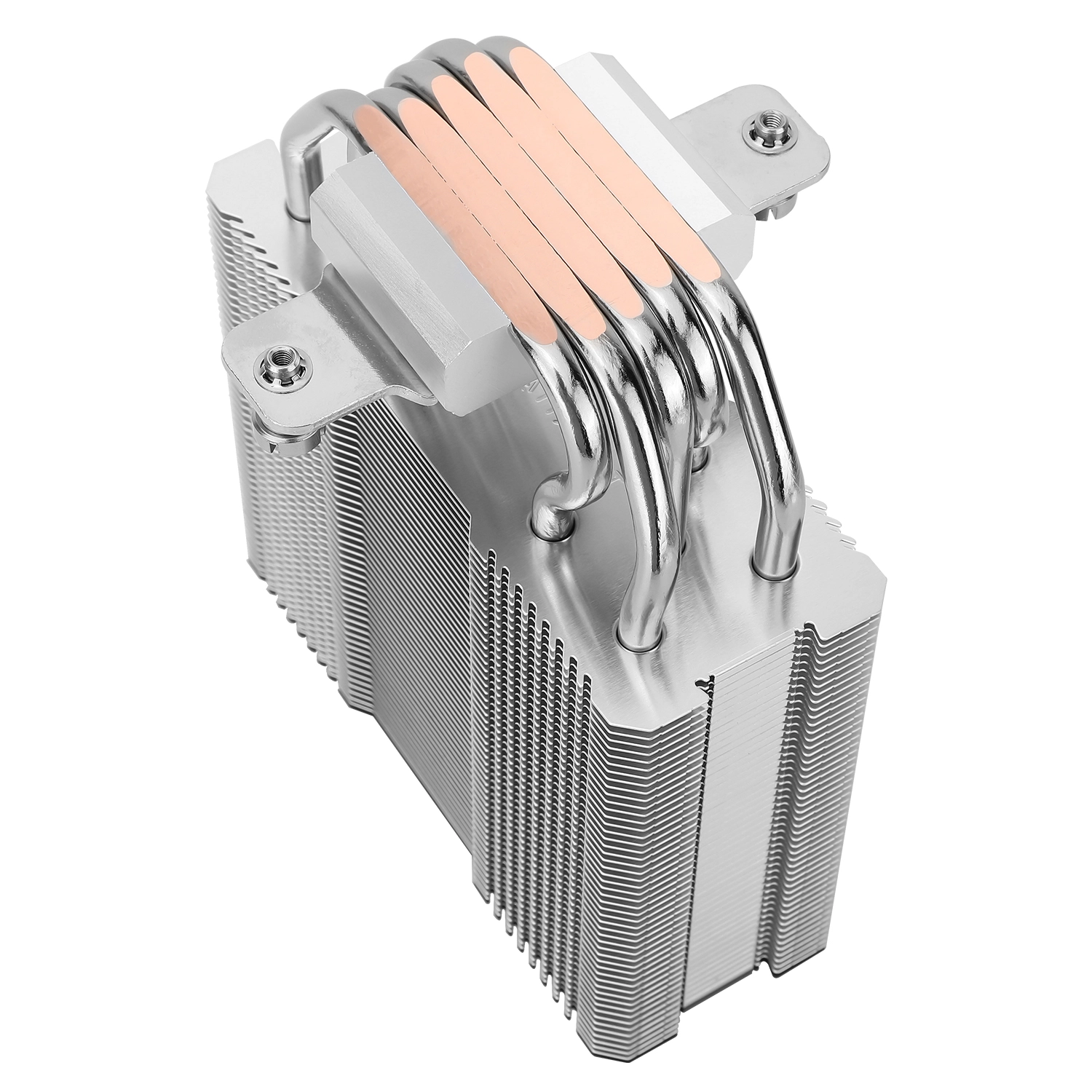

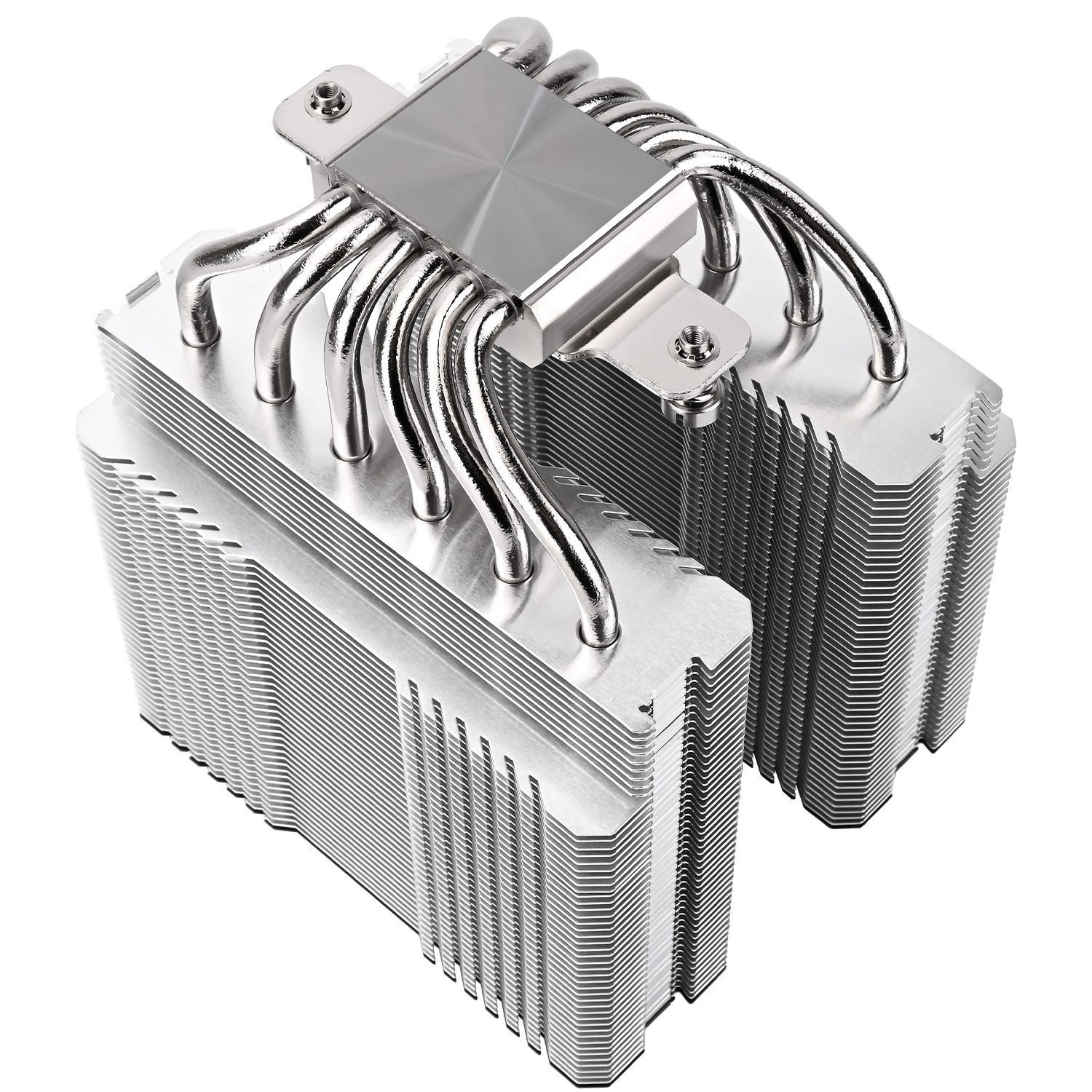

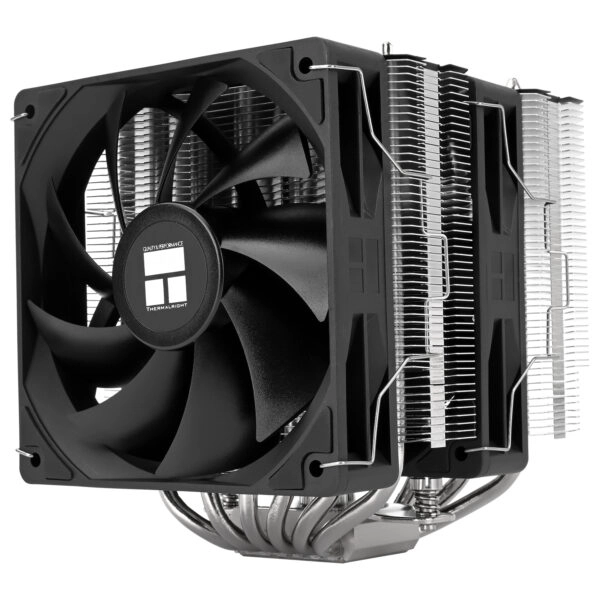

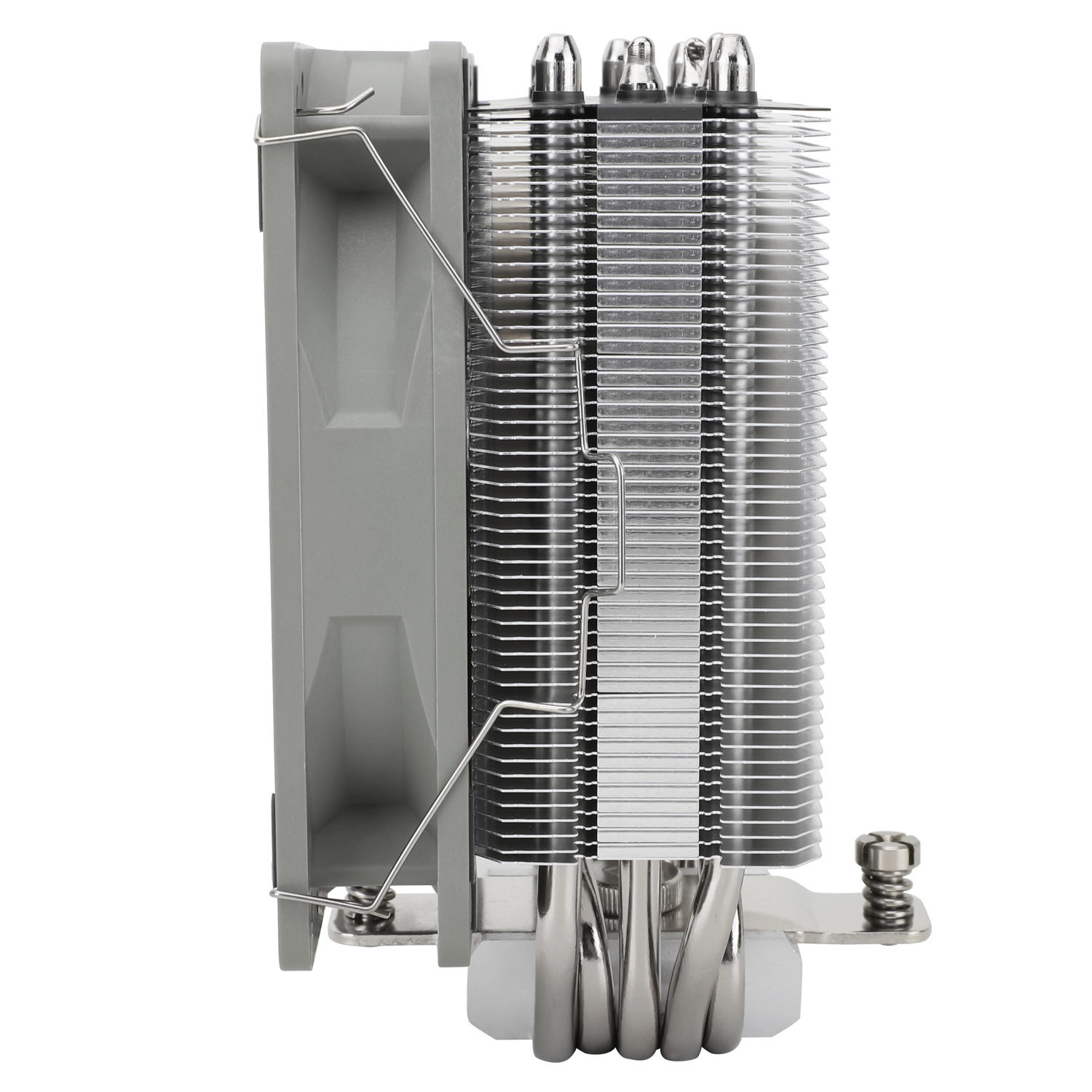

Thermalright Assassin King 120 SE

Name: Thermalright Assassin King 120 SE
Brand: Thermalright
SKU: 620282
Availability: InStock

Best offer

AED

164²⁰

AED

165³⁵

<1%

Key Features

Number of heat pipes: 5
LED connector type: 3-pin
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Fan dimensions (W x D x H): 25 x 120 x 120mm
Fan weight: 120g
Rotational speed (max): 1550RPM
Maximum air pressure: 1.53mmH2O
Type: Air cooler
Fan noise level (max): 25.6dB
Bearing type: Fluid Dynamic Bearing (FDB)
Fan speed (max): 1550RPM
Illumination LED: Yes
Noise level (high speed): 25.6dB
Illumination colour: Multi
Maximum airflow: 66.17cfm

Specifications

Features

Material

Cooper

Fan diameter

120 mm

Suitable location

Processor

Supported processor sockets

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5

Product colour

Black

Rotational speed (max)

1550 RPM

Maximum air pressure

1.53 mmH2O

Type

Air cooler

Fan noise level (max)

25.60 dB

Bearing type

Fluid Dynamic Bearing (FDB)

Fan speed (max)

1550 RPM

Illumination LED

✓

Noise level (high speed)

25.60 dB

Illumination colour

Multi

Maximum airflow

66.17 cfm

Weight & dimensions

Radiator height

148 mm

Radiator depth

125 mm

Radiator width

46 mm

Height

148 mm

Depth

120 mm

Width

110 mm

Heat pipes diameter

6 mm

Fan weight

120 g

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Power

Fan current

0.20 A

Performance

Pump connector

4-pin

Fan bearing technology

Fluid Dynamic Bearing (FDB)

Design

LED connector type

3-pin

Number of heat pipes

Ports & interfaces

Fan connector

4-pin

Product Details

Technical Spec : Heatsink Specifications: Dimension：L125 mm x W110 mm x H155 mm(Without Fan) Heat pipes：6mm heatpipe x 6 units Copper Base：C1100 Pure copper nickel plated TL-C12C-X28 V2 FAN Spec： Dimension：L120 mm x W120 mm x H28 mm Rated Speed：1850 RPM±10% (MAX) Noise Level：29.5 dBA Air Flow：88.89 CFM (MAX) Air Pressure：2.21 mm H2O (MAX) Ampere：0.30 A Connector：4 Pin (PWM Fan connector) Bearing Type : S-FDB Bearing
