Teltonika RUT976 - 5G REDCAP Wi-Fi

Key Features

Firewall: Yes
5G standard: Sub6 SA
Number of SIM cards: 2
Ethernet LAN interface type: Gigabit Ethernet
Full duplex: Yes
DHCP server: Yes
Antenna connector type: SMA/RP-SMA
Port forwarding: Yes
Data network: 4G, 5G
Device type: Cellular network router
Mounting: DIN-rail/Wall mounting
Internal storage capacity: 0.032GB
4G standard: LTE
Auto MDI/MDI-X: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Specifications

Features

Antennas quantity

Quasi-Zenith Satellite System (QZSS)

✓

Galileo

✓

BeiDou

✓

GPS (satellite)

✓

Operating system installed

RutOS

Card reader integrated

✓

RAM capacity

0.13 GB

Maximum memory card size

2000 GB

Security algorithms

WPA2-Enterprise

Product colour

Black

Full duplex

✓

DHCP server

✓

Antenna connector type

SMA/RP-SMA

Port forwarding

✓

Data network

4G, 5G

Device type

Cellular network router

Mounting

DIN-rail/Wall mounting

Weight & dimensions

Weight

295 g

Height

50 mm

Depth

100 mm

Width

100 mm

Power

Power source type

Storage

Compatible memory cards

MicroSD (TransFlash)

Software

Firewall

✓

Design

Reset button

✓

LED indicators

Yes

Market positioning

Industrial

Computer system

Built-in processor

✓

Processor manufacturer

Mediatek

Internal storage capacity

0.03 GB

Network

Wi-Fi

✓

Supported network protocols

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, MQTT, NTP, PPP, PPPoE, SFTP, SMPP, SMTP, SNMP, SSH, SSL v3, TCP, TLS, Telnet, UDP, UPNP, VRRP, VXLAN, Wake on Lan (WOL)

4G standard

LTE

Auto MDI/MDI-X

✓

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN

✓

Ethernet LAN interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

USB port

✓

USB 2.0 ports quantity

Number of SIM cards

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Memory

RAM type

DDR2

Navigation

GLONASS

✓

Mobile network

5G standard

Sub6 SA

Product Details

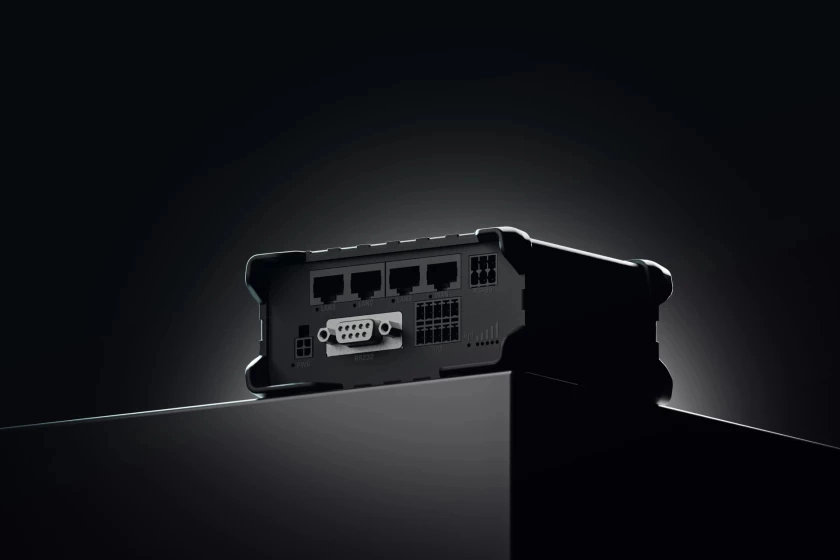

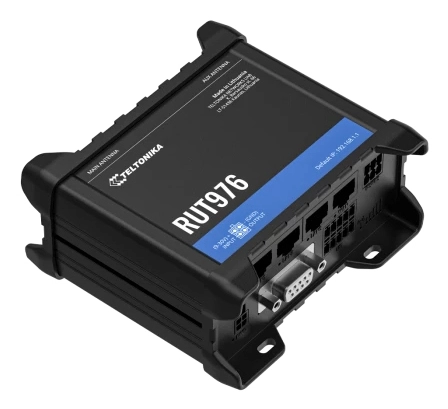

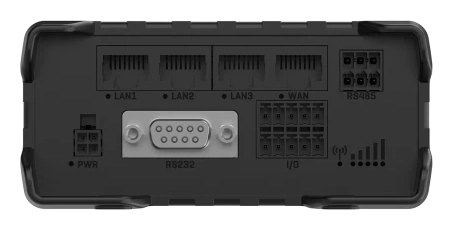

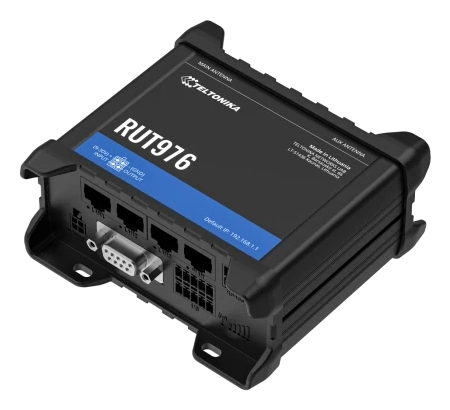

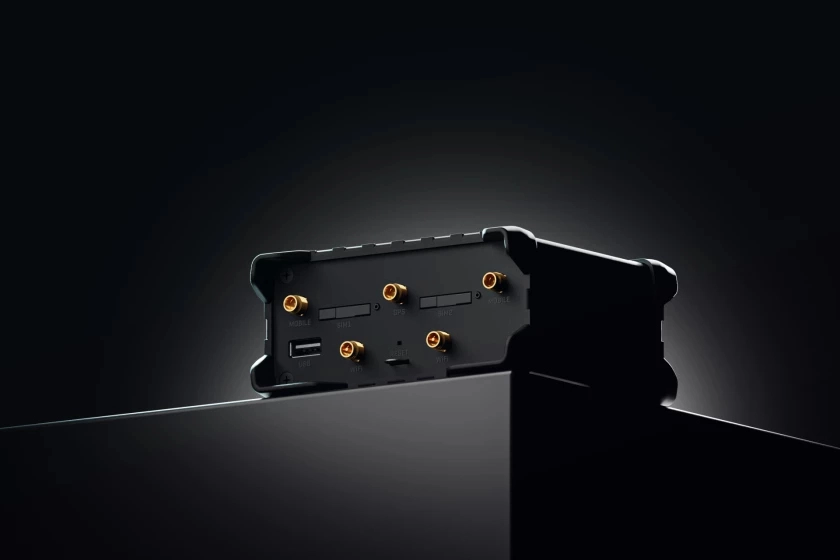

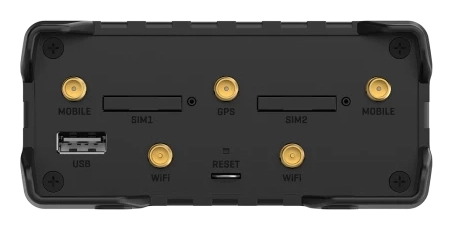

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment
