Trendnet TI-IG90 - 90W 2 ports Gigabit

Name: Trendnet TI-IG90 - 90W 2 ports Gigabit
Brand: Trendnet
SKU: 474437
Availability: InStock

Best offer

AED

357¹⁹

Key Features

Wall mountable: Yes
Surge protection: Yes
Wall mounting kit: Yes
Quick installation guide: Yes
Duplex system: Half
Ethernet LAN data rates: 10, 100Mbit/s
Ethernet interface type: Gigabit Ethernet
Product colour: Black
Input voltage: 52 – 56V
Total Power over Ethernet (PoE) budget: 90W
Maximum operating distance: 100m
LED indicators: Yes
Power over Ethernet (PoE): Yes
Ethernet LAN (RJ-45) ports: 2
Width: 104mm

Specifications

Features

Product colour

Black

Wall mountable

✓

Weight & dimensions

Weight

154 g

Height

32 mm

Depth

82 mm

Width

104 mm

Power

Power over Ethernet (PoE)

✓

Input voltage

52 – 56

Total Power over Ethernet (PoE) budget

90 W

Performance

Surge protection

✓

Design

LED indicators

Yes

Packaging content

Wall mounting kit

✓

Quick installation guide

✓

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u

Duplex system

Half

Ethernet LAN data rates

10, 100

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

DC-in jack

✓

Ethernet LAN (RJ-45) ports

Technical details

Certification

CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)

Camera

Maximum operating distance

100 m

Logistics data

Harmonized System (HS) code

85044095

Product Details

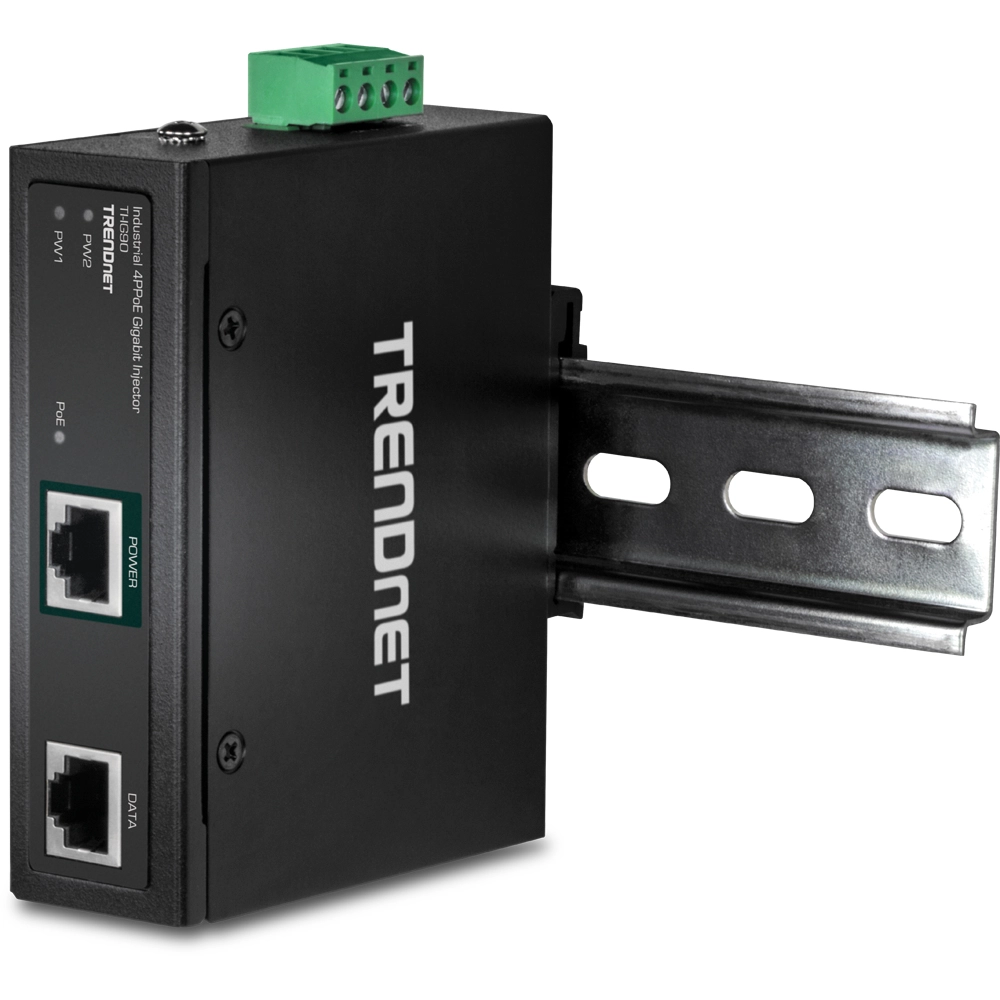

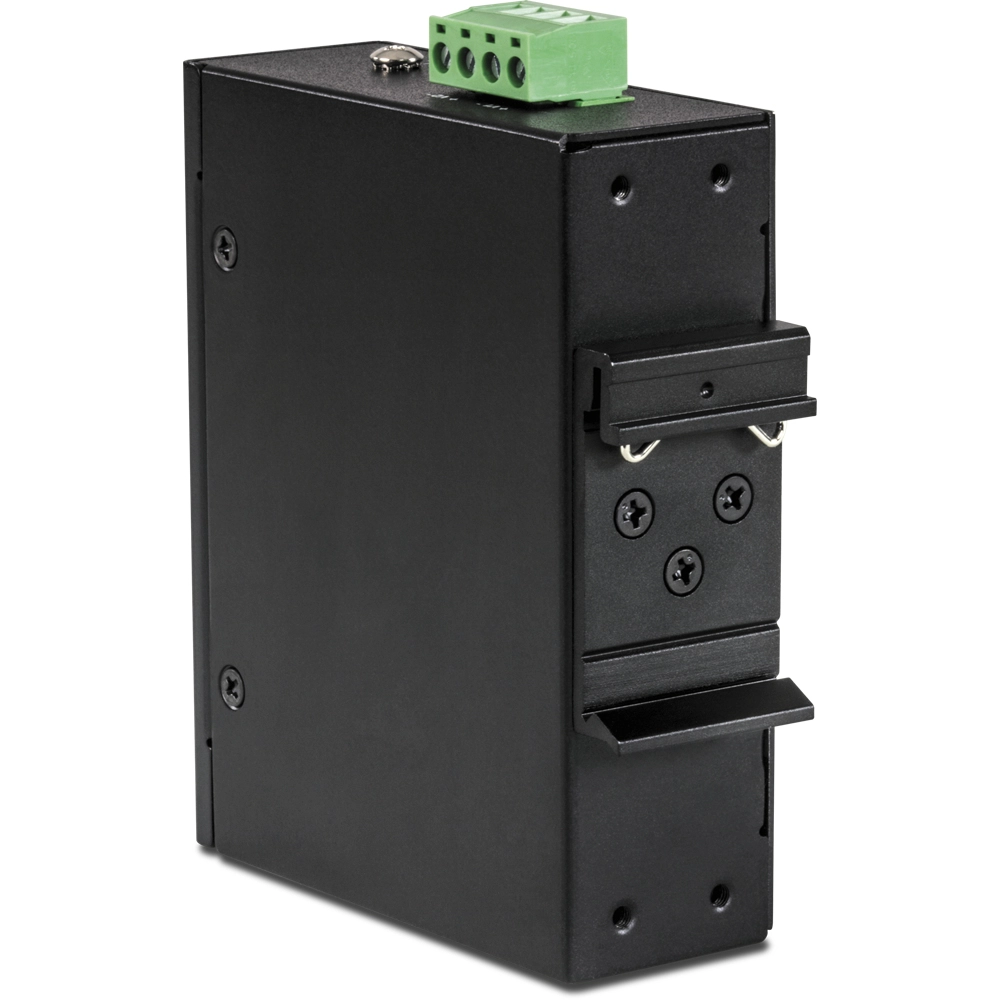

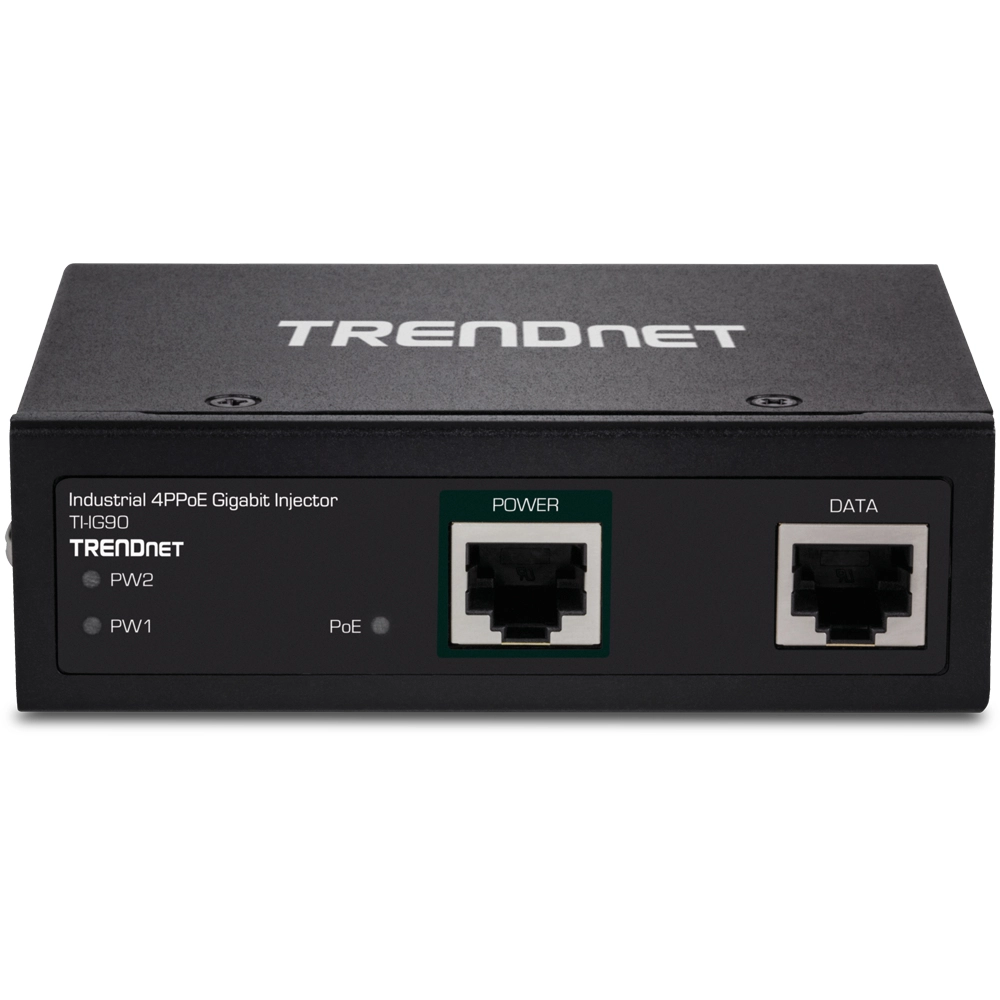

TRENDnet’s TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector. - 1 x Gigabit port - 1 x 4PPoE Gigabit port
