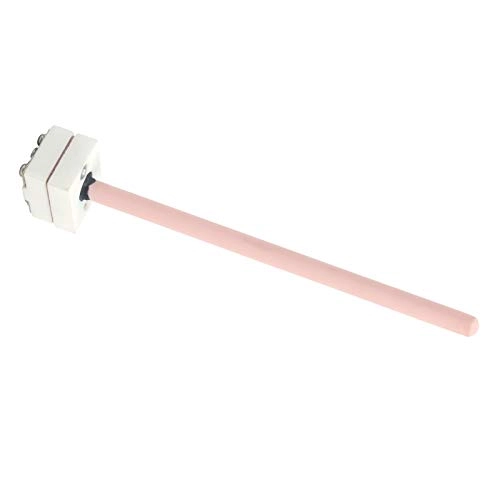

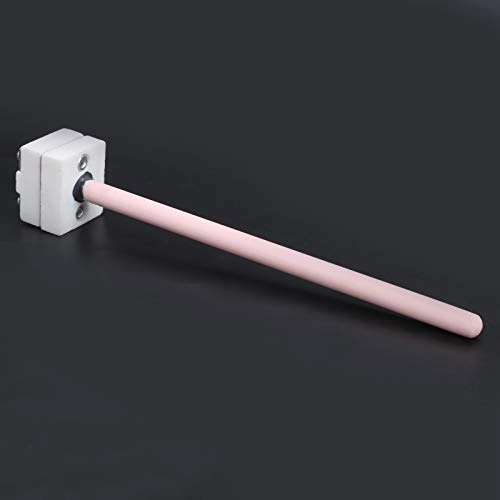

Mingzhe WRP-100 - 300mm Thermocouple

[Made of 99 Corundum Tube Material] With high temperature, wear, and corrosion for durability. [Stable Performance] With strong oxidation , suitable for short-term temperature measurements up to 1600°c. [High Quality Rhodium Wire] With 0.12mm diameter for heat-resistant and properties. [Versatile Usage] For measuring temperature in gas, liquid, solution, and fixed surfaces in various production processes. [Simple Structure and High Accuracy] Ensures convenient use and a long service life for reliable temperature measurements. Spec: Condition: Brand New Item Type: Thermocouple Model: WRP-100 Graduation: S Material: 99 corundum tube Component: rhodium wire Wire Diameter: Approx. 0.12mm / 0.004in Tube Diameter: Approx. 7mm / 0.3in Measurement Range: 0-1300 ℃ (long term) 0-1600℃ (short term) Industrial and rhodium thermocouples are also called precious metal thermocouples. They are used as temperature measurement sensors and are usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system to directly measure or control various production processes. The temperature of fluid, steam, gas medium and solid within the range of 0-1600℃. The rhodium thermocouple is a circuit composed of two different conductors connected at both ends of the circuit. When the temperature of the two junctions is different, a thermal current will be generated in the circuit. If there is a temperature difference between the working end of the thermocouple and the reference end, the display instrument will indicate the temperature value corresponding to the thermoelectric potential generated by the thermocouple. The thermoelectric heat of the -rhodium thermocouple will increase with the increase in the temperature of the measuring end, and its size is only related to the
