DJI Neo 2 Motion - 4K 60FPS Combo

What's Included:

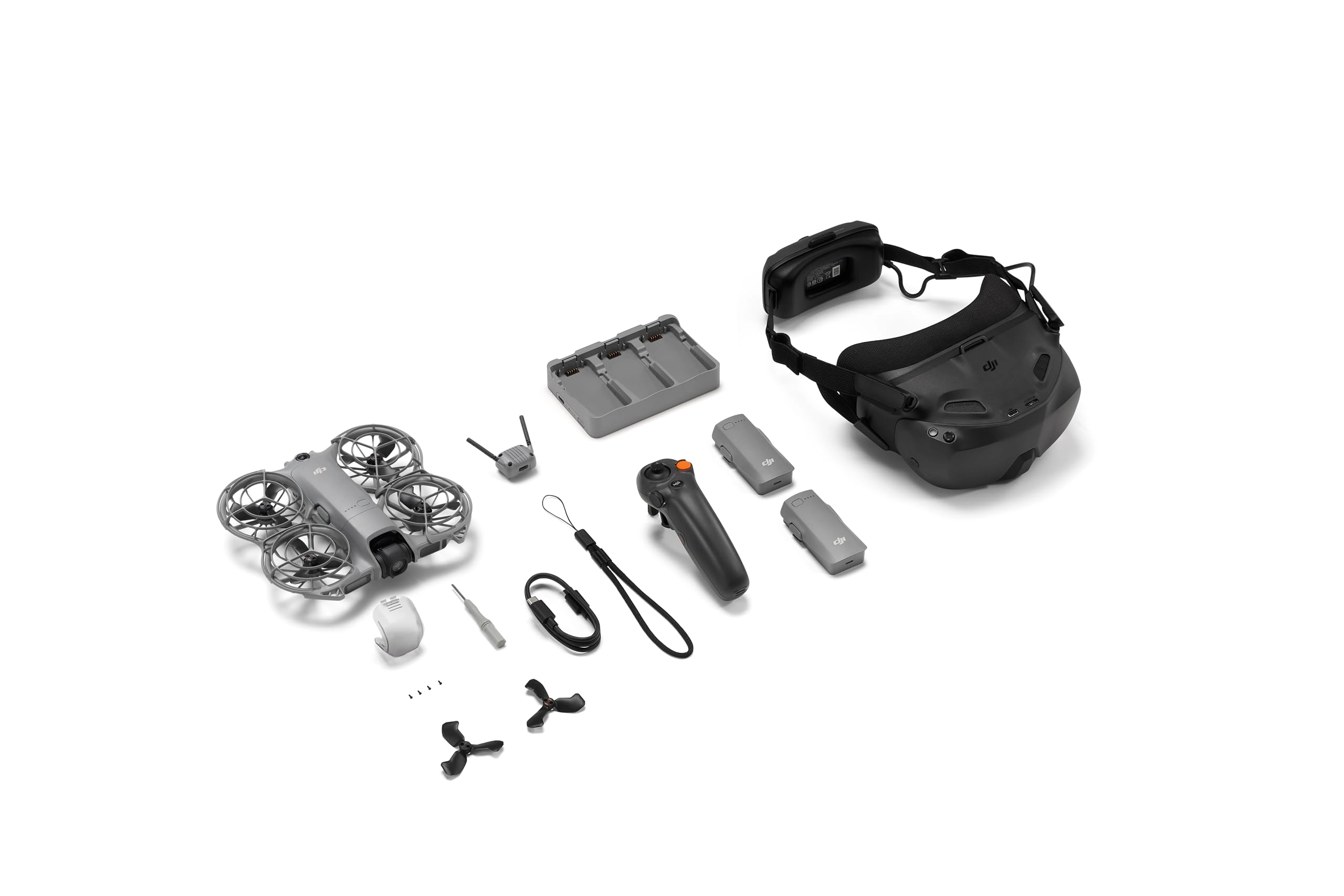

• Drone with + 2 extra battery & charging hub + Motion controller + Goggle

Specifications:

Takeoff Weight

151 g (without DJI Neo 2 Digital Transceiver) 160 g (with DJI Neo 2 Digital Transceiver) ^{The actual product weight may vary due to differences in batch materials and external factors.}

Dimensions

147×171×41 mm (L×W×H, with propeller guards and without DJI Neo 2 Digital Transceiver) 167×171×54 mm (L×W×H, with propeller guards and DJI Neo 2 Digital Transceiver)

Max Ascent Speed

0.5 m/s (Cine mode) 3 m/s (Normal mode) 5 m/s (Sport Mode) ^{Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.}

Max Descent Speed

0.5 m/s (Cine Mode) 3 m/s (Normal Mode) 3 m/s (Sport Mode) ^{Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.}

Max Horizontal Speed

8 m/s (Normal Mode) 12 m/s (Sport Mode) 12 m/s (tracking status) ^{Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.}

Max Takeoff Altitude

2000 m ^{Measured in a windless environment when taking off from an altitude of 2000 m and ascending vertically by 120 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.}

Max Flight Time

Approx. 19 minutes (approx. 17 minutes with the propeller guards)* Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession** ^{* Measured when flying forward at a speed of 4 m/s in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. ** Measured after DJI Neo 2 is activated, with a fully charged battery and default settings, and using Circle, Rocket, and Dronie modes, and is for reference only.}

Max Hovering Time

Approx. 18 minutes (16.5 minutes with the propeller guards) ^{Measured when hovering in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.}

Max Flight Distance

7 km ^{Measured when flying forward at a speed of 9 m/s in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.}

Max Wind Speed Resistance

10.7 m/s (Level 5)

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical: ±0.1 m (with vision positioning) ±0.5 m (with satellite positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with satellite positioning)

Internal Storage

49 GB

Class

C0 (EU)

Image Sensor

1/2-inch CMOS Sensor

Lens

FOV: 119.8° Format Equivalent: 16.5 mm Aperture: f/2.2 Focus: 0.7 m to ∞

ISO Range

Photo 100-3200 (Single Auto) 100-12800 (Burst Auto/Timed Auto)100-12800 (Manual) Video 100-12800 (Auto) 100-12800 (Manual)

Shutter Speed

Video: 1/8000-1/30 s Photo: 1/8000-1/10 s

Max Image Size

12 MP Photo 4000×3000 (4:3) 4000×2250 (16:9)

Still Photography Modes

Single/Timed Shot Single Shot: 12 MP Timed Shot: 12 MP, 2/3/5/7/10/15/20/30/60 s

Photo Format

JPEG

Video Resolution

Horizontal Shooting: 4K (4:3): 3840×2880@60/50/30fps 1080p (4:3): 1440×1080@60/50/30fps 4K (16:9): 3840×2160@100*/60/50/30fps 1080p (16:9): 1920×1080@100*/60/50/30fps Vertical Shooting: 2.7K (9:16): 1512×2688@60/50/30fps ^{* 4K/100fps and 1080p/100fps recording are only supported when using motion control or remote control.}

Video Format

MP4

Max Video Bitrate

80 Mbps

Supported File System

exFAT

Color Mode

Normal

EIS

Supports RockSteady and turning stabilization off.* ^{* The stabilization switch (On/Off) is only available when paired with goggles. When stabilization is turned off, footage captured supports offline stabilization with Gyroflow.}

Stabilization

2-axis mechanical gimbal (tilt, roll)

Mechanical Range

Tilt: -125° to 105° Roll: -43° to 43°

Controllable Range

Tilt: -90° to 70°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Image Roll Correction

Supports correction of footage recorded on the drone Live view correction is unavailable only when using with goggles

Sensing Type

Omnidirectional monocular vision system, paired with a downward infrared sensing system and forward-facing LiDAR

Forward

Measurement Range: 0.5-10 mDetection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 8 m/s

Backward

Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 8 m/s

Lateral

Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 8 m/s

Upward

Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 3 m/s

Downward

Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 3 m/s

Infrared Sensor

Forward-Facing LiDAR: Measurement Range: 0.3-8 m (reflectivity >10%) FOV: Horizontal 60°, Vertical 60° Downward-Facing Infrared Sensor: Measurement Range: 0.3-8 m (reflectivity >10%)

Operating Environment

Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux >5) Downward: Surfaces with discernible patterns and adequate lighting (lux >5), and surfaces that are diffusely reflective with a reflectivity above 20% (e.g., walls, trees, people).

Video Transmission System

Standard: Wi-Fi Video Transmission Optional: DJI Neo 2 Digital Transceiver (O4)

Live View Quality

With DJI RC-N3 Remote Controller: Up to 1080p/60fps With DJI Goggles N3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/100fps

Operating Frequency

2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

2.4 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 26 dBm (FCC) < 14 dBm (CE) < 26 dBm (SRRC)

Communication Bandwidth

Max 60 MHz

Max Transmission Distance (unobstructed, free of interference)

FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km ^{Measured in an unobstructed outdoor environment free of interference using the remote controller or goggles and showed the farthest communication range for one-way, non-return flights under each standard. The maximum video transmission distance in the actual flight scenarios is limited by the drone's maximum flight distance. Always pay attention to RTH reminders on the live view during your flight.}

Max Transmission Distance (unobstructed, with interference)

Strong Interference: Urban landscape, approx. 1.5-3 km Medium Interference: Suburban landscape, approx. 3-6 km Low Interference: Suburb/Seaside, approx. 6-10 km ^{Measured under FCC standard in unobstructed environments with typical interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km ^{Measured under FCC standard in obstructed environments with typical low interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Download Speed

Wi-Fi: 80 MB/s ^{Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

Lowest Latency

With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms ^{Latency data refers to the minimum delay during goggles screen refresh, measured in an open, interference‑free environment. Actual performance may vary with shooting conditions and mobile device.}

Max Video Bitrate

60 Mbps

Antenna

2 antennas, 1T2R

Protocol

802.11a/b/g/n/ac/ax

Operating Frequency

2.400 GHz to 2.4835 GHz 5.725 GHz to 5.850 GHz ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 26 dBm (FCC/SRRC) < 14 dBm (CE)

Effective Operating Range

500 m ^{Measured in an open outdoor environment free of interference. Actual video transmission distance may vary depending on the operating environment and mobile device performance. Refer to the actual experience.}

Protocol

Bluetooth 5.2

Operating Frequency

2.400 GHz to 2.4835 GHz ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

< 10 dBm

Capacity

1606 mAh

Weight

46 g

Nominal Voltage

7.16 V

Max Charging Voltage

8.6 V

Battery Type

Li-ion

Chemical System

LiNiMnCoO2

Energy

11.5 Wh

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100%When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100%^{Charging time is measured in a test environment with a temperature of 25° C (77° F). Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.}

Recommended Charger

DJI 65W Portable Charger USB Power Delivery chargers

Input

5 V, max 5 A 9 V, max 5 A 12 V, max 5 A 15 V, max 4.33 A 20 V, max 3.25 A ^{Max current depends on adapter capability.}

Output (charging)

5 V, 2 A

Charging Method

3 batteries charged simultaneously ^{The number of batteries that can be charged simultaneously depends on the power of the charger used. Using a charger rated above 45 W allows you to charge three batteries at the same time. Using a charger rated between 30 W and 45 W allows you to charge only two batteries simultaneously. Using a charger below 30 W will charge the batteries sequentially, from the highest remaining charge to the lowest. Refer to the charging protocols supported by the charger.}

Compatibility

DJI Neo 2 Intelligent Flight Battery

Recommended microSD Cards

Does not support storage expansion with an external SD card

Max Operating Time

Without charging any mobile device: 3.5 hours When charging a mobile device: 1.5 hours

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

2 hours

Charging Method

5 V, 2 A

Battery Capacity

2600 mAh

Weight

Approx. 320 g

Dimensions

104.2×150×45.2 mm (L×W×H)

Operating Frequency

2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC)
